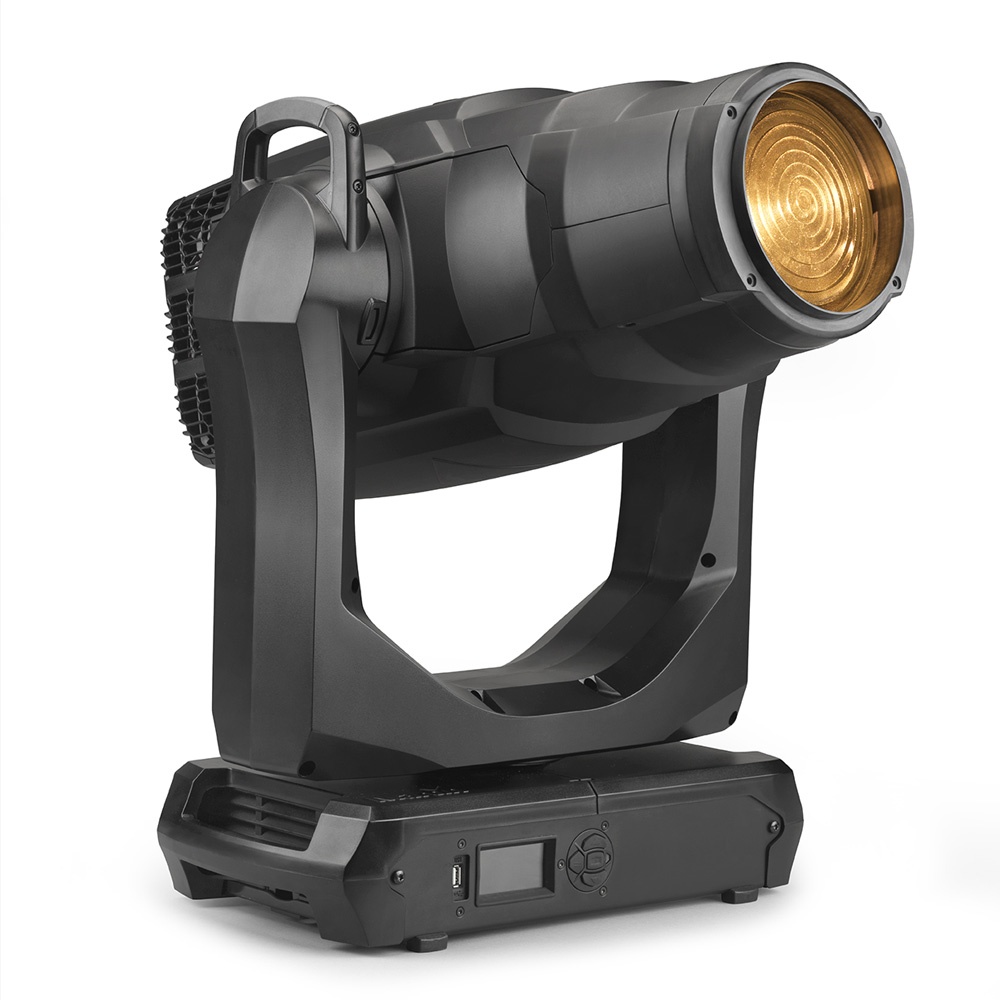

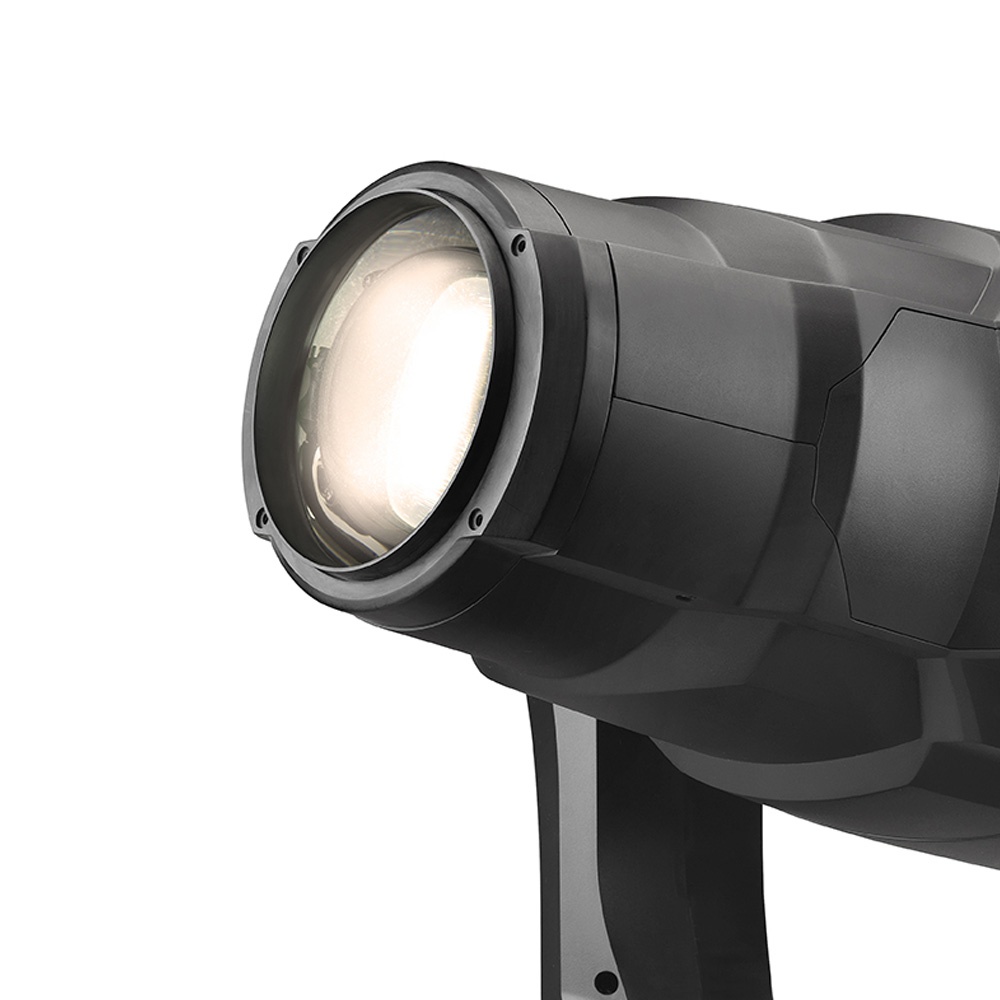

Designed to produce rich color and premium white light in a wide variety of applications where light quality is critical, the MAC Encore™ Wash WRM is a perfect, LED-based, replacement for the much-loved, discontinued MAC TW1. The feature-packed soft edge moving head offers unparalleled 3000 K warm tungsten emulation that truly challenges the output quality of a real incandescent light source, and doubles as a modern replacement for generic fixtures like tungsten based Fresnel fixtures, with the additional benefit of color mixing and movement.
• Unparalleled 3000 K warm white light quality
• Super silent cooling and effects operation
• Best-in-class size/weight/performance ratio
Features
Pure white LED engine with 3000 K CCT.
No color temperature variation during zoom and dimming.
Flicker-free operation—LED driver frequency suitable for all camera applications.
Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
Vibrant CMY color mixing with a superior palette of colors ranging from rich, saturated primary colors to light and smooth pastel shades.
Variable CTB—tungsten to daylight CCT control and expansion of the CMY palette that stays true to the black body curve.
Color wheel—6 interchangeable dichroic filters + open.
|

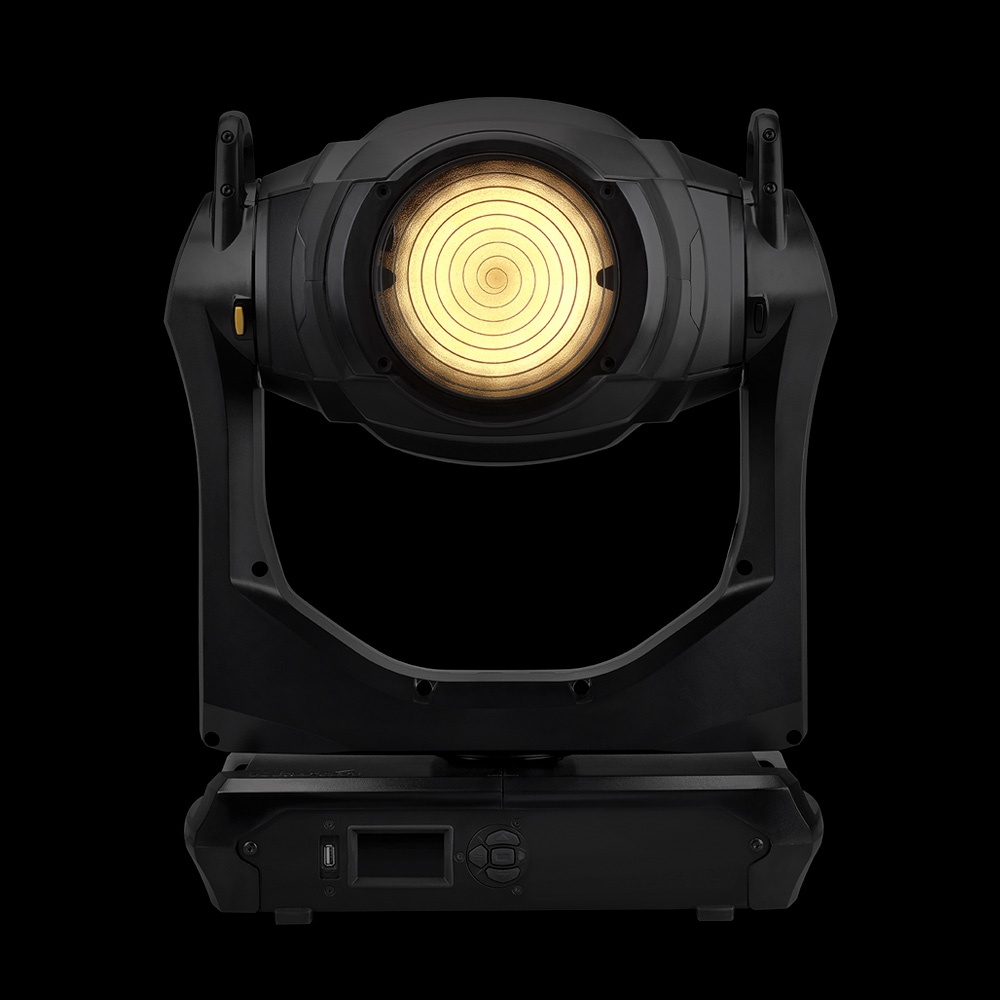

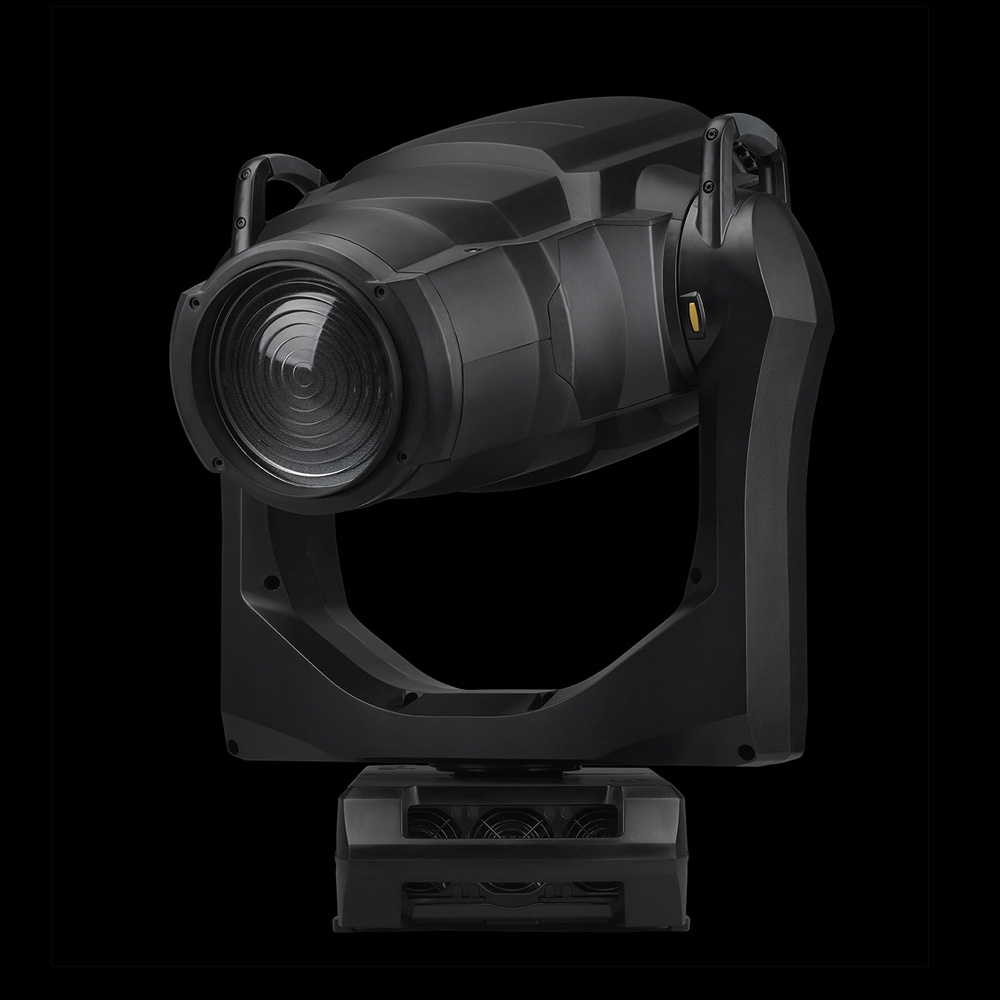

Fresnel lens: | 1 | 4 zoom—precise, silent and fast zoom. |
|
PC lens (optional): | 1 | 5 zoom—precise, silent and fast zoom. |
Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.
Precise and tight iris with adjustable dynamic effects.
Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.
Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.
|
Compact size—L: | 452 x W | 480 x H | 745 mm / L | 17.8 x W | 18.9 x H | 29.3 in. |
Low weight—28.5 kg/62.9 lbs

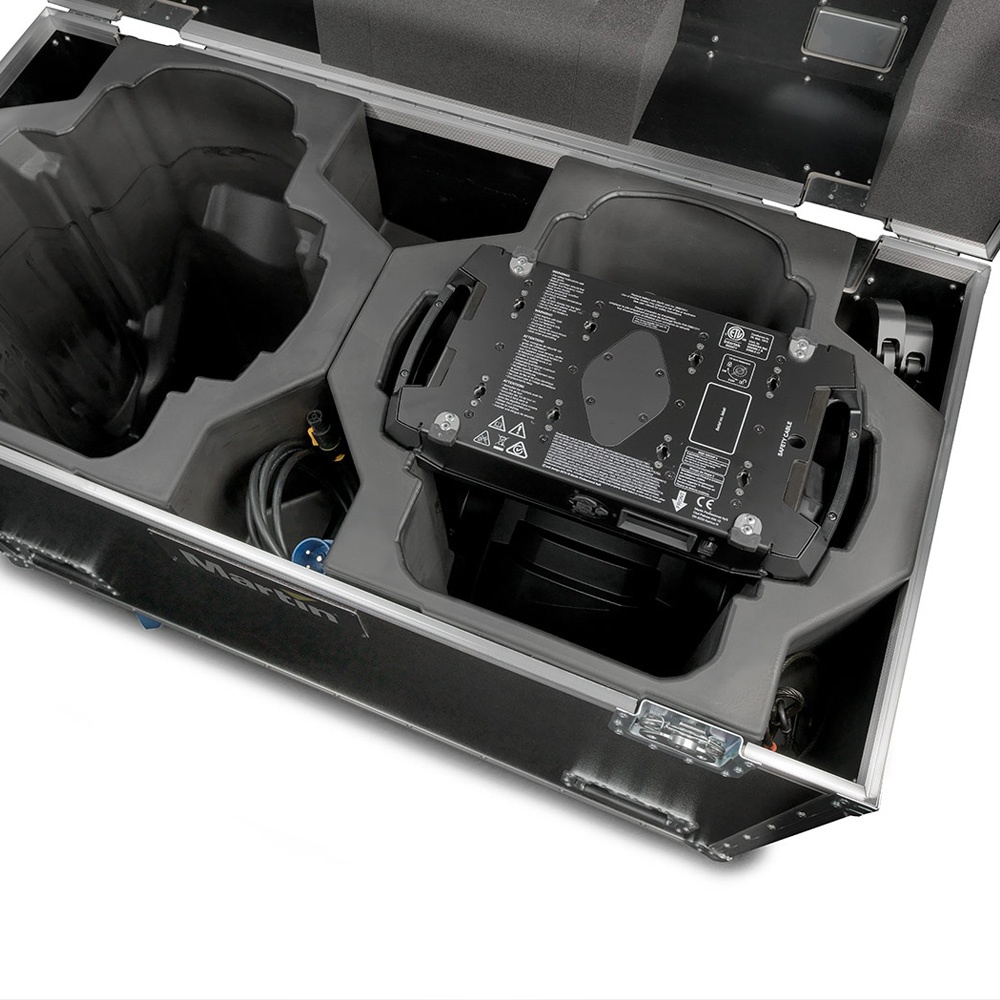

Foam rubber (SIP) flight case insert for secure shipment.
Tech Specs
Physical
|
Length: | 452 mm (17.8 in.) |
|
Width (across yoke): | 480 mm (18.9 in.) |
|
Height (maximum): | 755 mm (29.8 in.) |
|
Height (head straight up): | 745 mm (29.4 in.) |
|
Weight: | 28.5 kg (62.9 lb.) |
|
Minimum center-to-center distance in side-by-side installation: | 730 mm (28.8 in.) |
Dynamic Effects
|
Color mixing: | CMY, independently variable 0 - 100% |
|
Color temperature control: | Variable 3000 - 7000 K |
|
Color wheel: | 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color |
|
Barn doors: | Internal, two blades with individually controllable insertion, +/- 100° module rotation |
|
Iris: | Variable 0 - 100% |
|
Dimmer/shutter: | 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout |
|
Dimming options: | Choice of four dimming curves |
|
Pre-programmed effects: | Two ranges of FX, independent or synchronized/combined |
|
Focus: | Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity |
|
Zoom: | MotorizedPan | 540°Tilt | 268° |
|
Position correction system: | Absolute position monitoring |
Control and Programming
|
DMX channels: | 24 |
|
Setting and addressing: | Control panel with backlit graphic display and jog wheel or via DMX16-bit control | Dimming, pan and tilt |
|
Movement control options: | Tracking and vector |
|
Fixture identification: | User-settable ID numberDMX compliance | USITT DMX512-A |
|
RDM compliance: | ANSI/ESTA E1.20 |
|
Transceiver: | Opto-isolated RS-485 |
|
Fixture software update: | USB memory device or over DMX link |
Optics
|
Light source: | 3000 K white LEDs |
|
Total LED engine power: | 468 W |
|
Minimum LED lifetime: | 50 000 hours (to >80% luminous output)* |
|
Zoom range with Fresnel lens (standard): | 14° - 60° one-tenth peak (1 | 4) |
|
Zoom range with PC lens (optional): | 11° - 58° one-tenth peak (1 | 5) |
*Figure obtained under manufacturer's test conditions
Photometric Data
|
Light engine luminous output: | ≥ 31 500 lumens |
|
Fixture luminous output with Fresnel lens (standard): | 8500 lumens |
|
Fixture luminous output with PC lens (optional): | 9500 lumens |
|
CRI (Color Rendering Index): | >90 |
|
CQS (Color Quality Scale): | >90 |
|
TM-30 Rf (IES TM-30-15 Fidelity Index): | >90 |
|
TM-30 Rg (IES TM-30-15 Gamut Index): | >98 |
|
TLCI (Television Lighting Consistency Index): | >90 |
Construction
|
Color: | Black |
|
Housing: | High-impact flame-retardant thermoplastic |
|
Protection rating: | IP20 |
Installation
|
Mounting points: | 4 pairs of 1/4-turn locks |
|
Location: | Dry location only, must be fastened to surface or structure |
|
Orientation: | Any |
|
Minimum distance to combustible materials: | 0.2 m (8 in.) |
|
Minimum distance to illuminated surfaces: | 2.0 m (6.6 ft.) |

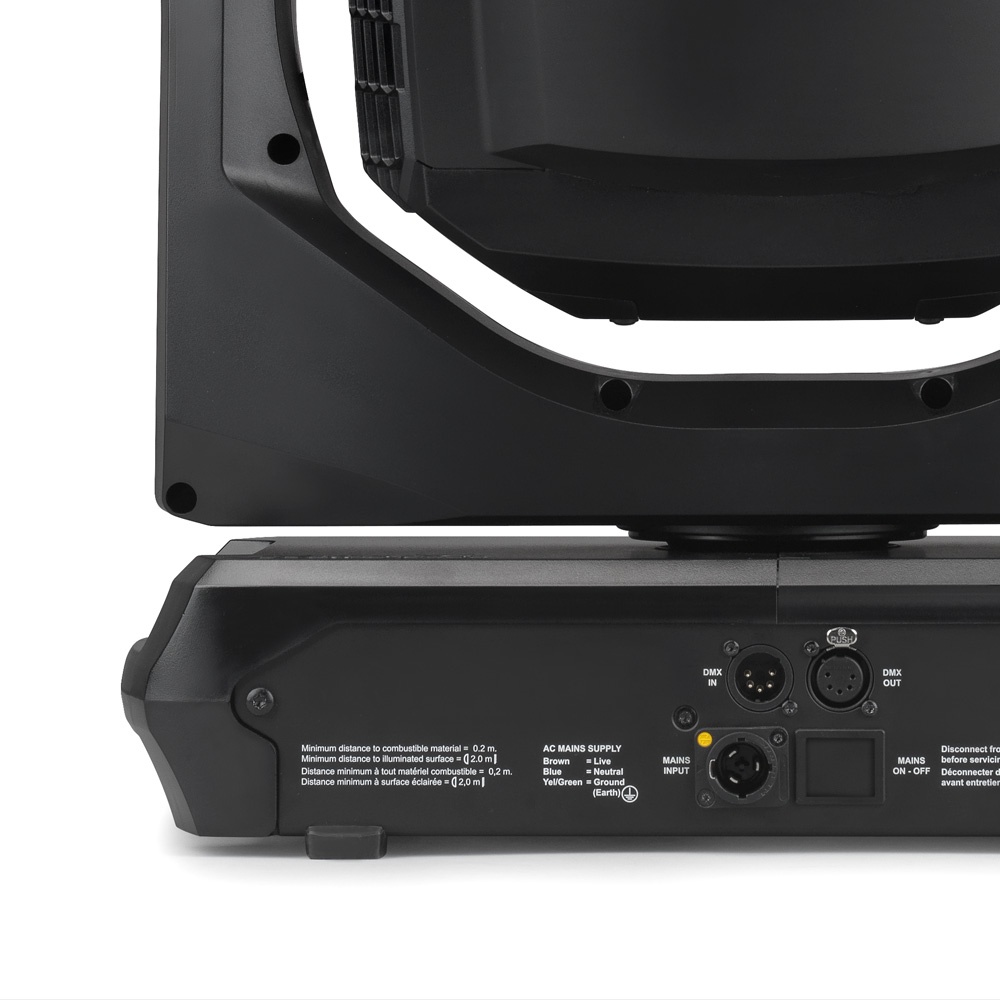

Connections
|
AC power input: | Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector) |
|
DMX and RDM data in/out: | 5-pin locking XLR |
Electrical
|
AC power: | 120-240 V nominal, 50/60 Hz |
|
Power supply unit: | Auto-ranging electronic switch-mode |
|
Power consumption, all effects static, zero light output: | 64 W |
|
Half-cycle RMS inrush current at 230 V, 50 Hz: | 10.3 A |
Typical Power and Current
|
120 V, 60 Hz: | 5.0 A, 596 W, PF 0.998 |
|
208 V, 60 Hz: | 2.9 A, 581 W, PF 0.988 |
|
230 V, 50 Hz: | 2.6 A, 580 W, PF 0.981 |
|
240 V, 50 Hz: | 2.2 A, 585 W, PF 0.979 |
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity.Allow for a deviation of +/- 10%.PF = power factor
Thermal
|
Cooling: | Combined convection and forced air (temperature-regulated, low noise, user-definable levels) |
|
Maximum surface temperature, steady state, Ta=40° C: | 75° C (167° F) |
|
Maximum ambient temperature (Ta max.): | 40° C (104° F) |
|
Minimum ambient temperature (Ta min.): | 5° C (41° F) |
|
Total heat dissipation (calculated, +/- 10%): | 2000 BTU/hr. |
Catalog.Nr.90234025
