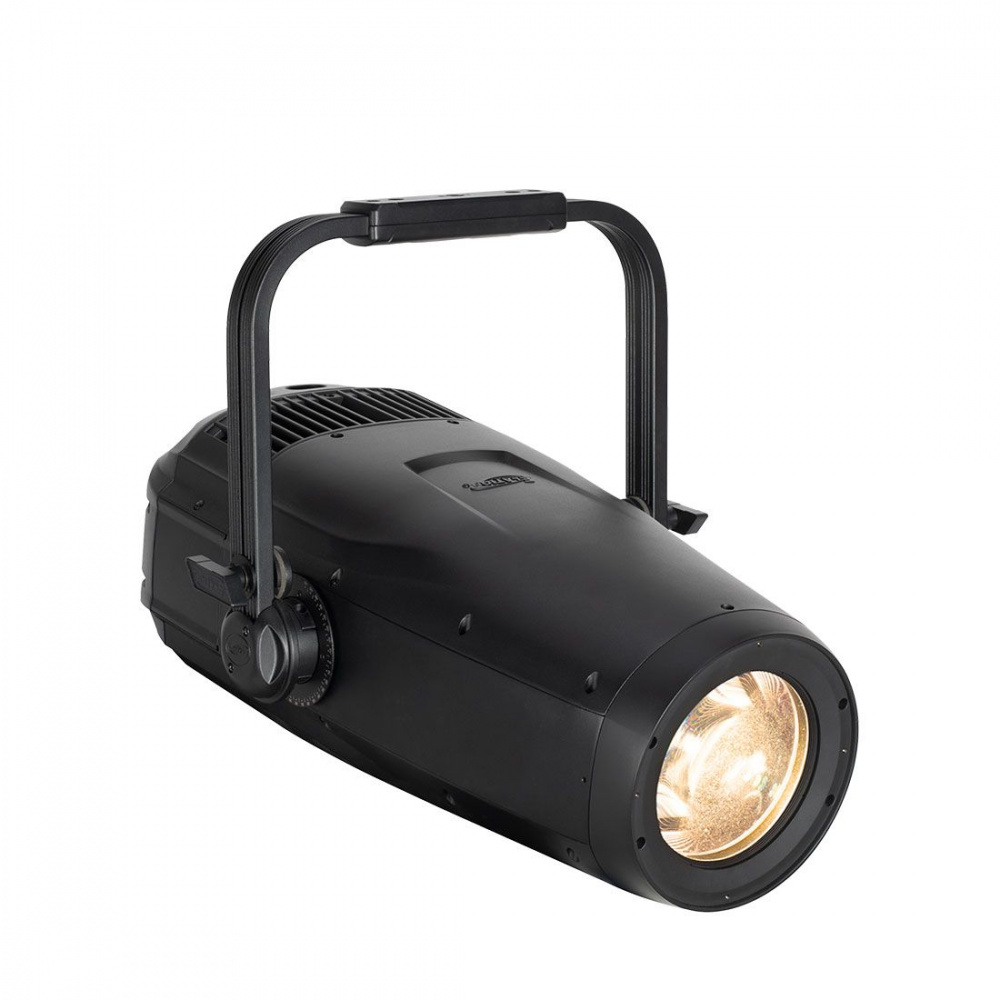

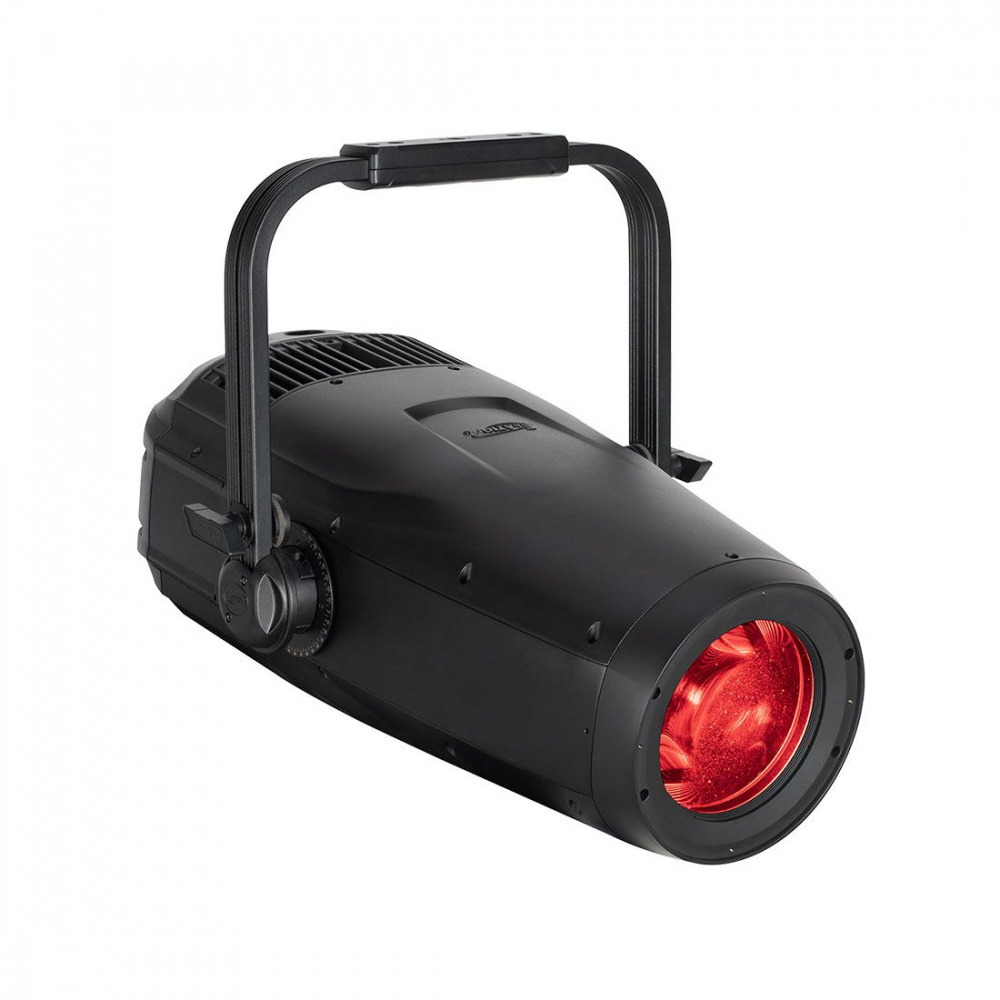

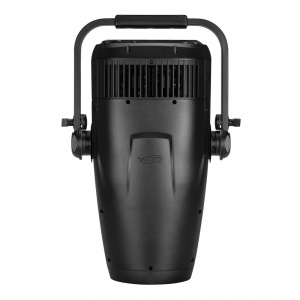

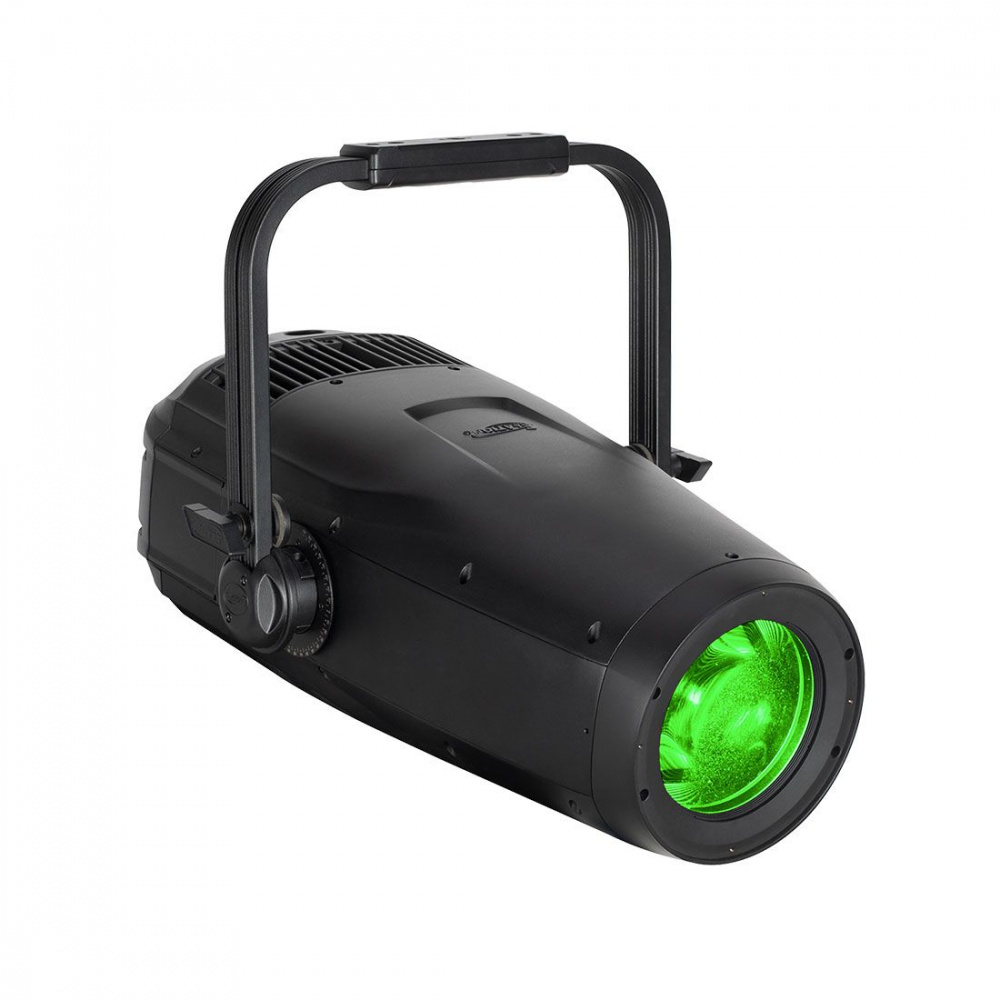

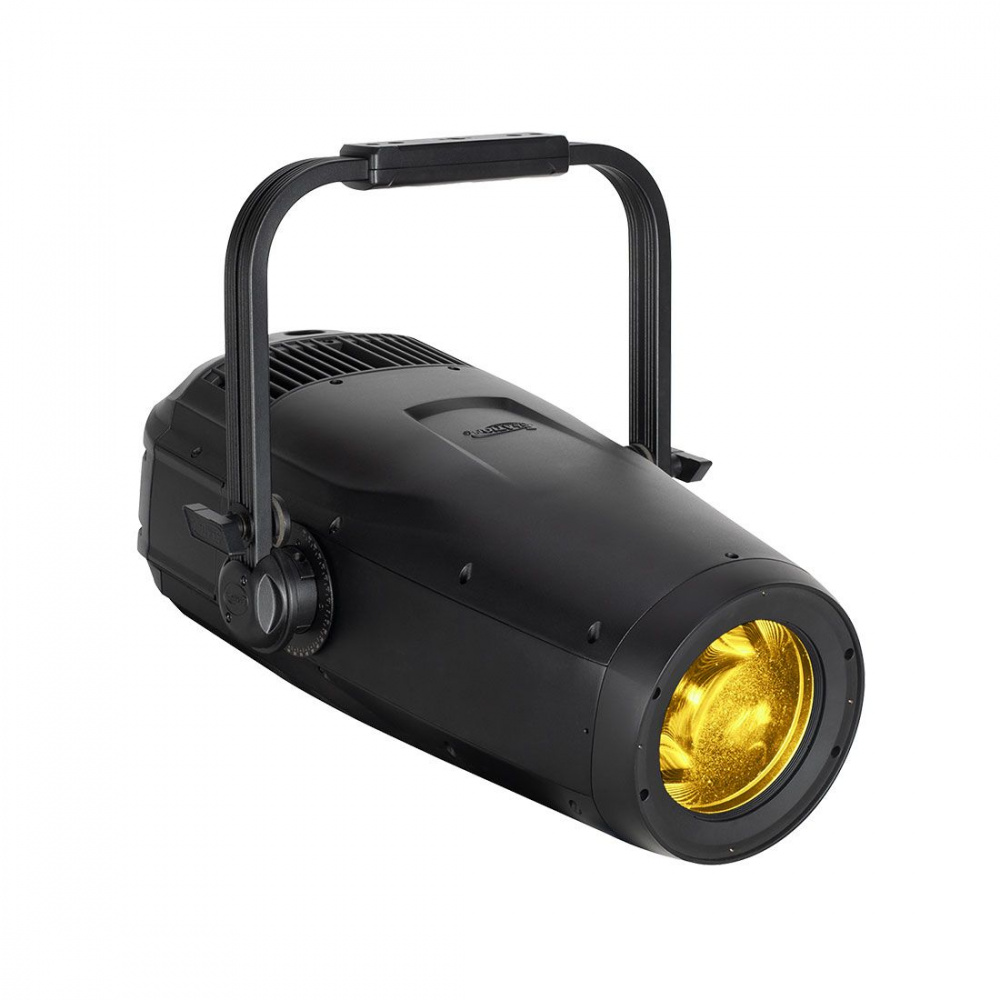

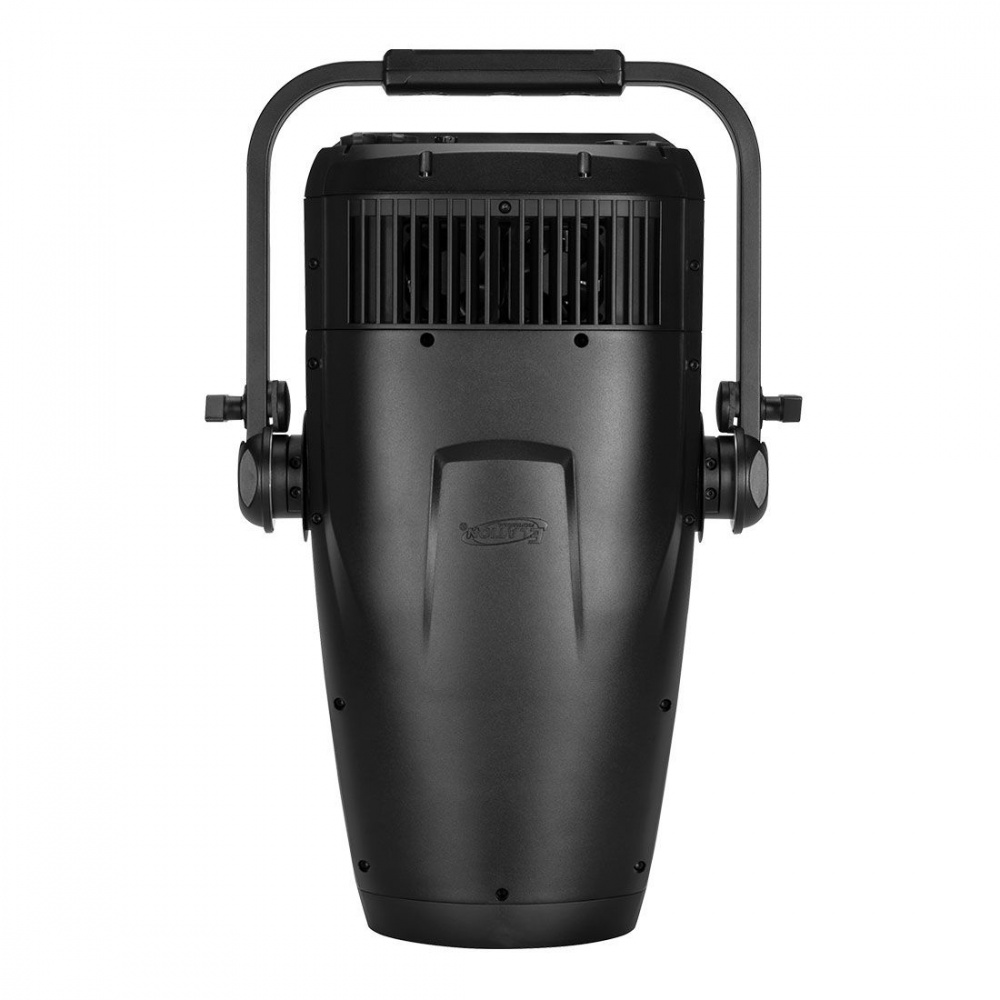

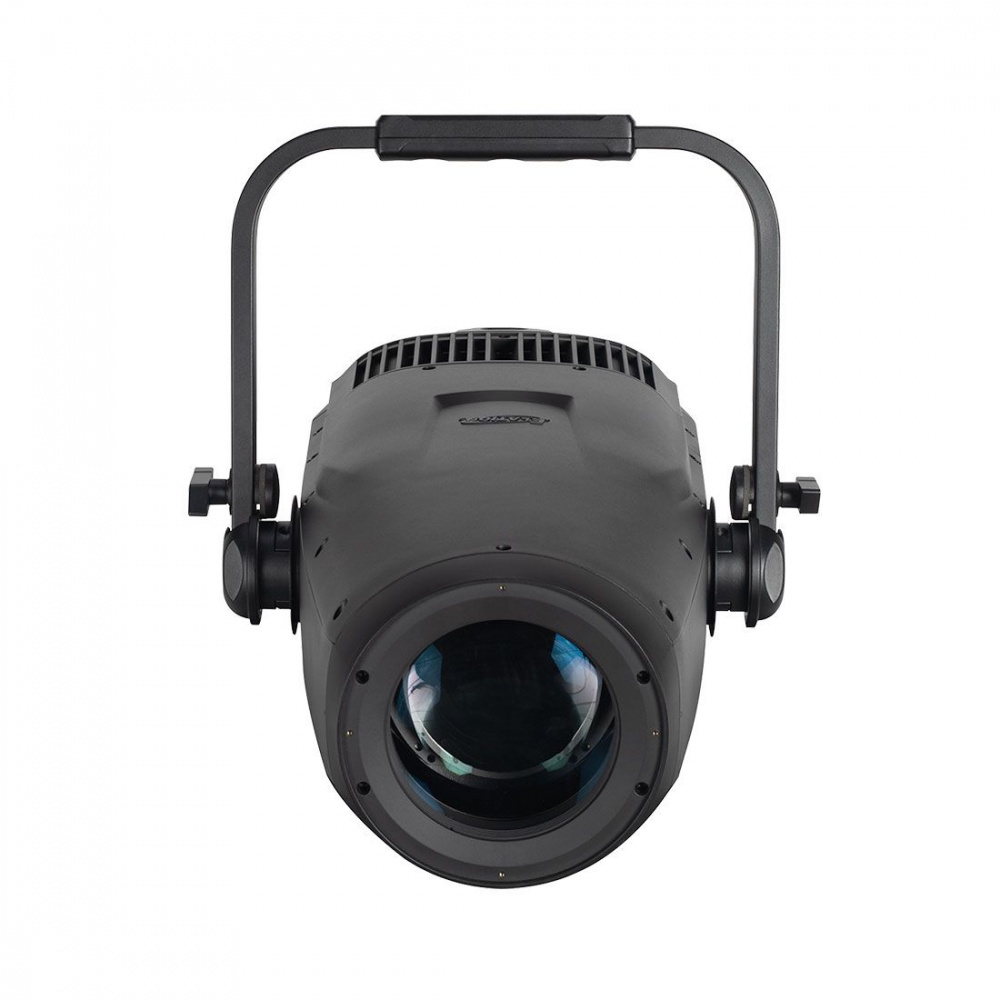

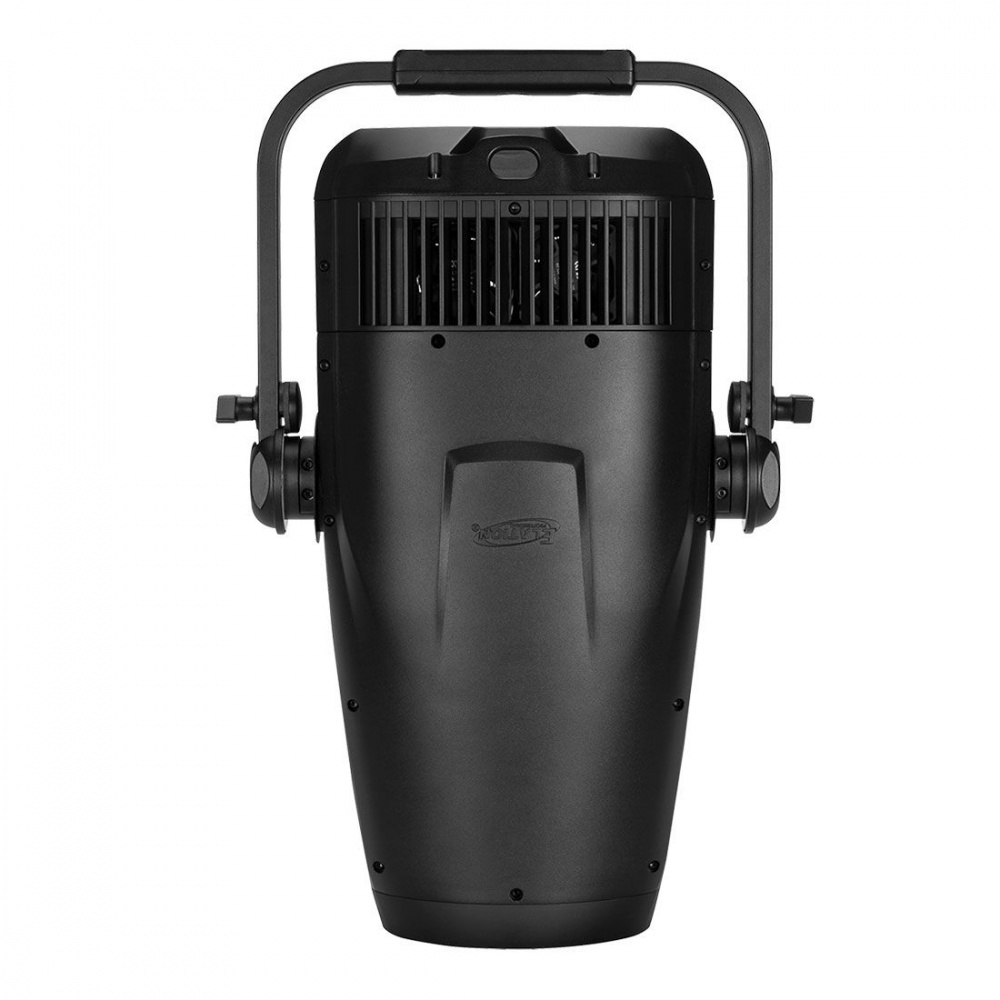

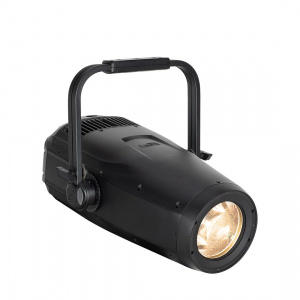

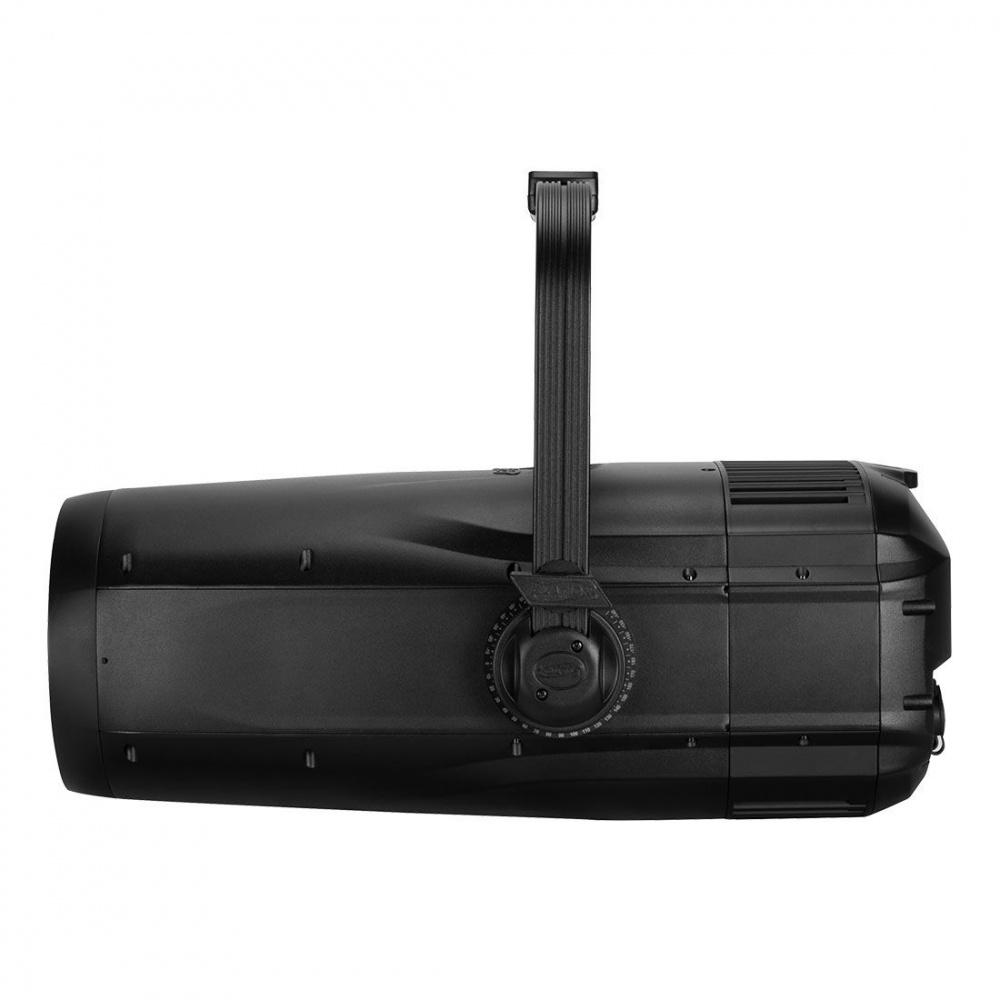

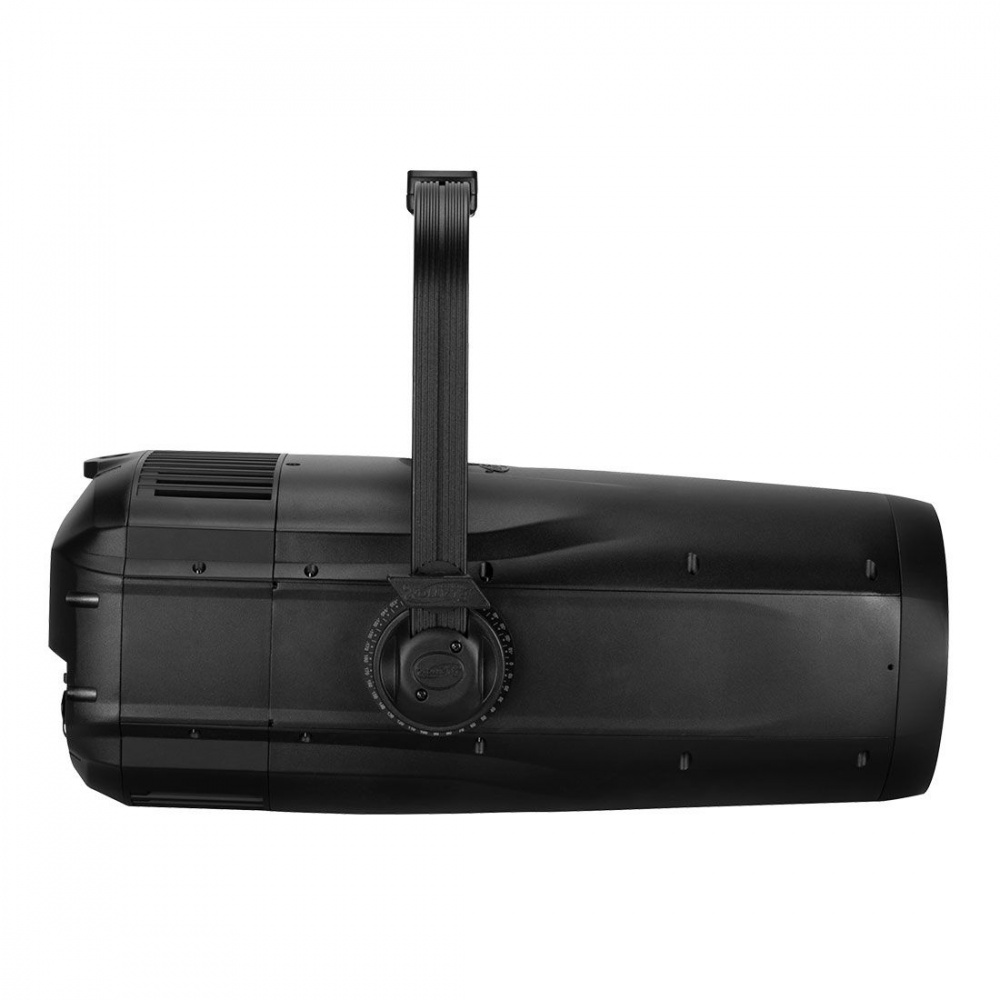

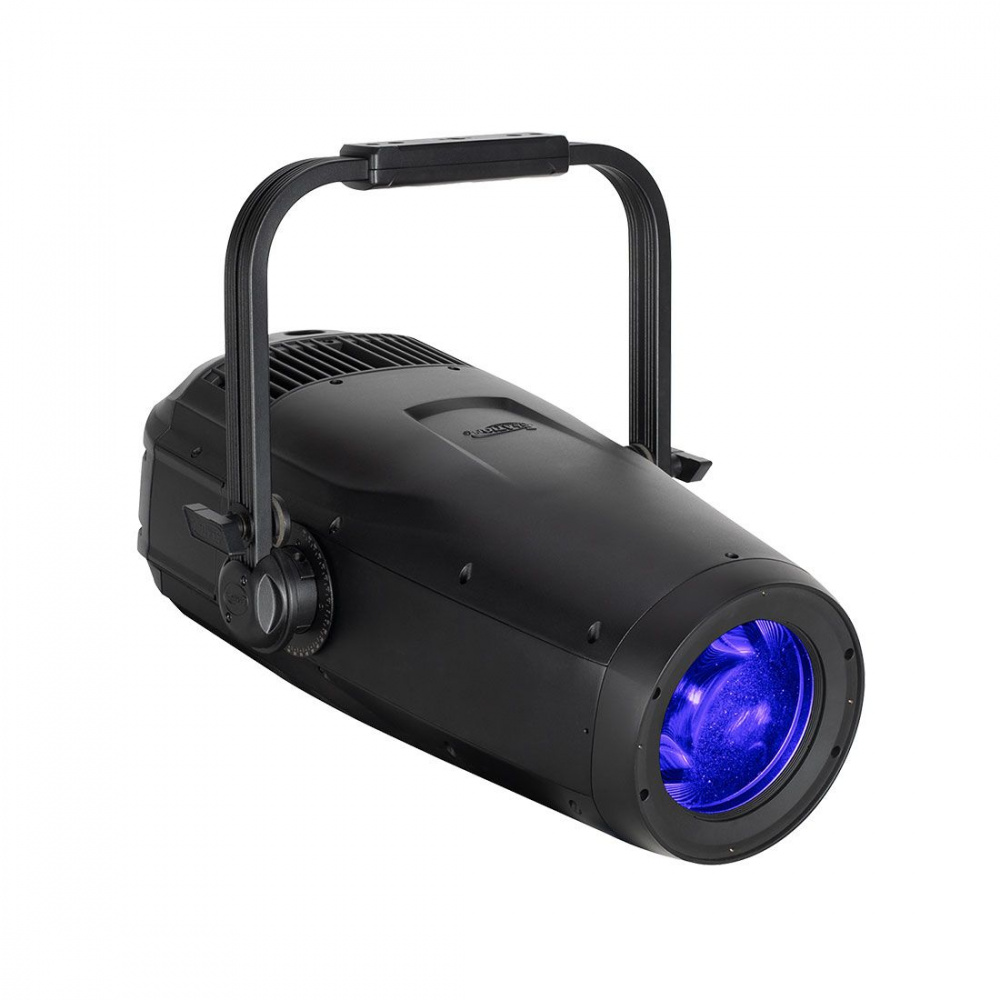

The KL SPOT IP™ is an IP65 static LED spot fixture designed for a wide array of precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment provide the designer with immediate access to the impressive LED color array.
The KL SPOT IP is designed for any application where fully automated static ellipsoidal fixture with outstanding and impactful color range and a flexible zoom range is required. The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus, or framing positions.
A rotating gobo wheel, fixed gobo wheel, animation wheel, frost and dual prism round out its comprehensive feature set in a compact IP65 rated fixture.
The optional framing module enhances the fixtures capabilities further with full blackout framing shutters, framing indexing and a motorized iris.
FEATURES
• Static full featured automated IP65 spot fixture
• Extended color RGBMA LED Engine, 92 CRI
• Rotating and Fixed Gobos plus Animation Wheel
• Dual Prisms and Frost
• Wide Zoom Range from 7° to 50°
• Optional Motorized Framing/Iris Module
//◘ SOURCE
• 305W 6,500K RGBMA LED Engine
• 30,000 Hour Average LED Life
//◘ PHOTOMETRIC DATA
• 10,600 Total Lumen Output
• CRI 92
• Zoom Range 7° - 50°
//◘ EFFECTS
• Motorized Zoom
• Variable Frost Filter
• 4 Facet Round, 4 Facet Linear Prism
• Variable 16-bit Dimming Curves
• High Speed Electronic Shutter and Strobe
• Optional Framing/Iris Module
//◘ COLOR
• RGBMA Color Array
• CMY and RGB Emulation Modes
• Virtual Color Correction 2400K - 8500K
• Green/Magenta Shift
• Virtual Gel Swatch Book

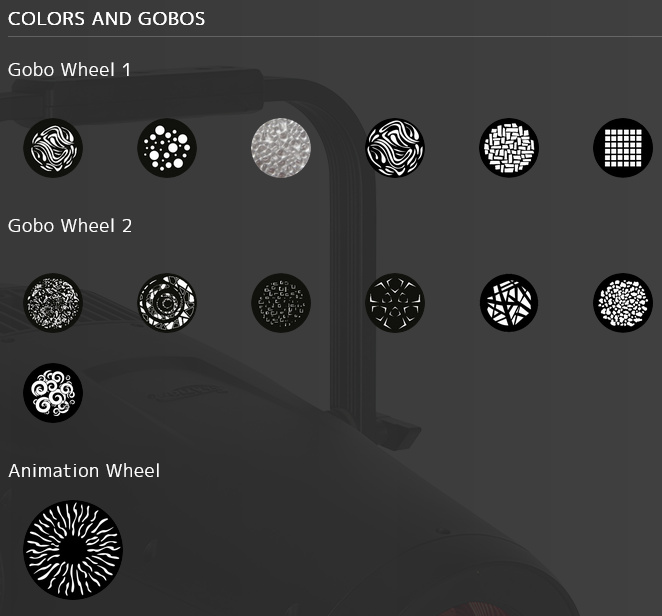

//◘ GOBOS
• 1x 6 Rotating / Indexing Glass Gobos
• 1x 7 Fixed Glass Gobo
• Animation Wheel
//◘ CONTROL / CONNECTIONS
• 6 DMX Channel Modes (24/32) RGB or CMY (22/28)
• 6 DMX Channel Modes (Framing) (34/50) RGB or CMY (32/46)
• 16-bit Dimming Control
• DMX Adjustable LED Frequency
• DMX, RDM Protocol Support

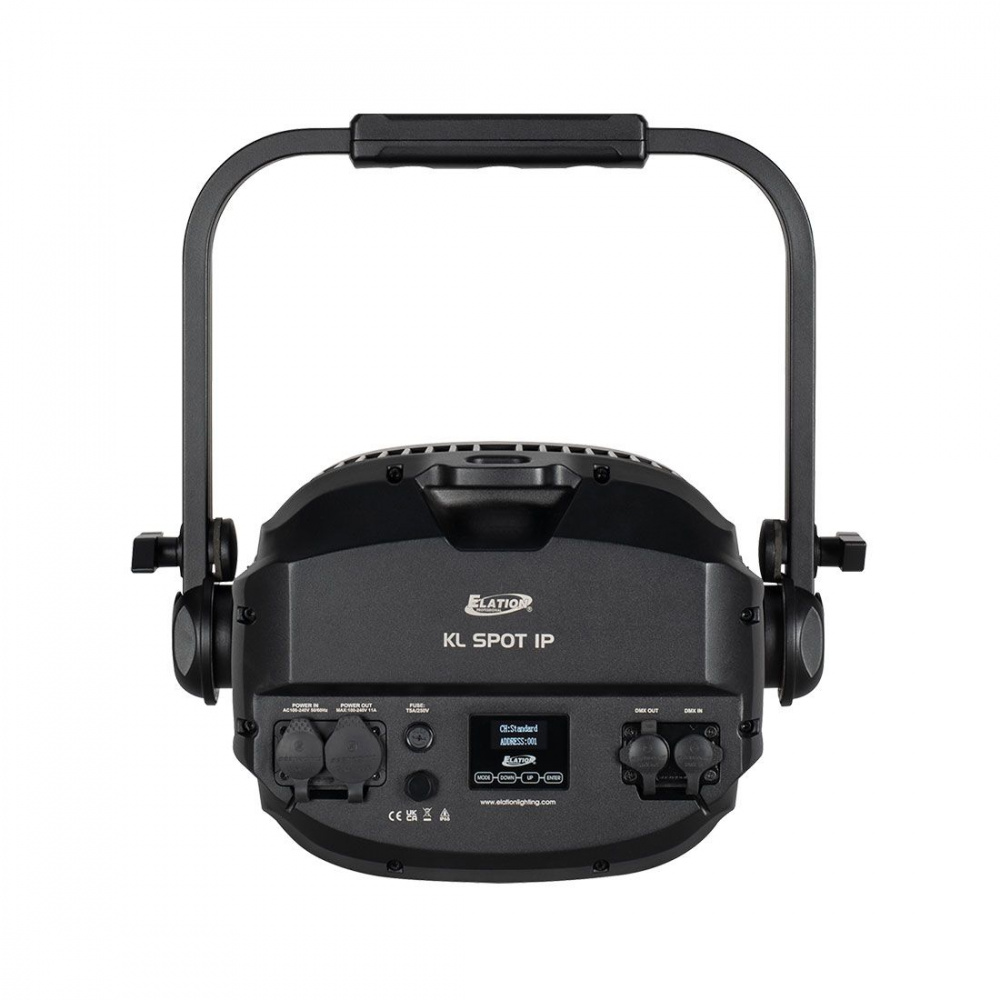

• 4 Button Touch Control Panel
• IP65 5pin DMX In/Out
• IP65 Locking Power Cable In/Out
//◘ SIZE / WEIGHT
|
• Length: | 559.2mm (23.6”) |
|
• Length (Yoke 0°): | 662.9mm (26.1”) |
|
• Width: | 445.5mm (17.5”) |
|
• Height (Fixture Body): | 242.0mm (9.5”) |
|
• Height (Yoke 90°): | 442.5mm (17.4”) |
|
• Weight: | 23.1kg (50.9 lbs) |
|
• Weight (with Framing Module): | 25kg (55.1lbs) |
//◘ ELECTRICAL / THERMAL
• AC 100-240V - 50/60Hz
• 448W Max Power Consumption
• -10°C to 45°C (14°F to 113°F)
• BTU/hr (+/- 10%) 1406.7
//◘ INCLUDED ITEMS
• IP65 Locking Power Cable
//◘ OPTIONAL ITEMS
• Motorized Framing and Iris Module
