The new Axcor 300 family of moving LED fixtures brings Claypaky’s no-compromise quality and performance to the broad mid-market. The quality of their effects, their construction, and their high light output derive from the high-end products Claypaky specializes in.

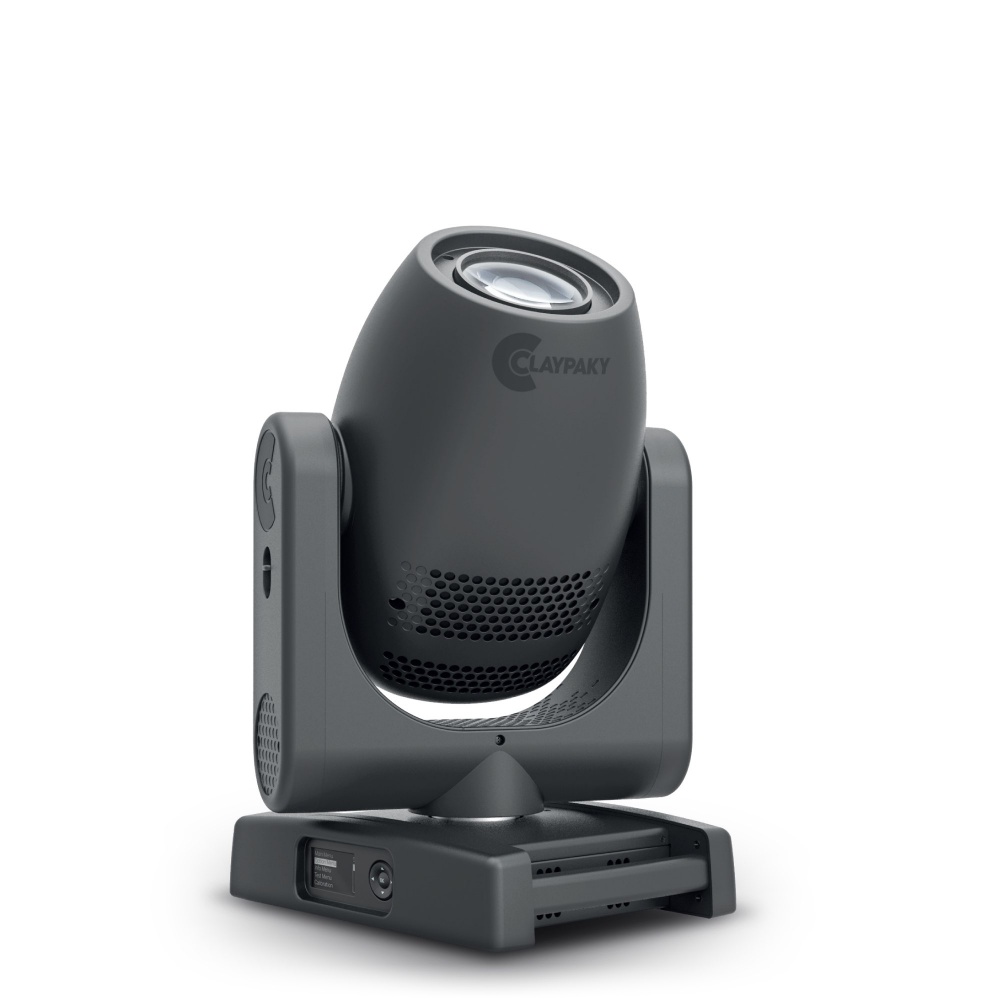

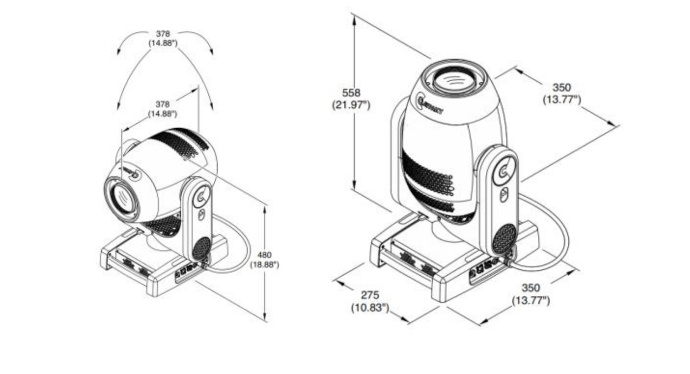

The Axcor Spot 300 has 17 gobos on 2 wheels, including 7 high quality dichroic rotating gobos. Weighing just 20 Kg and measuring a little over 500 mm, this unit incorporates features that are not often found in models of this size, like a rotating prism, a motorised iris, a soft edge filter, a 16-bit dimmer, and a 8-40° zoom.
It boasts cutting- edge electronic and software technology, with all the features that enable optimal fixture management and maintenance over time.With a price-point, physical size and power consumption that disguise its strength and creative potential, the Axcor Spot 300 enables a new world of expression in touring, events, TV, theatre and installed lighting markets.
LIGHT SOURCE TYPE
180W White LED engine
|
Colour Temperature: | 7000K |
|
Lamp life expectancy: | 20000hrs |
*It may vary depending on various factors, as type of use and environment
PHOTOMETRIC DATA
8°-40° linear zoom
Motorised focus lens
High efficiency optical system
CONTROL and CONNECTIONS
DMX 512 control channels 23
Control signal USITT DMX 512
Protocols RDM, Artnet, sACN, WebServer
Display Graphic LCD backlit b/w Display
Display battery self-charging buffer battery
16-bit Electronic Dimmer with 4 curves
Electronic strobe@24 f/sec
Pan/Tilt Resolution 16 bit
Dimmer Resolution 16 bit
DMX signal connection 5 pole XLR input and output
DYNAMIC EFFECTS
CMY System
One color wheel with 7 colors (including 1 CTO filter)
One wheel with 7 rotating gobos
One wheel with 10 fixed gobos
Rotating 4-facet prism
Mechanical Iris
Frost filter
|
Movement: | - Tilt | 270° - 16bit - Pan | 540° - 16bit |
Automatic repositioning
Mechanical Pan/Tilt lock for safe transportation and maintenance
|
Beam: | Motorized Zoom and Focus |
|
Dimmer/Shutter: | 16-bit Electronic Dimmer with 4 curves |
Shutter and Strobe effect
HARDWARE and SOFTWARE
Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
Electronic monitoring with status error
Remote access through RDM
CloudIO compatibility
Long life self-charging buffer battery
Function reset from the lighting desk
“AUTOTEST” function from menu
Cooling system monitoring
Protoc
| ols/Functions: | RDM, Artnet, sACN, Web Server |
HOUSING
Aluminum and steel structure with plastic covers
Two side handles for transportation
IP20 protection rate
WORKING POSITION
Working in any position
|
Hanging system: | with fast-lock omega clamps (1/4 turn) on the base |
Optional safety chain
ELECTRICAL
|
Operating Voltage: | 100-240V, 50/60 Hz |
|
Power Supply: | Electronic auto range with active PFC |
|
Max Power consumption: | 340VA |
THERMAL SPECIFICATION
Max ambient temperature 40°C (104°F)
Max temperature of the external surface 90°C (194°F)
SAFETY SPECS
Minimum distance of illuminated objects 3 meters (9’ 10”)
Minimum distance from flammable materials 0.2 meters (8”)
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
COMPLIANCE
|
CE marking: | In conformity with the European Directives | |
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
|
UKCA: | conforms to UK legislation |
cMETus Listed
PACKAGING
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (2 positions)
WEIGHT
20.2 Kg (44.53 lbs)
ACCESSORIES
|
Omega clamps: | 2x183102/805 (included) |
|
Power cord: | CAB02B/802 (included) |
|
Foam shell: | F21304/001 (optional) |
|
Flight case 2 positions: | F21307 (optional) |
|
Safety Chain: | 105041/003 (optional) |
