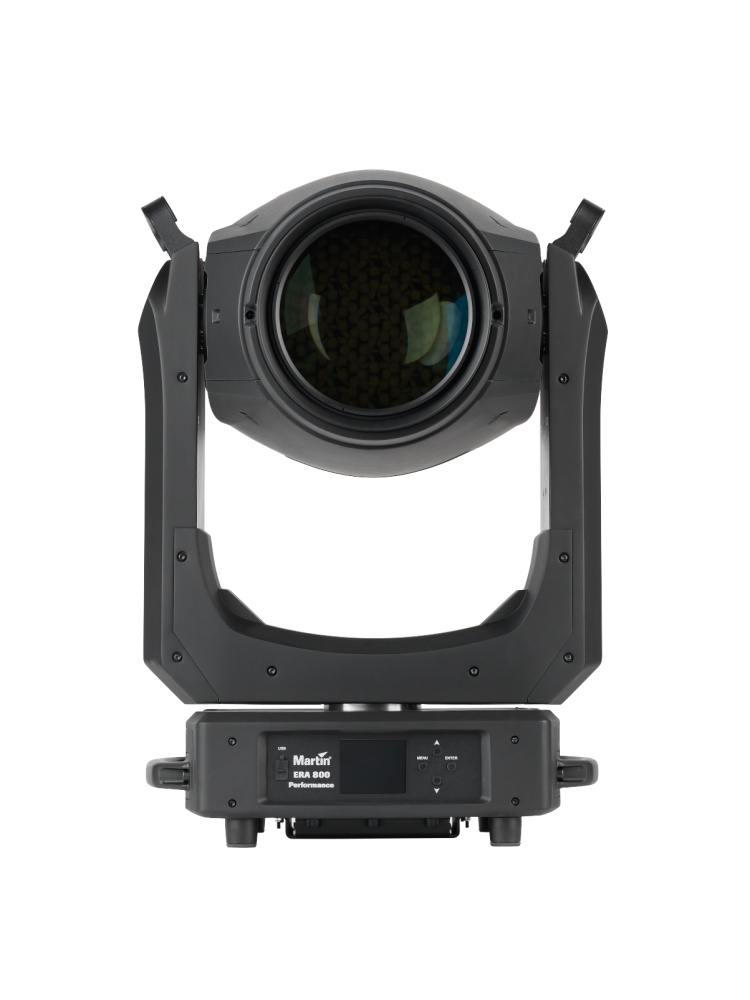

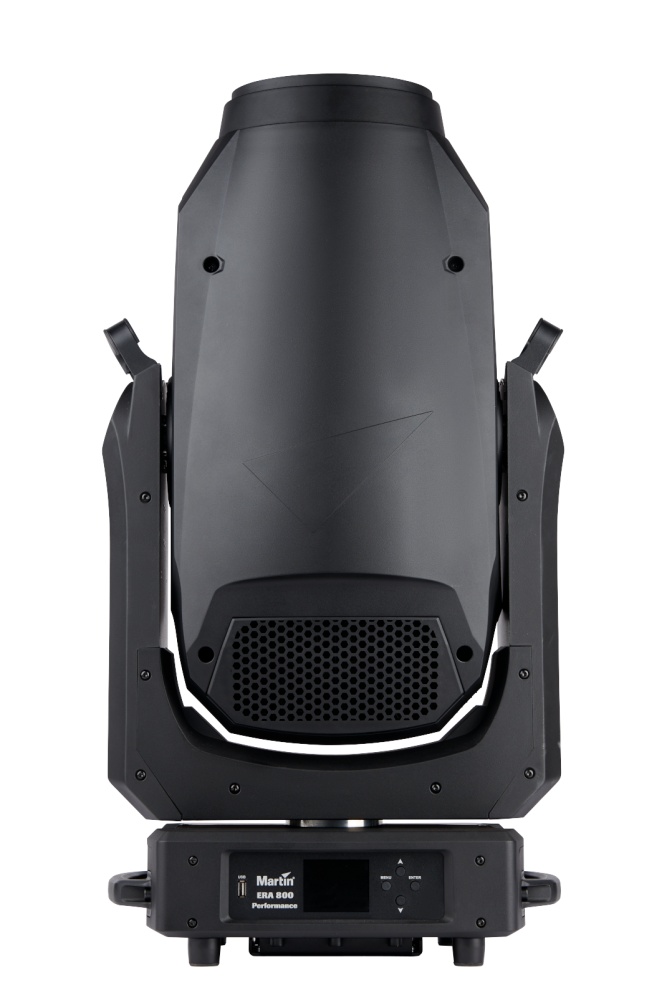

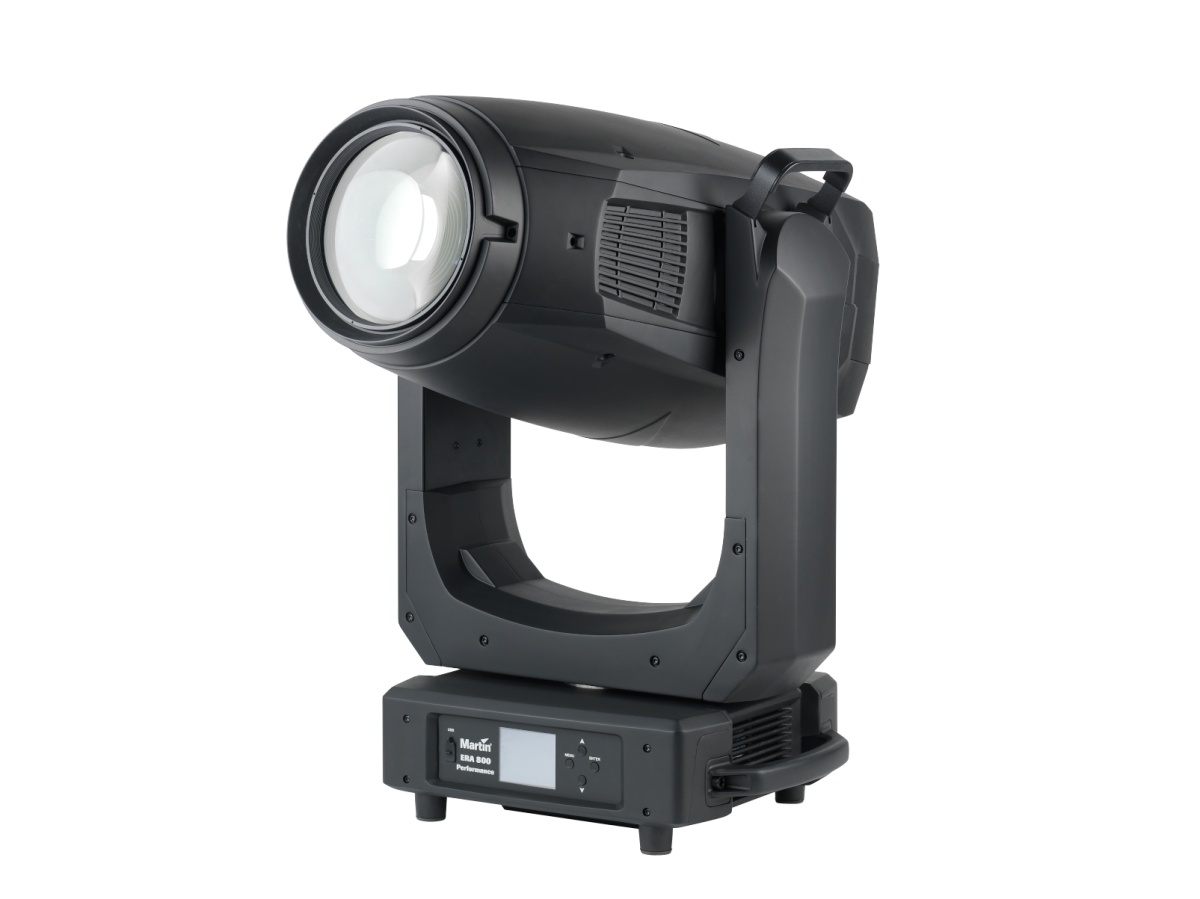

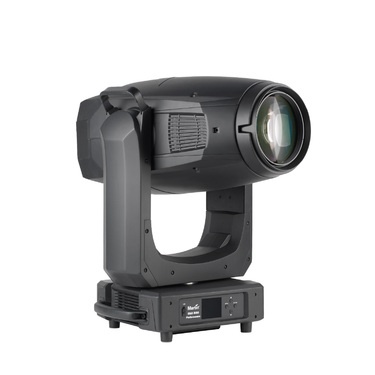

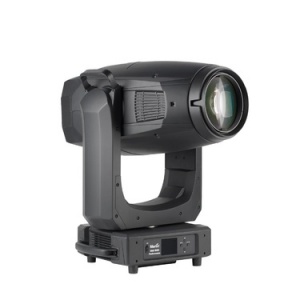

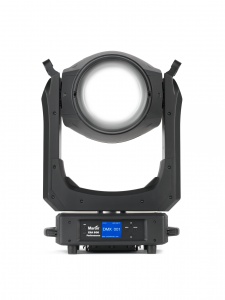

Martin ERA 800 Performance
Dizajnovaný splniť požiadavky na ultra-ľahkú, kompaktnú, túro-hodnú pohyblivú hlavu, Martin ERA 800 Performance kombinuje mnoho funkcií, odolnosť a cenovú efektivitu pre mnoho aplikácií.
Obsahuje vysoko efektívne, super-jasné 800W biele LED, ktoré produkujú jasné, ostré 6500K gobo projekcie. Ďalšie benefity zahŕňajú 1:8 zoom, elektronické stmievanie a stroboskop, plné CMY farebné mixovanie a separátne farebné kolečko, nastavitelná kontrola teploty, animačné kolečko, clonu pre nastavenie lúča a pevné aj rotujúce gobo kolečká, naložené obľúbenými gobami z Martin MAC sortimentu, ktoré zahŕňajú široký rozsah efektov.
Designed to fulfill the demand for an ultra-bright, compact, tour-worthy moving head, the Martin ERA 800 Performance combines a feature-loaded, rugged, yet cost-efficient profile for entertainment and rental applications.
It features a highly efficient, super-bright 800W white LED engine that produces a bright, sharp 6,500K gobo projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, full CMY color mixing and separate color wheel, variable color temperature control, animation wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the two included rotating prisms and soft and heavy frost filters.
FEATURES
Bright 800 watt / 6,500K LED light source
34,000 lumen output
Crisp optics with flat field
Fat beam look with 160 mm front lens

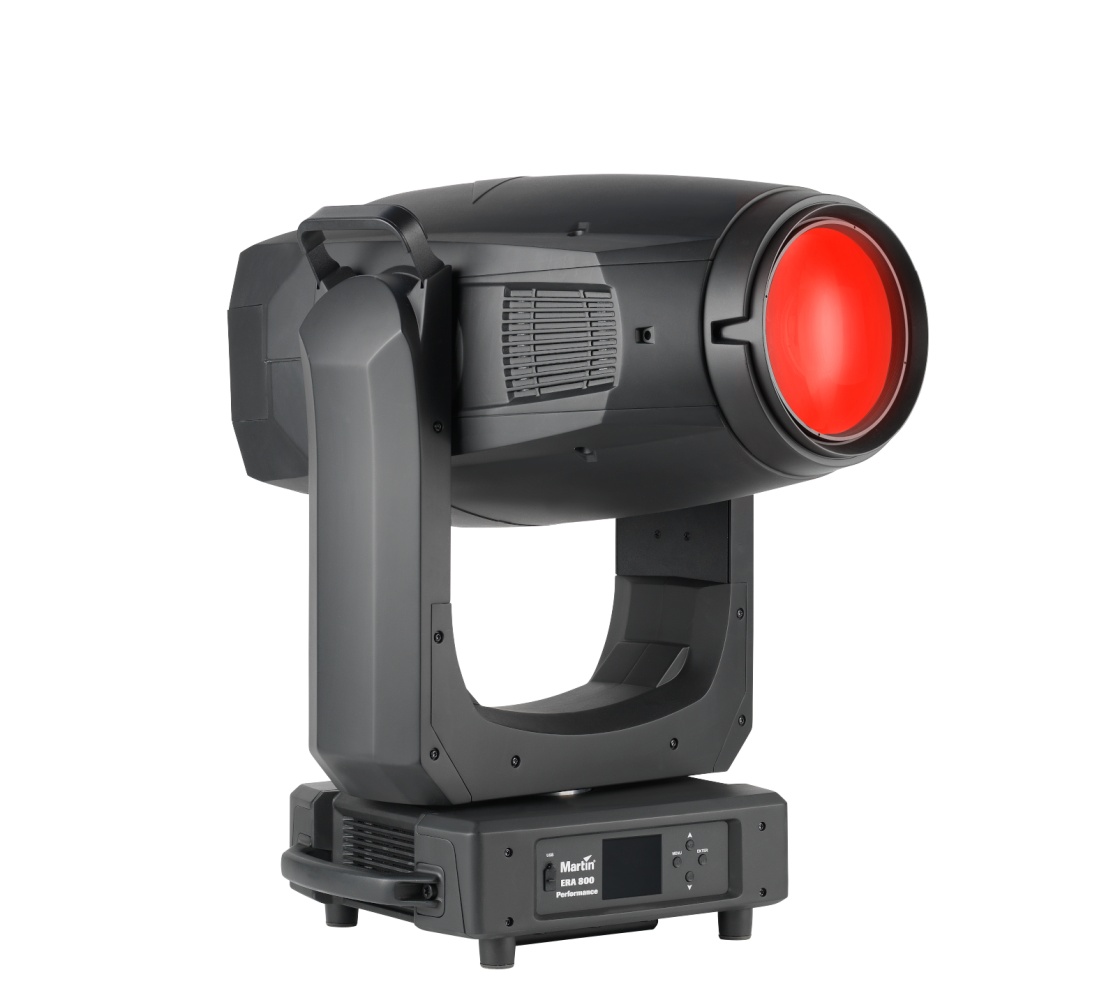

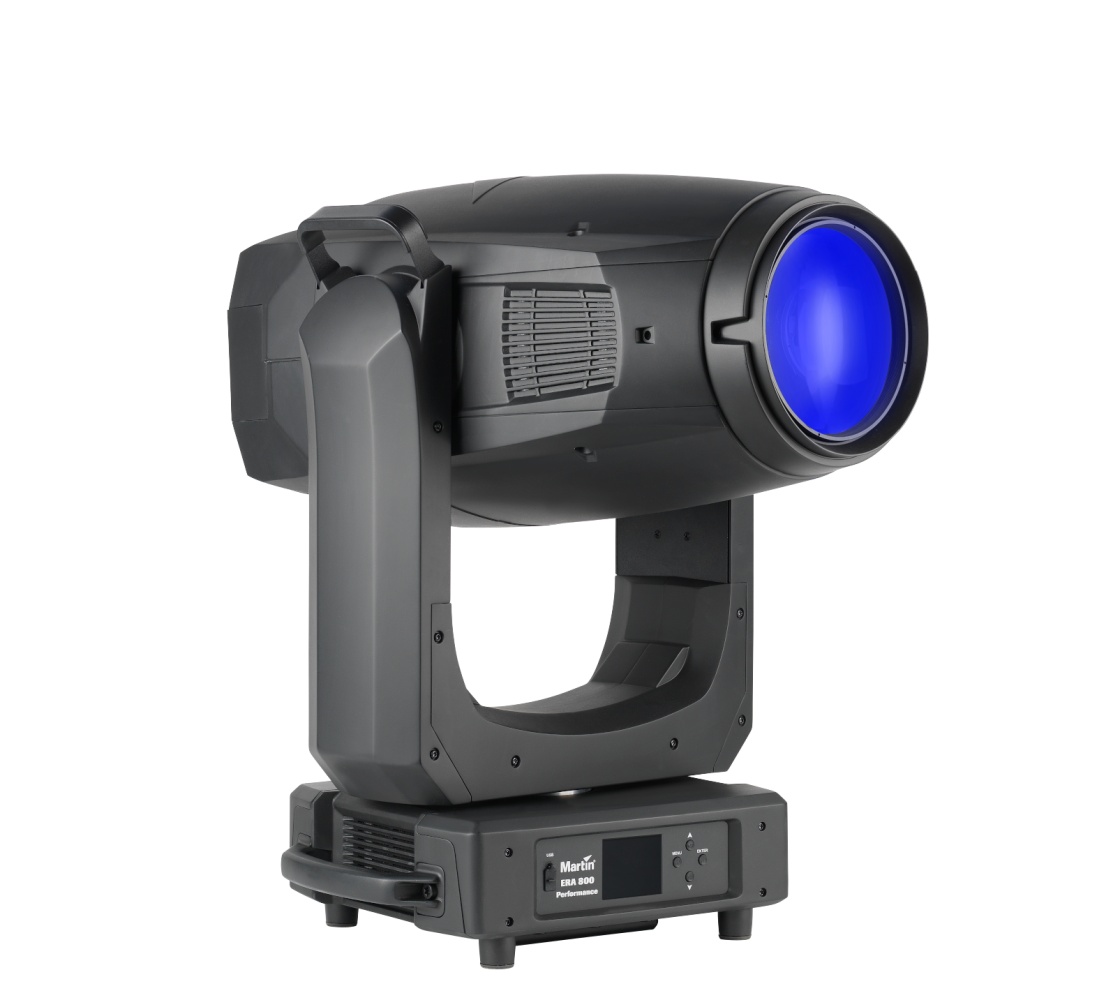

CMY color mixing - Vibrant color mixing with a superior palette of colors matching the MAC range
Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
6-slot color wheel –for added color choice and split color effects
Full Curtain Framing blades with +/- 60° rotation of entire system for flexible shape generation
6 rotating/indexing gobos – All renowned Martin glass gobos
7 static gobos for great morphing effects
Animation wheel with continuous bi-directional rotation
Iris – Fast and tight iris
Two prisms - 4-facet and linear – rotation and index control for dynamic effects
Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge.
Heavy frost – for wash light effects
Compact and low weight design
PHYSICAL
Weight: | 41.0 kg (90.4 lbs.) |
Minimum center-to-center distance in side-by-side installation: | 730 mm (28.8 in.) |
Length (head): | 608 mm (24.0 in.) |
Length (base): | 416 mm (16.4 in.) |
Width (base): | 290 mm (11.4 in.) |
Width (across yoke): | 431 mm (17.0 in.) |
Height (head straight up): | 802 mm (31.6 in.) |
Height (maximum): | 851 mm (33.5 in) |
DYNAMIC EFFECTS
Color mixing: | CMY, independently variable 0-100% |
Color wheel: | 6 color filters plus open |
Gobo animation: | Animation wheel, indexing, continuous rotation with variable speed and direction |
Rotating gobo wheel: | 6 gobos plus open, wheel rotation, gobo rotation, |
indexing and shake
Static gobo wheel: | 7 gobos plus open, wheel indexing, rotation and shake |
Iris: | 0-100% |
Framing: | Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position. |
Prism: | 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear) |
Frost: | Soft frost effect and heavy frost effect |
Color temperature control: | Variable 6500 - 2700 K |
Electronic dimming: | 0 - 100%, four dimming curve options |
Electronic shutter effect: | Strobe effect, pulse effects, instant open and blackout |
Zoom: | Motorized |
Pan: | 540°, coarse & fine control and speed |
Tilt: | 260°, coarse & fine control and speed |
Focus: | Motorized |
CONTROL AND PROGRAMMING

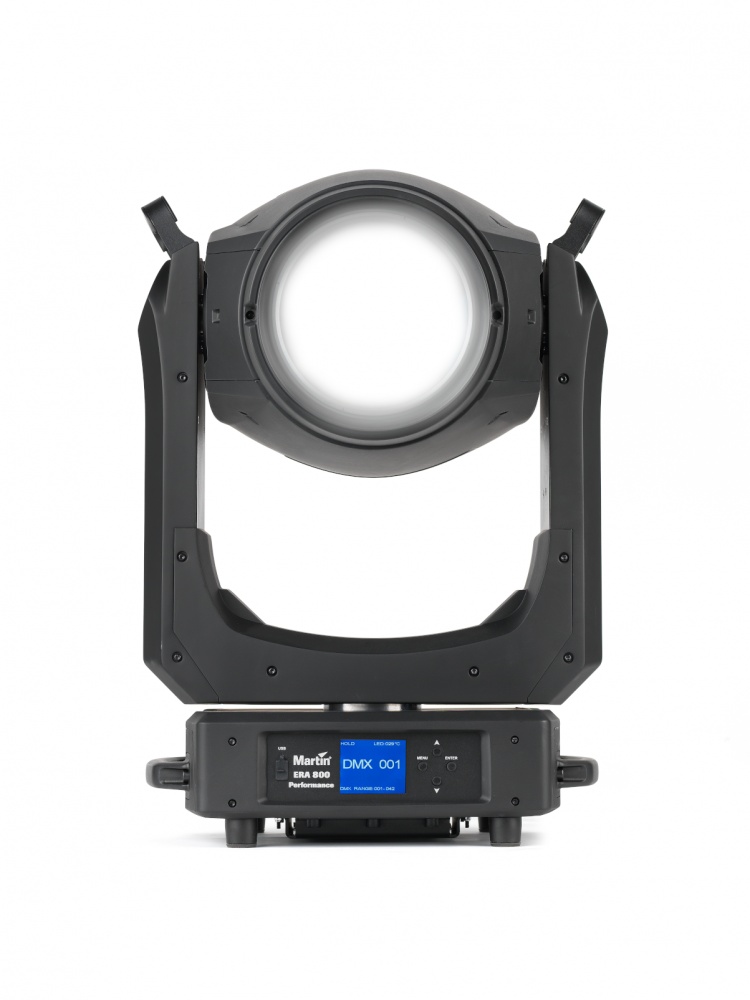

Control options: | DMX |
DMX channels: | 42 |
16-bit control: | Dimming, CMY, CTO, Zoom, Focus, Pan and Tilt |
Setting and addressing: | Control panel with backlit LCD display |
DMX compliance: | USITT DMX512/1990 |
RDM compliance: | ANSI/ESTA E1.20 |
Transceiver: | Opto-isolated RS-485 |
OPTICS
Front lens diameter: | 160 mm (6.3 in.) |
Zoom range: | 7° - 56° (1 | 8) |
Light source: | 800 W LED engine |
Minimum LED lifetime: | 20000 hours (to >70% luminous output)* |
Binning: | Tight color and flux binning |
*Manufacturer´s figure obtained under manufacturer´s test conditions
PHOTOMETRIC DATA
Light engine luminous output: | 70,000 lumens |
LED refresh rate : | 3600 Hz |
Standard
Fixture luminous output: | 35,000 lumens |
CRI (Color Rendering Index): | >70 |
CQS (Color Quality Scale): | >67 |
TM-30 Rf (IES TM-30-15 Fidelity Index): | >65 |
TM-30 Rg (IES TM-30-15 Gamut Index): | >93 |
TLCI (Television Lighting Consistency Index): | >44 |
CCT: | 6900 K (+/- 250 K) |
Peak Luminous Intensity: | 1,870,000 cd |
With Optional CRI Boost Filter
Fixture luminous output: | 25,000 lumens |
CRI (Color Rendering Index): | >79 |
CQS (Color Quality Scale): | >76 |
TM-30 Rf (IES TM-30-15 Fidelity Index): | >77 |
TM-30 Rg (IES TM-30-15 Gamut Index): | >98 |
TLCI (Television Lighting Consistency Index): | >57 |
CCT: | 6500 K (+/- 250 K) |
Peak Luminous Intensity: | 1,276,000 cd |
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
CONSTRUCTION
Housing: | High-impact flame-retardant thermoplastic |
Color: | Black |
Protection rating: | IP 20 |
GOBOS
Maximum image diameter: | 25 mm (0.98 in.) |
Gobo material: | Borofloat 33 |
External diameter: | 30.0 mm +0 / -0.2 mm (1.181 in. +0 / -0.008 in.) |
Maximum gobo thickness: | 1.1 mm (0.04 in.) |
Coating: | Heavy matted aluminum |
INSTALLATION
Mounting points: | 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets |
Location: | Dry location only, must be fastened to surface or structure |
Orientation: | Any |
Minimum distance to combustible materials: | 0.2 m (8 in.) |
Minimum distance to illuminated surfaces: | 2.0 m (6.6 ft.) |
CONNECTIONS

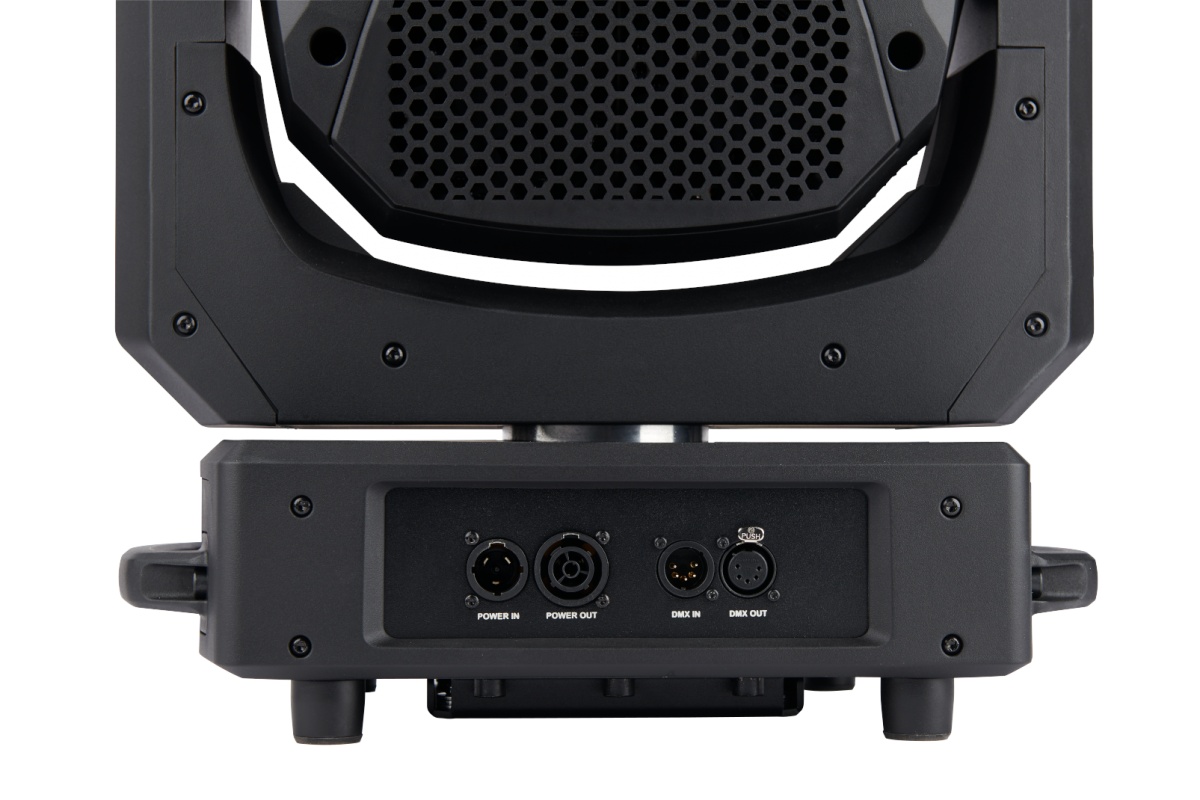

DMX and RDM data in/out: | 5-pin locking XLR |
AC mains power input.: | Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector |
AC mains power throughput : | Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector |
ELECTRICAL
AC power: | 100-240 VAC (nominal), 50/60 Hz |
Power supply unit: | Auto-ranging electronic switch mode |
Half-cycle RMS inrush current at 230 V, 50 Hz: | 10.3 A |
Typical power consumption, all effects static, zero light output: | 64 W |
Maximum total power consumption: | 1397 W |
Recommended MCB (Miniature Circuit Breaker) per IEC 60898/UL489/CSA C22.2 No. 5: | Type D |
TYPICAL POWER AND CURRENT
120 V, 60 Hz: | 10.8A, 1270W, PF 0.99 |
230 V, 50 Hz: | 5.5A, 1240W, PF 0.97 |
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor
THERMAL
Cooling: | Forced air (temperature regulated, low noise) |
Maximum ambient temperature (Ta max.): | 40° C |
Minimum ambient temperature (Ta min.): | 0° C |
Maximum surface temperature, steady state, at 40° C ambient: | 75° C (167° F) |
Total heat dissipation (calculated, +/- 10%): | 4340 BTU/hr. |
ACOUSTIC DATA
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): | 41.4 dB(A) |
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): | 37.7 dB(A) |
ENVIRONMENTAL
RoHS: | Compliant |
REACH: | Compliant |
WEEE: | Compliant |
Proposition 65: | Compliant |
Efficacy (max output): | 30.2 lm/W |
LWR*: | 853 lm/W (387 lm/lb) |
LWR = Lumen-to-Weight Ratio
APPROVALS
Global CB Certification/IECEE: | IEC 60598-2-17 (IEC 60598-1) |
EU safety: | EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 |
EU EMC: | EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547 |
US safety: | UL 1573 |
US EMC: | FCC Part 15 Class B |
Canadian safety: | CSA C22.2 No. 166 |
Canadian EMC: | ICES-003 Class B, ICES-005 Class B |
Australia/NZ: | RCM |
INCLUDED ITEMS
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment: | 2 x P/N 91602001 |
RELATED ITEMS
Martin Companion Software Suite (including firmware uploader): | Free download from www.martin.com |
Martin Companion Cable USB/DMX hardware interface: | P/N 91616091 |
ACCESSORIES
Conversion kits
Framing Module (converts ERA 800 Profile to Performance): | P/N 5125961-00 |
Gobo Wheel 3 Effects Module (converts ERA 800 Performance to Profile): | P/N 5131799-00 |
Optical accessories
CRI Boost Filter (CRI >79, installs on gobo wheel): | MAR-91614059 |
Power input cables
Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) : | P/N 91611797 |
Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): | P/N 91611786 |
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): | P/N 91610173 |
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): | P/N 91610174 |
Power relay cables, 16 A
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): | P/N 91611784 |
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): | P/N 91611785 |
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): | P/N 91611796 |
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): | P/N 91610170 |
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): | P/N 91610171 |
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): | P/N 91610172 |
Power connectors
Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): | P/N 91611789HU |
Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): | P/N 91611788HU |
Installation hardware
G-clamp (suspension with fixture hanging vertically downwards only): | P/N 91602003 |
Half-coupler Clamp: | P/N 91602005 |
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): | P/N 91602007 |
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: | P/N 91604006 |
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: | P/N 91604007 |
T-shape omega bracket with 1/4 turn, PN 91602008
