Theatres are demanding applications that require extremely low noise operation, very high quality of light and control along with precision of re-positioning. We are now delighted to introduce the first of a brand-new family of LED fixtures designed and manufactured exclusively for the Theatre market.
The new SINFONYA series from Claypaky addresses all the special needs and provides brand new levels of performance that were simply not possible before.

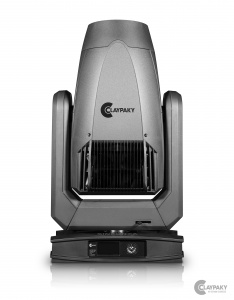

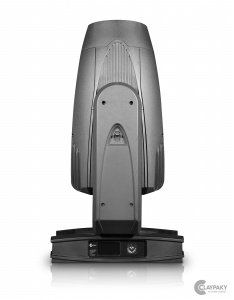

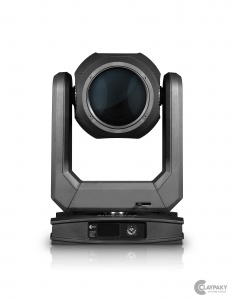

SINFONYA PROFILE 600 is stylish, and packed full of technology. What makes Sinfonya different is its excellent core technology that offers endless possibilities for theatre designers thanks to a wide variety of features specifically developed for the theatrical productions.
| • Light Source: | 600W RGBAL LED Engine |
|
• CRI: | up to 95 |
• 12,050 Lumen Output (in integrating sphere)
• Proprietary, High-efficiency, new optical system
• 160-millimeter diameter front lens, with high quality tempered glass lenses
• 5°- 60° motorized linear zoom
• R-G-B-A-L color control
• 2500K to 8500K virtual CTO
• Calibration Syncing for matching the color temperature to other fixtures
• Digital color filters
|
• Framing System on 2 focal planes: | 4 blades with +/- 45° rotation of the full system |
|
• ACCUFRAME™: | 40 times more precise than traditional framing systems |
• “Total Curtain” effect allowing the full blackout with each single blade
• Triangular shapes
• 6 HD interchangeable rotating gobos
• New frost system (LINEGUARD), using two pairs of blades instead of two individual ones
• Heavy frost 5° for wash effect
• Light frost 1° for soft diffusion (interchangeable)
• Animation wheel
• 4-facet prism with rotation in both direction at variable speed
• 16-blade Motorized iris
• 24-bit digital dimmer with 4 user-selectable dimming curves
• Digital stop-strobe effect
• Absolute Position for the advanced Pan & Tilt Control
• Advanced firmware for a max. performance and light output control
|
• Personalities: | three modes with 43/49/59 control channels |
|
• Control Protocol: | DMX, Art-Net, RDM, sACN |
• Optional Wireless DMX system (Lumen Radio)
|
• CloudIO Ready: | fully compatible with |
CloudIO
|
• Operating Voltage: | 100-240V, 50/60 Hz |
|
• Max Power consumption: | 770 VA |
• TONEDOWN™ for a low noise operation (27dB)
• Selectable fan options, DMX controlled
• IP 20
• 36.8 Kg (81.1 lbs)
• 285x415mm (base dimension) – 796mm with vertical head (h)
