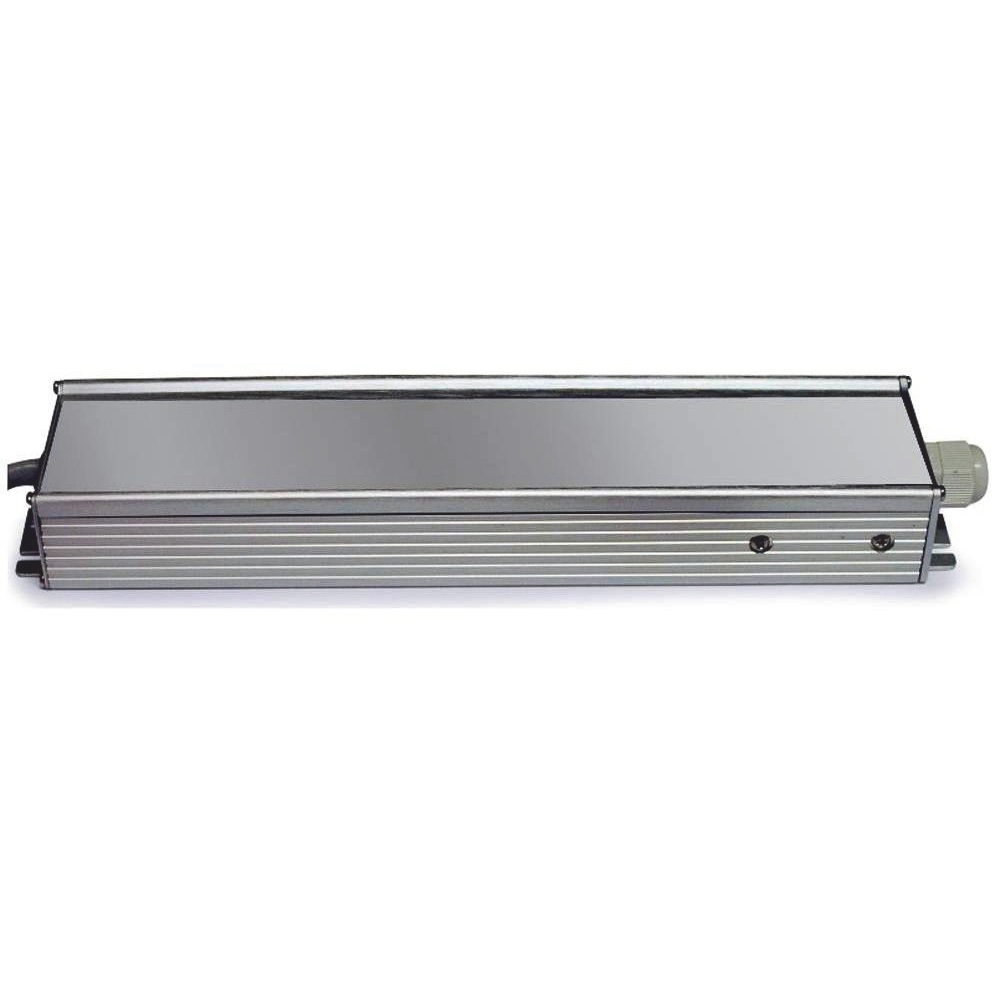

The Martin™ IP66 PSU 240W is an IP66-rated external power supply unit that can supply 48 VDC power to various Martin™ lighting and LED Video products, including the Exterior PixLine, Exterior Dot-HP and VC-Dot.
It provides an alternative to the P3 PowerPort in supplying power to fixtures in a DMX-controlled system.
• Rugged extruded aluminum housing
• Auto-ranging 100-240 VAC power input
• Full protection with auto-recovery
FEATURES:
• IP66-rated
• Wall-mountable
• Can be located up to 50 m (164 ft.) away from the creative LED video products
• No configuration or addressing required
PHYSICAL
Length: 314 mm (12.4 in.)
Width: 68 mm (2.7 in.)
Height: 39 mm (1.5 in.)
Weight: 1.5 kg (3.3 lbs.)
ELECTRICAL
AC mains power input: Hard-wired (terminal block) via cable gland
Power supply unit: Auto-sensing multi-voltage switch-mode
DC power output: 48 V
Maximum DC output power: 240 W
Maximum DC output current draw: 5 A
Protection: Overvoltage, overcurrent, short circuit, over-temperature, all with auto-recovery
THERMAL
Cooling: Convection
Total heat dissipation (calculated, including max. number of connected devices, all at full load): 820 BTU/hr.
Maximum surface temperature, steady state, at 45° C ambient: 80° C (176° F)
Maximum ambient temperature (Ta max.): 45° C (113° F)
Minimum ambient temperature (Ta min.): -30° C (-22° F)
