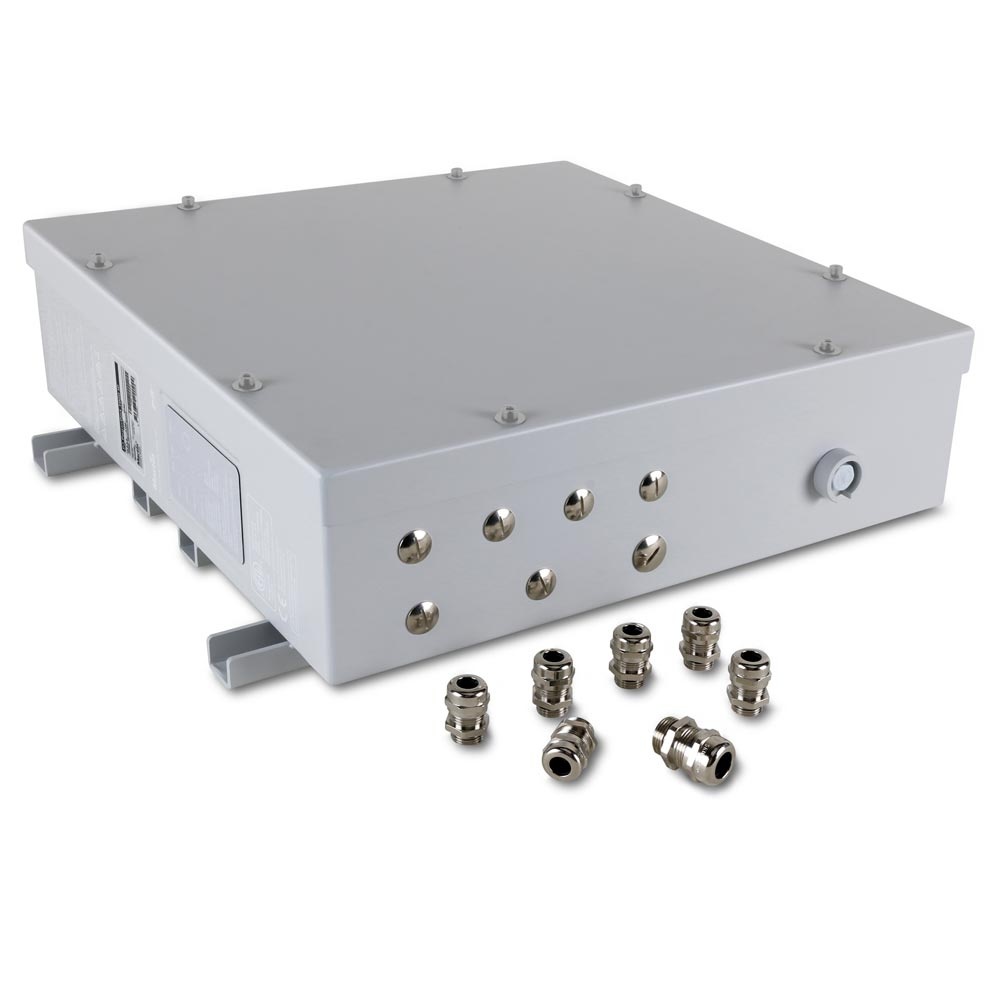

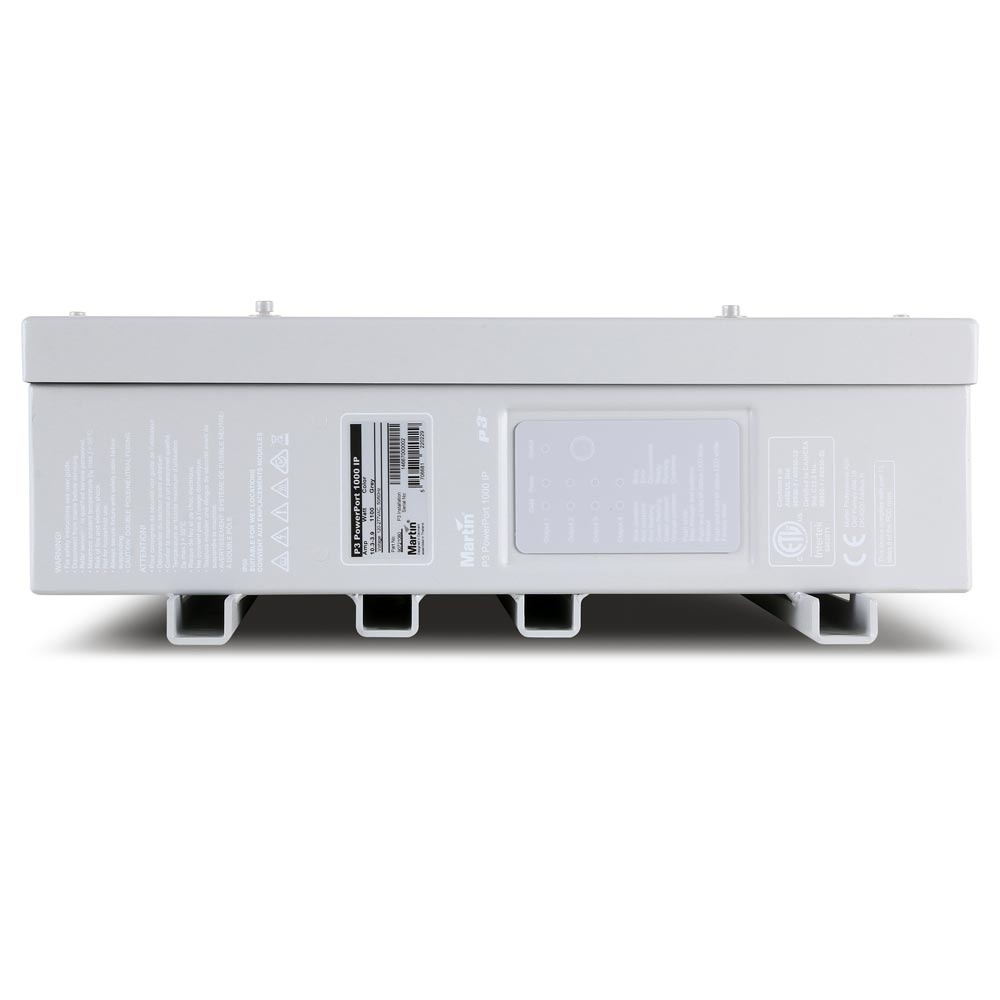

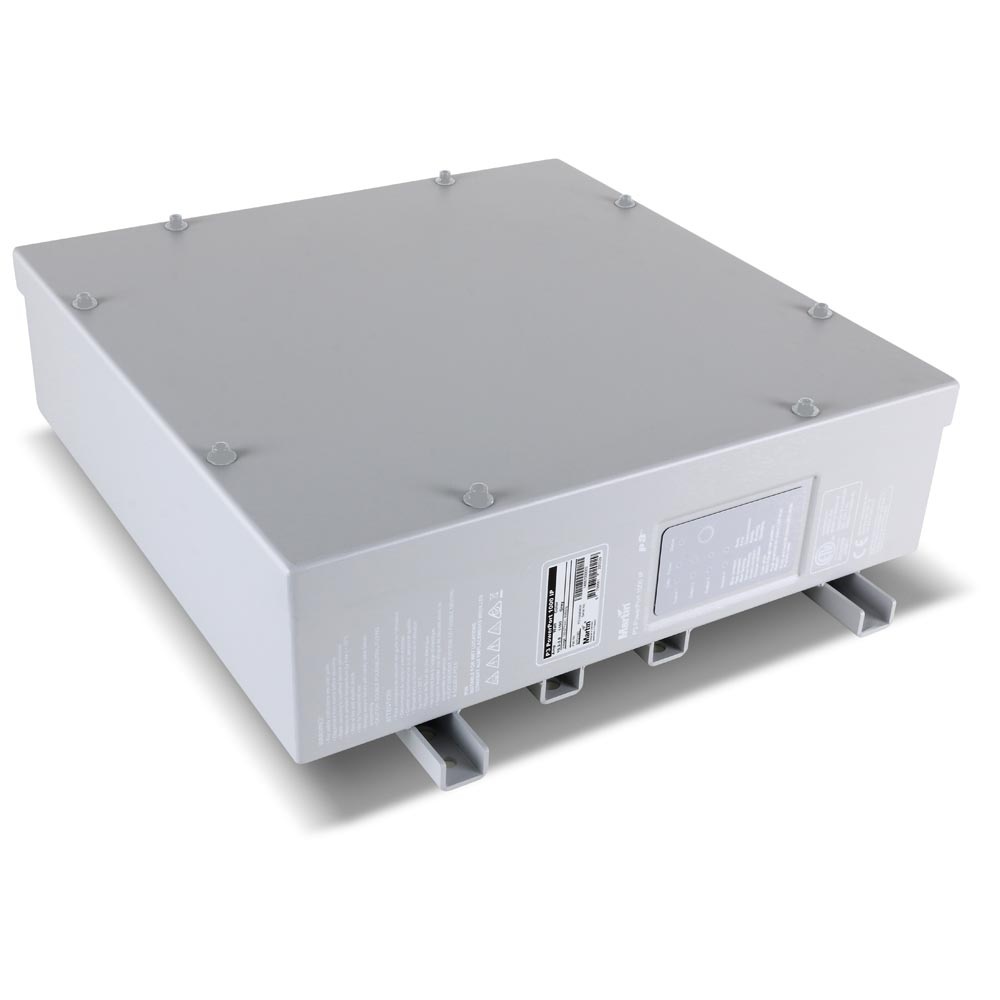

The P3 PowerPort 1000 IP Install is an integrated power supply and data processor for Martin’s range of creative LED video products, including the Exterior PixLine™ and VC-Dots™. When driven by one of Martin’s award-winning P3™ System Controllers™, it combines stable power delivery with high-speed, high-capacity video processing. Setup and configuration are easy and intuitive. A full outdoor rating and optional fiber interface make the product perfect for permanent outdoor installations.
- Power and data processor for all Martin’s fixed-installation creative LED video products
- Flexible integration: can be located remotely, indoors or outdoors
- Easy cabling and configuration
PHYSICAL
|
Length: | 426 mm (16.8 in.) |
|
Width: | 483 mm (19.1 in.) |
|
Height: | 146 mm (5.8 in.) |
|
Weight: | 8 kg (17.7 lbs.) |
|
Cable length: | Up to 100 m (328 ft.) between any 2 devices, extendable with Ethernet switch or conversion to fiber |
SYSTEM INTEGRATION
VDO Sceptron™ family
VDO Fatron™ family
VDO Dotron™ family
Exterior PixLine™ family
Exterior Dot-HP™ family
VC-Grid™ family (indoor product)
VC-Strip™ family (indoor product)
VC-Dot™ family via VC-Feeder™
CONSTRUCTION
|
Housing: | Aluminum |
|
Color: | Alu grey (customized colors available on project basis) |
|
Protection rating: | IP66 |
|
NEMA enclosure rating: | Type 3 |
|
Effective Projected Area (EPA): | 0.21 m2 |
|
Corrosion resistance: | C5-M (very high corrosivity / marine, ISO 12944) |
RoHS compliant
INSTALLATION
|
Mounting: | Brackets for installation on flat surface |
|
Orientation: | Any, except with cable glands facing up or lid facing down |

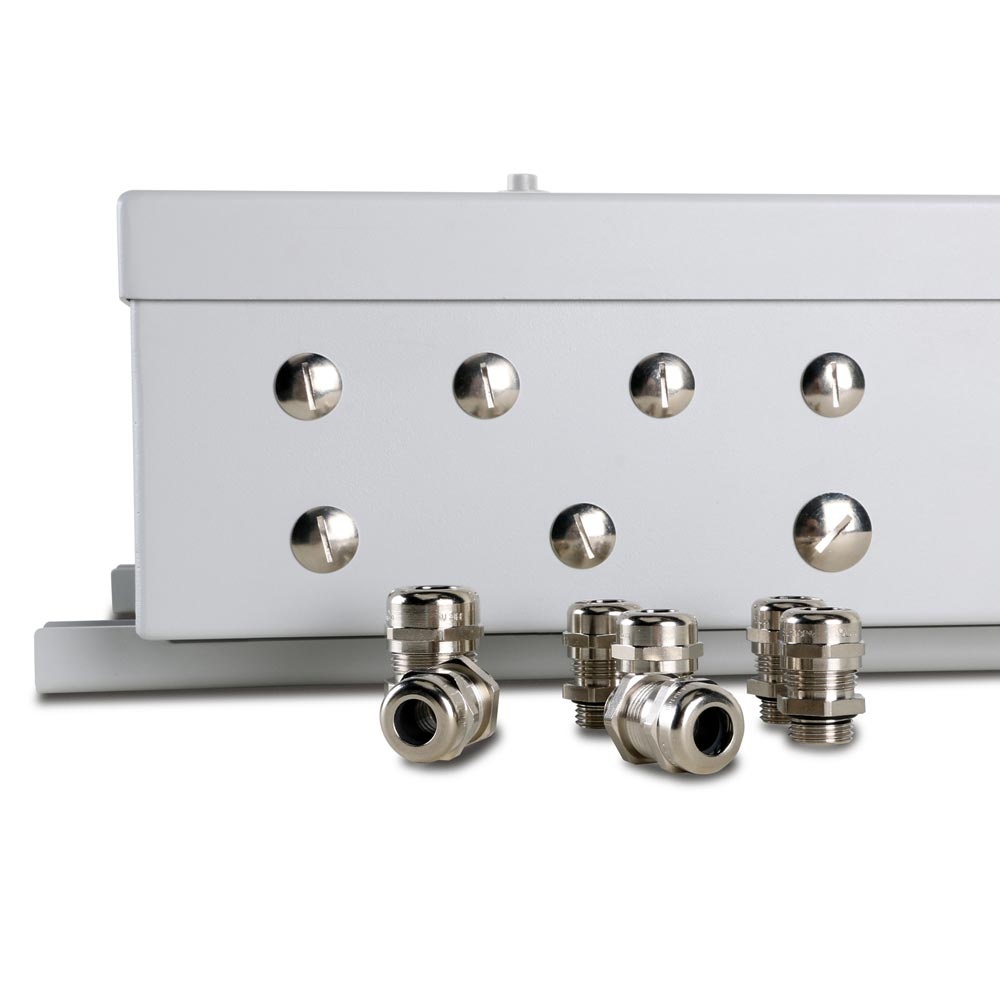

CONNECTIONS
|
Power input: | Cable gland (M20), internal screw terminals |
|
P3 data in/out: | Two cable glands (M16), two internal RJ45 connectors (if copper-to-fiber unit is installed, one cable gland can be used for fiber) |
M16 cable glands accept 5.5 - 10 mm cable, M20 glands accept 8-13 mm cable.
|
Combined power & data out: | Four cable glands (M16), internal screw terminals |
ELECTRICAL
|
AC power: | 120-277 V nominal, 50/60 Hz |
|
Power supply unit: | Auto-ranging electronic switch-mode |
|
Typical total power consumption: | 1000 W (including full load of connected display devices, all at full intensity) |
Typical half-cycle RMS
| inrush current: | 20.9 A |
|
Total power consumption in idle state (at 25° C, all connected devices powered off): | 22 W |
THERMAL
|
Cooling: | Convection |
|
Total heat dissipation (calculated, +/- 10%): | 345 BTU/hr. (not including display devices but with system at full load) |
|
Maximum ambient temperature (Ta max.): | 55° C |
|
Minimum ambient temperature (Ta min.): | -30° C |
