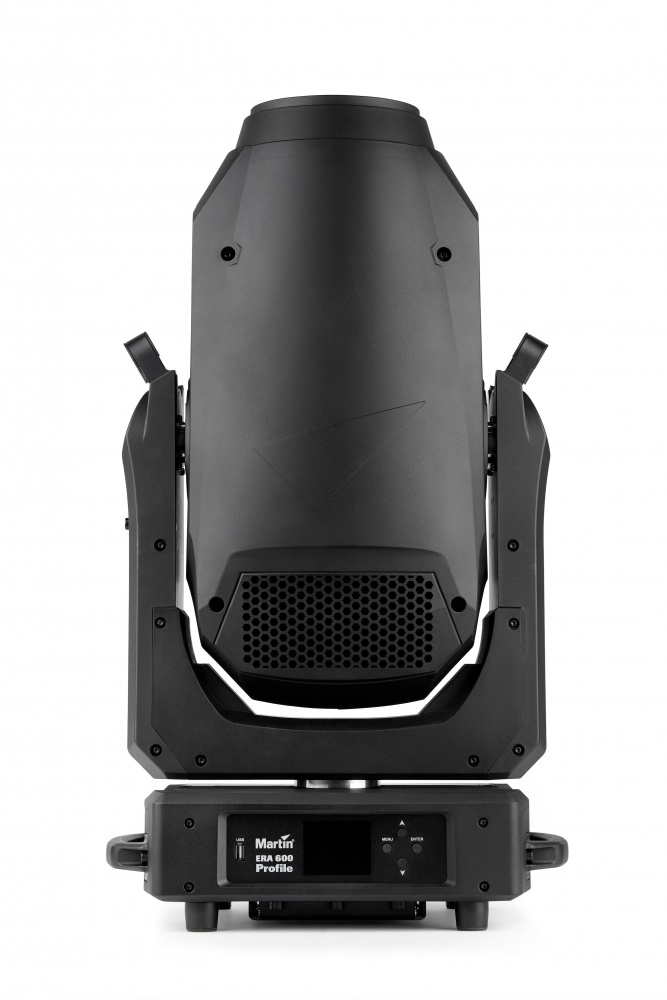

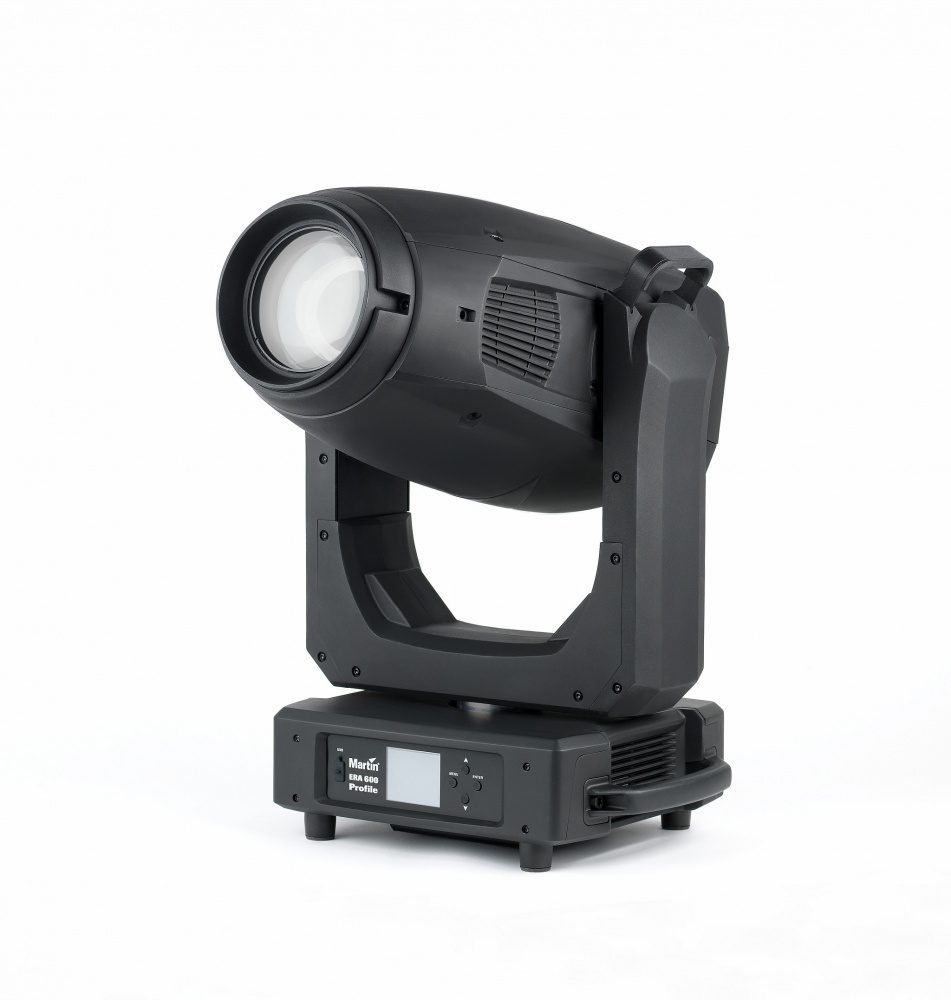

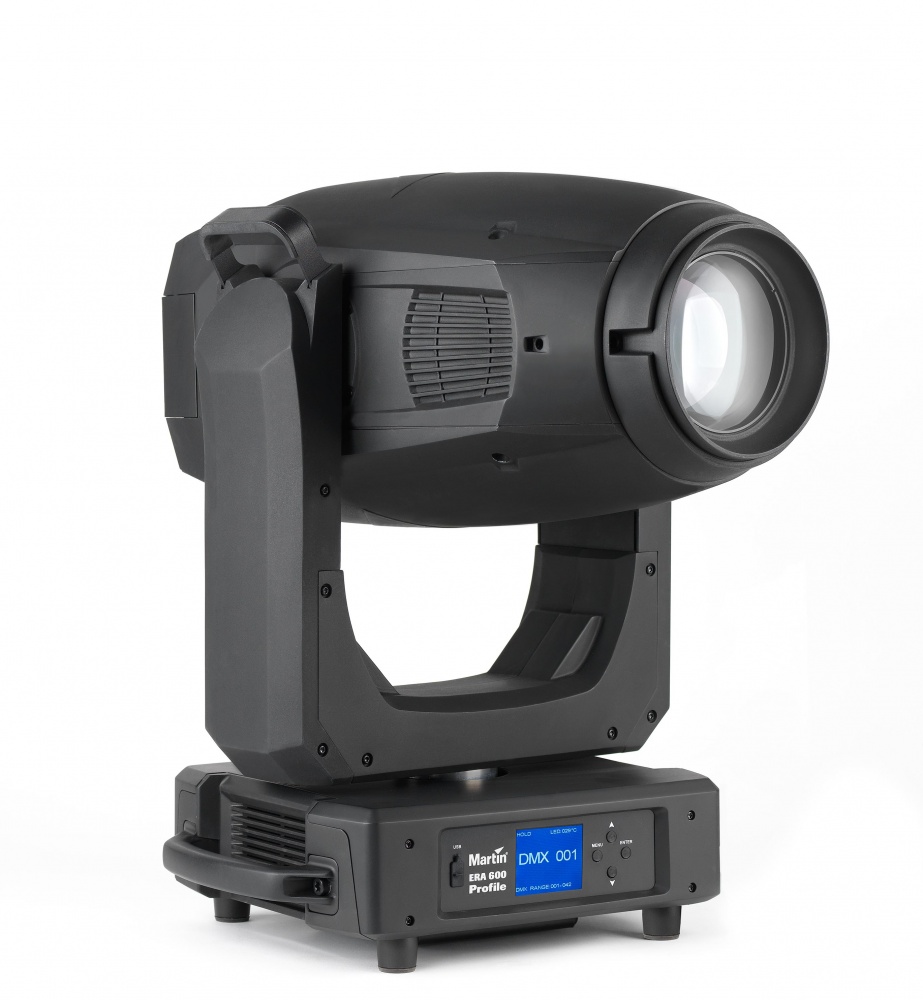

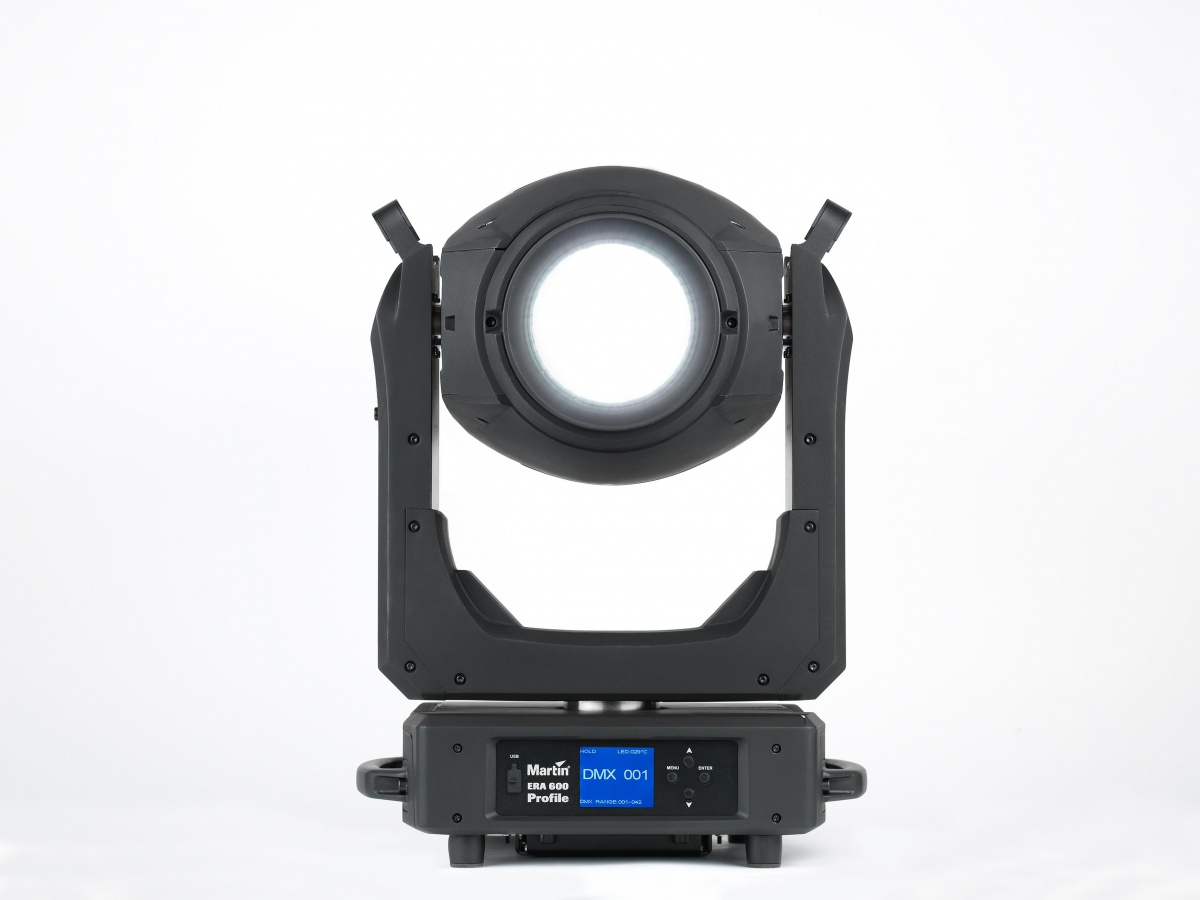

Martin ERA 600 Profile

• Svetelný zdroj LED s výkonom 550 W/6 500 K
• Výkon 19 000 lumenov
• Ostrá optika s plochým poľom
• 1: 8 rýchly motorizovaný zoom
• Miešanie farieb CMY - živé miešanie farieb s vynikajúcou paletou farieb zodpovedajúcich rozsahu MAC
• Lineárne CTO - denné svetlo na volfrámové riadenie CCT a rozšírenie palety CMY
• 7-slotové farebné koliesko-pre väčšiu voľbu farieb a rozdelené farebné efekty
• Rámovanie s úplným otáčaním celého systému o +/- 60 ° pre flexibilné vytváranie tvarov
• 7 rotujúcich/indexovacích gob - všetky renomované sklenené goby od MARTIN
• 8 statických gobov pre skvelé efekty morfovania
• Animačné koliesko s nepretržitým obojsmerným otáčaním
• Dve prizmy - 4 -fazetová a lineárna - ovládanie otáčania a indexu pre dynamické efekty
• Silný frost / jemný frost - gobá s krásnymi jemnými okrajmi.
• Kompaktný a ľahký dizajn
• Hmotnosť 32,3 kg

550 W LED moving head profile with CMY color mixing

Designed to ful...fill the demand for a compact, tour-worthy, LED profile moving head with enhanced gobo load-out, the Martin ERA 600 Profile combines a no-nonsense, feature-loaded, and cost-efficient profile that’s perfect for entertaining and rental applications. It bundles an incredibly efficient 550 W, 6,500 K LED engine that produces 19,000 lumens and delivers sharp image projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, CMY/CTO, iris for beam adjustment, and dual rotating gobo wheels plus an additional static wheel, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the included rotating prisms.

Whether being used for large concerts and touring or corporate shows, cruise lines, houses of worship, and live TV, the ERA 600 Profile is ideal for a long list of scenarios, requiring a truly versatile LED profile that offers near limitless design and usage potential.


VIAC

ERA 600 Profile
Novinka
Na objednávku

855669|853270|854746|856182
32,30
CENA:
na dopyt
Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Features

Bright 550 W / 6,500 K LED light source
19,000-lumen output
Crisp optics with a flat field
1:8 Fast zoom
CMY color mixing - vibrant color mixing with a superior palette of colors matching the MAC range
Linear CTO - daylight to tungsten CCT control and expansion of the CMY palette
7-slot color wheel - for an added color choice and split-color effects
14 rotating/indexing gobos - all renowned Martin glass gobos
8 static gobos for great morphing effects
Animation wheel with continuous bi-directional rotation
Two prisms - 4-facet and linear – rotation and index control for dynamic effects
Heavy frost - For wash effects
Compact and low weight design

Specifications

Physical Weight: 31.3 kg (69.0 lbs.) Minimum center-to-center distance in side-by-side installation 660 mm (26.0 in.) Length (head) 544 mm (21.5 in.) Length (base) 416 mm (16.4 in.) Width (base) 290 mm (11.4in.) Width (across yoke) 390 mm (15.4in.) Height (head straight up) 734 mm (28.9 in.) Height (maximum) 745 mm (29.4 in.)
Dynamic Effects Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Electronic dimming 0 - 100%, four dimming curve options Color mixing CMY, independently variable 0-100% Color wheel 7 color filters plus open Gobo animation Animation wheel, indexing, continuous rotation with variable speed and direction Rotating gobo wheel 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake Second rotating gobo wheel 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel 8 gobos plus open, wheel indexing, rotation and shake Iris 0-100% Zoom Motorized Color temperature control Variable 6500 - 2700 K Prism 2 rotating/indexing prisms (4-facet circular and 6-facet linear) Frost Heavy frost effect Pan 540°, coarse & fine control and speed Tilt 260°, coarse & fine control and speed Focus Motorized
Control and Programming Control options: DMX 16-bit control Dimming, CMY, CTO, pan and tilt Setting and addressing Control panel with backlit LCD display DMX compliance USITT DMX512/1990 RDM compliance ANSI/ESTA E1.20 Transceiver Opto-isolated RS-485 DMX channels, ERA 600 Profile
35
Optics Front lens diameter: 120 mm (4.75 in.) Zoom range 6° - 45° (17.5) Light source 550 W LED engine LED refresh rate 3600 Hz, 1200 Hz in theater (low-noise) mode Minimum LED lifetime 20 000 hours (to >70% luminous output)*
*Figure obtained under manufacturer's test conditions
Specifications 35
Photometric Data Light engine luminous output: 37 000 lumens Fixture luminous output 19 000 lumens CRI (Color Rendering Index) >70 CQS (Color Quality Scale) >67 TM-30 Rf (IES TM-30-15 Fidelity Index) >65 TM-30 Rg (IES TM-30-15 Gamut Index) >96 TLCI (Television Lighting Consistency Index) >45 CCT 6500 K (+/-250K) LED refresh rate 3600 Hz
Construction Housing: High-impact flame-retardant thermoplastic Color Black Protection rating IP20
Gobos Maximum image diameter: 19 mm (0.75 in.) Gobo material Borofloat 33 External diameter 23.0 mm +0 / -0.2 mm (0.906 in. +0 / -0.008 in.) Maximum gobo thickness 1.1 mm (0.04 in.) Coating Heavy matted aluminum
Installation Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets Location Dry location only, must be fastened to surface or structure Orientation Any Minimum distance to combustible materials 0.2 m (8 in.) Minimum distance to illuminated surfaces 2.0 m (6.6 ft.)
Connections DMX and RDM data in/out: 5-pin locking XLR AC mains power input. Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector AC mains power throughput Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector
Electrical AC power: 100-240 VAC (nominal), 50/60 Hz Power supply unit Auto-ranging electronic switch mode Half-cycle RMS inrush current at 230 V, 50 Hz 21.8 A Typical power consumption, all effects static, zero light output 64 W Maximum total power consumption 856 W Recommended MCB (Miniature Circuit Breaker) per IEC 60898/UL489/CSA C22.2 No. 5 Type D
Typical Power and Current 120 V, 60 Hz: 6.5 A, 778 W, PF 0.994 230 V, 50 Hz 3.2 A, 760 W, PF 0.967
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor
Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.) 40° C (104° F) Minimum ambient temperature (Ta min.) 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient 75° C (167° F) Maximum total heat dissipation, calculated, +/- 10% 2920 BTU/hr.
Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN62493 EU EMC EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety UL 1573 US EMC FCC Part 15 Class B Canadian safety CSA C22.2 No. 166 Canadian EMC ICES-3 (B) / NMB-3 (B); ICES-5 (B) / NMB-5 (B) Australia/NZ RCM Global CB Certification/IECEE IEC 60598-2-17 (IEC 60598-1)
Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment: 2 x P/N 91602001

AccessoriesConversion kits
ERA 600 Framing Module (converts ERA 600 Profile to Performance): P/N 5125849-00
ERA 600 Gobo Wheel 3 Effects Module (converts ERA 600 Performance to Profile): P/N 5131771-00
Optical accessories
CRI Boost Filter (CRI >80, installs on gobo wheel): MAR-91614058
Power input cables
Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Power relay cables, 16 A
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Power connectors
Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HU
Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): P/N 91611788HU
Installation hardware
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Related Items Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com Martin RDM 5.5 Splitter P/N 90758150 Martin Companion Cable USB/DMX hardware interface P/N 91616091
Ordering Information ERA 600 Profile in cardboard box: P/N 9025123579 ERA 600 Profile (White) in cardboard box P/N 9025123580 Flightcase, two unit, for 2 x ERA 600 Performance / Profile P/N 91512205
