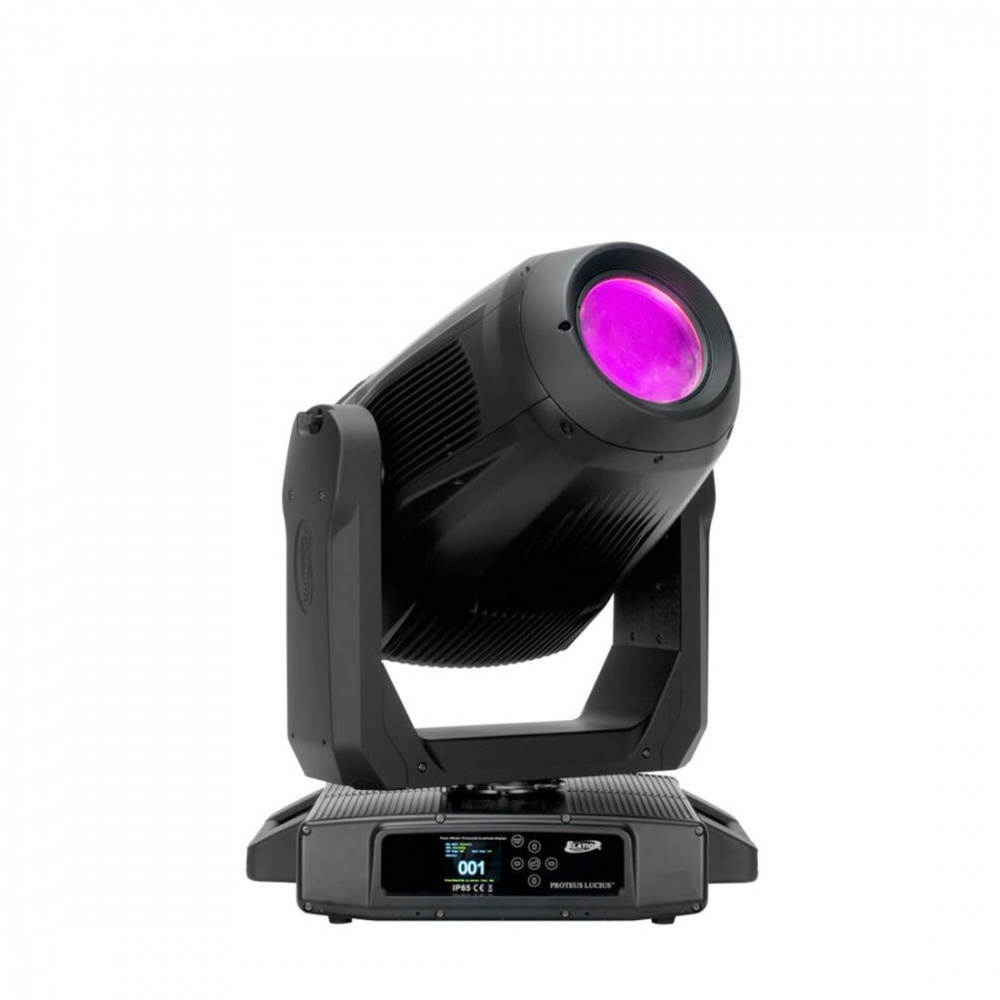

ELATION PROFESSIONAL Proteus Lucius

PROTEUS LUCIUS ™ je výkonné, kompaktné svietidlo s profilom LED s krytím IP65,ktoré ponúka vynikajúcu projekciu a kvalitu lúčov v akomkoľvek prostredí.
PROTEUS LUCIUS poskytuje až 31 000 lumenov z vlastného LED hotspotu s výkonom 5500W a 6,500 K.Je ideálnym svietidlom pre akékoľvek vonkajšie alebo vnútorné aplikácie vyžadujúce vynikajúci výkon,jasné a silné lúče a tichú prevádzku ako aj úžasne precízne goby. a farby.PROTEUS LUCIUS poskytuje dizajnérovi komplexný balík FX s 13 rotujúcimi a 7 pevnými sklenenými gobami,plným animačným kolieskom,prekrývajúcimi sa dvojitými prizmami,dvojitým frost a vysokorýchlostnou clonou.Jeho indexovateľný rámovací systém umožňuje úplné zatemnenie zárezov pre presné riadenie tvaru lúča.
Veľký rozsahu priblíženia od 5,5 ° do 55 °.Je odolný proti prachu a vode,poskytuje skvelý rozsah možností pre široké spektrum aplikácií.
PROTEUS LUCIUS sa dodáva v kartónovej krabici s vložkou FIL (Foam In Lay) z polyuretánovej peny prispôsobenej na mieru. Penová vložka sa ľa...hko zmestí do zvyčajného flightcasu (nie je súčasťou dodávky) a poskytuje zvýšenú ochranu pred nárazmi počas prepravy.

VIAC

Na objednávku

605319|606399|607125|608774|609838|610286|611310|612732|613914|614757|615126|616469

41,50

Hmotnosť

pdf1,39 MB

Proteus Lucius Spec Sheet

CENA:

na dopyt

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

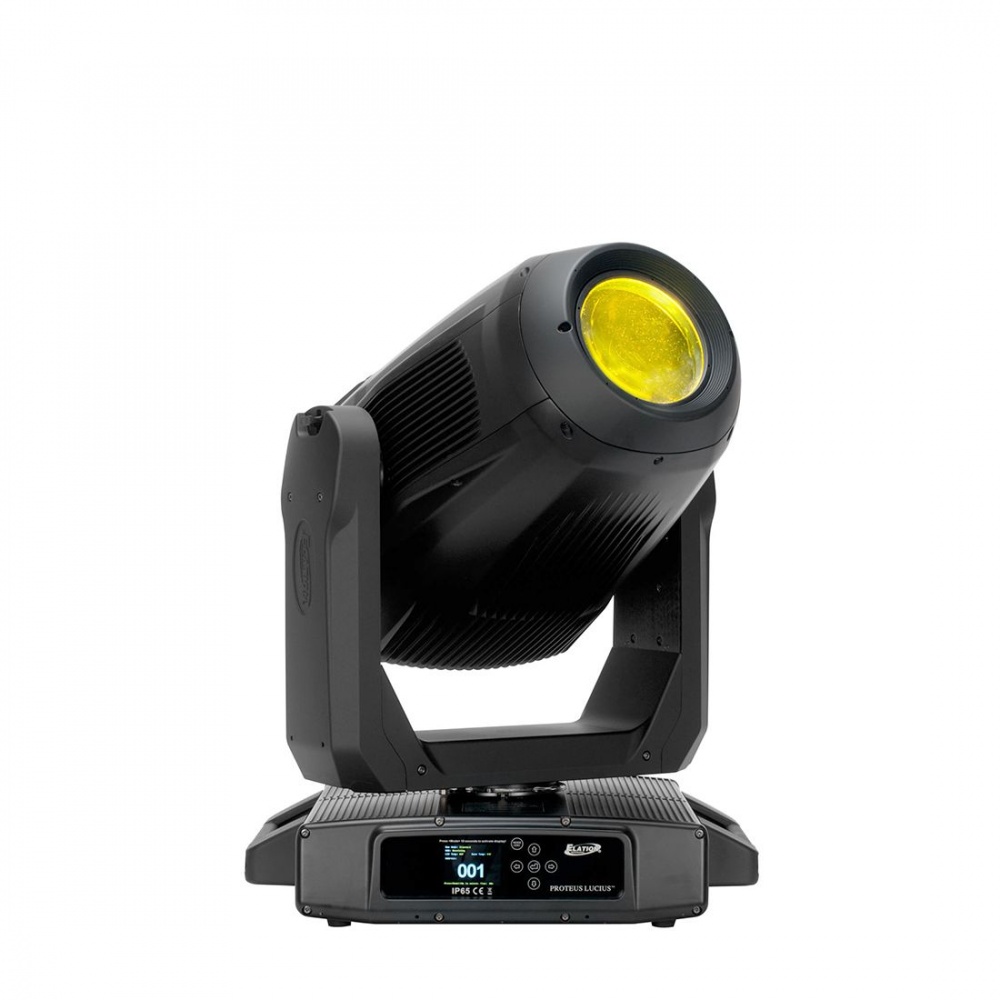

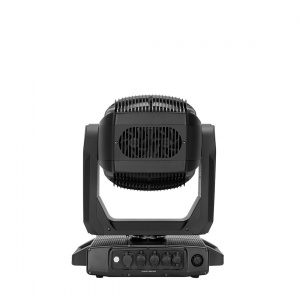

The PROTEUS LUCIUS™ is a powerful yet compact IP65-rated LED profile fixture offering outstanding projection and beam qualities in any environment.
Providing up to 31,000 lumens output from its custom-designed hotspot 580W 6,500K LED engine, the PROTEUS LUCIUS is the ideal fixture for any outdoor or indoor application requiring superior output, bright and powerful beams, and quiet operation, as well as stunningly precise gobos and colors. PROTEUS LUCIUS provides the designer a comprehensive FX package with 13 rotating and 7 fixed glass gobos, full animation wheel, overlapping dual prisms, dual frost and a high-speed iris. Its indexable framing system allows full-blackout shutter cuts for precise beam shape control.
With a fast zoom range from 5.5° to 55° out of an impressively compact fixture design, the PROTEUS LUCIUS has the power to cut through and make a statement on any stage. Fully sealed from dust and water, it is a rugged fixture for a wide variety of applications.
The PROTEUS LUCIUS ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert. The foam insert easily fits into a custom flight case (not included) and provides enhanced impact protection during transport.

FEATURES :

IP65 Outdoor Rated
High Efficiency 580W 6,500K White LED Engine
Up to 31,000 Total Lumen Fixture Output
Hotspot engine for powerful projection at long distances
CMY Color Mixing and Variable CTO
5-Position Color Wheel with High CRI Filter
Complete FX System featuring Dual Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost
Indexable Full Blackout Framing System
Wide Zoom Range from 5.5° to 55°

SOURCE

580W 6,500K Bright White Hotspot LED Engine
30,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

31,000 Total Lumen Fixture Output
CRI 71+ (85+ with HCRI Filter)

2.5:	1 Hotspot Ratio

EFFECTS

5.5 - 55° Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/-50° Continuous Framing Indexing
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate

COLOR

CMY Color Mixing
Linear CTO Color Correction
5 Dichroic Colors including High CRI FilterGOBOS
3 Gobo Wheels
6 Rotating Gobo (Wheel )
7 Rotating Gobos (Wheel )
7 Static Gobos (
Wheel #3)

CONTROL / CONNECTIONS

2 DMX Channel Modes
16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)
Locking IP65 5pin XLR Connector In/Out
Locking IP65 RJ45 Ethernet Connector In/Out
Locking IP65 Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT

Length:	17.5 in (445mm)
Width:	19.6 in (499mm)
Height:	28.1 in (715mm)
Weight:	91.4 lbs. (41.5kg)

ELECTRICAL / THERMAL

AC 100-240V 50/60Hz
Max Power Consumption 880W
14°F to 113°F (-10°C to 45°C)
