FEATURES

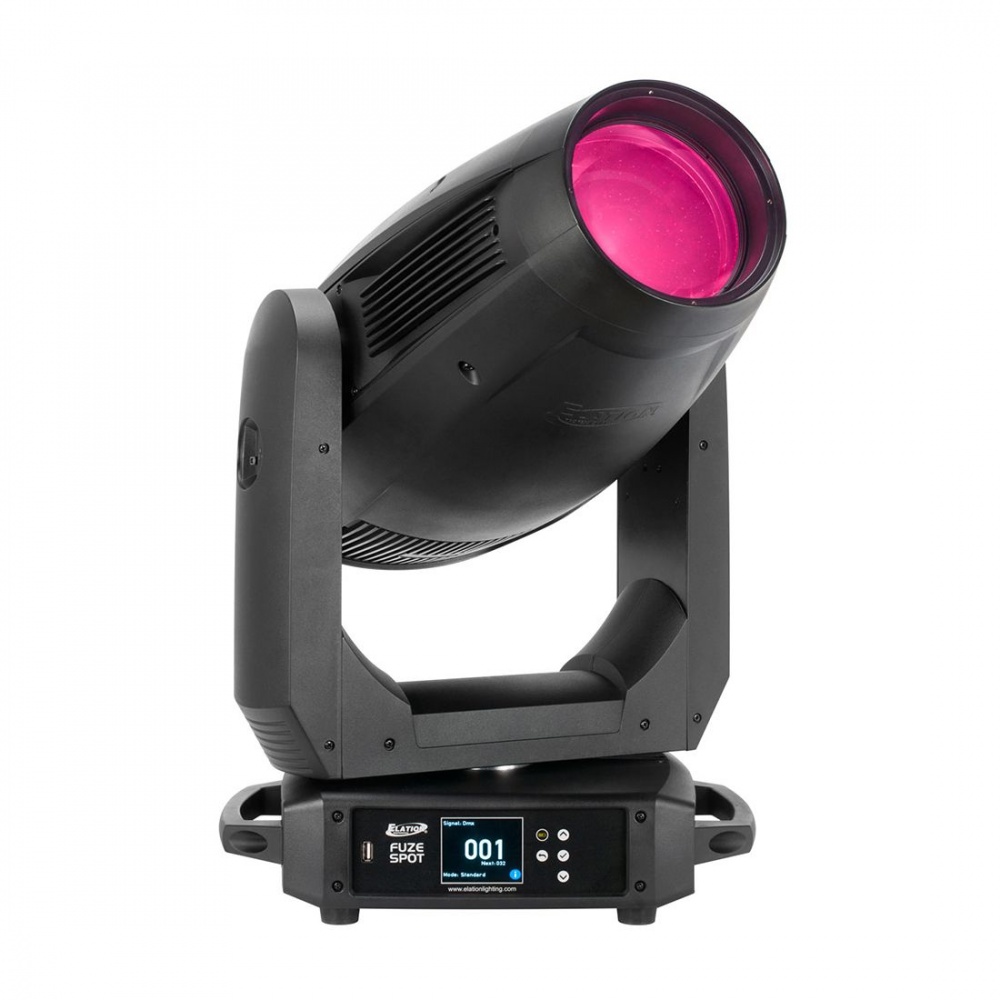

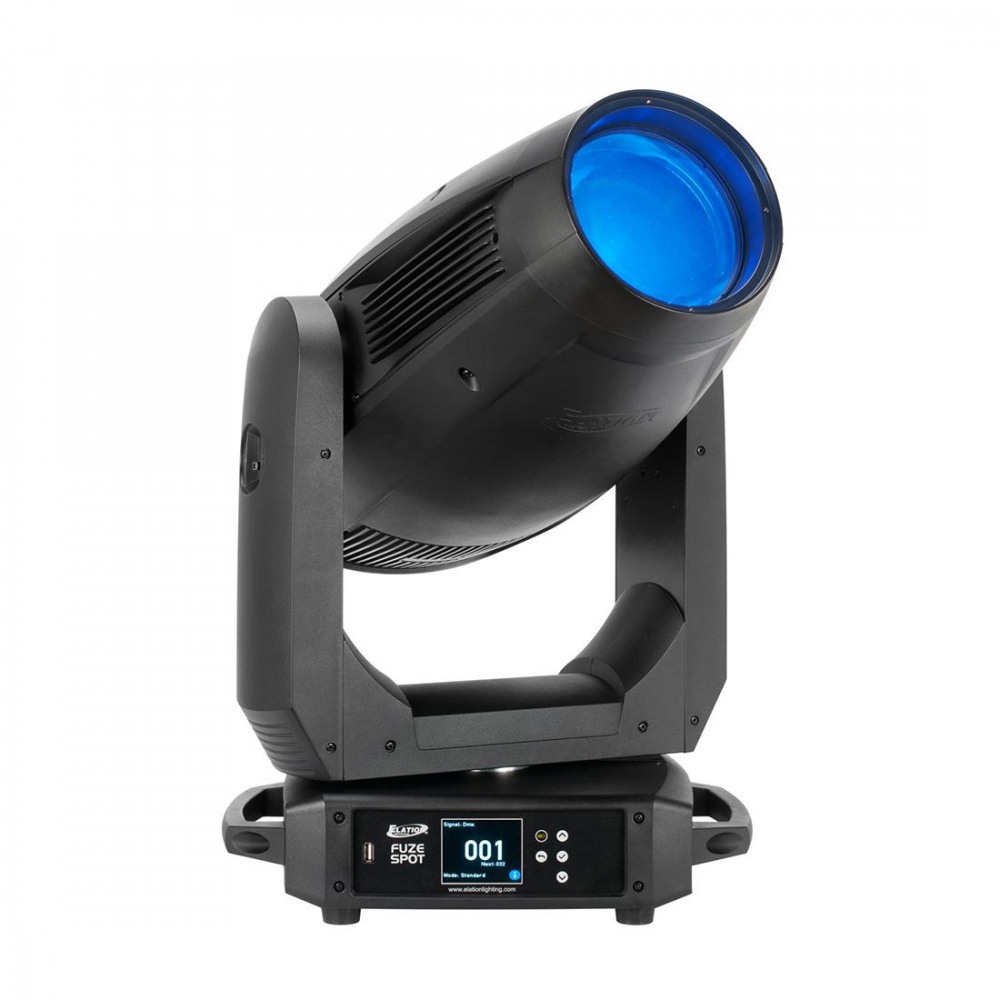

10,000 Lumens Cool White 6,500K LED Spot Luminaire
7° to 42° Motorized Zoom
Full 360° Bi-Directional Animation Wheel
CMY Emulation Color Mixing System
Linear Virtual CTO Color Correction
Green/Magenta Shift
High CRI >92
2 Interchangeable, Rotating, Indexable Glass Gobo Wheels
Linear Wash Frost Filter
Pan/Tilt Lock
Low Heat, Quiet Operation, Hibernation Mode (Power Save)
Adjustable Refresh Frequency
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film
SOURCE
305W 6,500K RGBMA LED Engine, 92 CRI
30,000 Hour Average LED Life*
|
*Test lab conditions. May vary depending on several factors including but not limited to: | Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming. |
PHOTOMETRIC DATA
18,110 LUX 1,682 FC @ 16.4’ (5m) (Min. Zoom)
969 LUX 90 FC @ 16.4’ (5m) (Max. Zoom)
EFFECTS
Full 360° Bi-Directional Animation Wheel
4-Facet Rotating and Indexing Prism
Linear Wash Frost Filter
Motorized Iris
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays
COLOR
RGBMA Color Array
CMY Emulation Color Mixing System
Linear Virtual CTO Color Correction
Green/Magenta Correction
Virtual Gel Swatch Book
GOBOS
2 Gobo Wheels
6 Interchangeable / Rotating / Indexing Glass Gobos
|
Size: | OD 29.9mm / ID 25mm |
6 Interchangeable / Rotating / Indexing Glass Gobos
|
Size: | OD 29.9mm / ID 25mm |
CONTROL / CONNECTIONS
4 DMX Channel Modes (RGBMA 31 / 41) (CMY 29 / 37)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

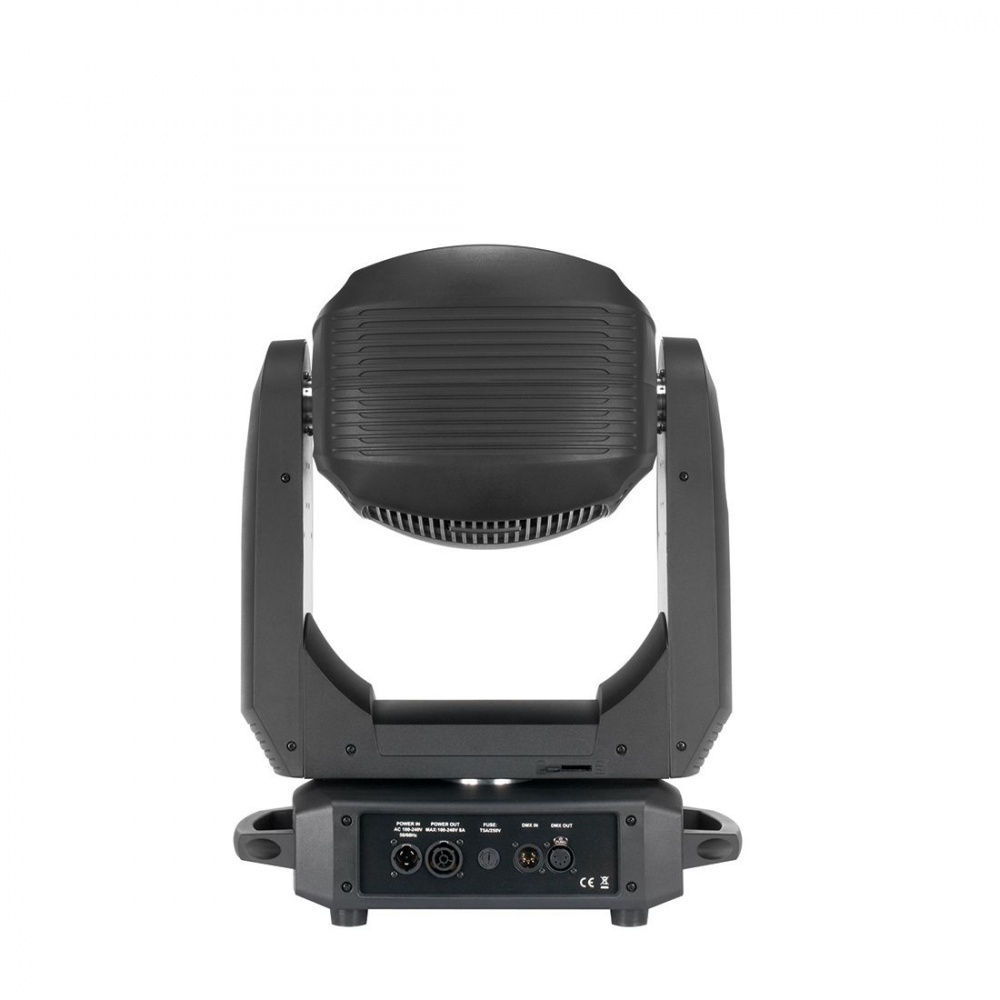

Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
|
Length: | 16” (407mm) |
|
Width: | 10.1” (256mm) |
|
Vertical Height: | 27.4” (698mm) |
|
Weight: | 46.3 lbs. (21 kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
466W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS

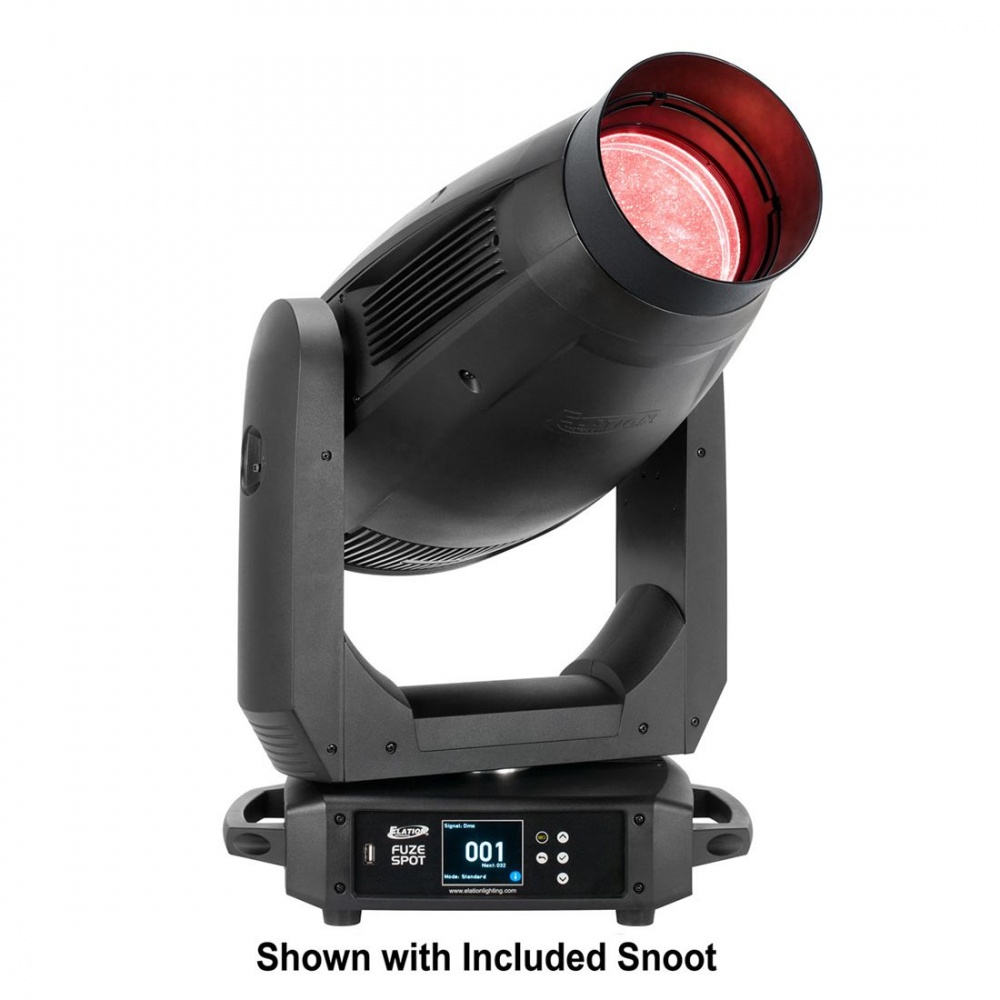

Snoot

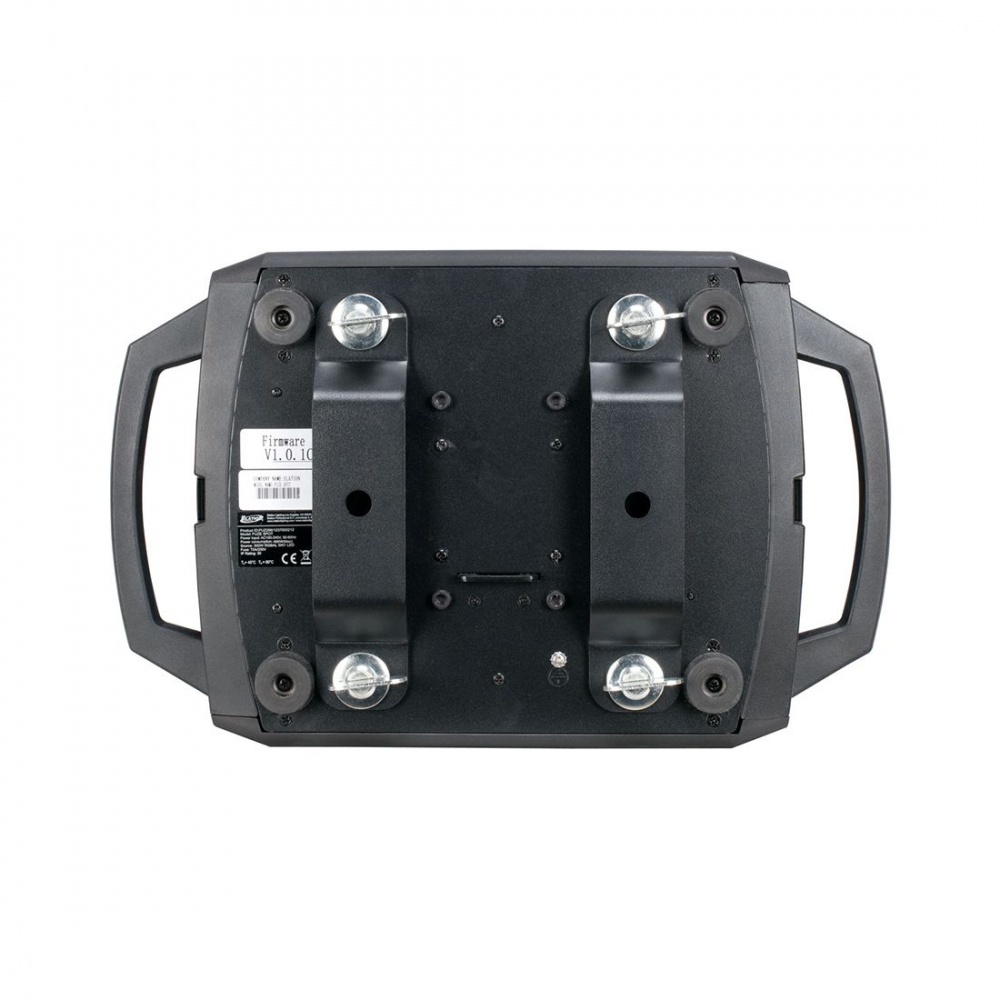

2 Omega Brackets
Locking IP65 Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1322000060 C Loader II

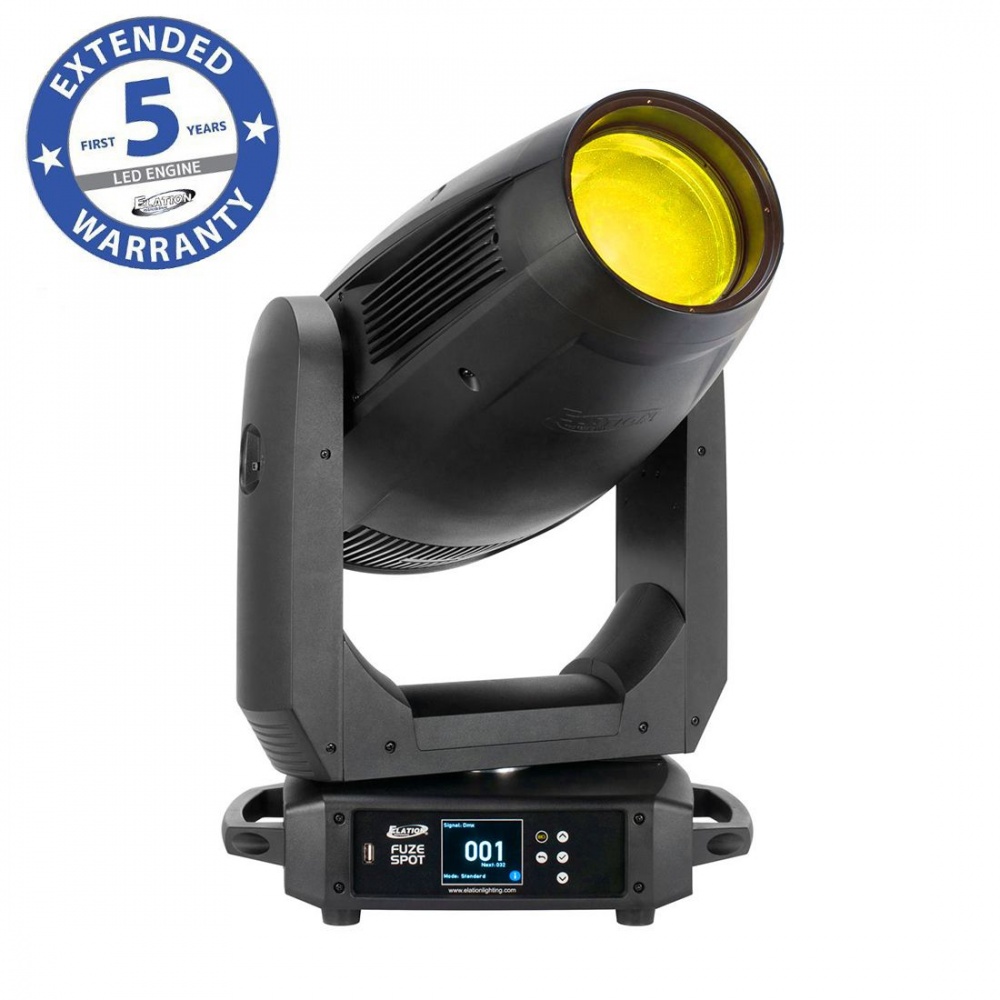

SPECIAL WARRANTY
Extended 5 Years LED Engine
Extended 3 Years Fixture Components on Registered Indoor Fixed Installation Projects
|
*LED Life may vary depending on several factors including but not limited to: | Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. |
