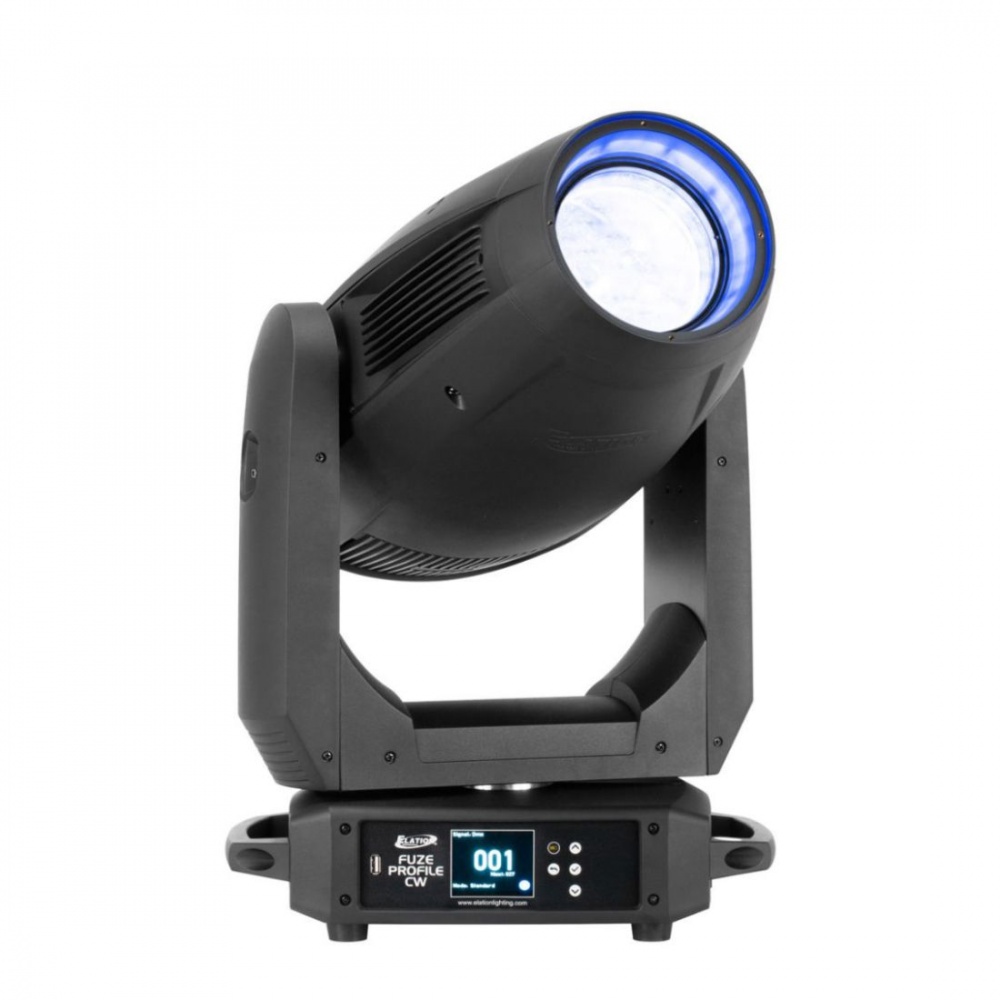

ELATION PROFESSIONAL Fuze Profile CW

FUZE PROFILE CW ™ je automatické LED frame svietidlo určené pre výstavu, pódiá, televíziu a širokú škálu aplikácií pre rôzne podujatia.Biele LED s pohonom 91CRI 380W zabezpečuje presnú reprodukciu farieb a poskytuje 13 000 lúmenov. Je navrhnutý tak, aby osvetľoval objekty, ako sú exponáty,vývesky a pod. s plochým poľom a presným rámovaním, má mnoho praktických aplikácií, kde sa vyžadujú plne automatizované elipsoidný svietidlá. Rotujúce gobo koliesko, dve farebné kolieska so plnými farbami a korekčnými filtrami a Iris vytvárajú komplexný súbor funkcií.

Elation code :1237000210

Na objednávku

00899728|00906194|00900999|00901194|00902493|00903331|00904183|00905523|00907612

23,30

Hmotnosť

CENA:

na dopyt

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.
The Fuze Profile CW™ is an automated LED framing fixture designed for tradeshows, stages, television and a wide array of AV event applications. The 91CRI 380W engine ensures accurate color reproduction while delivering a powerful output of 11.000 lumen. Designed to illuminate objects like exhibits and banners, texture areas and keylight persons with its flat field and accurate framing, it has many practical applications where a fully automated ellipsoidal fixture is required. A rotating gobo wheel of breakups, two color wheels featuring solid colors and correction filters plus and Iris round out its comprehensive feature set.

FEATURES
380W Cool White 6,000K LED Profile Luminaire
4-Blade Rotating Full Black Out Framing Shutter Module
90° Indexable Framing Shutter Module
9° to 43° Motorized Zoom
2 Color Wheels including Color Corrections
High CRI >91
Linear Wash Frost Filter
Pan/Tilt Lock
Low Heat, Quiet Operation, Hibernation Mode (Power Save)
Adjustable Refresh Frequency
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film

SOURCE
380W Cool White LED Engine
11,000 Total Output Lumens, 6,000K, CRI91
30,000 Hour Average LED Life*

PHOTOMETRIC DATA
19,862 LUX 1,845 FC @ 16.4’ (5m) (Min. Zoom)
1,016 LUX 94 FC @ 16.4’ (5m) (Max. Zoom)

EFFECTS
4-Blade Rotating Full Black Out Framing Shutter Module
90° Indexable Framing Shutter Module
Linear Wash Frost Filter
Motorized Iris
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays

COLOR
2 Color Wheels
7 Dichroic Colors + White (Open)
7 Color Corrections and UV + White (Open)

GOBOS
1 Gobo Wheel
7 Interchangeable / Rotating / Indexing Glass & Metal Gobos

Size:

OD 22.9mm / 19mm

CONTROL / CONNECTIONS
2 DMX Channel Modes (26 / 40)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display

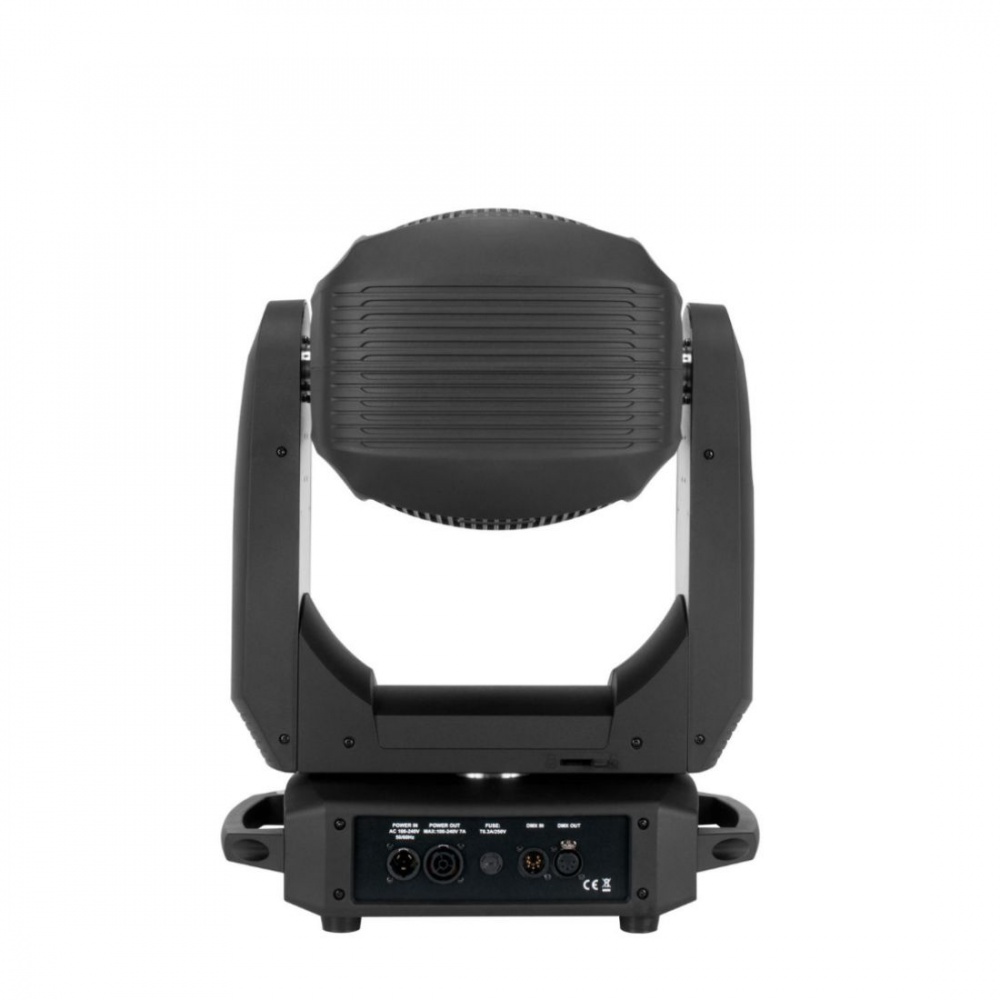

Locking 5pin XLR Connector In/Out

Locking IP65 Power Connector In/Out

SIZE / WEIGHT

Length:	15.9” (408mm)
Width:	9.9” (252mm)
Vertical Height:	27.4” (698mm)
Weight:	51.4 lbs. (23.3 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
590W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

INCLUDED ITEMS

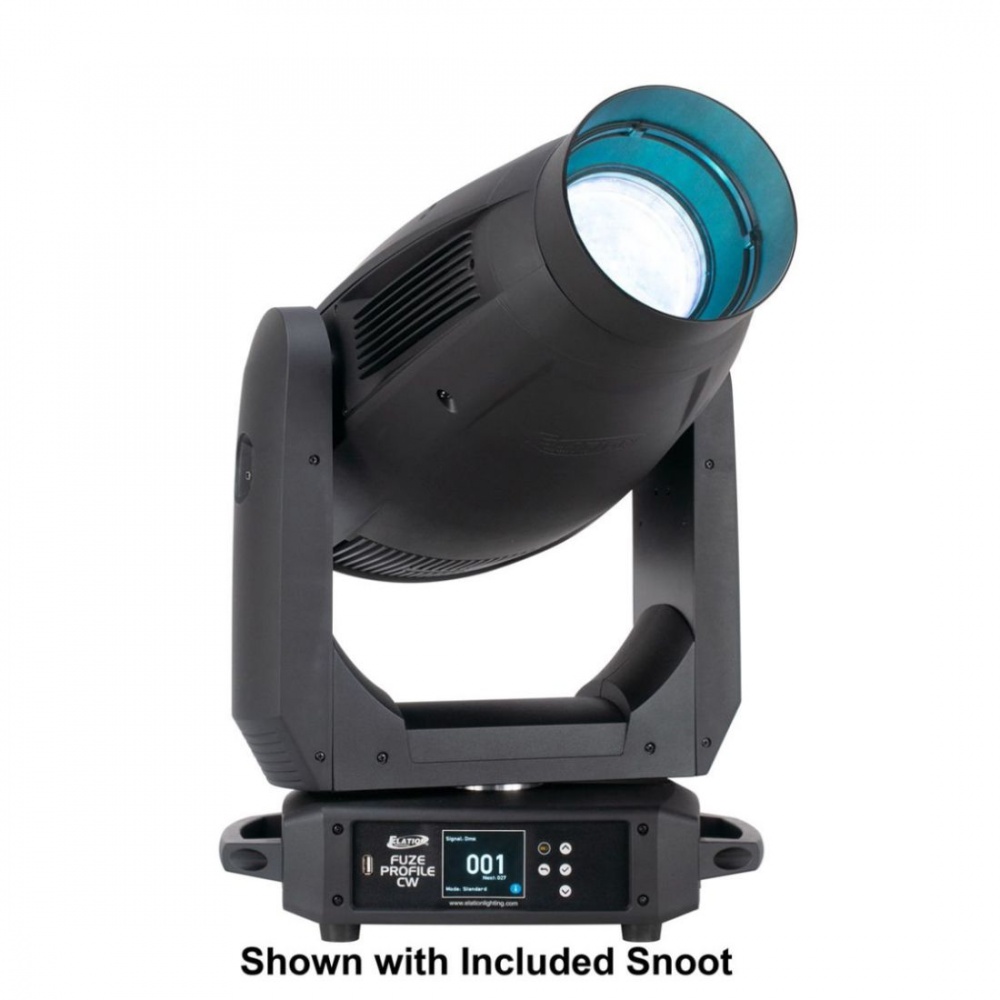

Snoot
2 Omega Brackets
Locking IP65 Power Connector to CEE 7/7 Cable

OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1322000054 E Loader III

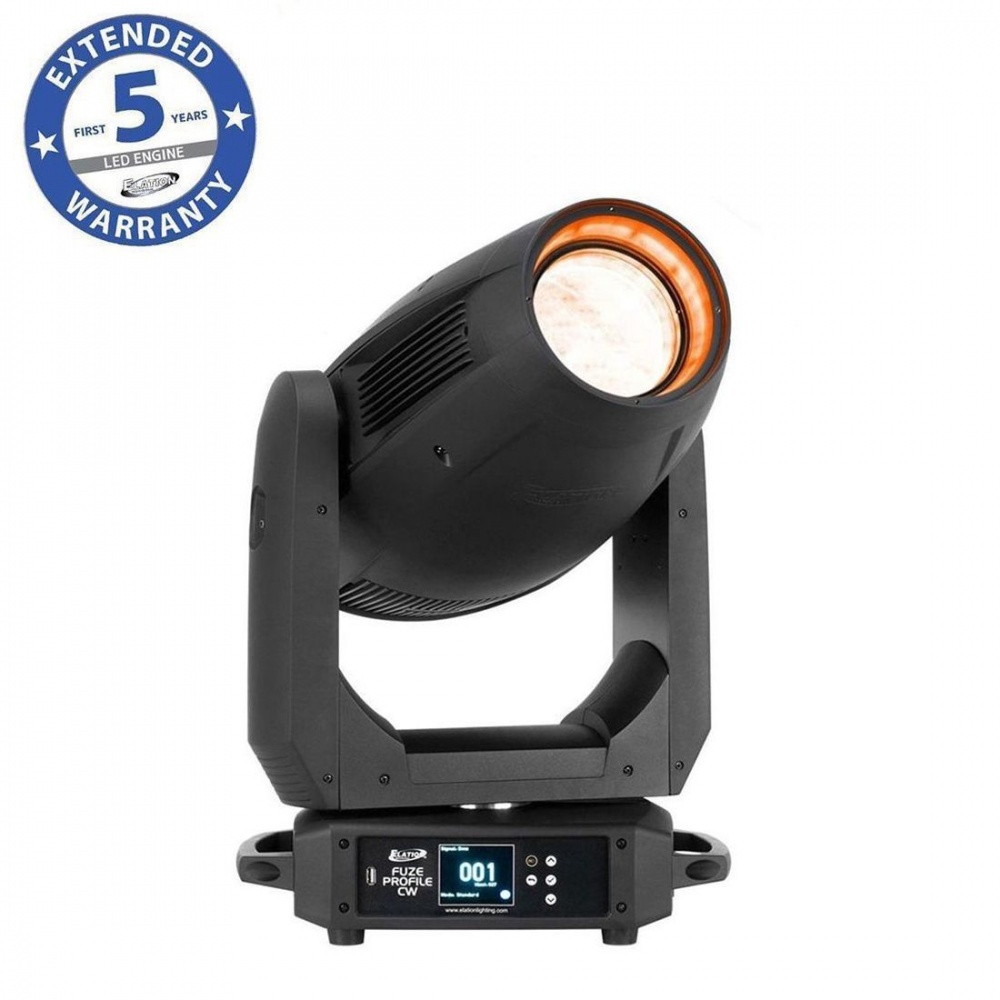

SPECIAL WARRANTY
Extended 5 Years LED Engine
Extended 3 Years Fixture Components on Registered Indoor Fixed Installation Projects

*LED Life may vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
