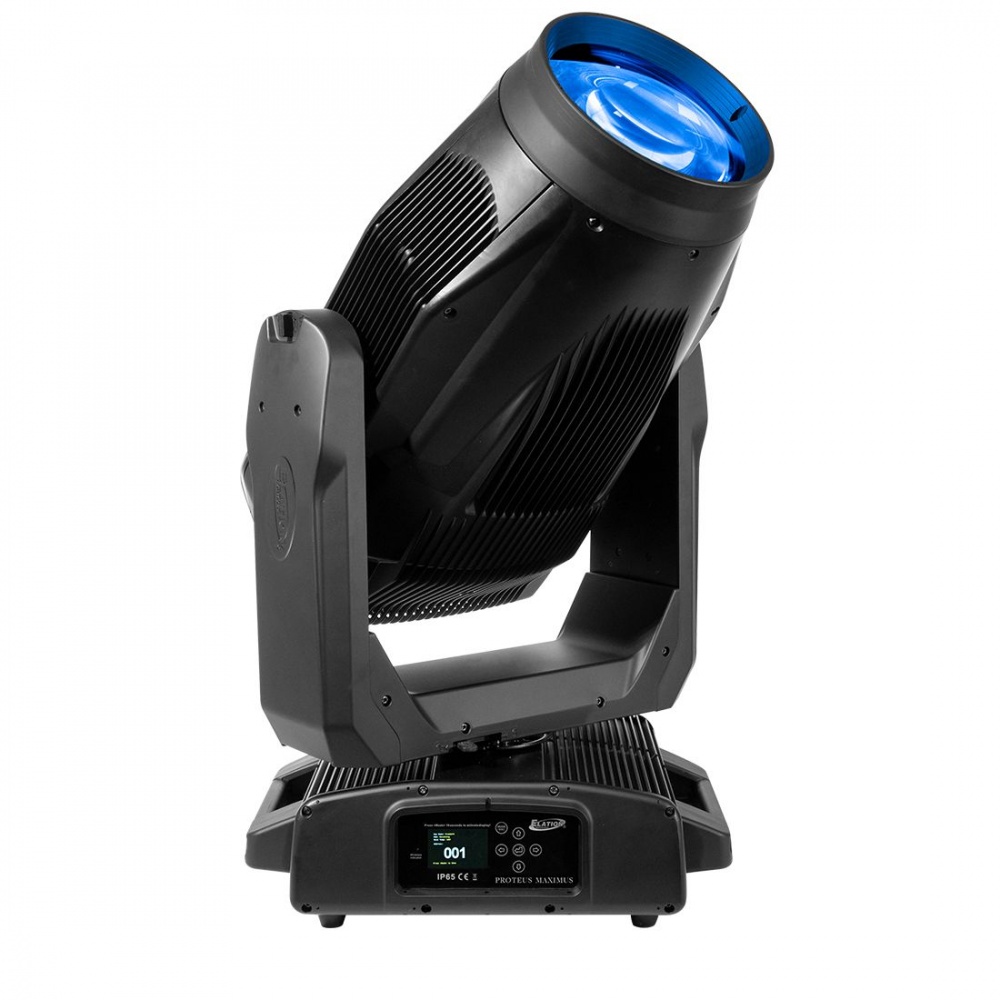

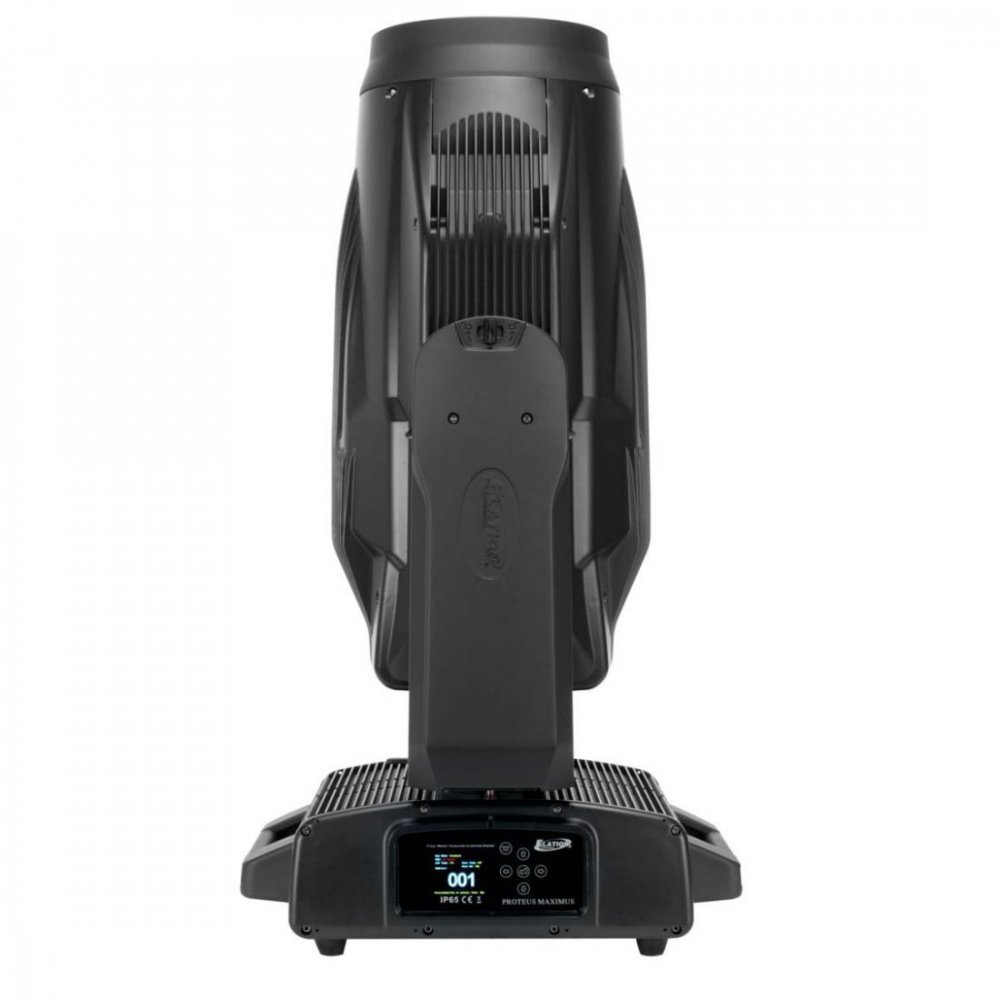

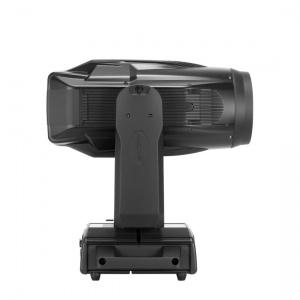

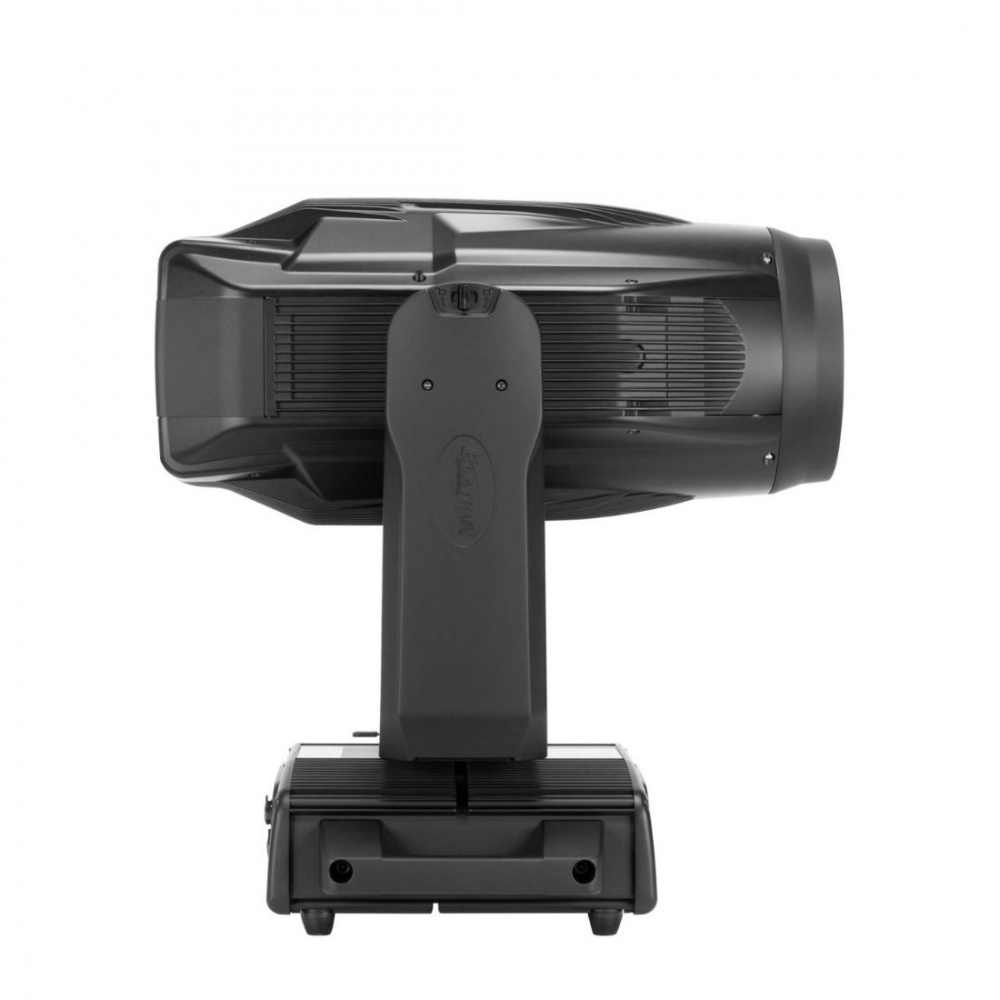

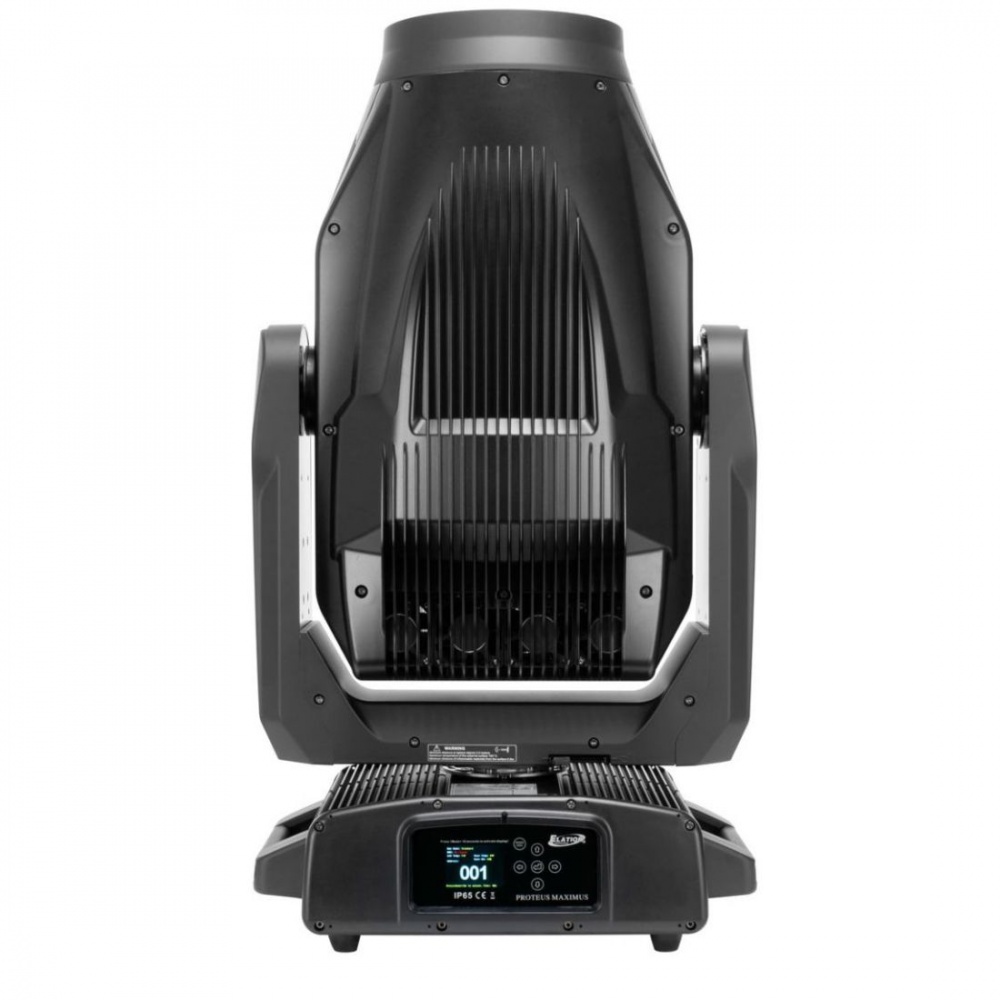

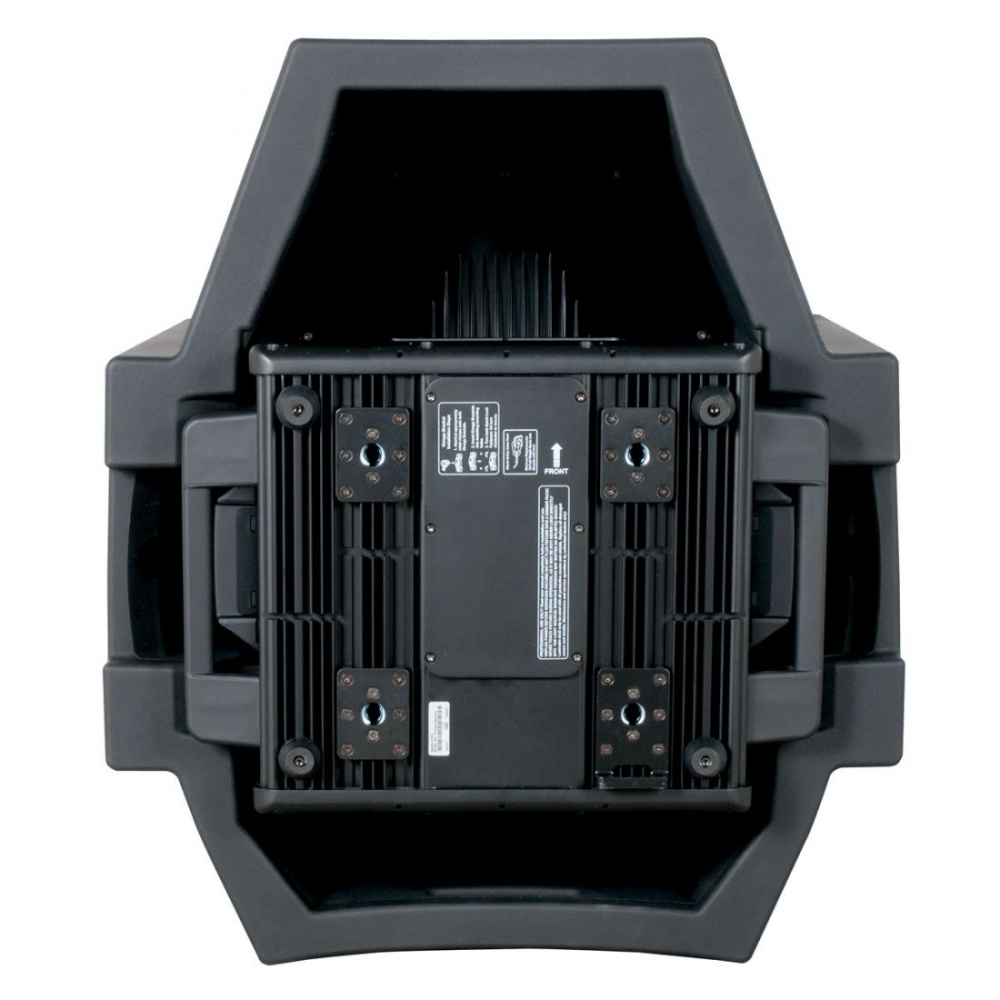

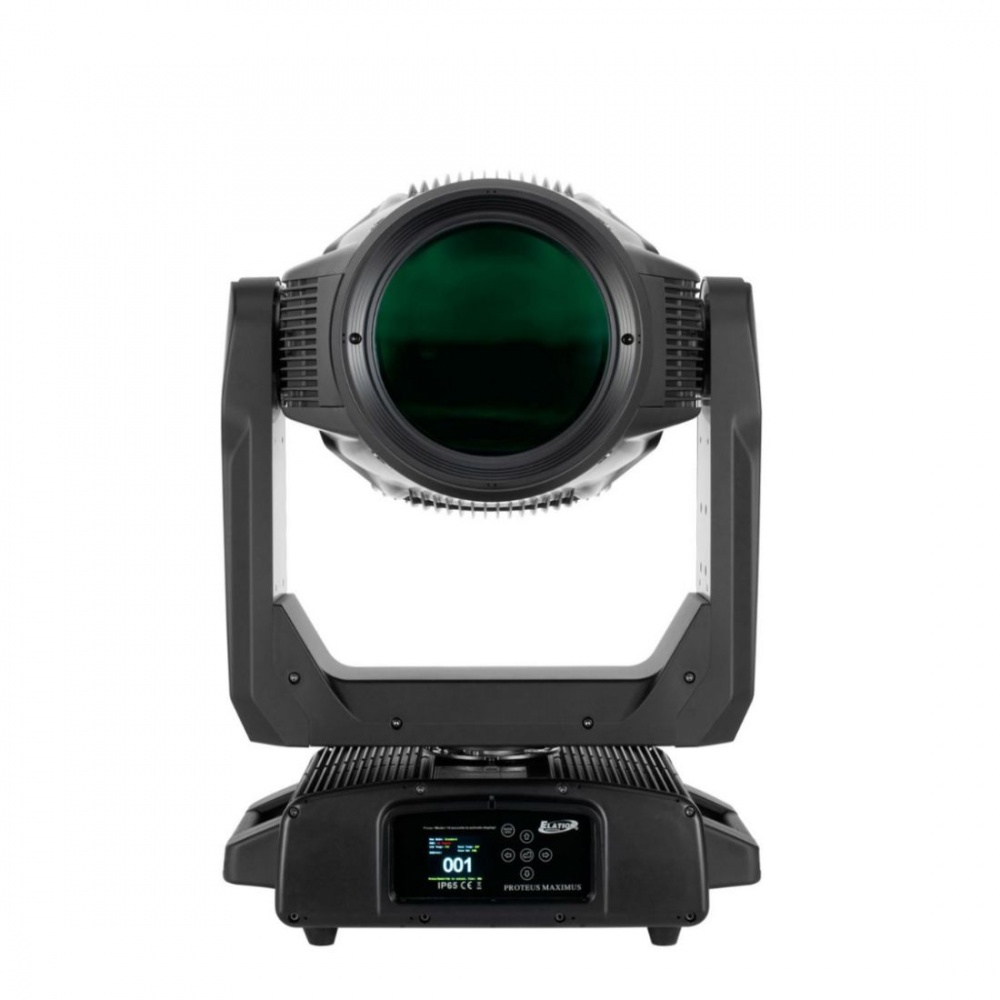

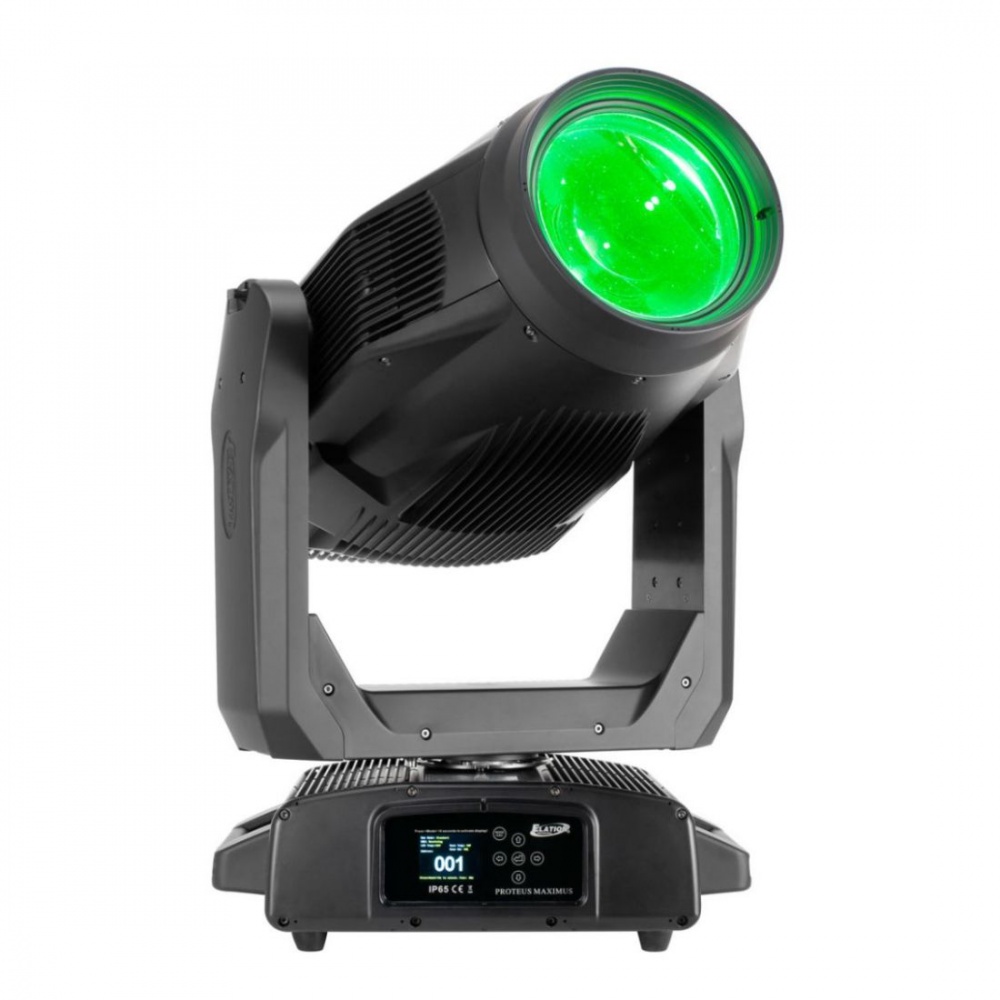

ELATION PROFESSIONAL Proteus MAXIMUS

PROTEUS MAXIMUS ™ LED svietidlo s extrémne jasným LED profilom v krytí IP65, ktoré ponúka vynikajúcu kvalitu projekcie, beam a wash v akomkoľvek prostredí. Proteus Maximus ponúka až 50 000 lumenov z 950 W LED svietidiel je ideálnym svietidlom pre všetky aplikácie v exteriéri, ktoré vyžadujú vynikajúci výkon, jasné a výkonné lúče, tichú prevádzku a tiež úžasne presné gobá a farby. Proteus Maximus poskytuje dizajnérovi komplexný balík FX so 6 rotujúcimi a 7 pevnými sklenenými gobami, plným animačným kolesom, dvojitými prizmami, duálnym frost a vysokorýchlostným Iris. Jeho otočný systém rámu poskytuje úplné zatváranie uzáverov pre presné ovládanie tvaru lúča. Proteus Maximus s rýchlym rozsahom priblíženia od 5,5 do 50 stupňov a pôsobivým predným objektívom s uhlopriečkou 180 mm má silu lúča pre veľké vzdialenosti na outdoor koncertoch, pri špeciálnych eventoch.Má plne prachu a vodeodolný dizajn.

Proteus MAXIMUS
Na objednávku

01153891|01158434|01152393|01155121|01150896|01151507|01154944|01156510|01157538
53
CENA:
na dopyt
Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

FEATURES
IP65 Rated Dust and Water Protection
Marine Grade Coated Anti-Corrosion Housing
50,000 Lumens IP Rated Profile Wash-Beam Luminaire
4-Blade Rotating Full Black Out Framing Shutter Module
+/-50° Indexable Framing Shutter Module
Advanced Internal Cooling and Heating System for Operation in Freezing or High Temperatures
5.5° - 55° Motorized Zoom
Full 360° Bi-Directional Animation Wheel
Full CMY-Flag Color Mixing System and Linear CTO Color Correction
High CRI (>82) Filter
4-Facet and Linear, Rotating and Indexing Prisms
2 Linear Wash Frost Filters
Pan/Tilt Lock
Low Heat, Quiet Operation, Hibernation Mode (Power Save)
Adjustable Refresh Frequency
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film

SOURCE
950W Cool White LED Engine
50,000 Total Output Lumens, 6,500K, CRI70 (CRI82 with HCRI Filter)
2:1 Hotspot Ratio
30,000 Hour Average Lamp Life*

PHOTOMETRIC DATA
124,119 LUX 11,531 FC @ 16.4’ (5m) (Min. Zoom)
4,096 LUX 381 FC @ 16.4’ (5m) (Max. Zoom)

EFFECTS
4-Blade Rotating Full Black Out Framing Shutter Module
+/-50° Indexable Framing Shutter Module
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear, Rotating and Indexing Prisms
2 Linear Wash Frost Filters
Motorized Iris
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays

COLOR
Full CMY-Flag Color Mixing System
Linear CTO-Flag Color Correction
High CRI (>82) Filter
6 Dichroic Colors + White (Open)

GOBOS
2 Gobo Wheels
6 Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 29.8mm / ID 25mm**
7 Static Interchangeable / Indexing Metal Gobos

CONTROL / CONNECTIONS
2 DMX Channel Modes (37 / 61)
DMX, Art-NET and sACN Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversib...le LCD Menu Display
Battery Powered Menu Display

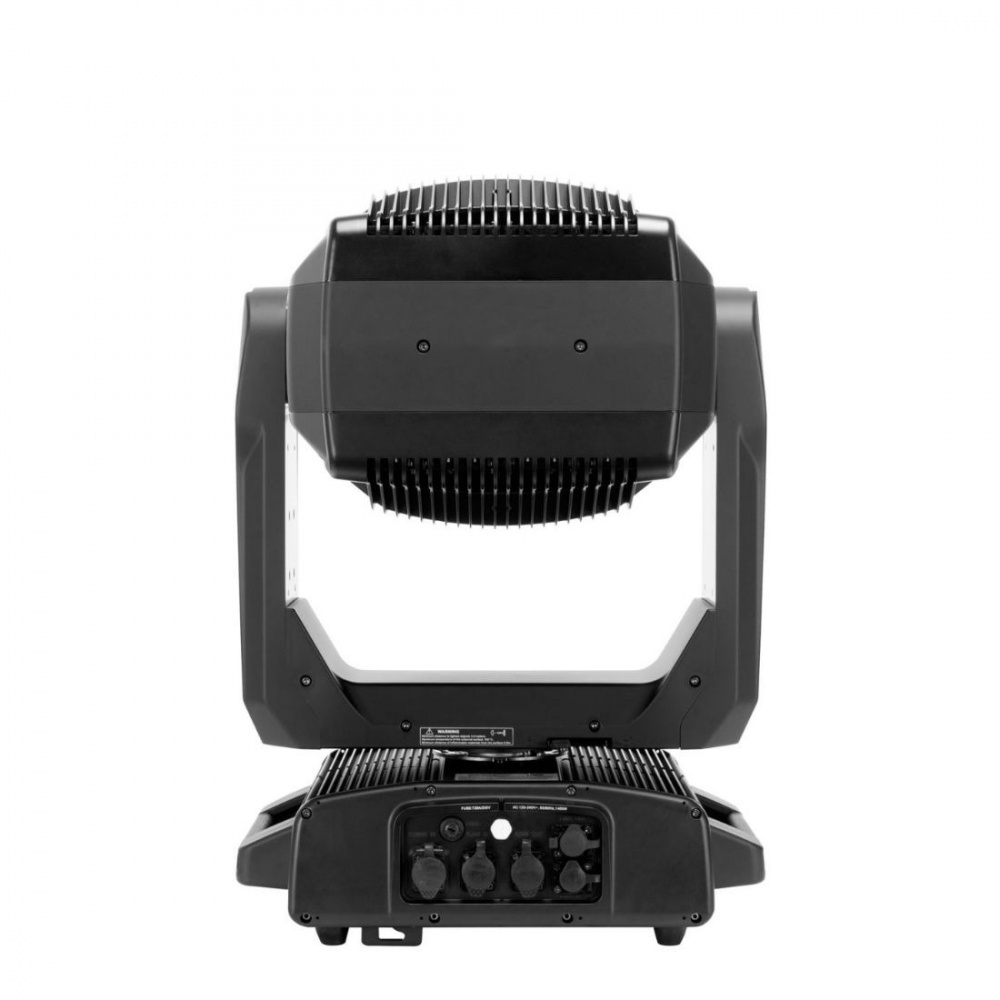

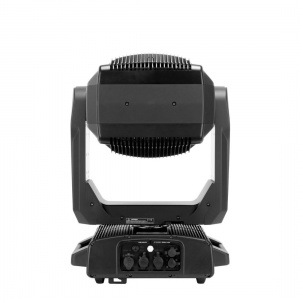

IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out (Art-NET and sACN)
IP65 Locking Power Connector In

SIZE / WEIGHT
Length: 18” (458mm)
Width: 23.3” (591mm)
Vertical Height: 32.5” (825mm)
Weight: 117 lbs. (53 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1,400W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)

INCLUDED ITEMS
Foam Inlay
2 Omega Brackets
IP65 Locking Power Connector to CEE 7/7 Cable
IP65 Locking Ethernet Cable
IP65 Locking XLR Cable

OPTIONAL ACCESSORIES
1322000061 IP Tester
1322000054 E Loader III

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.
 The PROTEUS MAXIMUS™ an extremely bright IP65 rated LED Profile fixture offering outstanding projection, beam and wash qualities in any environment.
Providing up to 50.000 lumens from its custom designed 950W 6,500K LED engine the Proteus Maximus is the ideal fixture for any outdoor application requiring superior output, bright and powerful beams, quiet operation as well as stunningly precise gobos and colors. Proteus Maximus provides the designer a comprehensive FX package with 6 rotating and 7 fixed glass gobos, full animation wheel, dual prisms, dual frost and a high-speed Iris. Its indexable framing system provides full blackout shutter cuts for precise beam shape control.
With a fast zoom range from 5.5° to 55° and an impressive 180mm front lens the Proteus Maximus has the power to cut through at great distances in any outdoor concert, special events and with its fully dust and water proof design it is an ideal fixture for theme parks and cruise ships.

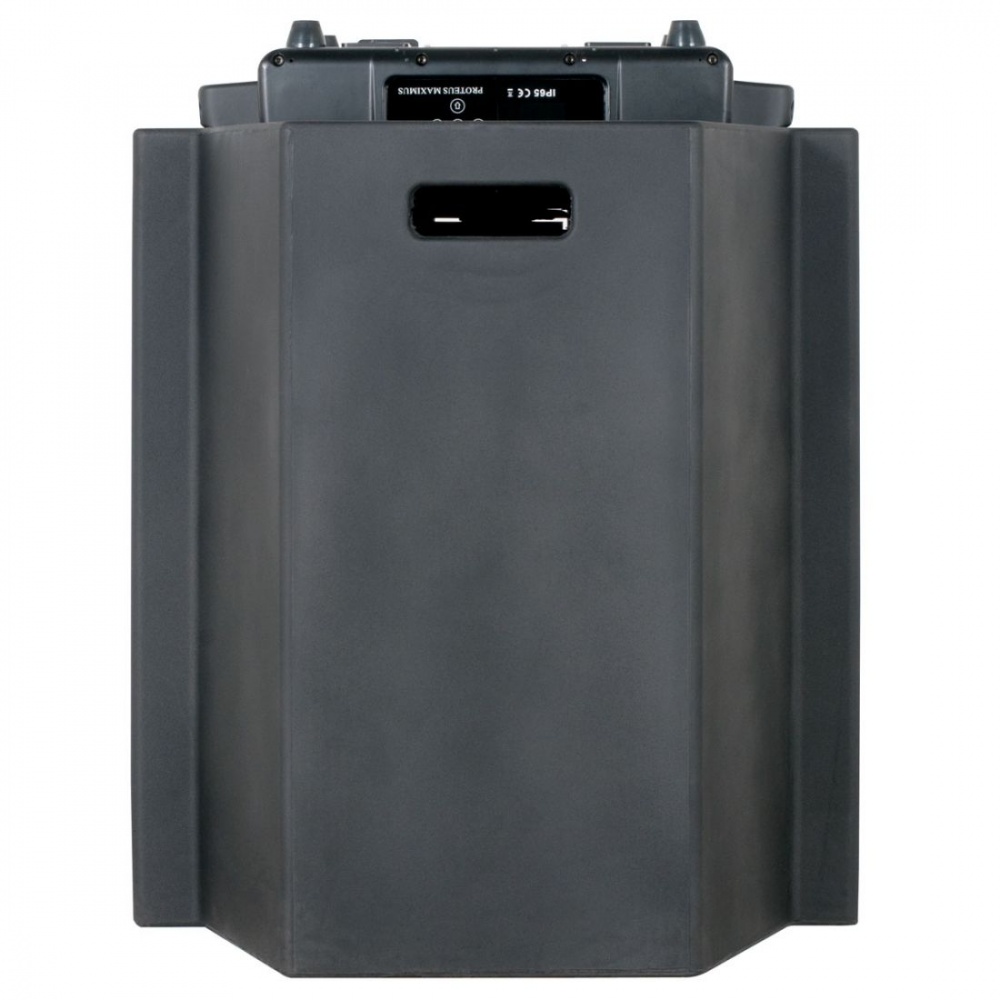

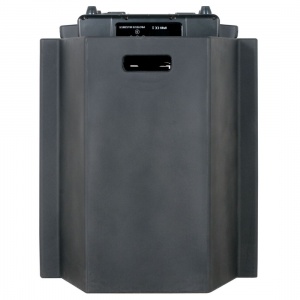

The PROTEUS MAXIMUS fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam Inlay) insert. This foam insert easily fits into a custom sized flight case (not included) and provides enhanced impact protection during transport.
