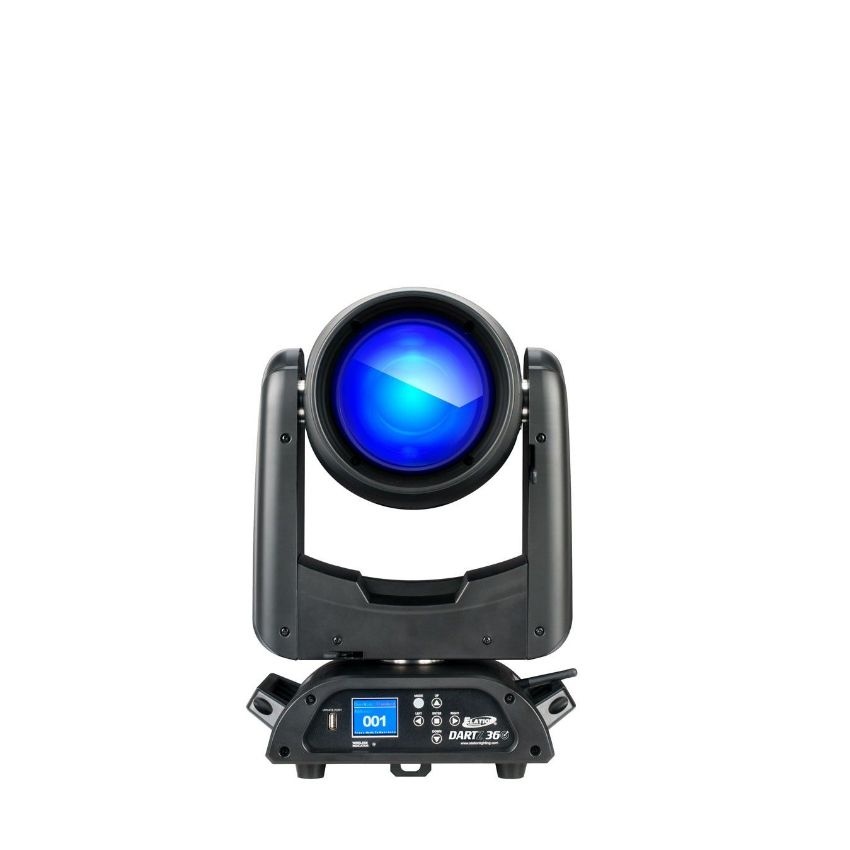

SOURCE
Patent Pending Single Source RGB LED Engine
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
61,300 LUX 5,695 FC @ 16.4’ (5m)
EFFECTS
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
8-Facet and Linear, Independent Rotating and Indexing Prisms
Prism Morphing
Linear Wash Frost Filter
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR

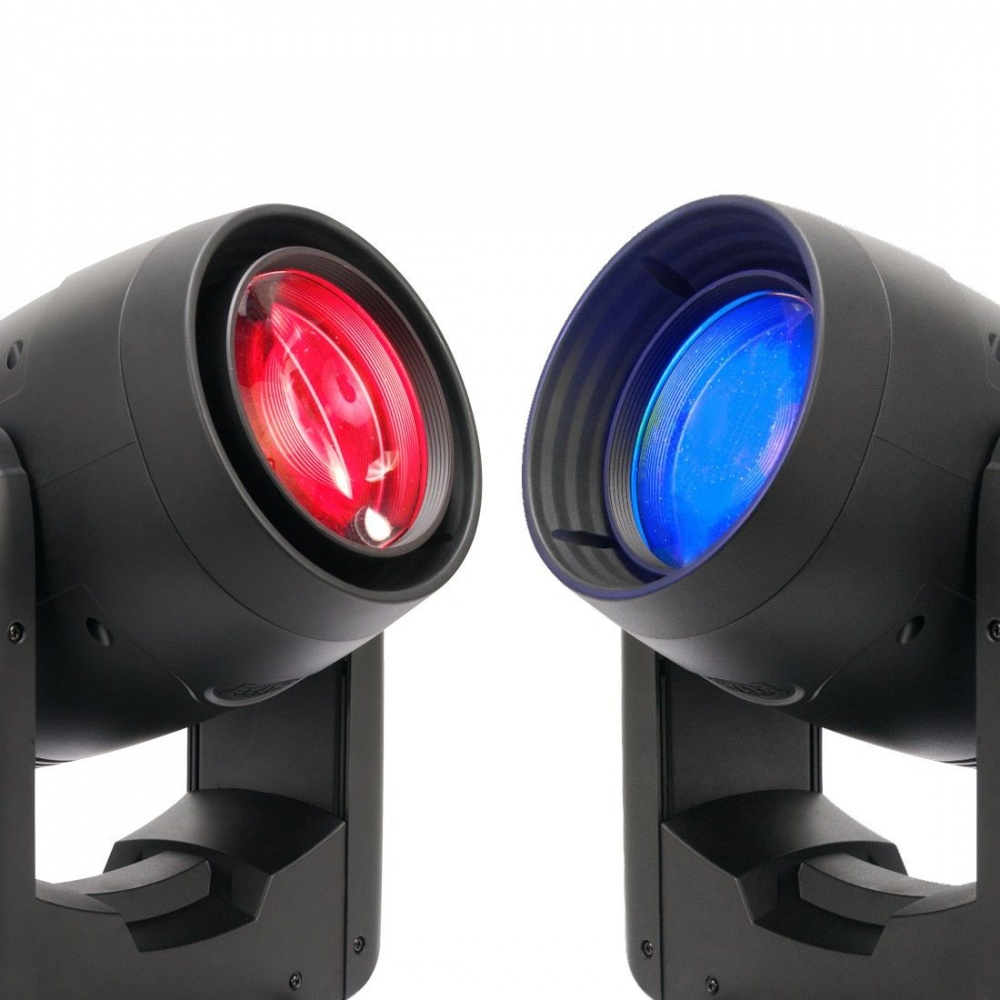

RGB Color Mixing
GOBOS
1 Gobo Wheel
14 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
3 DMX Channel Modes (19 / 22 / 25)
DMX, Art-NET, sACN and KlingNET Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
Adjustable Gamma (2.0, 2.2, 2.4, 2.8)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel

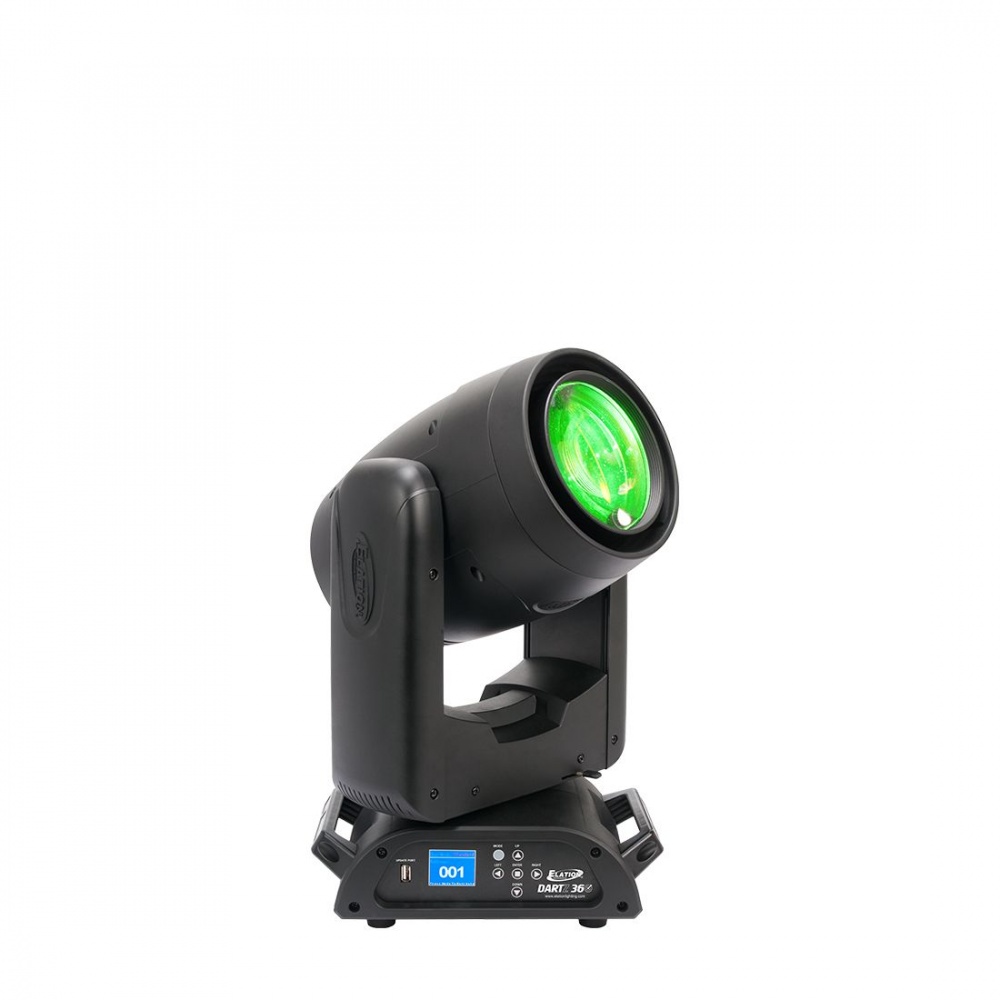

Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
USB Firmware Service Port
Internal E-FLY™ Wireless DMX Receiver

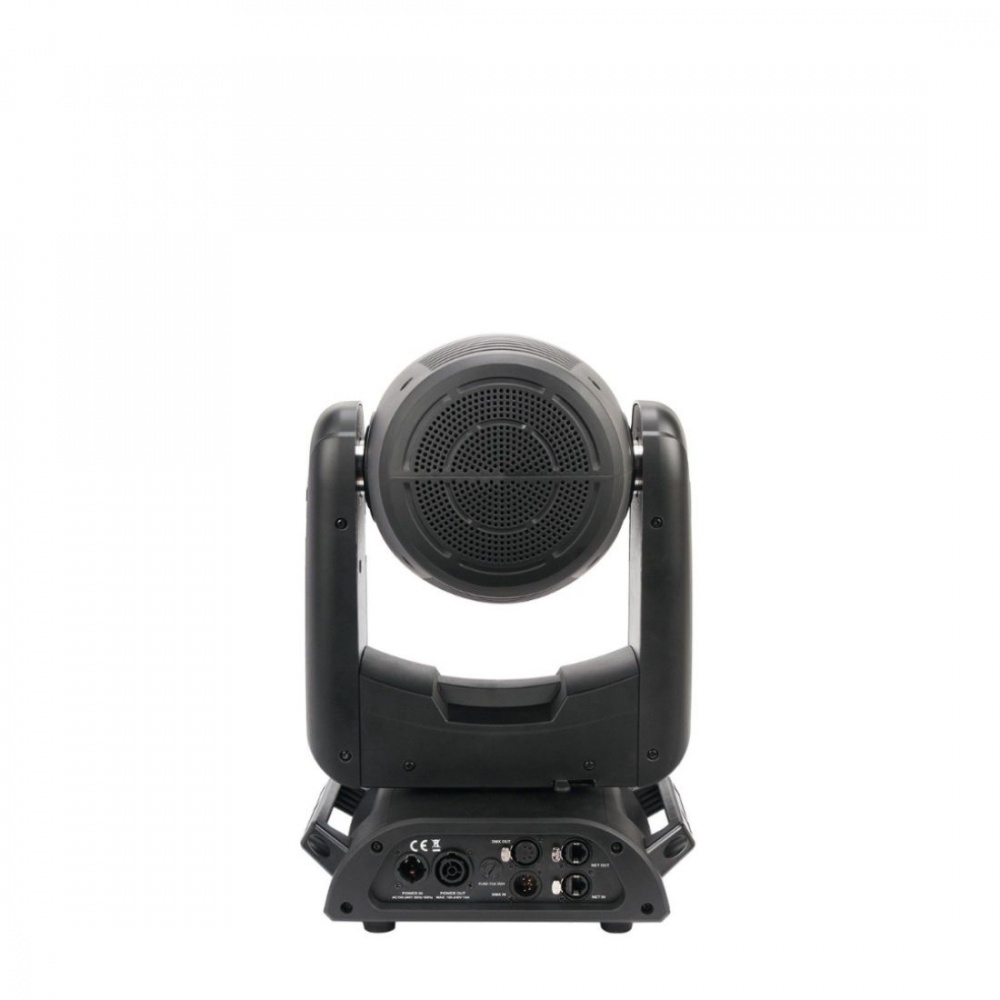

Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out (Art-NET, sACN and KlingNET)
Locking IP65 Power Connector In/Out
SIZE / WEIGHT|
Length: | 11.2” (284mm) |
|
Width: | 7.7” (196mm) |
|
Vertical Height: | 17.9” (455mm) |
|
Weight: | 28.0 lbs. (12.7 kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
154W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS

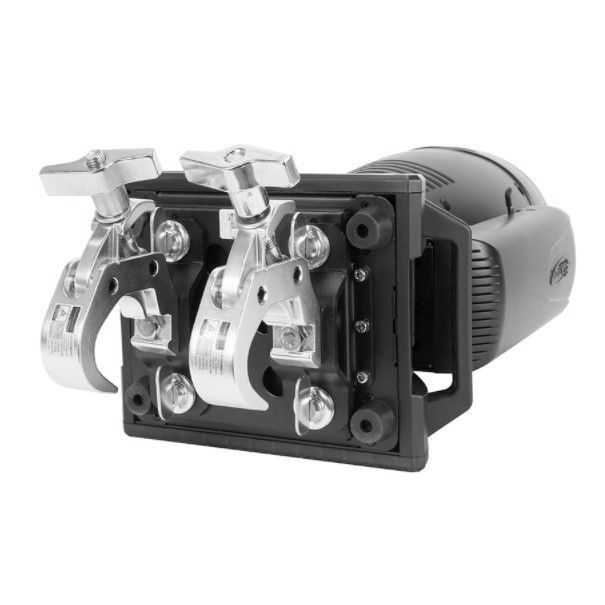

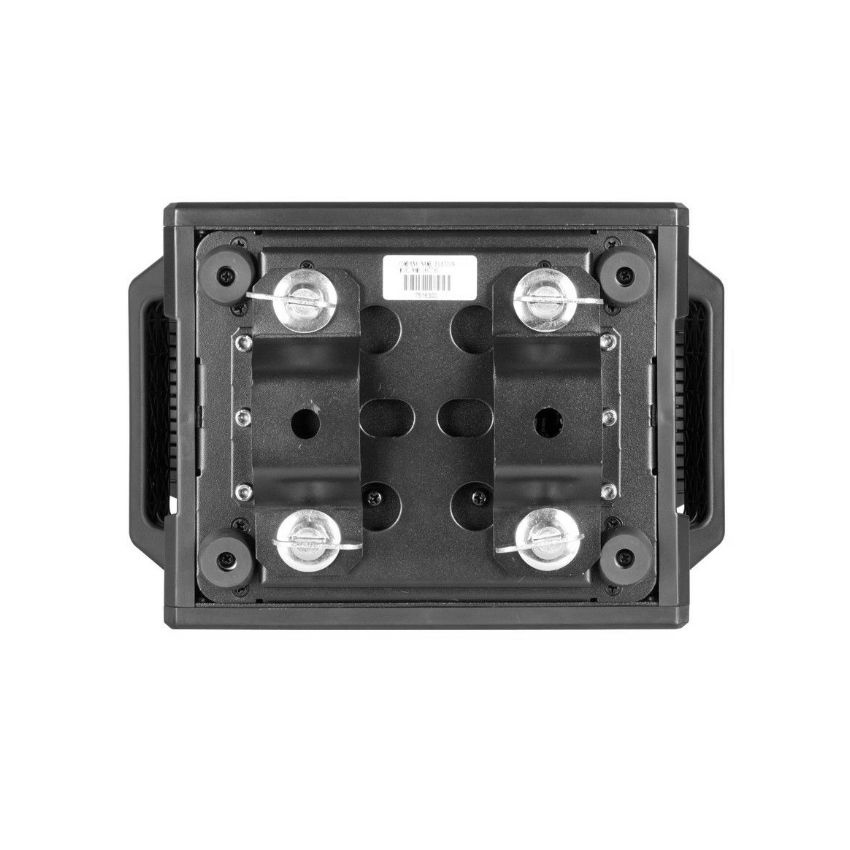

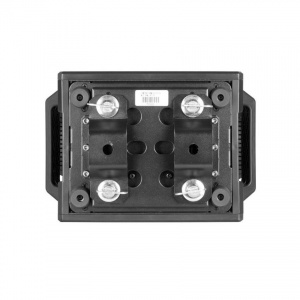

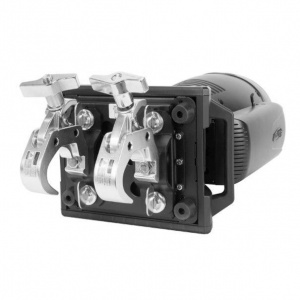

2 Omega Brackets
Locking IP65 Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1521000336 Touring Case 4x Dartz 360
1521000339 PRO Ca
se 4x Dartz 360
1322000060 C-Loader II
1322000055 E-FLY Wireless DMX Transceiver
|
*LED Life may vary depending on several factors including but not limited to: | Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. |
