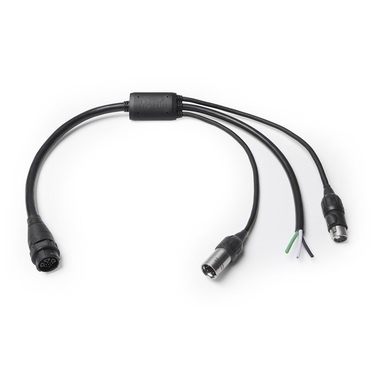

The Martin PDE BreakInOut Cable can be fitted to Martin fixtures with PDE connector to give them Power input, DMX input and DMX thru connections.
The bare power input cable allows any type of power connector to be fitted.
The male and female XLR 5 connectors enable easy daisy-chaining of fixtures (female PDE connector on fixture not used in this case).
The cable is fully IP65 rated for outdoor use and features robust connectors.
FEATURES
Bare cable for power input
XLR 5 TOP DMX input
XLR 5 TOP DMX thru
Martin PDE Hybrid output
IP65 rated
PHYSICAL
|
Length: | 500 mm (19.7 in.) |
|
Weight: | 325 g (0.52 lbs.) |
CONSTRUCTION
|
Housing: | PVC |
|
Color: | Black |
|
Protection rating: | IP65 |
|
Cable Jacket: | PVC |
INSTALLATION
|
Location: | indoor or temporary outdoor use |
|
Orientation: | Any |
CONNECTIONS
|
AC power input: | Bare cable (allows any type of male power connector to be fitted) |
|
DMX input: | Neutrik XLR 5-pin Male TOP (IP65) |
|
DMX thru: | Neutrik XLR 5-pin Female TOP (IP65) |
|
AC Power and DMX out: | PDE hybrid connector (IP65) |
All connections hot plugging compatible
ELECTRICAL
|
AC power: | 100-240V AC nominal, 50/60Hz |
THERMAL
|
Maximum ambient temperature (Ta max.): | 75° C |
|
Minimum ambient temperature (Ta min.): | -15° C |
ENVIRONMENTAL
|
RoHS: | Compliant |
|
REACH: | Compliant |
RELATED ITEMS
|
Active Junction Box Power-DMX-Ethernet to PDE: | P/N MAR-91700002 |
|
Passive Junction Box Power-DMX-Ethernet to PDE: | P/N 91610001 |
|
BreakIn Cable Power-DMX-Ethernet to PDE: | P/N MAR-91700000 |
|
BreakOut Cable PDE to Power-DMX-Ethernet: | P/N MAR-91700001 |
|
VDO Atomic Dot CLD in cardboard: | P/N 90357701 |
|
VDO Atomic Dot WRM in cardboard: | P/N 90357702 |
|
VDO Atomic Bold in cardboard: | P/N MAR-90357703 |
ACCESSORIES
Pre-Assembled Hybrid PDE Cables
|
Power+Data Cable Rental PDE-PDE 1 m: | P/N 91616001 |
|
Power+Data Cable Rental PDE-PDE 2.5 m: | P/N 91616002 |
|
Power+Data Cable Rental PDE-PDE 5 m: | P/N 91616003 |
|
Power+Data Cable Rental PDE-PDE 10 m: | P/N 91616004 |
|
Power+Data Cable Rental PDE-PDE 25 m: | |
P/N 91616005
Bulk Hybrid PDE Cable and Connectors
|
Power+Data Connector PDE Male: | P/N 91611701 |
|
Power+Data Connector PDE Female: | P/N 91611702 |
|
Power+Data Cable Power-DMX-Ethernet Rental 100m: | P/N 91616006 |
ORDERING INFORMATION
|
BreakInOut Cable Power-DMX to PDE: | P/N MAR-91700003 |
