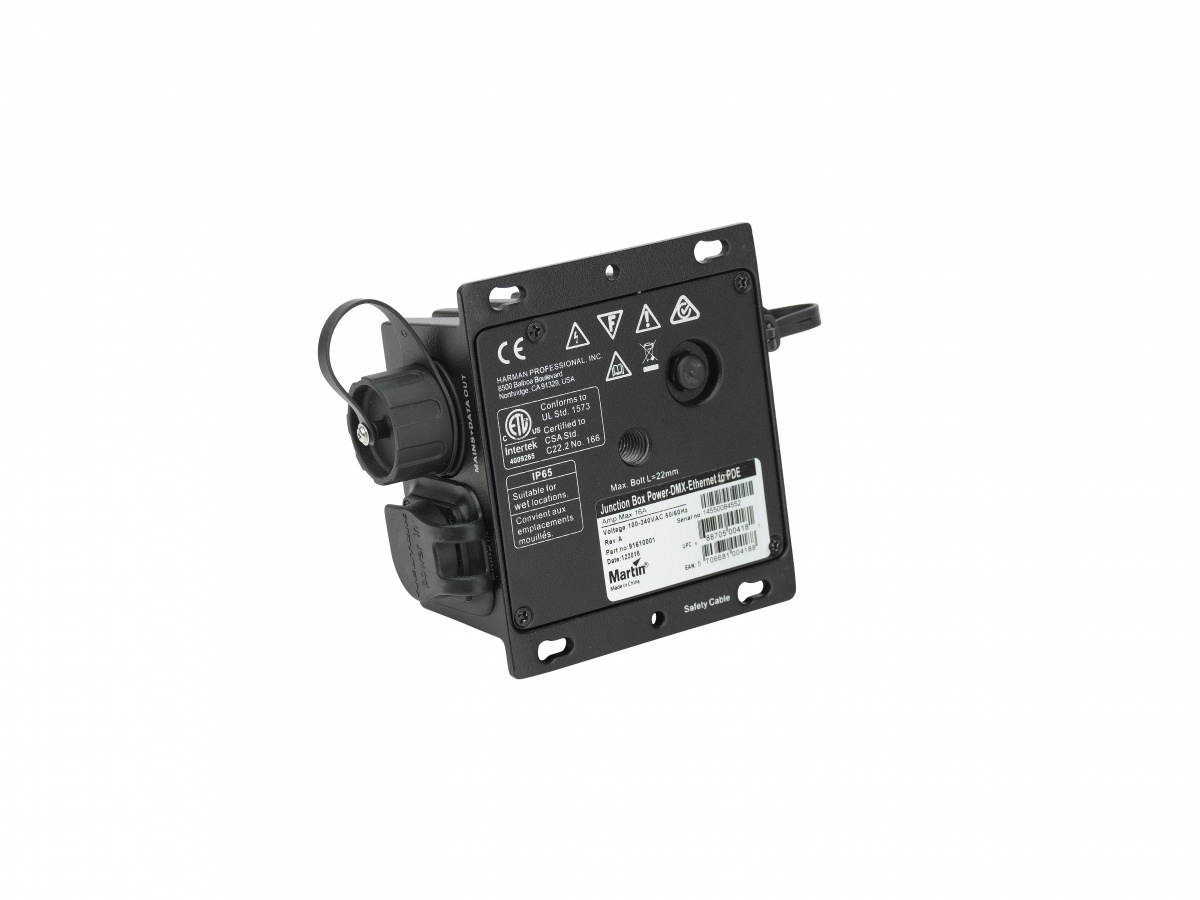

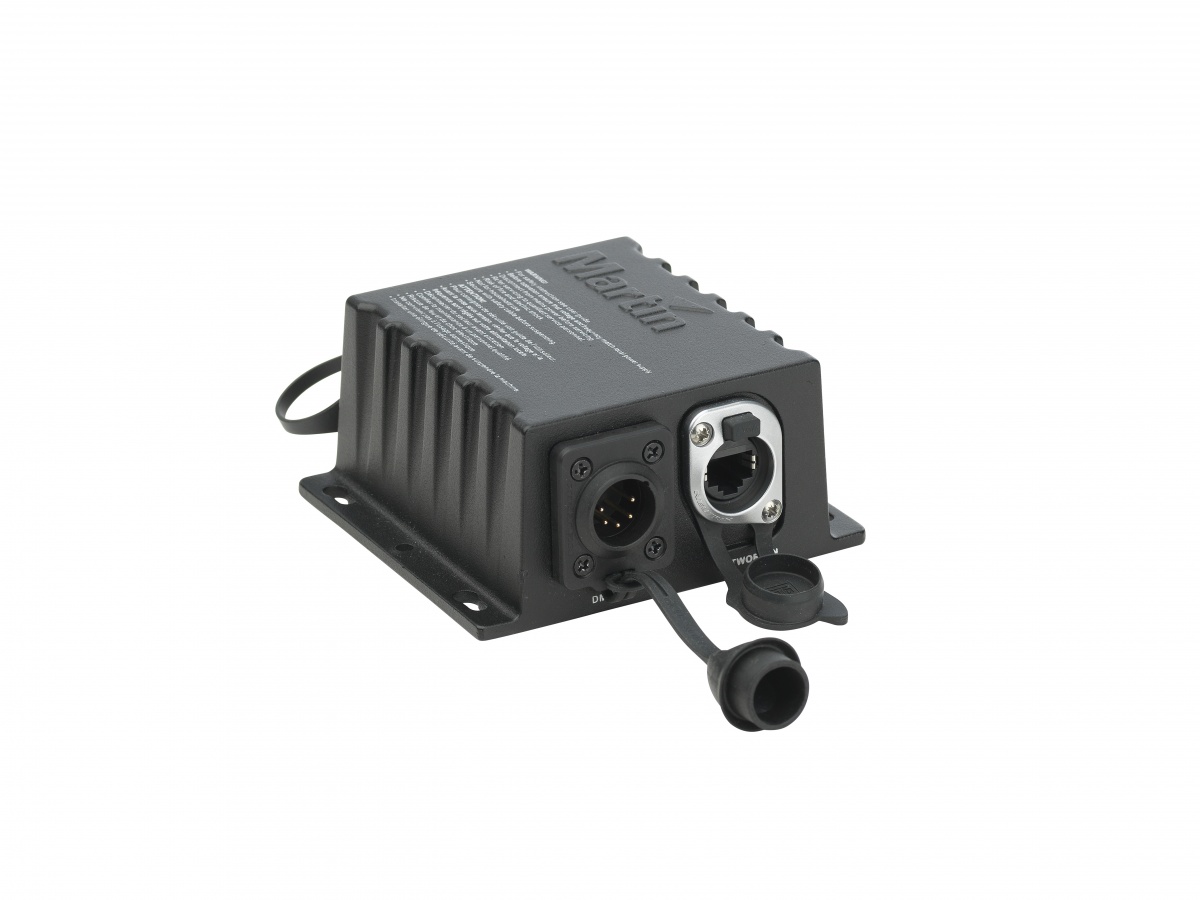

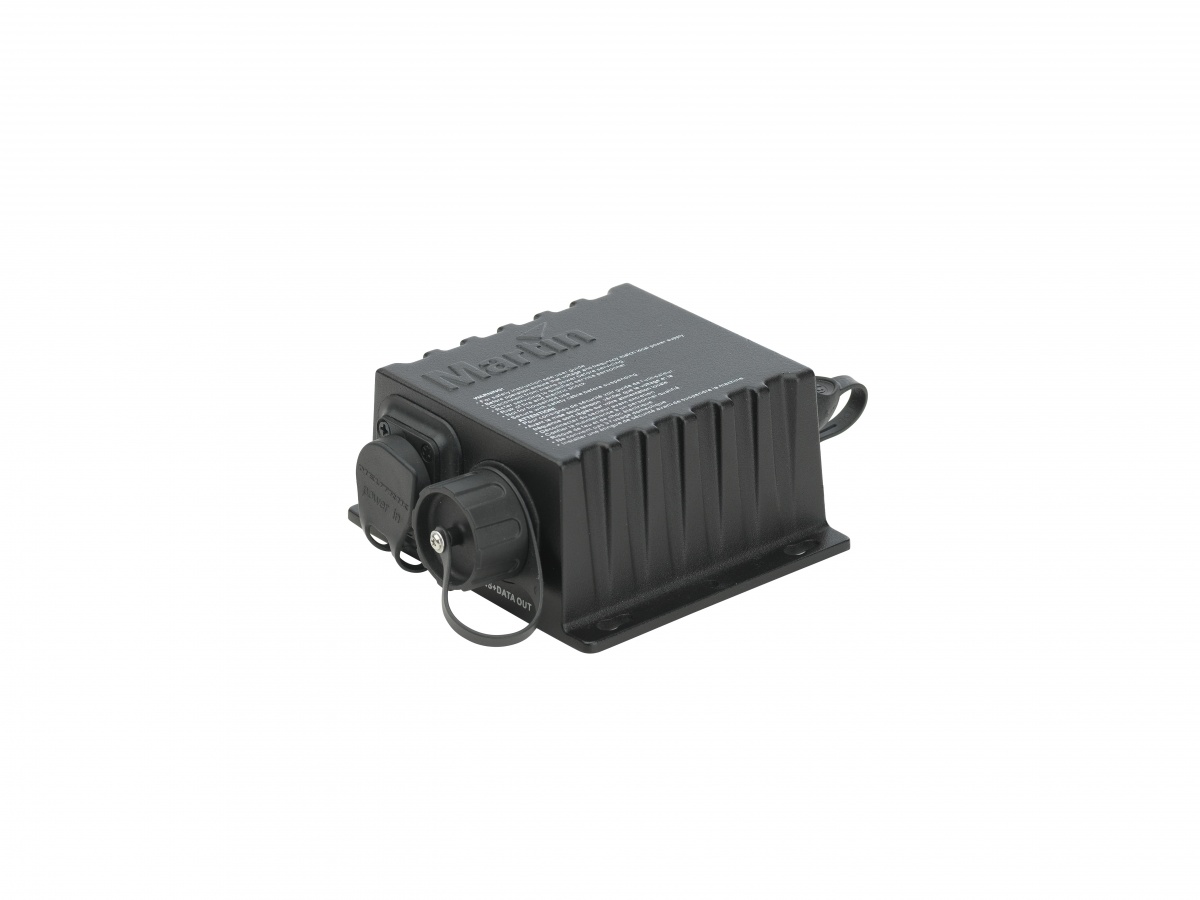

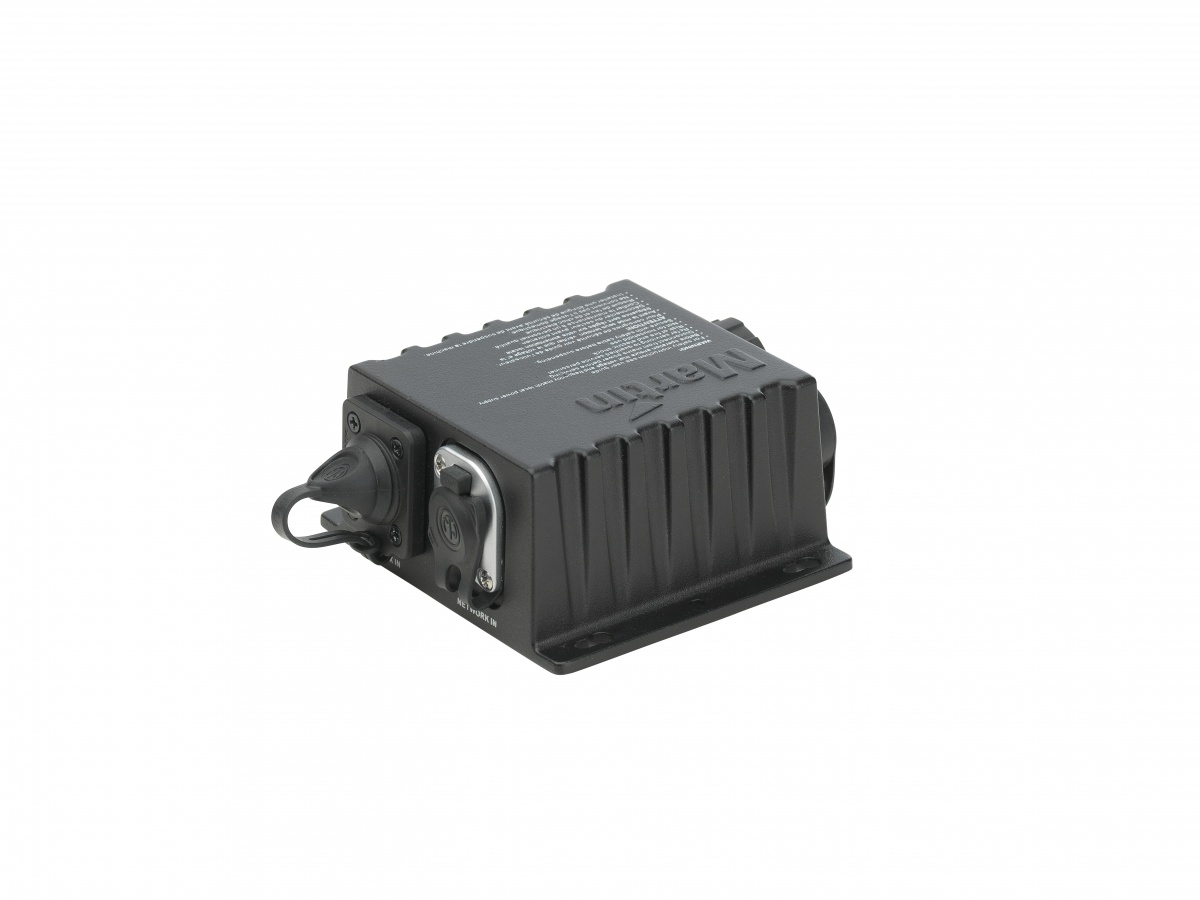

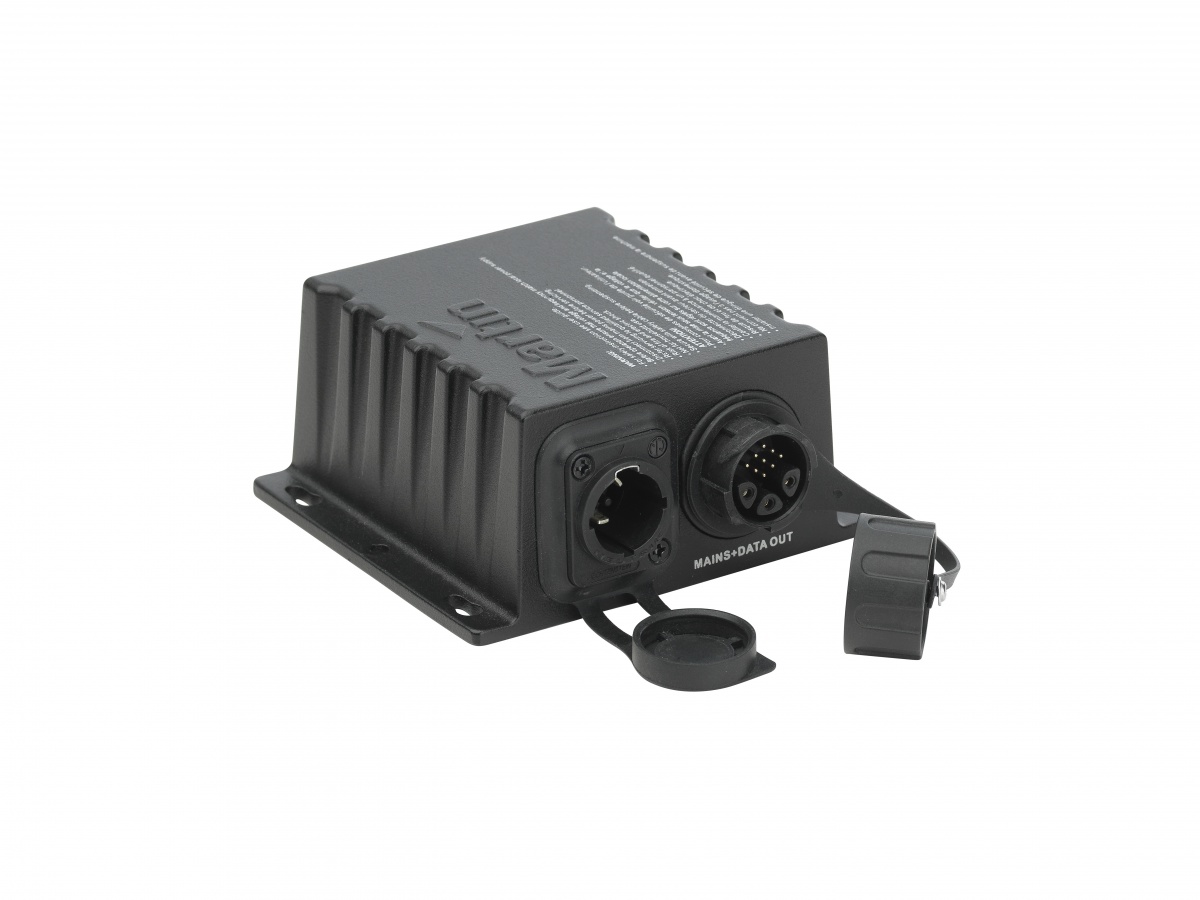

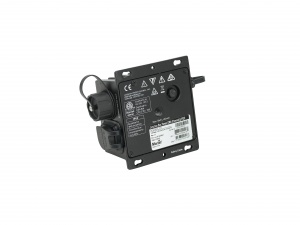

The Martin PDE Junction Box Passive merges power, DMX and Ethernet signals into a single connector and cable system, as used by the Martin VDO Atomic family of fixtures.
The box is fully IP65 rated for outdoor use and features a robust metal housing. The flanges on the side allow for mounting to any surface, while the M10 threaded hole allows for the attachment of a rigging clamp.
FEATURES
powerCON TRUE1 TOP power input
XLR 5 TOP DMX input
etherCON TOP Ethernet input
Martin PDE Hybrid output
IP65 rated
Robust metal housing
Wall or truss-mountable
PHYSICAL
|
Length: | 107 mm (4.2 in.) (incl. mounting flanges) |
|
Width: | 94 mm (3.7 in.) |
|
Height: | 51 mm (2.0 in.) |
|
Weight: | 0.5 kg (1.1 lbs.) |
CONSTRUCTION
|
Housing: | Aluminum |
|
Color: | Black |
|
Protection rating: | IP65 |
INSTALLATION
|
Location: | indoor or temporary outdoor use |
|
Orientation: | Any |
|
Wallmount: | Using mounting flanges |
|

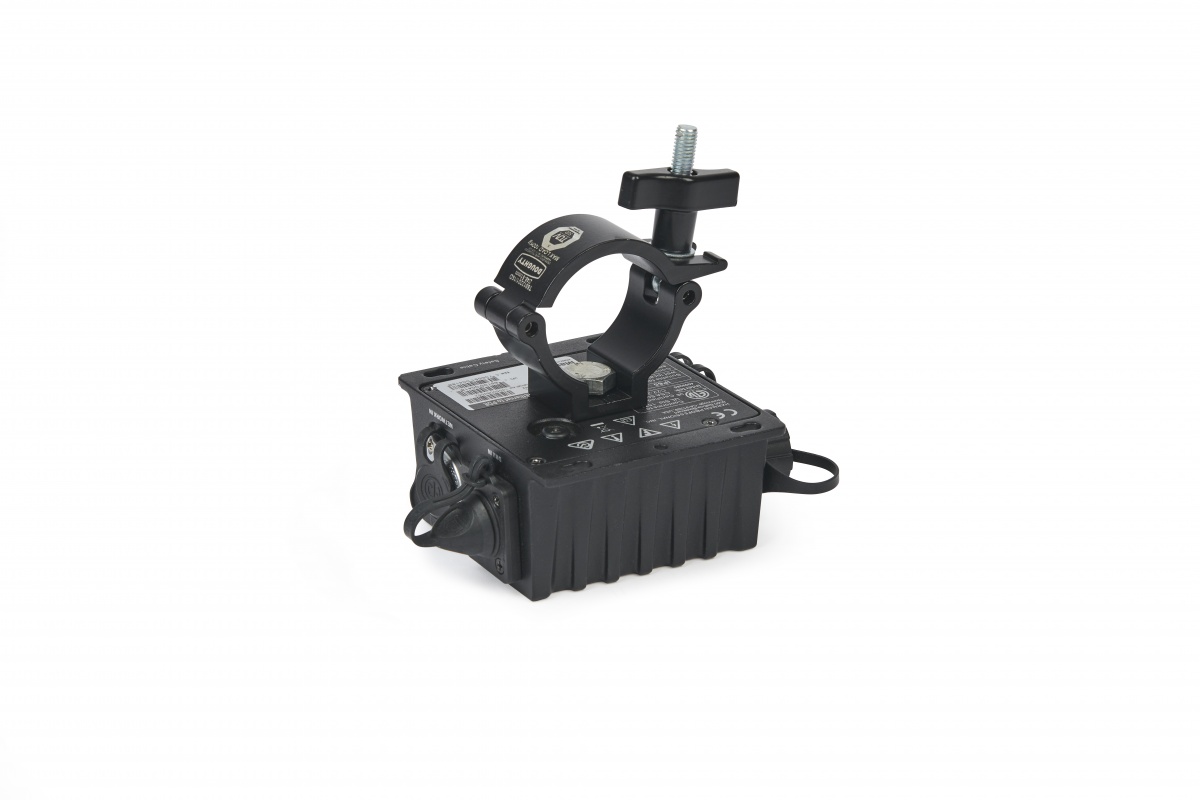

Trussmount: | Using half-coupler clamp in M10 threaded hole, max. bolt length 22 mm |
CONNECTIONS
|
AC power input: | Neutrik powerCON TRUE1 TOP (IP65) |
|
Ethernet Input: | Neutrik etherCON TOP (IP65) |
|
DMX input: | Neutrik XLR 5-pin Male TOP (IP65) |
|
AC Power, DMX and Network out: | PDE hybrid connector (IP65) |
All connections hot plugging compatible
ELECTRICAL
|
AC power: | 100-240 V AC nominal, 50/60 Hz |
THERMAL
|
Maximum ambient temperature (Ta max.): | 75 C |
|
Minimum ambient temperature (Ta min.): | -15 C |
ENVIRONMENTAL
|
RoHS: | Compliant |
|
REACH: | Compliant |
APPROVALS
|
EU safety: | EN 60598-2-17 |
|
US safety: | UL 1573 |
|
Canadian safety: | CSA 22.2 No. 166 |
|
Australia/NZ: | RCM |
|
United Kingdom: | UKCA |
RELATED ITEMS
|
Active Junction Box Power-DMX-Ethernet to PDE: | P/N MAR-91700002 |
|
BreakIn Cable Power-DMX-Ethernet to PDE: | P/N MAR-91700000 |
|
BreakOut Cable PDE to Power-DMX-Ethernet: | P/N MAR-91700001 |
|
BreakInOut Cable Power-DMX to PDE: | P/N MAR-91700003 |
|
VDO Atomic Dot CLD in cardboard: | P/N 90357701 |
|
VDO Atomic Dot WRM in cardboard: | P |
/N 90357702
|
VDO Atomic Bold in cardboard: | P/N MAR-90357703 |
ACCESSORIES
Mechanical Accessories
|
Super Lightweight Half Coupler Rigging Clamp, black: | P/N 91602018 |
Pre-Assembled Hybrid PDE Cables
|
Power+Data Cable Rental PDE-PDE 1 m: | P/N 91616001 |
|
Power+Data Cable Rental PDE-PDE 2.5 m: | P/N 91616002 |
|
Power+Data Cable Rental PDE-PDE 5 m: | P/N 91616003 |
|
Power+Data Cable Rental PDE-PDE 10 m: | P/N 91616004 |
|
Power+Data Cable Rental PDE-PDE 25 m: | P/N 91616005 |
Bulk Hybrid PDE Cable and Connectors
|
Power+Data Connector PDE Male: | P/N 91611701 |
|
Power+Data Connector PDE Female: | P/N 91611702 |
|
Power+Data Cable Power-DMX-Ethernet Rental 100m: | P/N 91616006 |
Power Cables
|
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 1.5 m (4.9 ft.): | P/N 91611797 |
|
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 5 m (16.4 ft.): | P/N 91611786 |
|
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 1.5 m (4.9 ft.): | P/N 91610173 |
|
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 5 m (16.4 ft.): | P/N 91610174 |
|
Cable Connector, Neutrik PowerCON TRUE1 Female: | P/N 91611789HU |
ORDERING INFORMATION
|
Passive Junction Box Power-DMX-Ethernet to PDE: | P/N 91610001 |
