ELATION PROFESSIONAL IP Tester
IP TESTER je jedinečný nástroj pre mobilný servis vyvinutý spoločnosťou Elation, ktorý pri výmene alebo oprave žiaroviek a gobo testuje integritu akýchkoľvek kompatibilných svietidiel s IP hodnotami, ako sú napríklad svietidlá série PROTEUS .Na rozdiel od iných testovacích IP zariadení , ktoré sú v súčasnosti na trhu k dispozícii, bol IP tester Elation navrhnutý na aj testovanie únikov vákua aj tlaku.
Ľahký prenosný kufrík, 6-tlačidlový ovládací panel LCD, testovacie lišty priebehu naznačujúce zostávajúci čas skúšky,, prednastavené testovacie predvoľby modelu svietidiel Elation IP, manuálne nastavenie testu pre akékoľvek kompatibilné modely,vstup podľa sériového čísla príslušenstva na sledovanie testovaných zariadení, slot na kartu Micro SD na ukladanie testovacích správ a pripojenie USB na kontrolu softvéru v počítači.
IP TESTER obsahuje stočenú vzduchovú hadicu v dĺžke 0,9 až 1,5 m s rýchlospojkou, mosadznú dýzu so závitom M12 so spojkou push-to-connect, 2 skrutky M12 x 1,5, kábel... USB 1,8 m, napájací kábel Power Twist TR v dĺžke 1,5m, SD kartu a puzdro na prenášanie.
VIAC
Micro SD Card (4GB min)The IP TESTER is a unique mobile service tool developed by Elation to test the integrity of any compatible IP-rated lighting fixture such as Elation’s PROTEUS series fixtures, after being opened for lamp and gobo replacement or repair. Unlike other IP fixture test devices currently available in the market, Elation’s IP TESTER has been designed to test for both Vacuum and Pressure leaks.
Features include an easy to carry rugged flight case, an easy to navigate 6-button LCD control menu display, testing progress bars to indicate remaining test time, preloaded Elation IP-rated lighting fixture model test presets, manual test setup for any compatible non-Elation models, fixture serial number input to keep track of fixtures tested, Micro SD card slot to store test reports, and a USB connection for PC software control.
The IP TESTER includes a 3-5 ft (0.9-1.5m) coiled air hose with quick-connect fitting, threaded M12 brass nozzle with push-to-connect fitting, 2 M12 x 1.5 nylon bolts, 6ft (1.8m) USB cable, 5ft (1.5m) Locking power cable, a Micro SD Card, and an easy to carry rugged case.
Please contact Elation Service for more information.
FEATURES
Mobile IP Fixture Vacuum and Pressure Tester
Developed by ELATION PROFESSIONAL

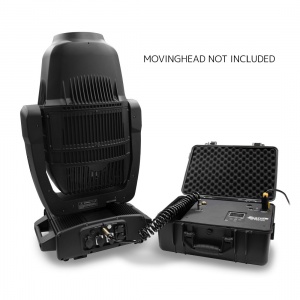

Compatible with any IP Fixture like Elation’s PROTEUS Series
Preloaded Elation IP Rated Lighting Fixture Test Presents
Manual and Auto Testing Modes
Easy to navigate LCD Control Menu Display
Fixture Serial Number Input for Tracking Test Results
Micro SD Card to Store Test Results
USB Connection for PC Software Control (Windows)

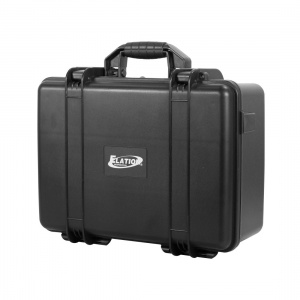

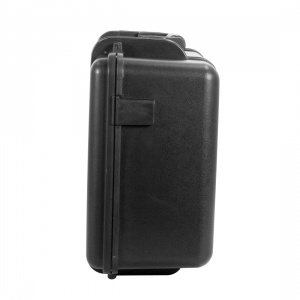

Easy To Carry Rugged Case
CONTROL / CONNECTIONS

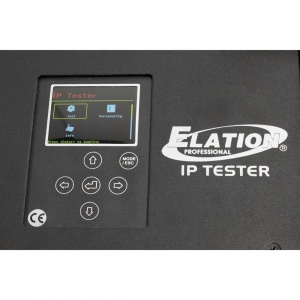

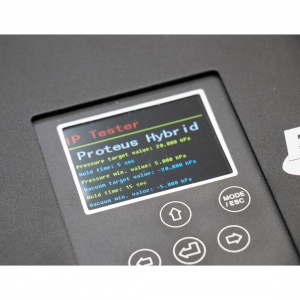

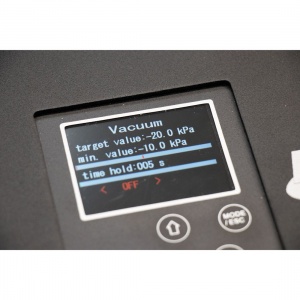

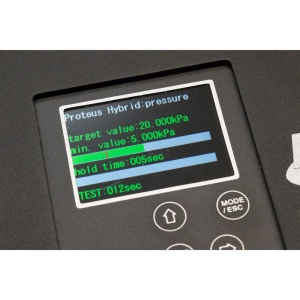

LCD Control Menu Display
PC SOFTWARE (Win 7, 8, 8.1, 10)
Air In/Out Vent
Quick-Release Air Hose Fitting
Micro SD Card Slot
USB B Port
Locking power connector In
SIZE / WEIGHT
Length: 16.5” (419.1mm)
Width: 6.5” (165.1mm)
Vertical Height: 14.25” (362mm)
Weight: 15.4 lbs. (7.0kg)
ELECTRICAL
AC 100-240V - 50/60Hz
40W Max Power Consumption

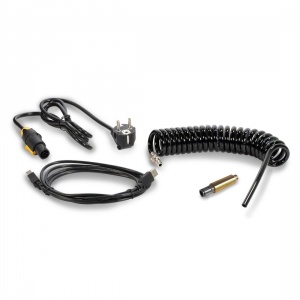

INCLUDED ITEMS
3-5ft (0.9-1.8m) Air Hose with Quick-Connect Fitting
M12 Threaded Brass Nozzle with Push-to-Connect Fitting
(x2) M12 x 1.5 Orange Colored Nylon Bolt
6ft (1.8m) USB Cable
5ft (1.5m) Locking Power Cable
