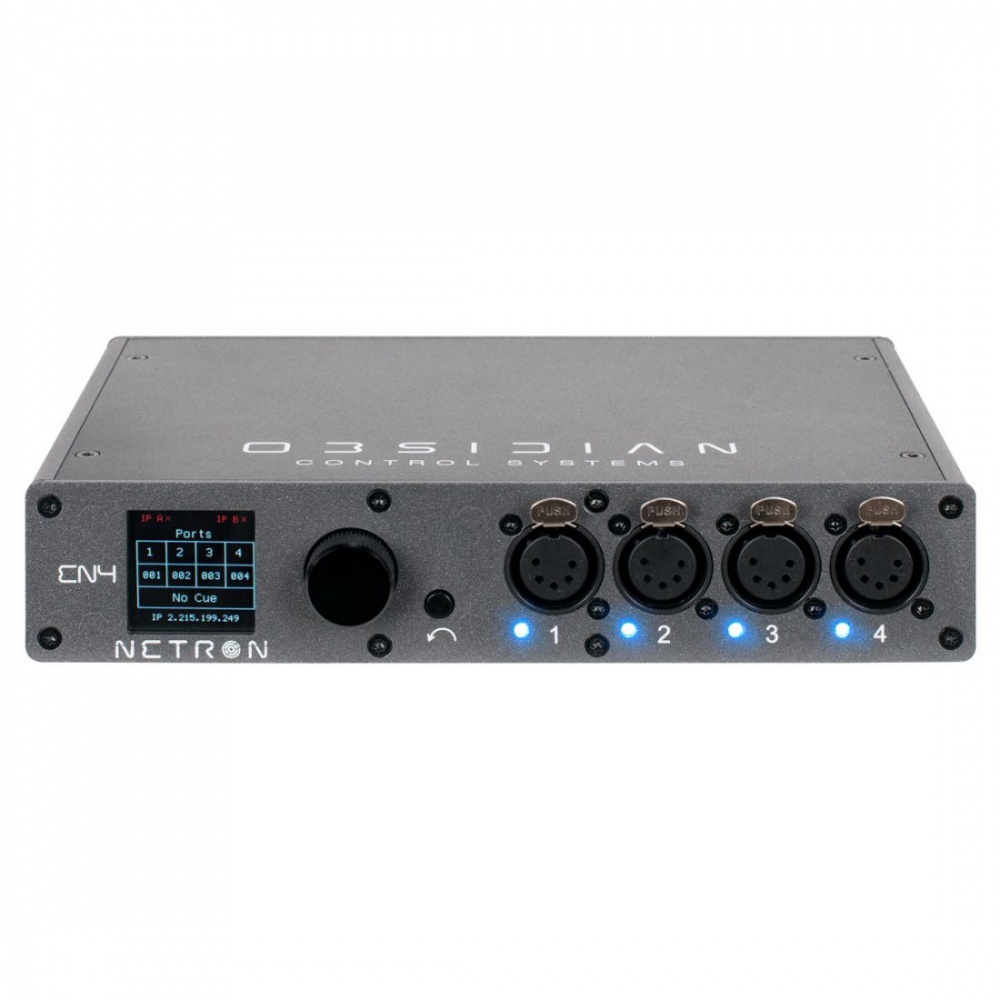

The Netron EN4 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.
FEATURES
RDM, Artnet and sACN support
Factory and user presets for plug and play setups
Line Voltage or POE powered
1.8” OLED Display with rotary knob
99 Internal cues with fade and delay time
Remote configuration via internal webpage
Powder-coated aluminum ½ rack housing

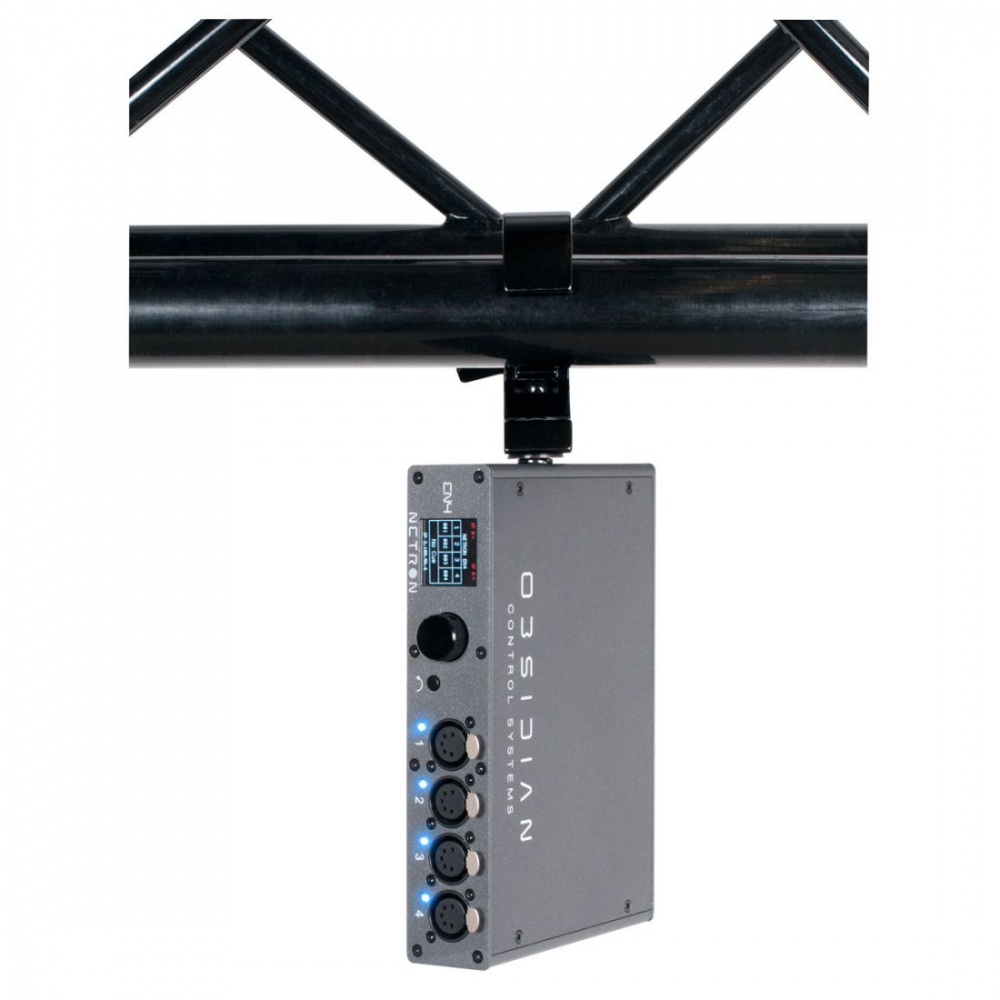

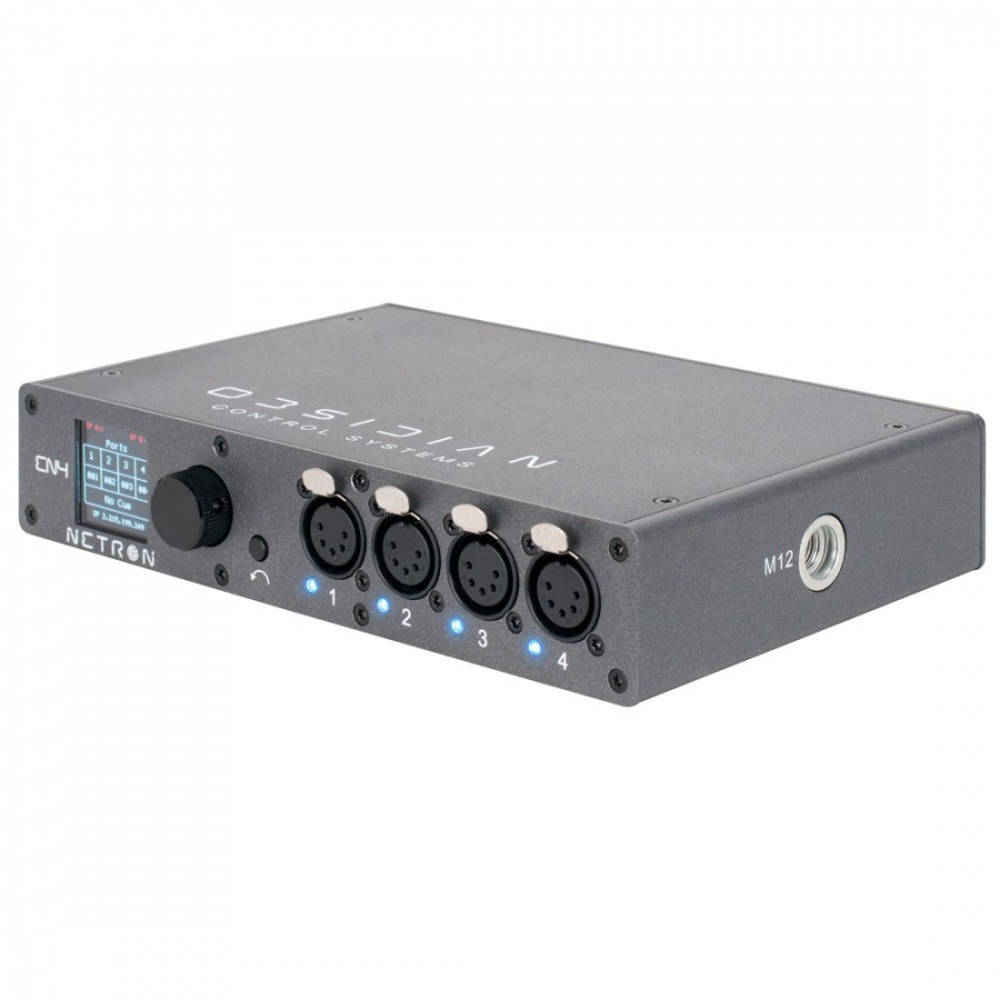

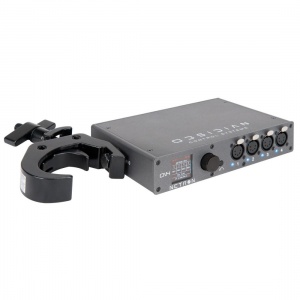

Truss-mount (M10 or M12 mounting hole)

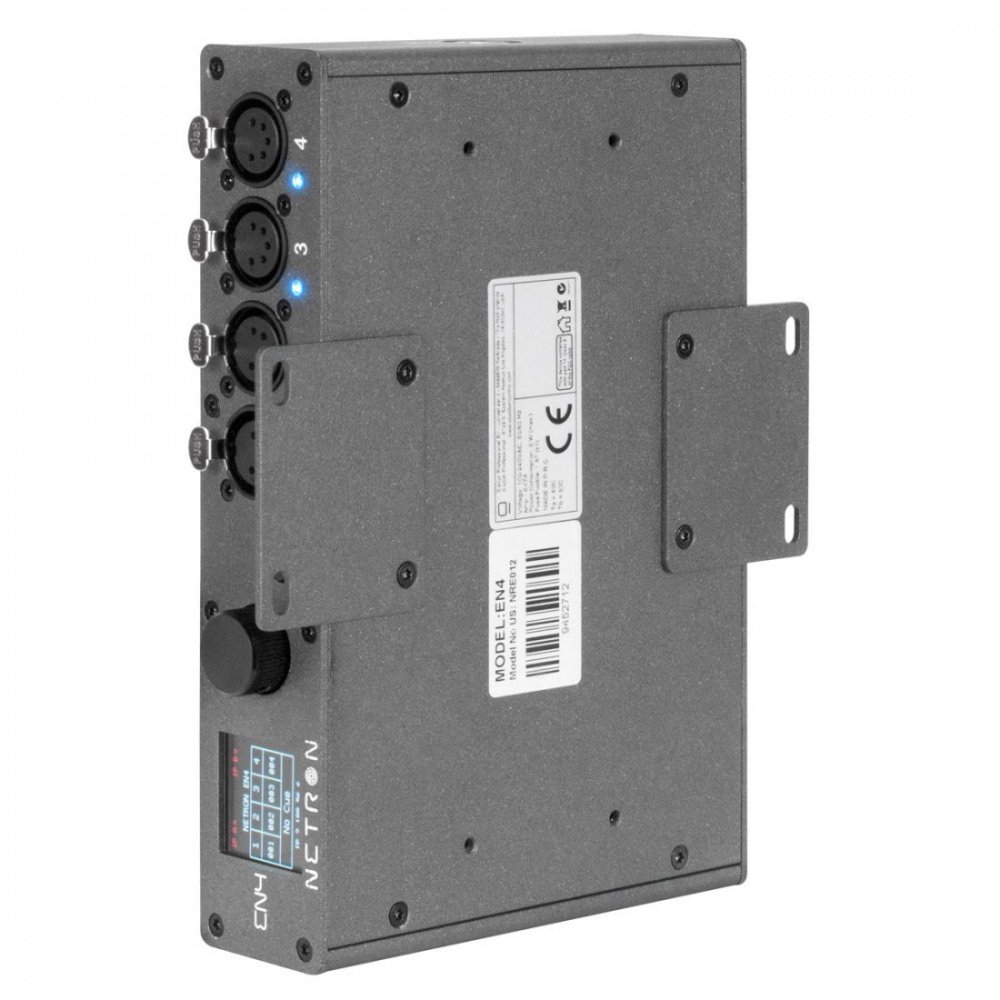

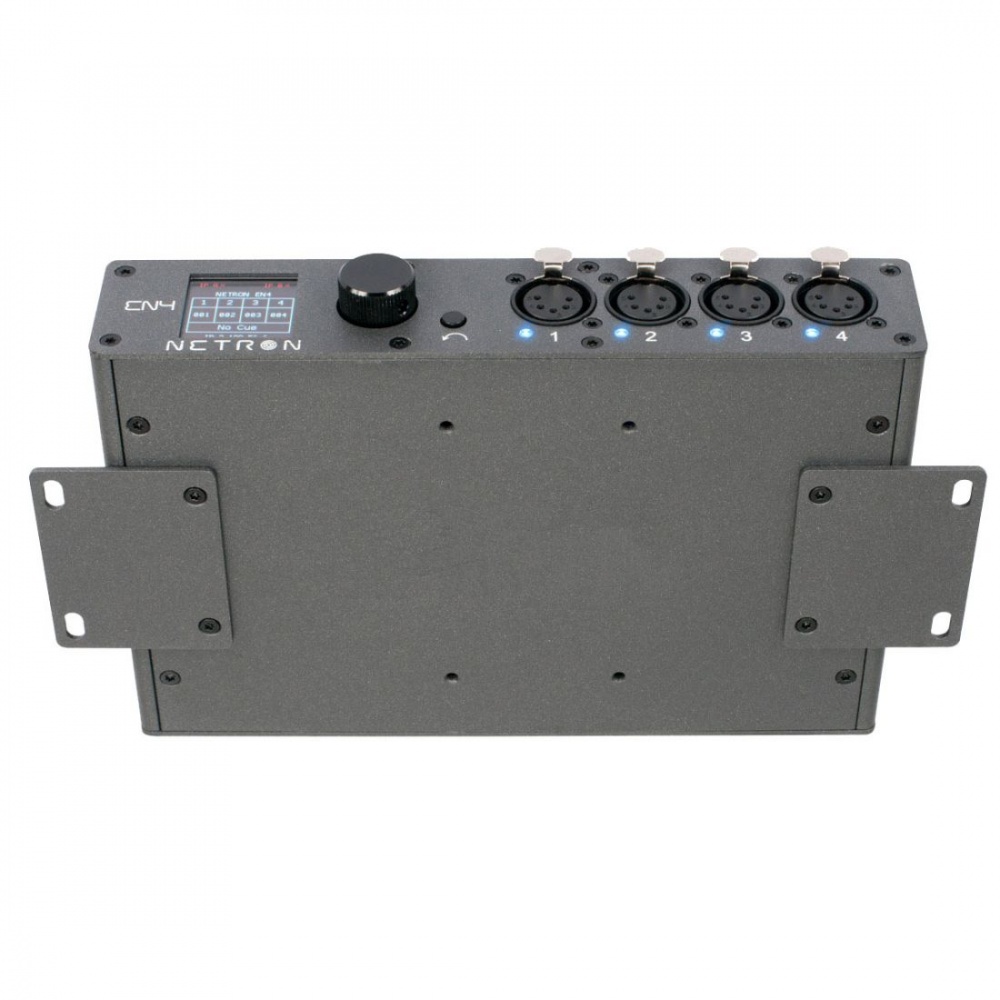

Wall-mount horizontal or vertical (included)

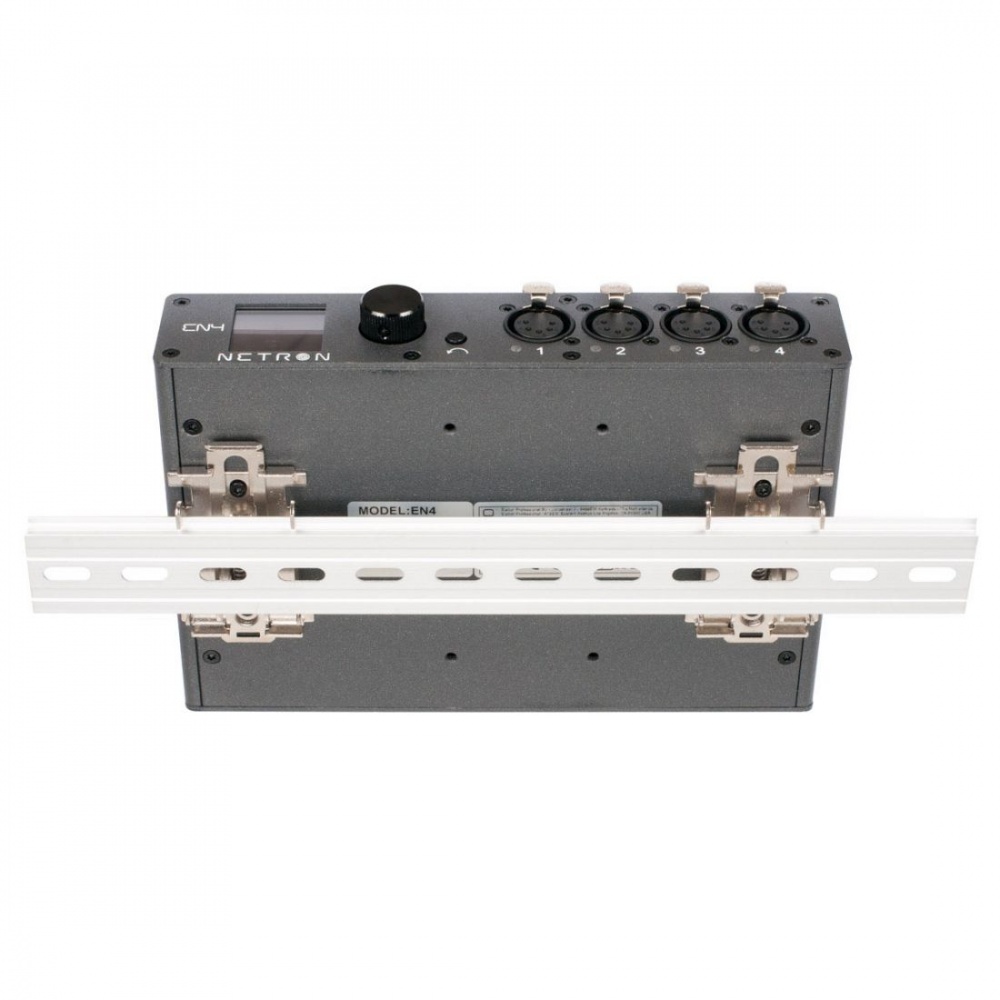

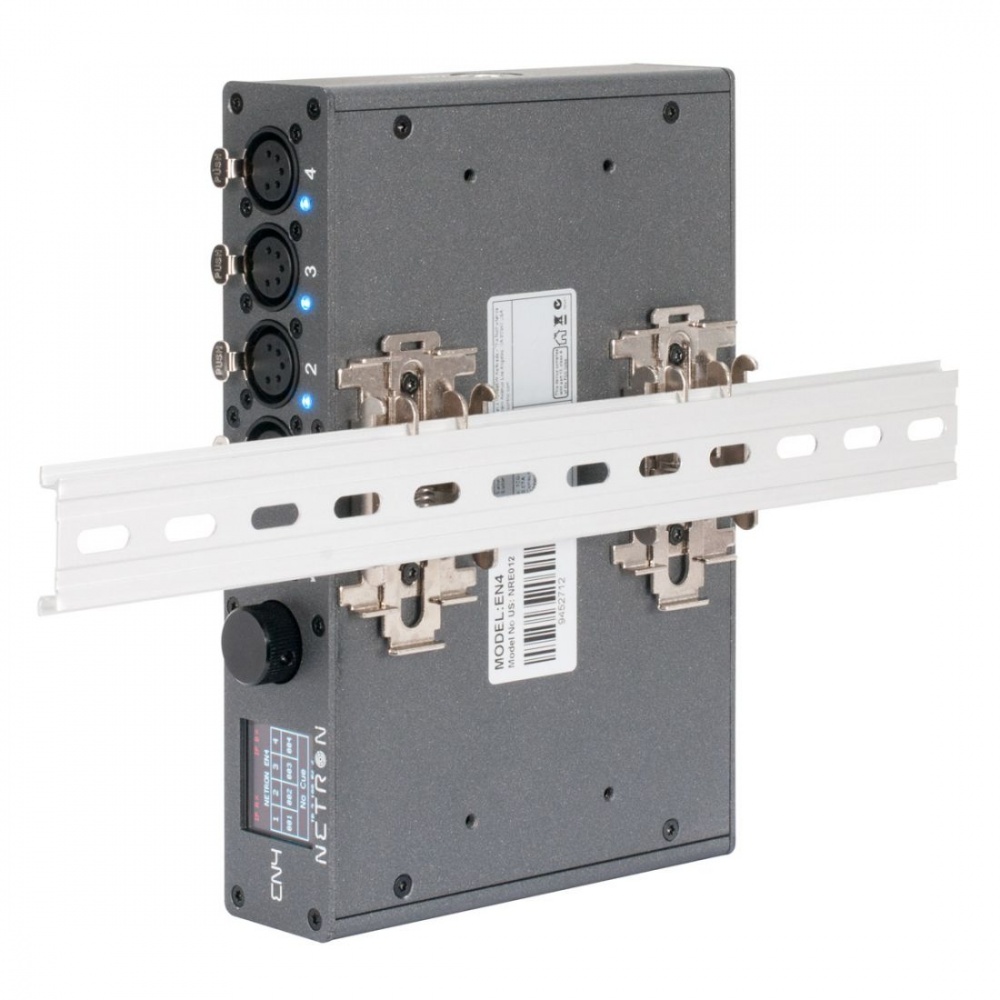

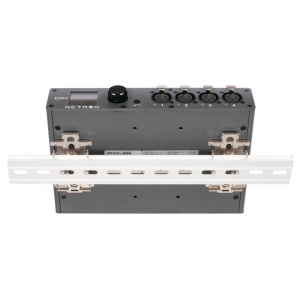

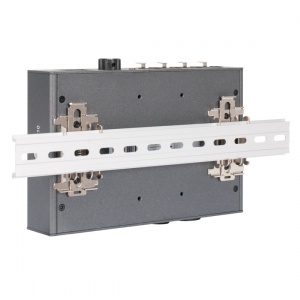

DIN Rail horizontal or vertical (included)

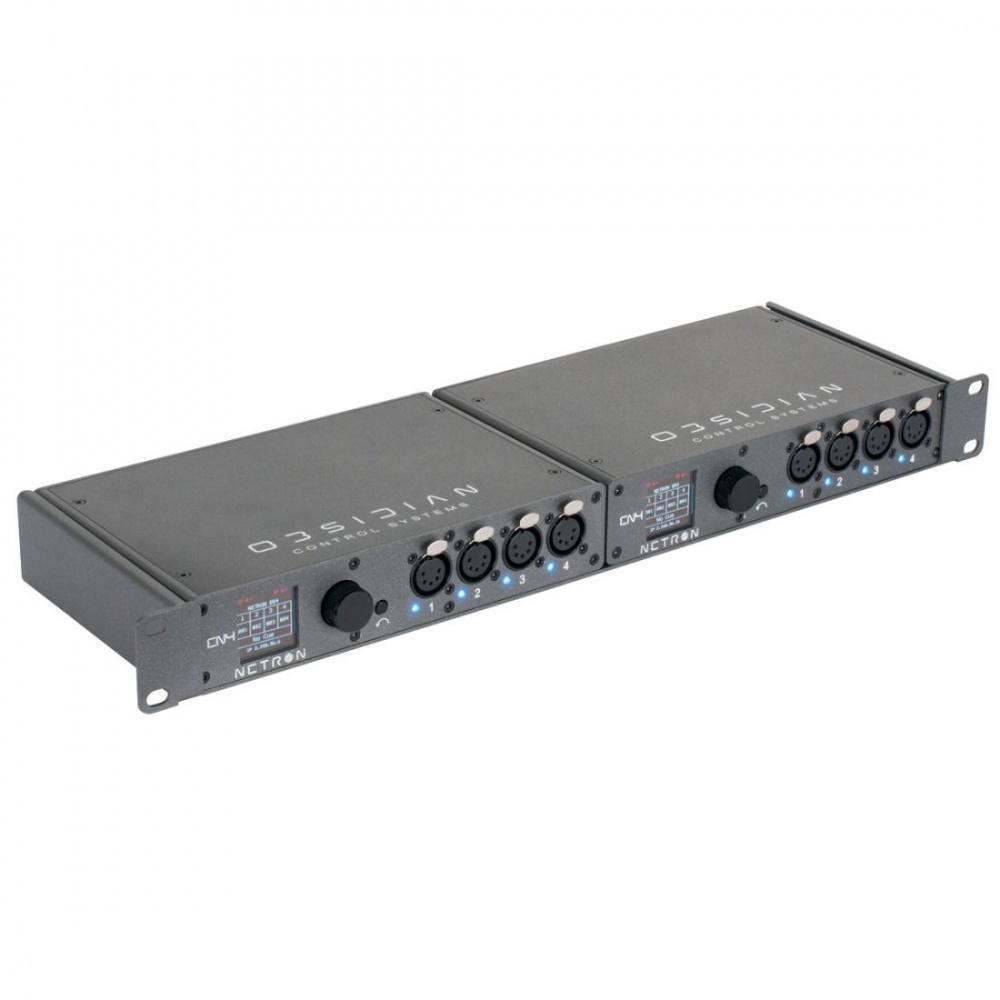

Rack-mount option (requires NET Shelf)
CONNECTIONS

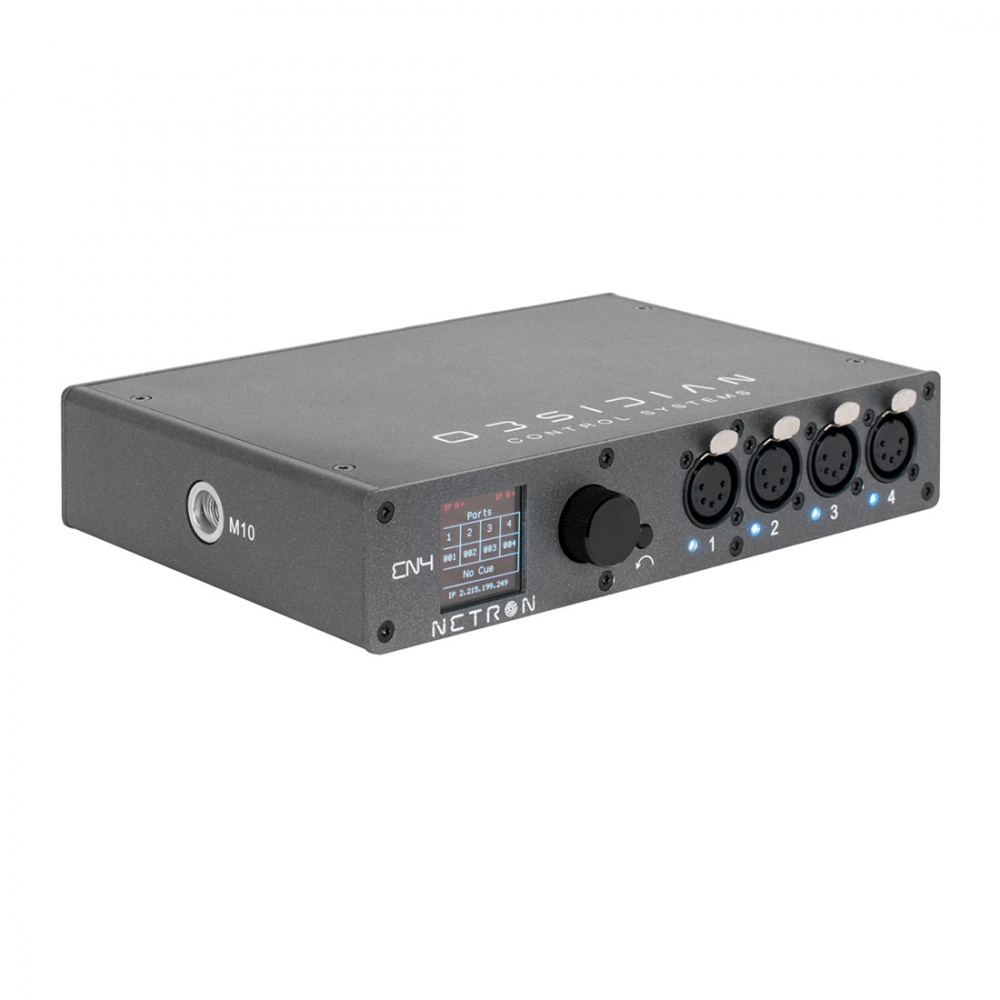

(4) Locking 5pin Opto-Isolated DMX XLR Connector Outputs
Full color OLED display
Encoder w. Push to Select / Exit Button

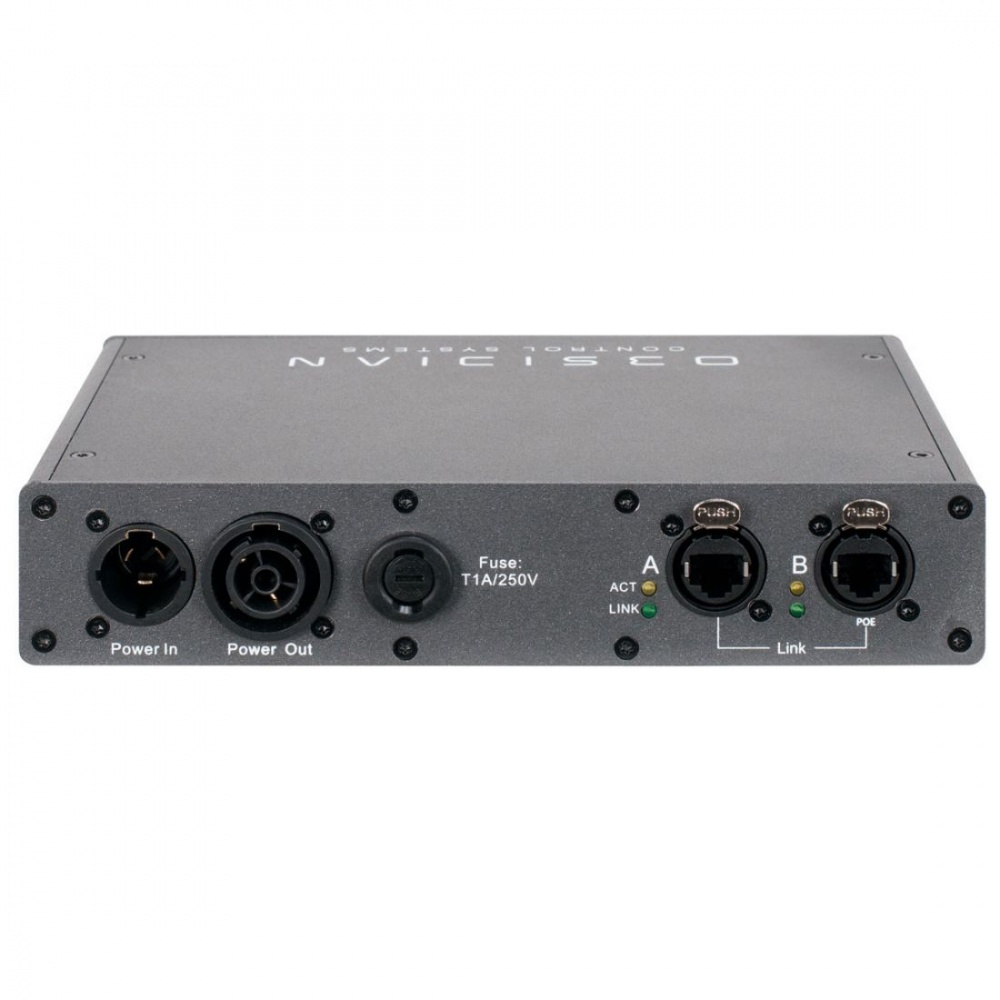

(2) Locking RJ45 Ethernet network Connector In/Out
Locking IP65 Power Connector In/Out
SIZE / WEIGHT
Length: 8.5” (215mm)
Width: 5.5” (139mm)
Vertical Height: 1.7” (44mm)
Weight: 2.2 lbs. (1kg)
ELECTRICAL
AC 100-240V - 50/60Hz
10W Max Power Consumption
POE 802.3af
INCLUDED ITEMS
(2) Wallmount plates
(2) Din-Rail clamps
Locking IP65 Power Connector to CEE 7/7 Cable
