MAGMATIC Prisma Par 50
PRISMA PAR 50 ™ je exteriérové wash UV svietidlo s krytím IP65, ktoré produkuje maximálny UV výkon 365 nm s nulovým viditeľným svetlom. Medzi vlastnosti patrí pôsobivý 50-stupňový široký uhol lúča z veľkého vnútorného LED reflektora, užívateľsky príjemný digitálny 2,5 palcový dotykový LCD ovládací panel, intuitívne ovládanie DMX-512 a RDM,duálne nastaviteľné montážne držiaky, odolný hliníkový kryt, IP65 DMX 5pin XLR a uzamykateľné pripojenie vstupu/výstupu.

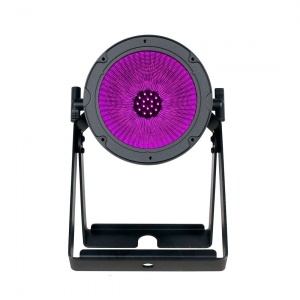

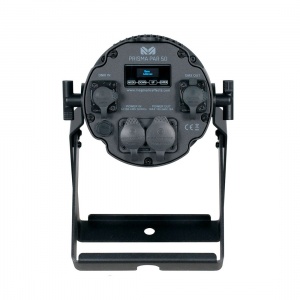

The PRISMA PAR 50™ is an exterior IP65 rated UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 50 degree wide beam angle from the large internal LED reflector. Features includes a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, dual adjustable mounting yokes, a durable aluminium housing, and IP65 DMX 5pin XLR and locking power in/out connections.
| FEATURESIP65 Rated Exterior High-Power UV Wash Par Luminaire50 Degree Wide Beam Angle365nm Peak True UV WavelengthZero Visible Light OutputSOURCE(16) 2W High Power UV Diode LEDs20,000 Hour Average LED Life**Test lab conditions. May vary depending on several factors including but not limited to: | Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. PHOTOMETRIC DATA50 Degree Narrow Beam Angle365nm True UV Peak Wavelength EFFECTSHigh Speed Electronic StrobeVariable Dimming Curve Modes CONSTRUCTIONRugged IP65 Rated Aluminum HousingDual Adjustable Mounting Yokes CONTROLMultiple DMX Channel ModesOnboard 4 Button Touch Control PanelDMX-512 and RDM Protocol Support CONNECTIONSLocking IP65 5pin XLR Connector In/OutLocking IP65 Power Connector In/OutWith Wired Digital Communication Network SIZE / WEIGHTLength | 7.7 in. (196mm)Width | 7.7 in. (196mm)Vertical Height | 11.4 in. (290mm)Weight | 8.2 lbs. (3.7kg) ELECTRICALAC100-240V 50-60Hz37W Max Power Consumption THERMAL14°F to 113°F (-10°C to 45°C)Air CooledPRISMA PAR 50™ is an exterior IP65 rated UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 50 degree wide beam angle from the large internal LED reflector. Features includes a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, dual adjustable mounting yokes, a durable aluminium housing, and IP65 DMX 5pin XLR and locking power in/out connections. |
