FEATURES
IP65 Rated

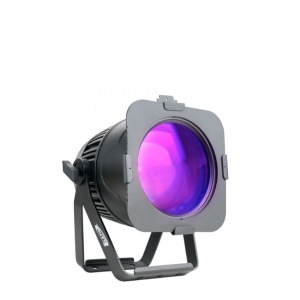

120W RGBW COB LED Par Luminaire
7° to 55° Motorized Zoom Range
Silent Operation
RGBW Color Mixing
Dual Adjustable Yokes
Multiple Unit Power Linking
Flicker Free Operation for Broadcast TV and FILM
SOURCE
120W RGBW COB LED
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
9,112 LUX 847 FC @9.8’ (3m) (7° Full ON)
428 LUX 40 FC @9.8’ (3m) (55° Full ON)
COLOR
RGBW
EFFECTS
RGBW Color Mixing
7° - 55° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
CONTROL / CONNECTIONS
12 DMX Channel Modes (13 Total Channels)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)

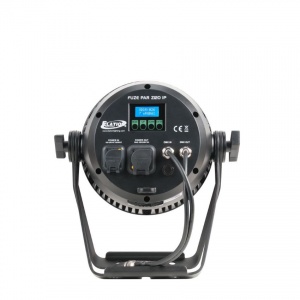

Locking IP65 5pin XLR Connector In/Out and Locking IP65 Power Connector In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: | 11.69" (283.7mm) |
Width: | 14.05" (356.8mm) |
Vertical Height: | 14.14" (359.2mm) |
Weight: | 19 lbs. (8.6 kg) |
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
158W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
APPROVALS
CE | cETLus | IP65
INCLUDED ITEMS
Removable Gel Frame

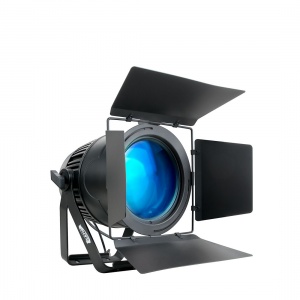

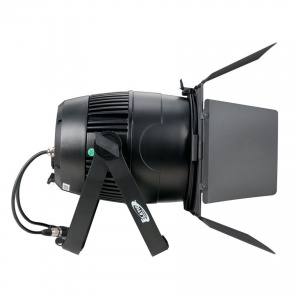

Removable Barn Doors
Locking IP65 Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1322000060 C-Loader II
VIAC
