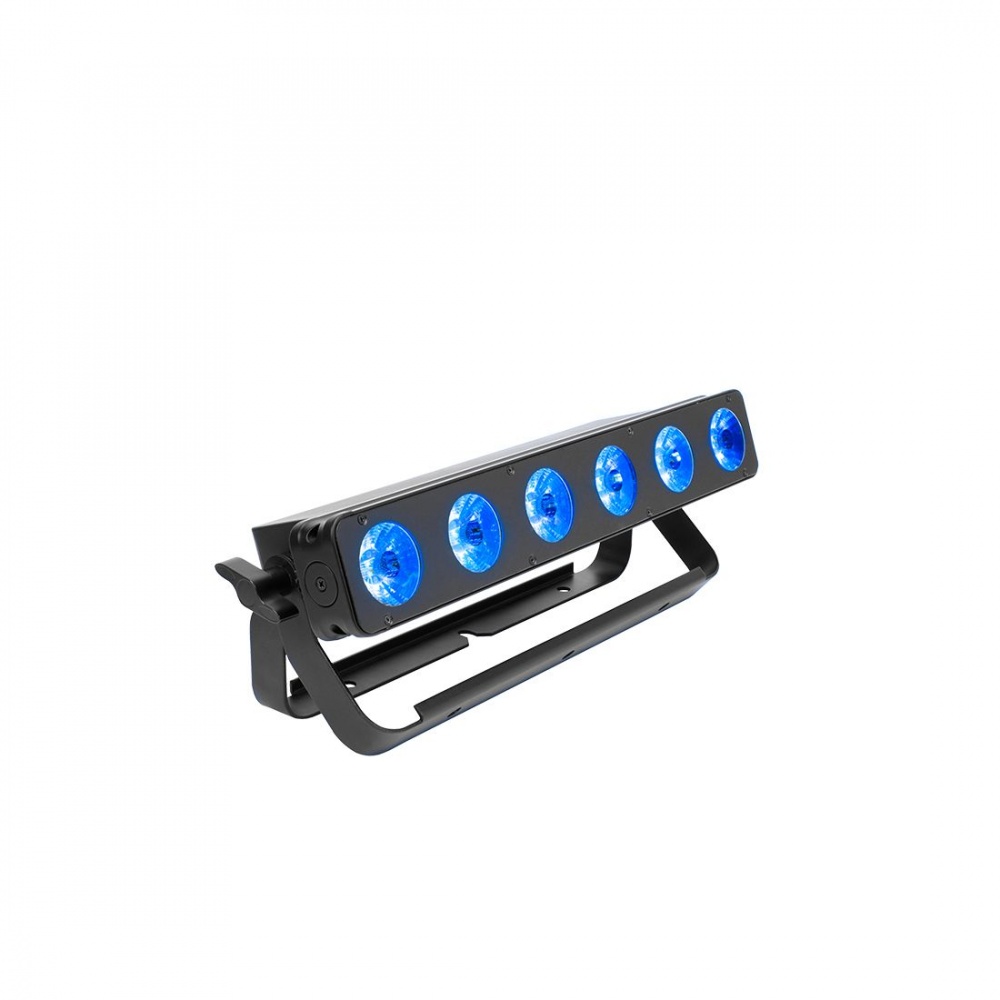

ELATION PROFESSIONAL SixBar 500

SIXBAR SERIES ™ obsahuje 12 W LED 6-v-1 RGBAW + UV,priemernú životnosť LED diód 100 000 hod., uhol lúča 30 °, stroboskopické efekty, LED diódy ovládané pixelmi, tichú prevádzku bez ventilátorov (iba SixBar 1000), zabudované magnety pre spájanie jednotiek, dvojitý univerzálny stojan/držiak, multi prepojenie s viacerými jednotkami, variabilné krivky stmievania, DMX, RDM (Remote Device Management), podpora KlingNET ™ a Art-NET (DMX cez Ethernet), 3pinový a 5pinový DMX vstup / výstup, RJ45 etherCON vstup / výstup a powerCON v pripojeniach, prevádzka bez blikania pre TV a film, ovládanie pomocou 4 tlačidiel, zobrazenie ponuky LCD, nízka spotreba energie a viacúčelové univerzálne automatické prepínanie napájania (100-240V).

SixBar 500
Na objednávku

01096763|01091409|01092768|01093289|01094630|01095139|01097723
4,10
CENA:
na dopyt
Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

FEATURES
Multi-color LED Batten Luminaire
12W RGBAW+UV LEDs
Pixel Controlled LEDS
30° Beam Angle

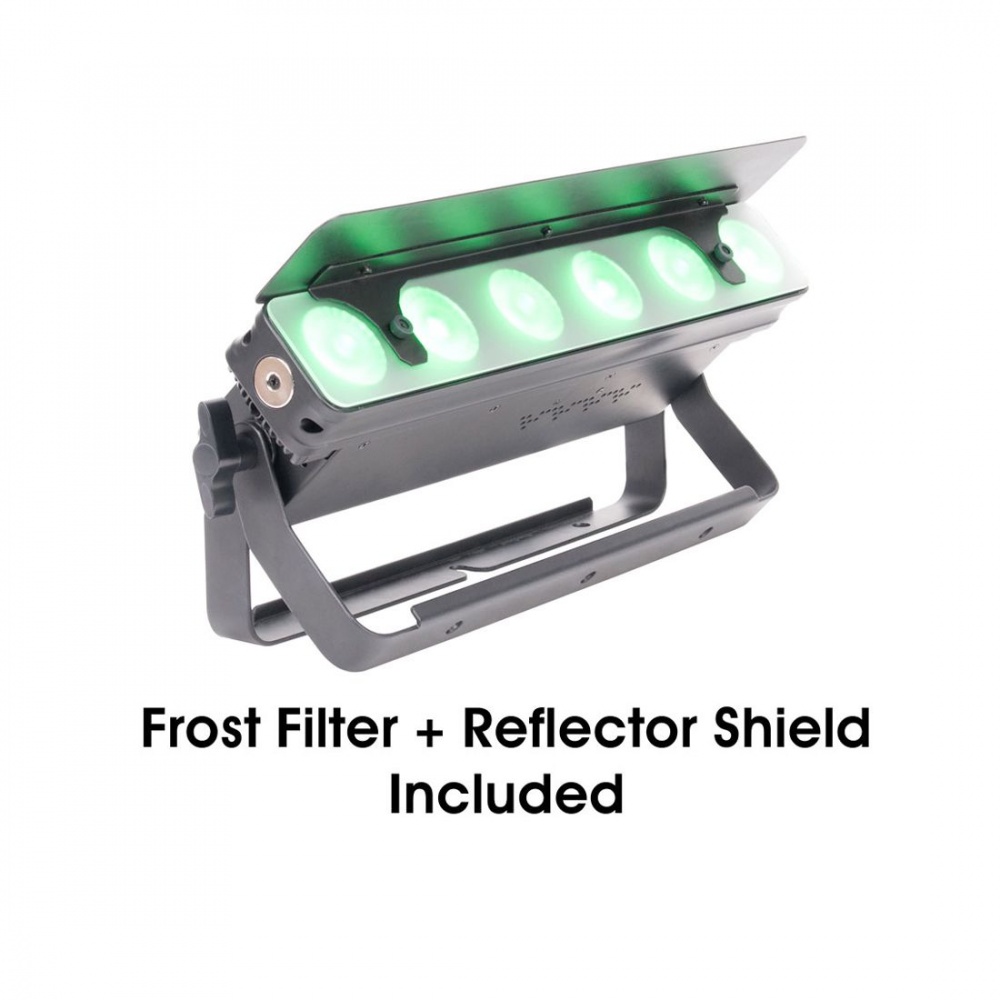

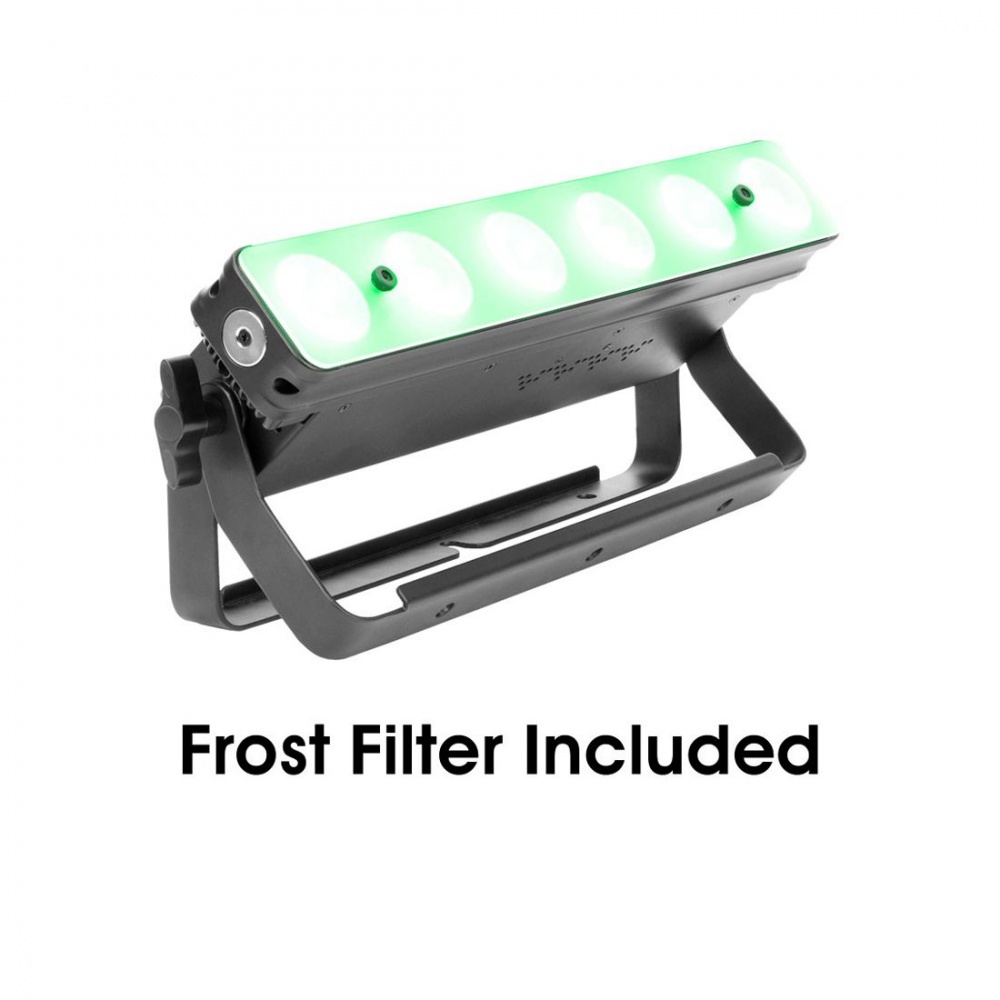

Included Frost Filter and Glare Shield
Built-in Magnets for Seamless Unit Linking

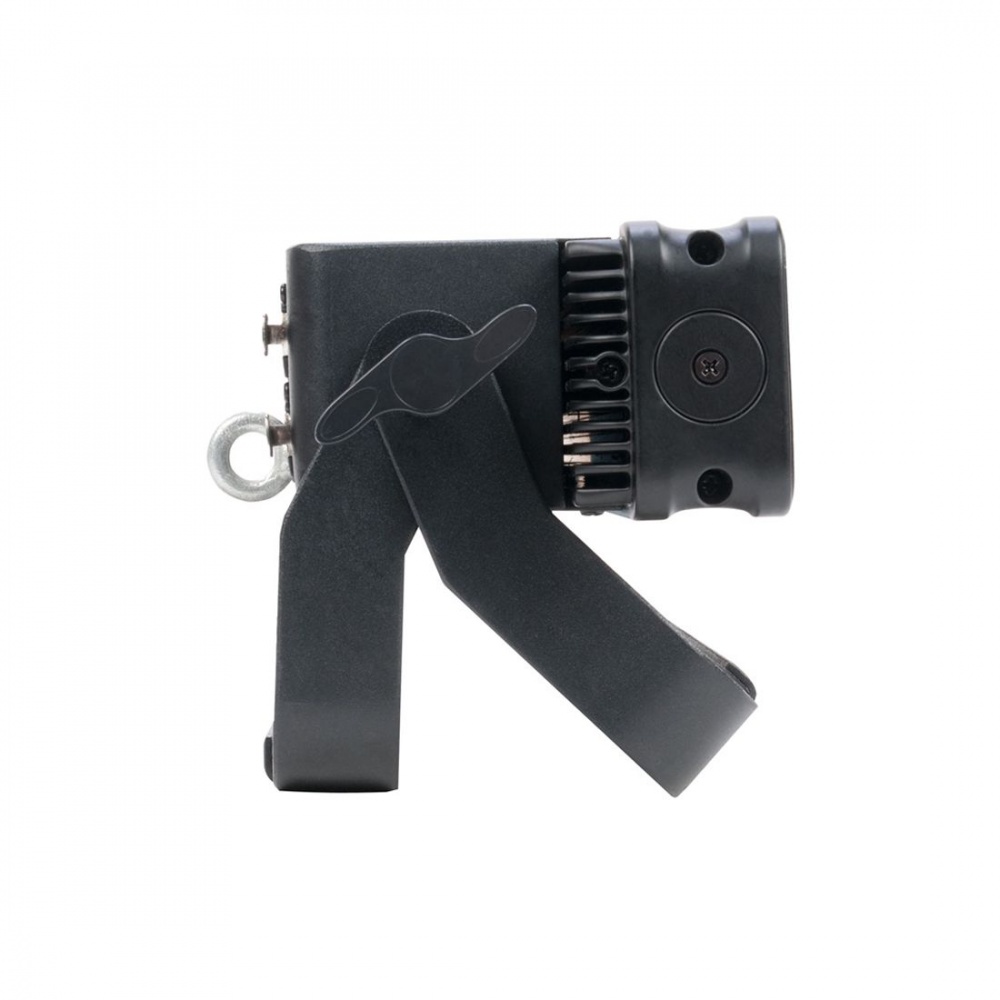

Dual Yoke / Floor Stand
No Fans, Silent Operation
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film

SOURCE
6x 12W RGBAW+UV Multi-Chip LEDs
1,091 Total Output Lumens
100,000 Hour Average LED Life*

PHOTOMETRIC DATA
901 LUX 84 FC @ 9.8’ (3m)

EFFECTS
Pixel Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves

COLOR
RGBAW+UV Multi-Chip LEDs

CONTROL / CONNECTIONS
8 DMX Channel Modes (6 - 43)
DMX, Art-NET and Kling-NET Support
RDM (Remote Device Management)
8 / 16 Bit Dimming Control
4 Button Control Panel
LCD Menu Display

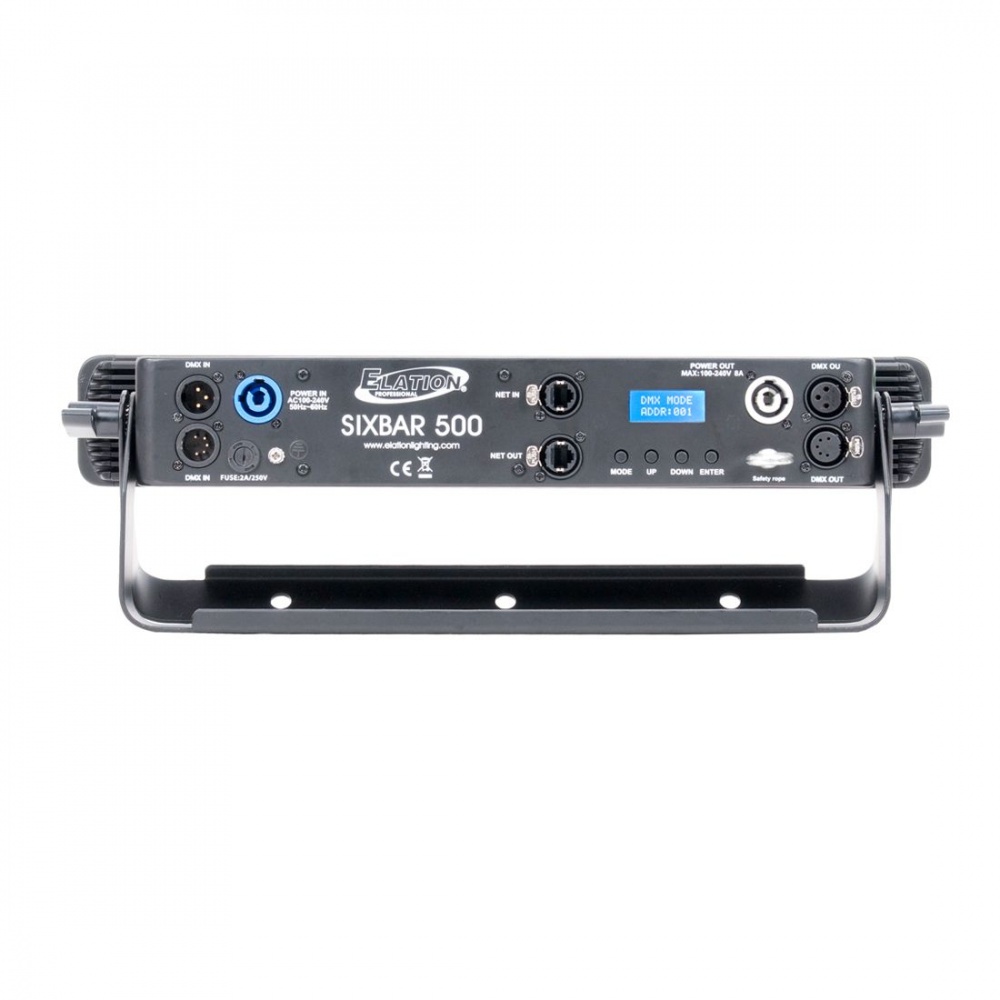

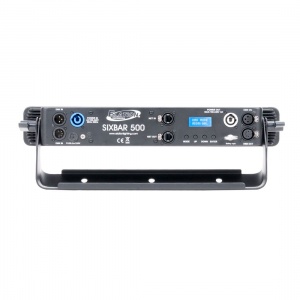

Locking 3/5pin DMX In/Out
Locking RJ45 ethernet In/Out (Art-NET and Kling-NET)
Locking power connector In/Out

SIZE / WEIGHT
Length: 17.7” (450mm)
Width: 8.1” (206mm) *with included shield
Vertical Height: 6.1” (155mm)
Weight: 8.2 lbs. (3.7 kg)

ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
93W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
UV Wavelength: 395nm

INCLUDED ITEMS
Glare Shield
Frost Filter
Mounting Screws for Glare Shield and Frost Filter
Locking power connector to CEE 7/7 Cable

OPTIONAL ACCESSORIES
1322000060 C-Loader II

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

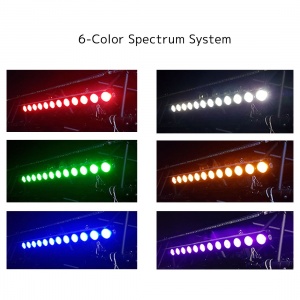

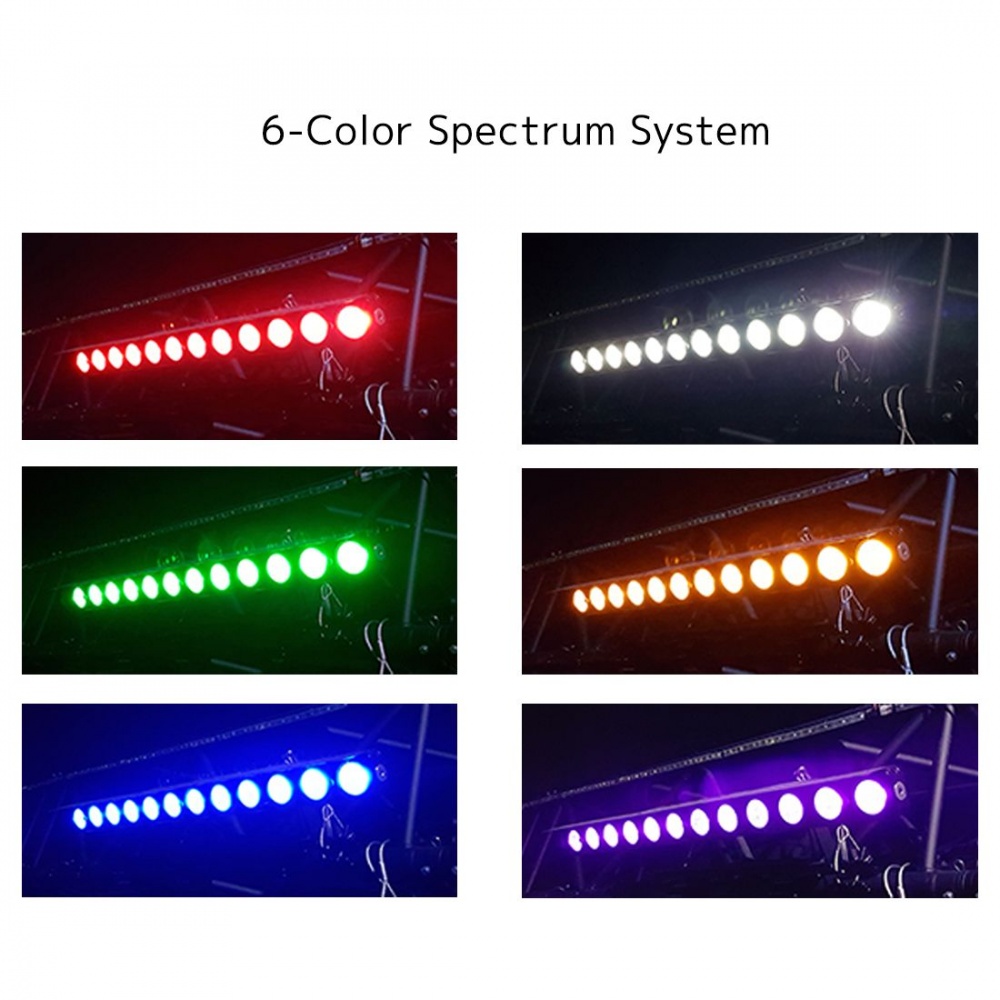

 The SixBar Series of versatile color-changing LED battens feature an RGBWA+UV LED multi-chip that offers an expanded palette of colors, including stunning ambers, true whites and ultraviolet effect. Useful as a wash light, uplight, wall/cyc wash, accent light, direct view pixel strip and more, two versions are available, the SixBar 500 with 6x 12W LEDs and the SixBar 1000 with 12x 12W LEDs. Both luminaires feature individual LED control, smooth 0-100% dimming and variable dimming curves, as well as built in macros. Included is a removable glare shield and diffusion filter ideal when using as a wall wash unit....FEATURES
Multi-color LED Batten Luminaire
12W RGBAW+UV LEDs
Pixel Controlled LEDS
30° Beam Angle
Included Frost Filter and Glare Shield
Built-in Magnets for Seamless Unit Linking
Dual Yoke / Floor Stand
No Fans, Silent Operation
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film

SOURCE
6x 12W RGBAW+UV Multi-Chip LEDs
1,091 Total Output Lumens
100,000 Hour Average LED Life*

PHOTOMETRIC DATA
901 LUX 84 FC @ 9.8’ (3m)

EFFECTS
Pixel Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves

COLOR
RGBAW+UV Multi-Chip LEDs

CONTROL / CONNECTIONS
8 DMX Channel Modes (6 - 43)
DMX, Art-NET and Kling-NET Support
RDM (Remote Device Management)
8 / 16 Bit Dimming Control
4 Button Control Panel
LCD Menu Display
Locking 3/5pin DMX In/Out
Locking RJ45 ethernet In/Out (Art-NET and Kling-NET)
Locking power connector In/Out

SIZE / WEIGHT
Length: 17.7” (450mm)
Width: 8.1” (206mm) *with included shield
Vertical Height: 6.1” (155mm)
Weight: 8.2 lbs. (3.7 kg)

ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
93W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
UV Wavelength: 395nm

INCLUDED ITEMS
Glare Shield
Frost Filter
Mounting Screws for Glare Shield and Frost Filter
Locking power connector to CEE 7/7 Cable

OPTIONAL ACCESSORIES
1322000060 C-Loader II

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
 The SixBar Series of versatile color-changing LED battens feature an RGBWA+UV LED multi-chip that offers an expanded palette of colors, including stunning ambers, true whites and ultraviolet effect. Useful as a wash light, uplight, wall/cyc wash, accent light, direct view pixel strip and more, two versions are available, the SixBar 500 with 6x 12W LEDs and the SixBar 1000 with 12x 12W LEDs. Both luminaires feature individual LED control, smooth 0-100% dimming and variable dimming curves, as well as built in macros. Included is a removable glare shield and diffusion filter ideal when using as a wall wash unit.
