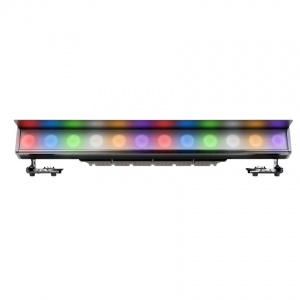

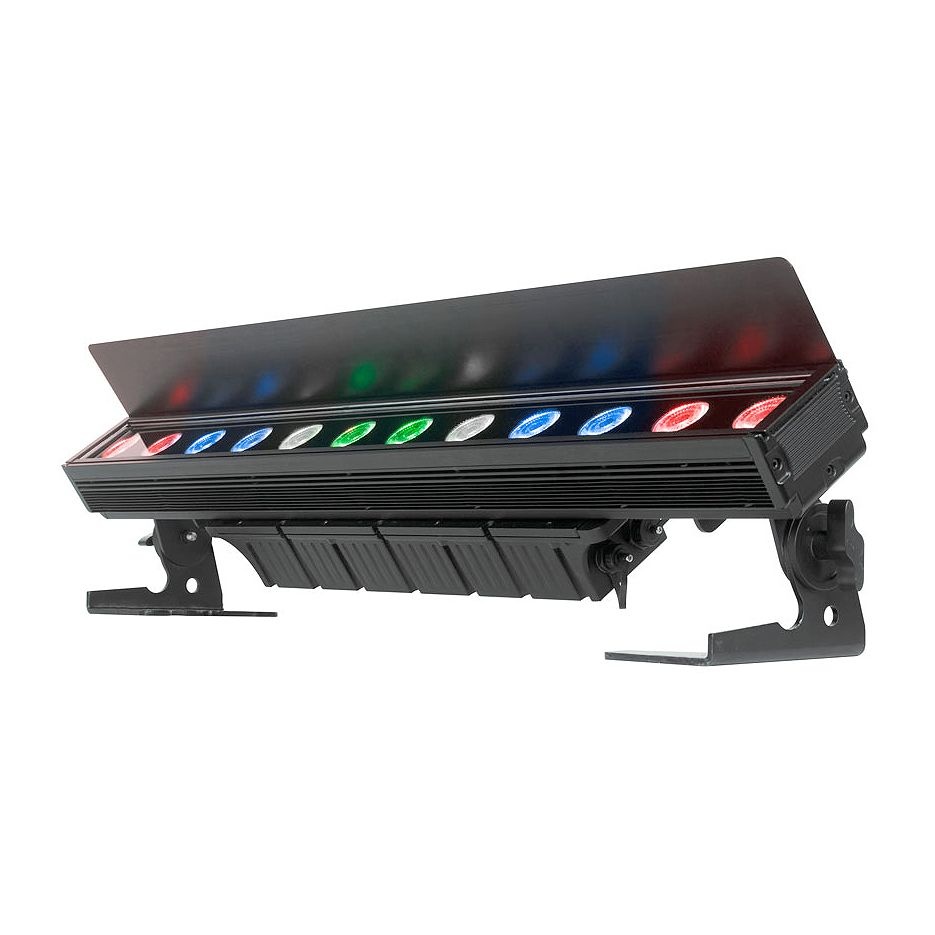

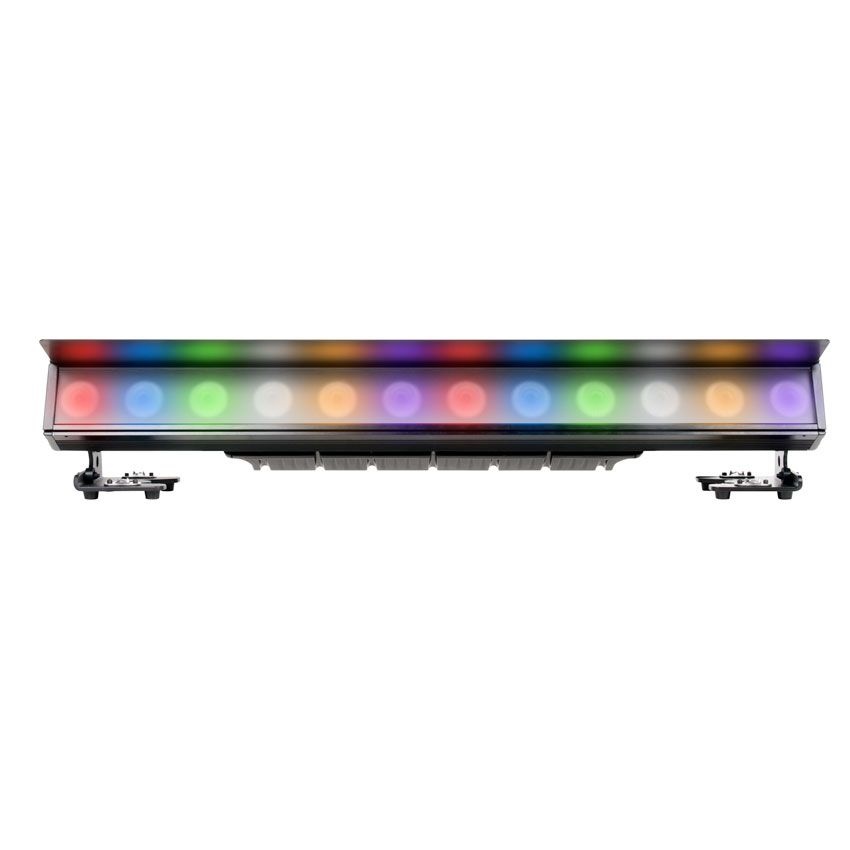

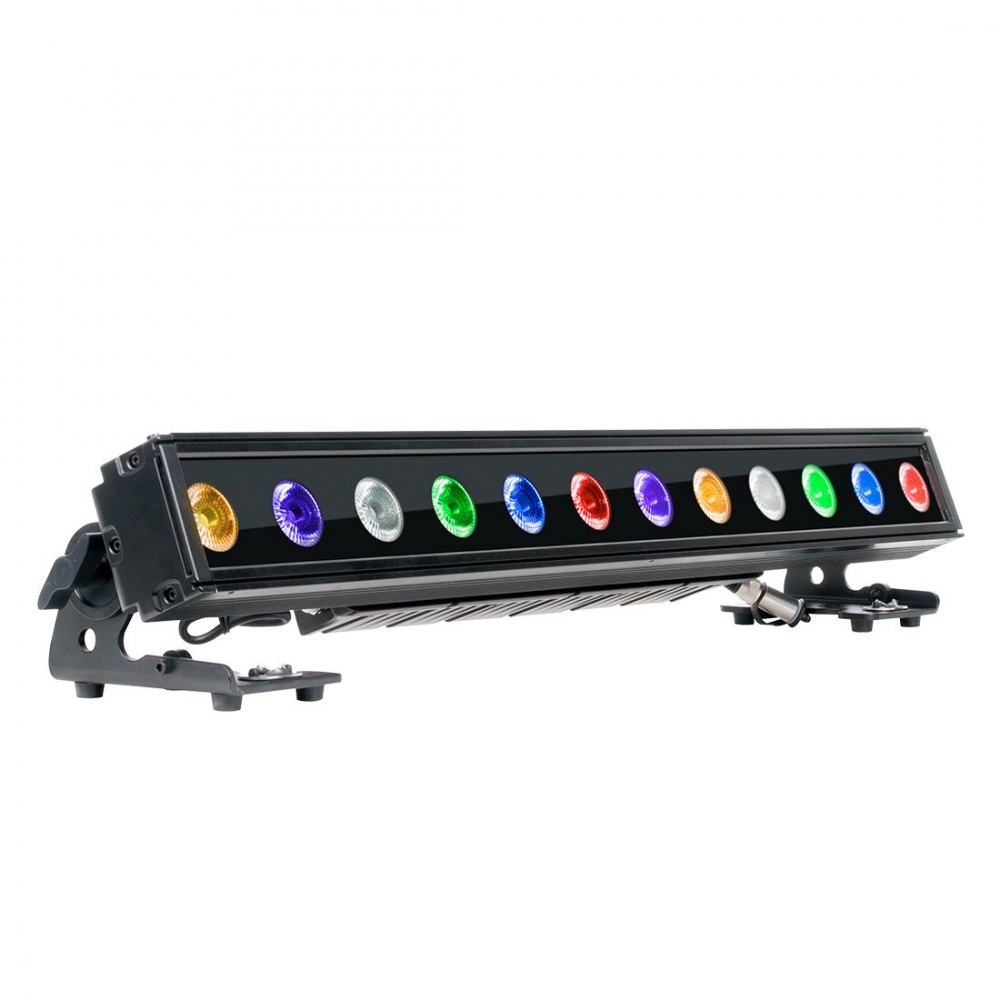

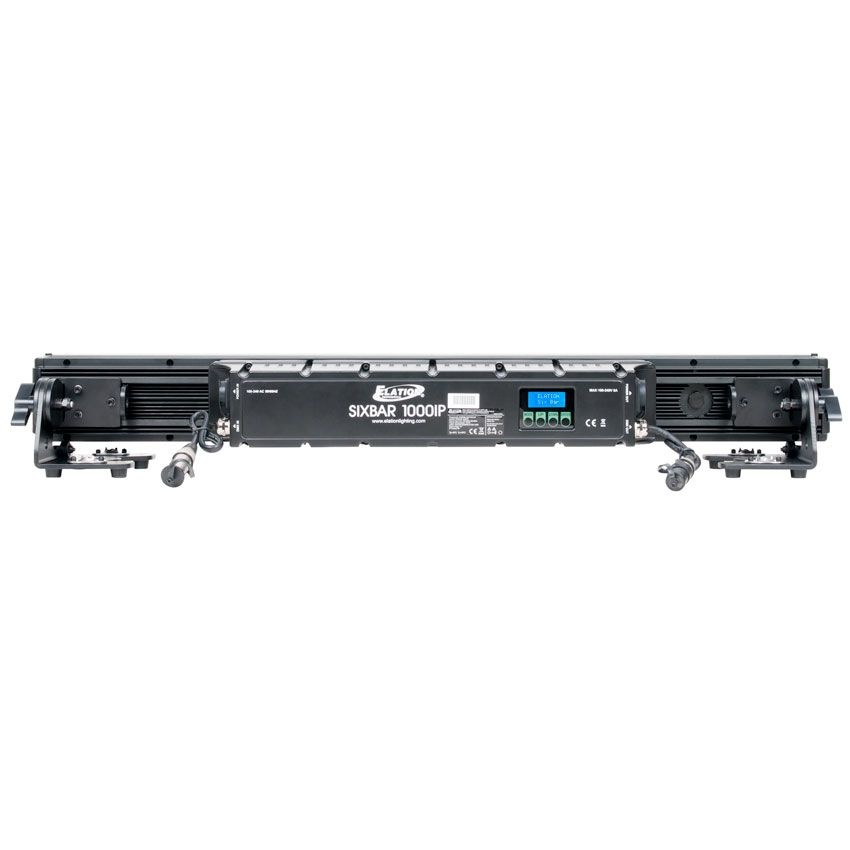

ELATION PROFESSIONAL SIXBAR 1000IP
SIXBAR 1000IP v krytí IP65 obsahuje 12 W 6-IN-1 RGBAW + UV LED diódy, priemernú životnosť LED diódy 100 000 hodín, 30 ° uhol lúča, stroboskopické efekty, pixelovo riadené LED diódy, žiadne ventilátory - tichá prevádzka,prepojenie jednotiek, stojan s dvojitým držiakom, viacnásobné napájanie, variabilné stmievanie, DMX, RDM (Remote Device Management), podpora KlingNET ™ a Art-NET (DMX cez Ethernet), 3pin a 5pin DMX vstup / výstup, RJ45 etherCON vstup / výstup, powerCON , prevádzka bez blikania pre TV a film, 4 ovládacie tlačidlá, LCD displej, nízka spotreba energie a univerzálny napájací zdroj s automatickým spínaním (100-240V).
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
The SixBar 1000 LED batten is available in a fully weatherproof IP65 version that gives the versatile color-changing luminaire application in all types of outdoor events and weather including dust-blown environments. The SixBar 1000IP™ features a revolutionary 6-color LED multi-chip that provides a creative color boost to the lighting designer toolbox. Useful as a wash light, uplight, wall/cyc wash, accent lighting, direct view pixel strip and more, its high-power single lens RGBWA+UV LEDs offer an expanded palette of colors and it’s all protected by a rugged die-cast aluminum exterior.
FEATURES
IP65 Rated Dust and Water Protection
Multi-color LED Batten Luminaire
12W RGBAW+UV LEDs
Pixel Controlled LEDS
25° Beam Angle

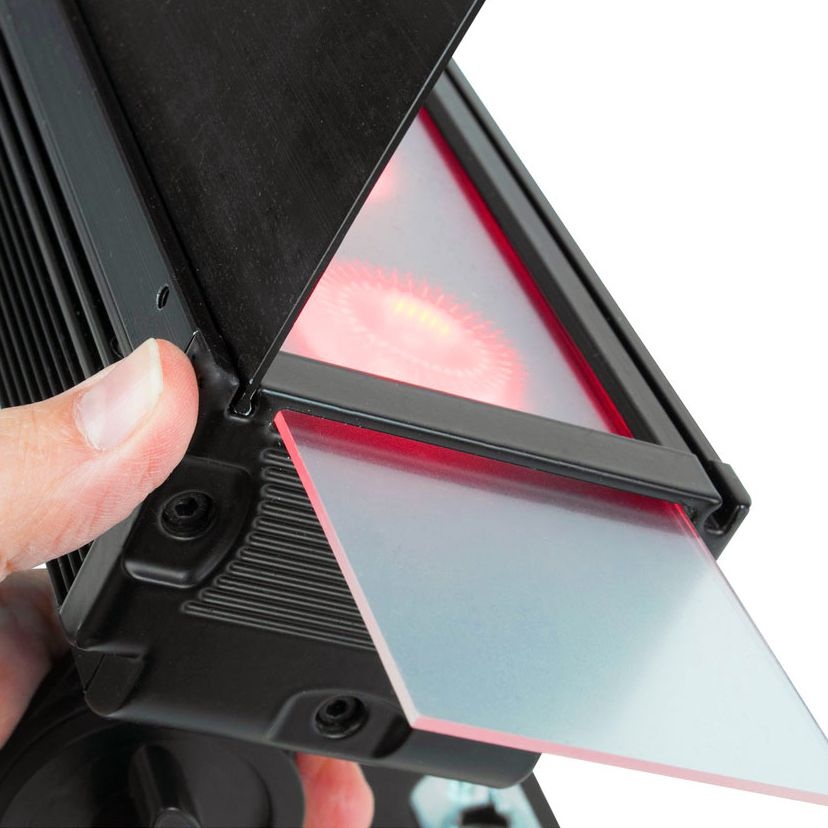

Included 2 Frost Filters and Glare Shield
Sliding Mounting Brackets / Floor Stand with Quick Lock
No Fans, Silent Operation
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
12x 12W RGBAW+UV Multi-Chip LEDs
2,233 Total Output Lumens
100,000 Hour Average LED Life*
PHOTOMETRIC DATA
1,481 LUX 138 FC @ 9.8’ (3m)
EFFECTS
Pixel Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR

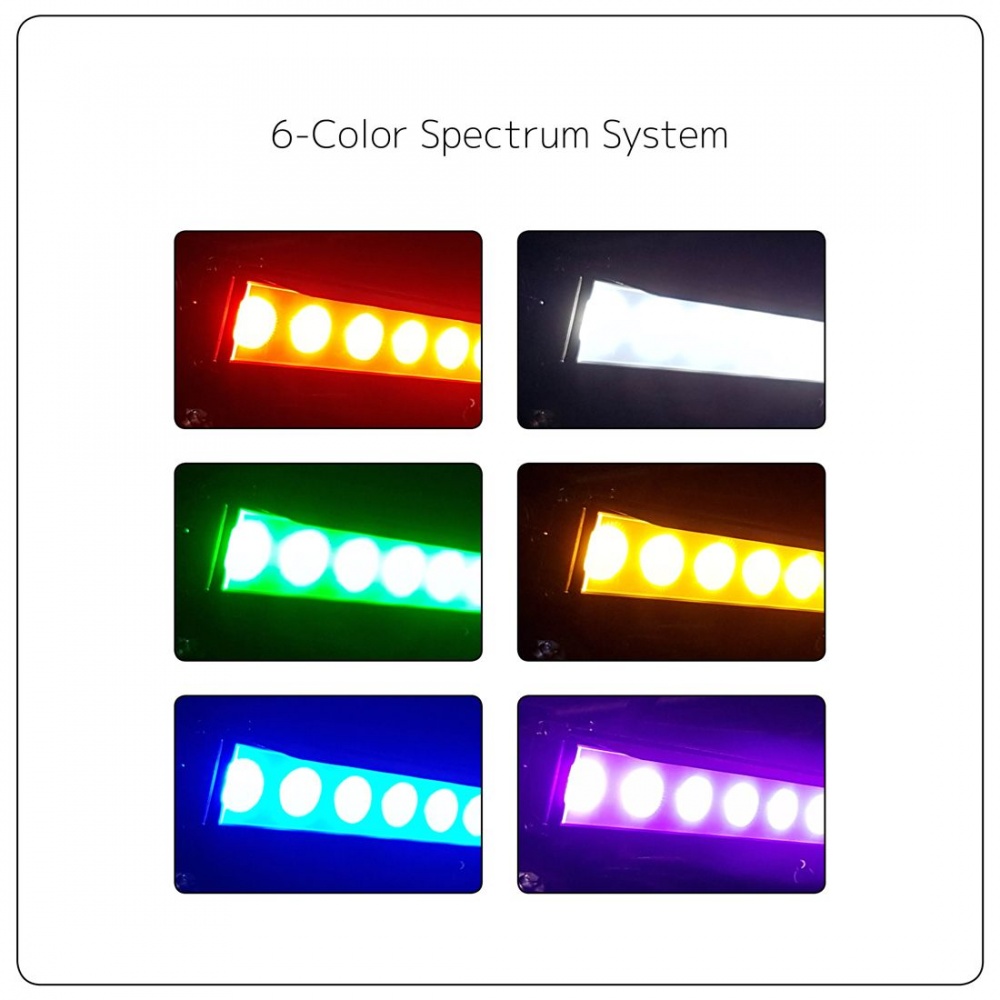

RGBAW+UV Multi-Chip LEDs
CONTROL / CONNECTIONS
8 DMX Channel Modes (6 - 79)
DMX Support
RDM (Remote Device Management)
8 / 16 Bit Dimming Control

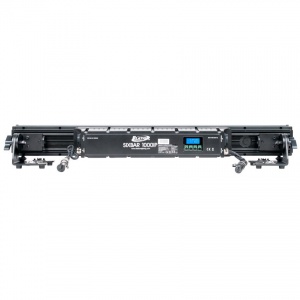

4 Button Control Panel
LCD Menu Display
IP65 Locking 5pin XLR Connector In/Out

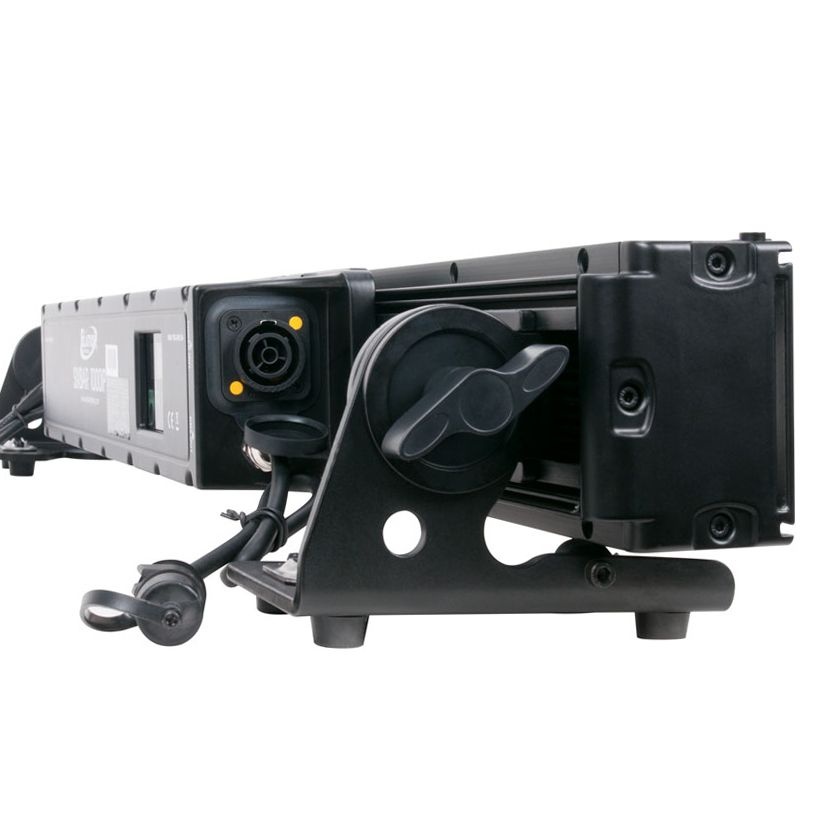

IP65 Locking Power Connector In/Out
SIZE / WEIGHT
Length: 33.6” (853mm)
Width: 5.6” (141mm)
Vertical Height: 4.7” (121mm)
Weight: 19.0 lbs. (8.6 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
145W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
UV Wavelength: 395nm
INCLUDED ITEMS
2 Frost Filters
Glare Shield
Mounting Screws for Glare Shield
IP65 Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1322000060 C-Loader II
