FEATURES

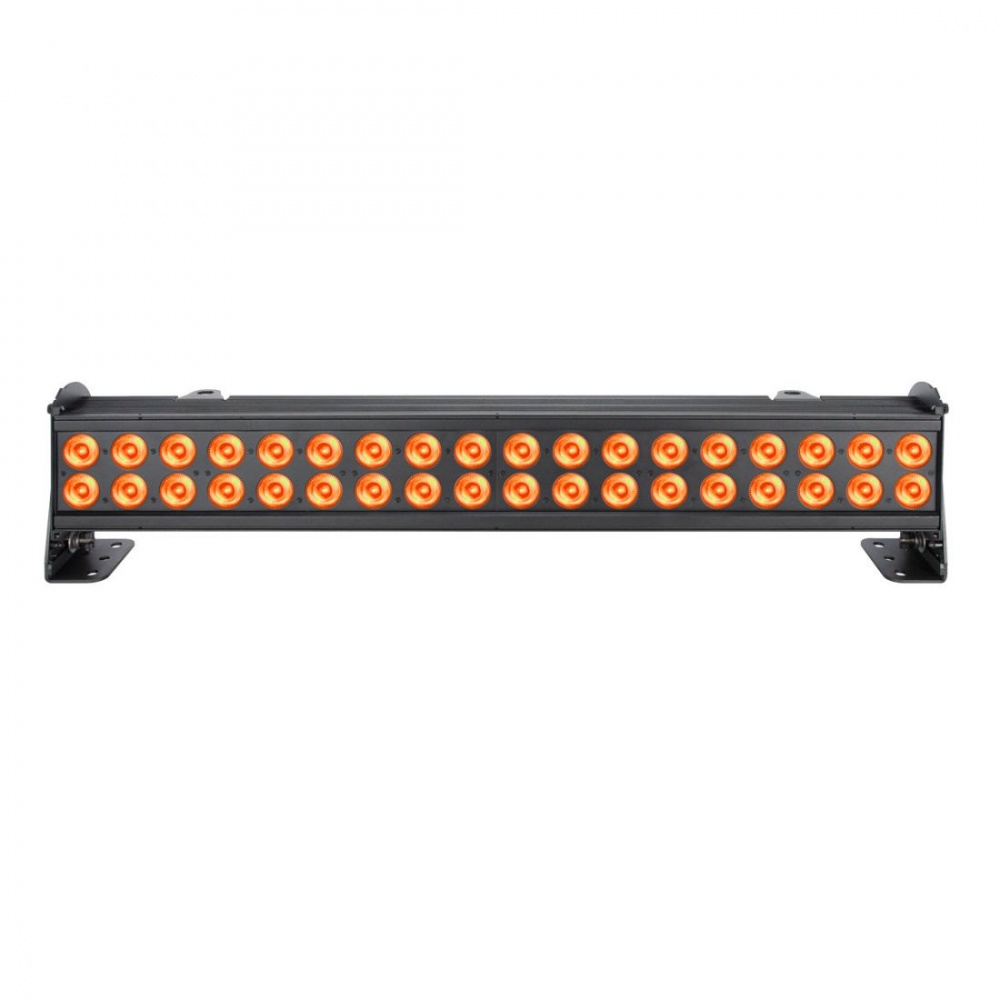

Seven Color LED Batten Wash Luminaire
25W RGBWA+Lime+UV LEDs
Individual Hue, Saturation and Intensity Control
RGB+Seven Color 3 Channel DMX Mode
Pixel Zone Controlled LEDs

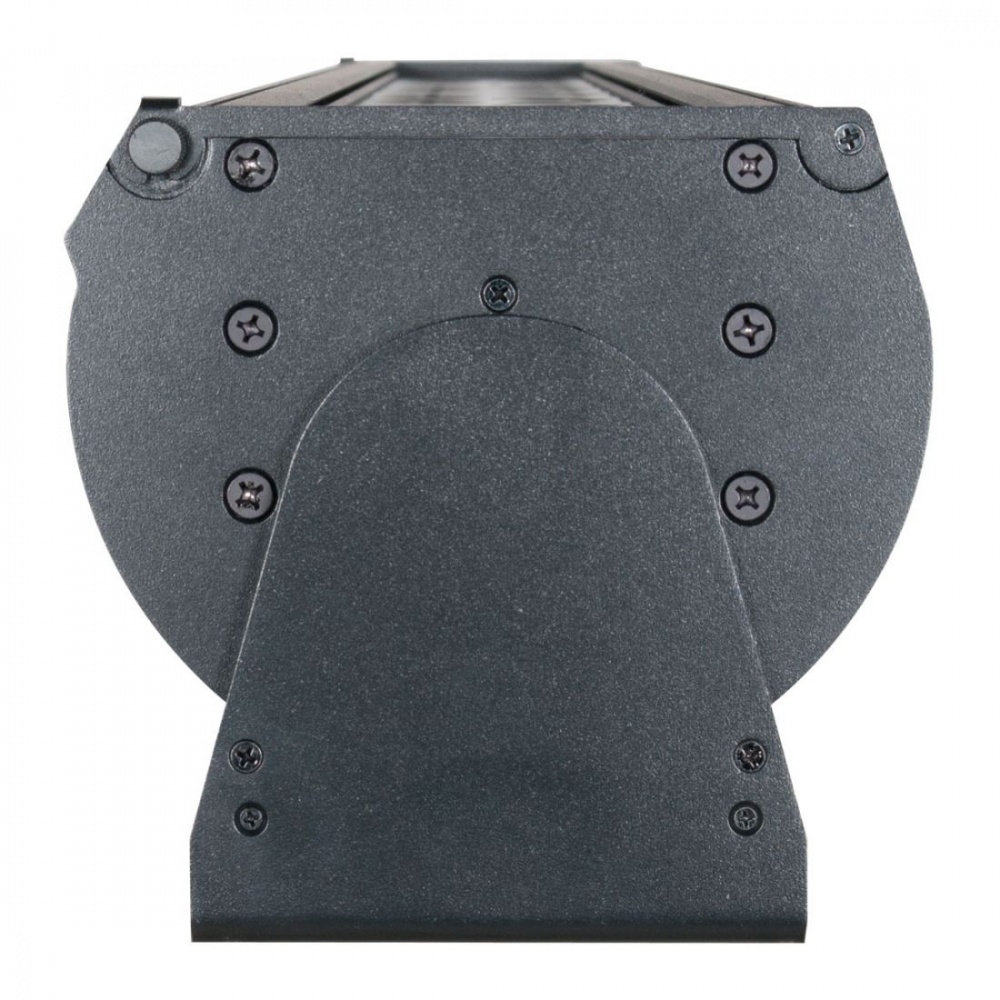

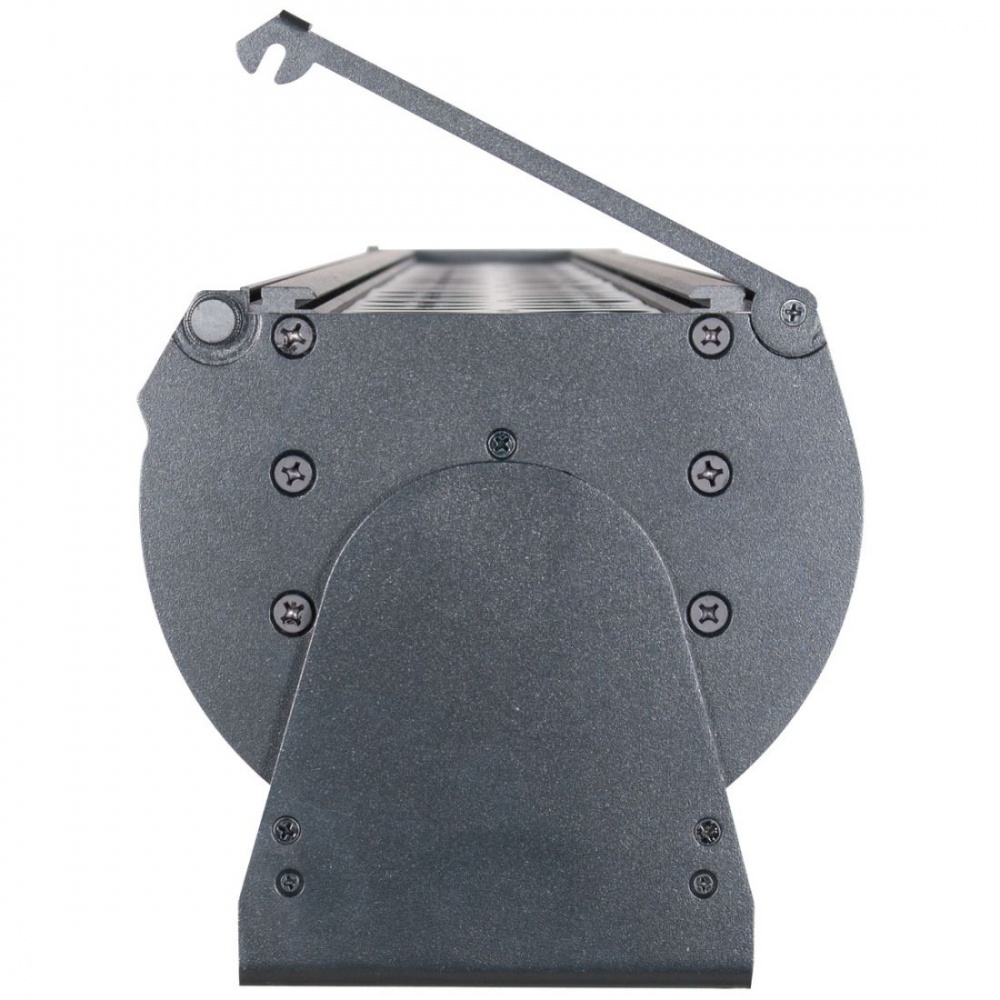

220° Manual Tilt Adjustable Mounting Brackets
Silent Operation
Adjustable Refresh Frequency and Gamma
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
36x 25W RGBWA+Lime+UV Multi-Chip LEDs
12,131 Total Output Lumens
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
7,669 LUX 713 FC @ 9.8” (3m)
EFFECTS
Hue, Saturation and Intensity Control
Pixel Zone Controlled LEDs
RGB+Seven Color Mode
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
RGBWA+Lime+UV Multi-Chip LEDs
Variable Color Temperature (2,800K – 8,000K)
CONTROL / CONNECTIONS
10 DMX Channel Modes (3 – 50 Channels)
DMX, Art-NET and Kling-NET Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 28,800Hz)
Adjustable Gamma (2.0, 2.2, 2.4, 2.8)
8 / 16 Bit Dimming Control
4 Button Control Panel
180° Reversible OLED Menu Display
USB Firmware Service Port

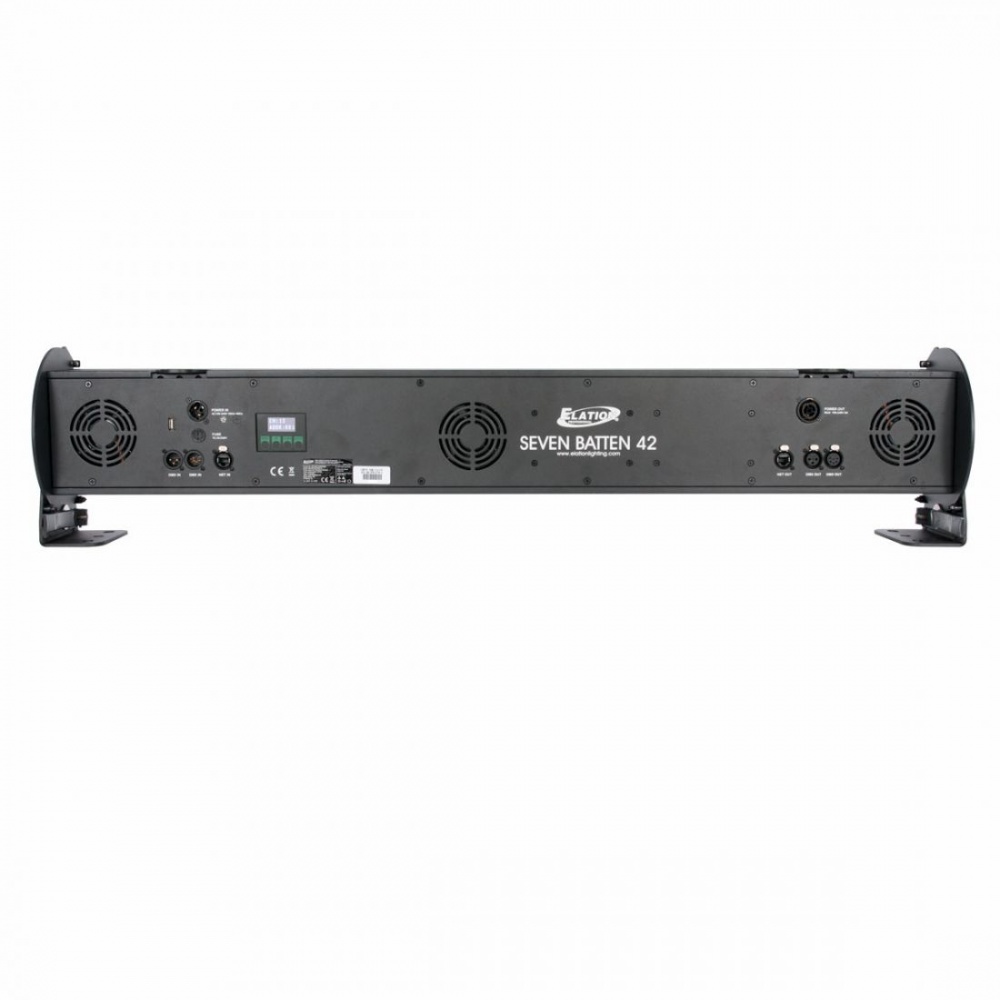

IP65 Locking 3/5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out (Art-NET and sACN)
IP65 Locking Power Connector In/Out
SIZE / WEIGHT
Length: 42.2” (1071mm)
Width: 7.7” (197mm)
Vertical Height: 7.6” (192mm)
Weight: 39 lbs. (17.7kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
614W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Locking IP65 Power Connector to CEE 7/7 Cable
SPECIAL WARRANTY
Extended 5 Years LED Engine
Extended 3 Years Fixture Components on Registered Indoor Fixed Installation Projects
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
The SEVEN Batten™ line of linear lighting fixtures uses th...e latest 7-color multi-chip LED technology for an expanded palette of colors, including stunning ambers, true whites and even an ultraviolet effect. Available in 0.3m, 1.2m and 1.8m lengths and housing long-life 25W RGBAW + Lime + UV LEDs, with the SEVEN Batten series the LED color spectrum has never been wider. Useful as a wash light, uplight, wall/cyc wash, accent light, direct view pixel strip and more, the SEVEN Batten series is capable of powerful projections of uniform color onto any surface.VIAC
