FEATURES
Moving Bar Effect Luminaire
40W RGBW LEDs
Fast and Precise 16-Bit 220° Motorized Tilt Movement
Pixel Controlled LEDs
4°- 40° Motorized Zoom
Tilt Lock
Adjustable Refresh Frequency and Gamma
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
16x 40W RGBW Multi-Chip LEDs
5,700 Total Output Lumens
50,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
56,883 LUX 5285 FC @ 9.8’ (3m) (Min. Zoom)
1,582 LUX 147 FC @ 9.8’ (3m) (Max. Zoom)
EFFECTS
Fast and Precise 16-Bit 220° Motorized Tilt Movement
Pixel Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
RGBW Multi-Chip LEDs
Variable Color Temperature (2,700K – 7,000K)
CONTROL / CONNECTIONS
3 DMX Channel Modes (16 / 18 / 78)
DMX, Art-NET and Kling-NET Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
Adjustable Gamma (2.0, 2.2, 2.4, 2.8)
8 / 16 Bit Tilt and Dimming Control
4 Button Touch Control Panel
180° Reversible LCD Menu Display
Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out (Art-NET and Kling-NET)
Locking Power Connector In/Out
SIZE / WEIGHT|
Length: | 42” (1068mm) |
|
Width: | 5.9” (150mm) |
|
Vertical Height: | 11.5” (291mm) |
|
Weight: | 47 lbs. (21.3 kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
739W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
2 Omega Brackets
Locking Power
Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES

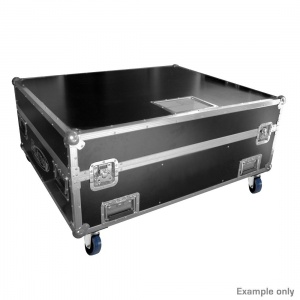

1521000328 PRO Case 3x Chorus Line 16
1521000331 Touring Case 3x Chorus Line 16
1322000060 C-Loader II
AWARDS
PLSN Gold Star Product Award 2017
|
*LED Life may vary depending on several factors including but not limited to: | Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. |
