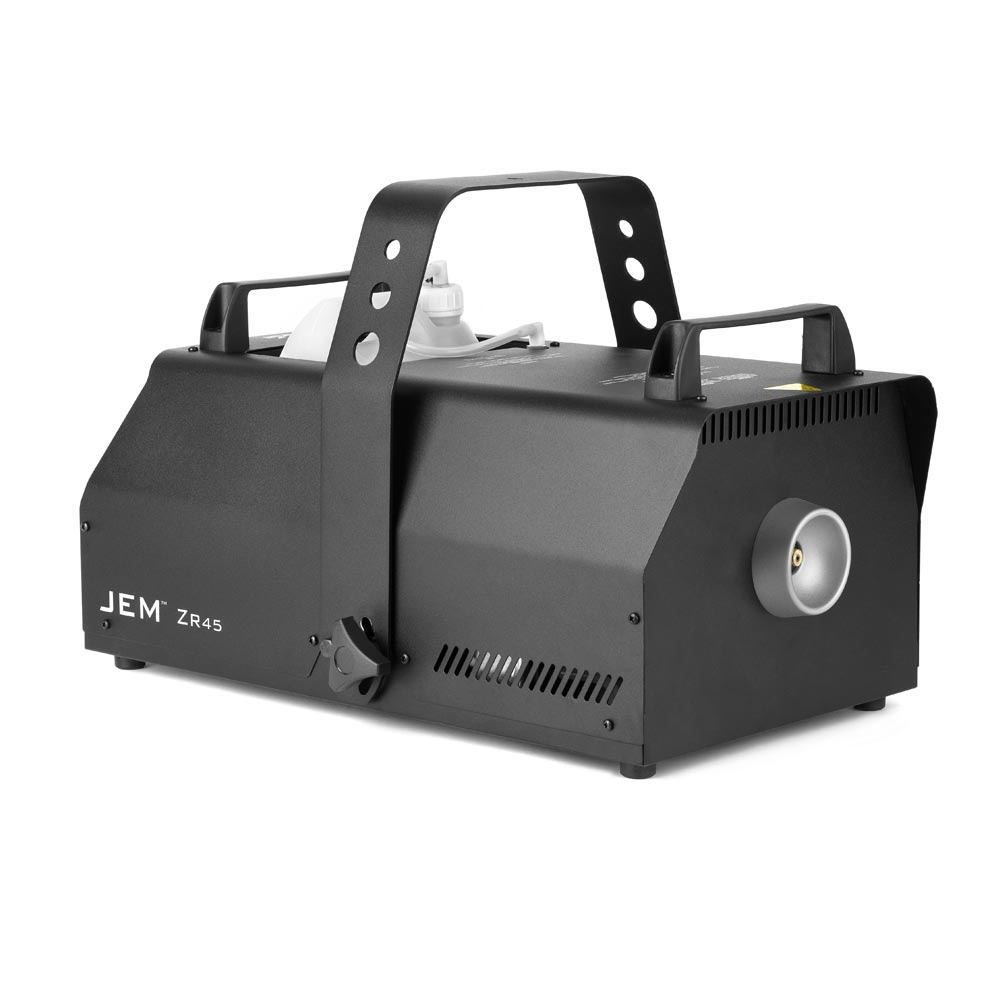

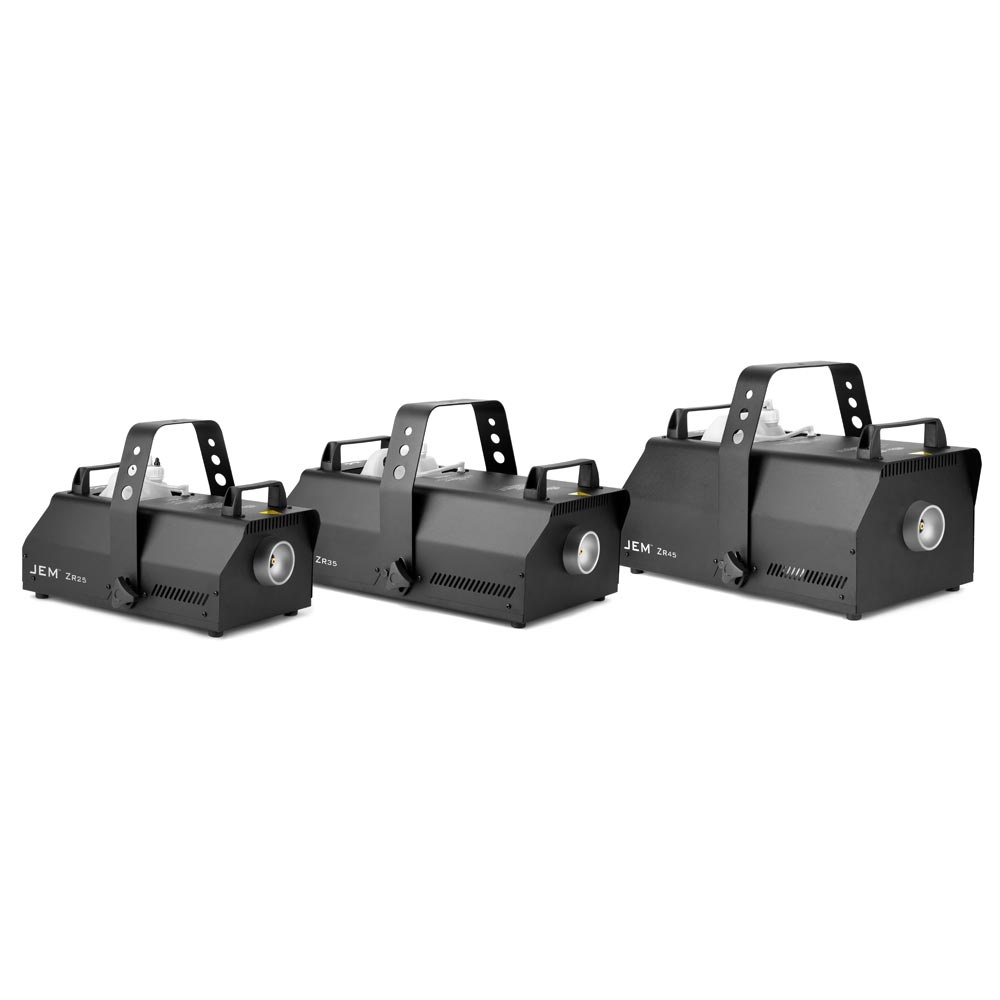

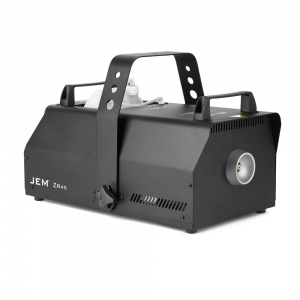

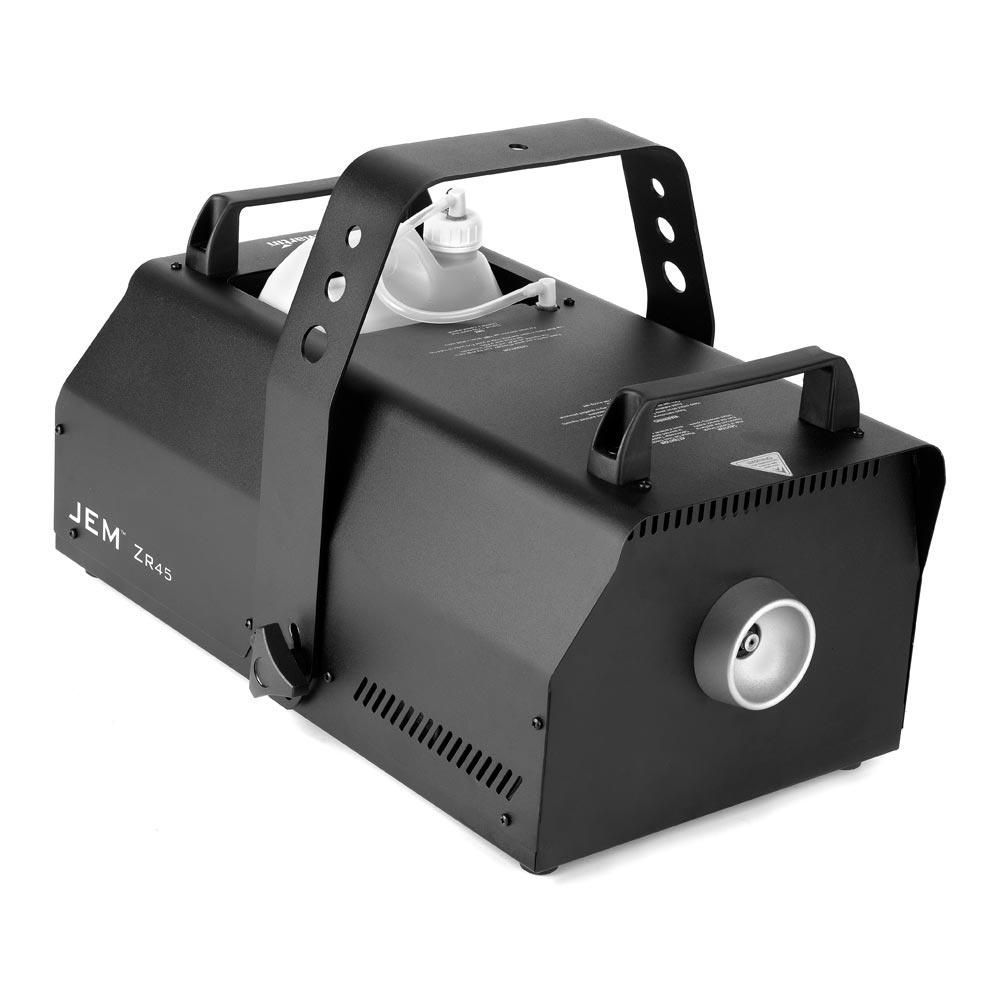

The JEM ZR45 is a high-end fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its enhanced and powerful 2,000 W heat exchanger, the JEM ZR45 produces an exceptional peak output ideal for major venues and stages in both install and rental markets.The rugged yet weight-optimized JEM ZR45 also features variable output control for more subtle effects and is fully up-to-date with integrated digital remote control, DMX and RDM.The entire JEM ZR range is compatible with a wide range of JEM Pro-Fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.
- High endurance high-end fog machine
- Exceptional performance and output
- Various control options via digital remote, DMX and RDM

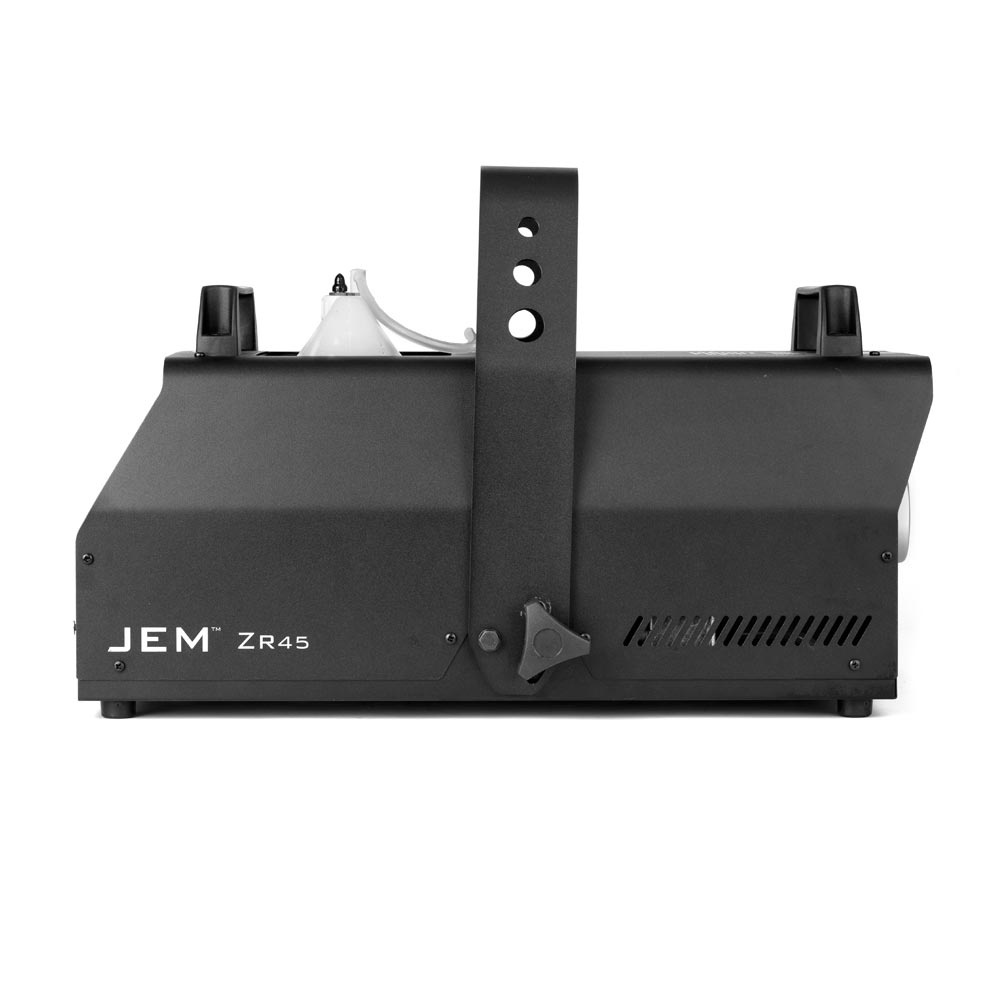

Physical Length: 602 mm (23.1 in.)
Width: 395 mm (15.6 in.)
Height: 306 mm (12.1 in.)

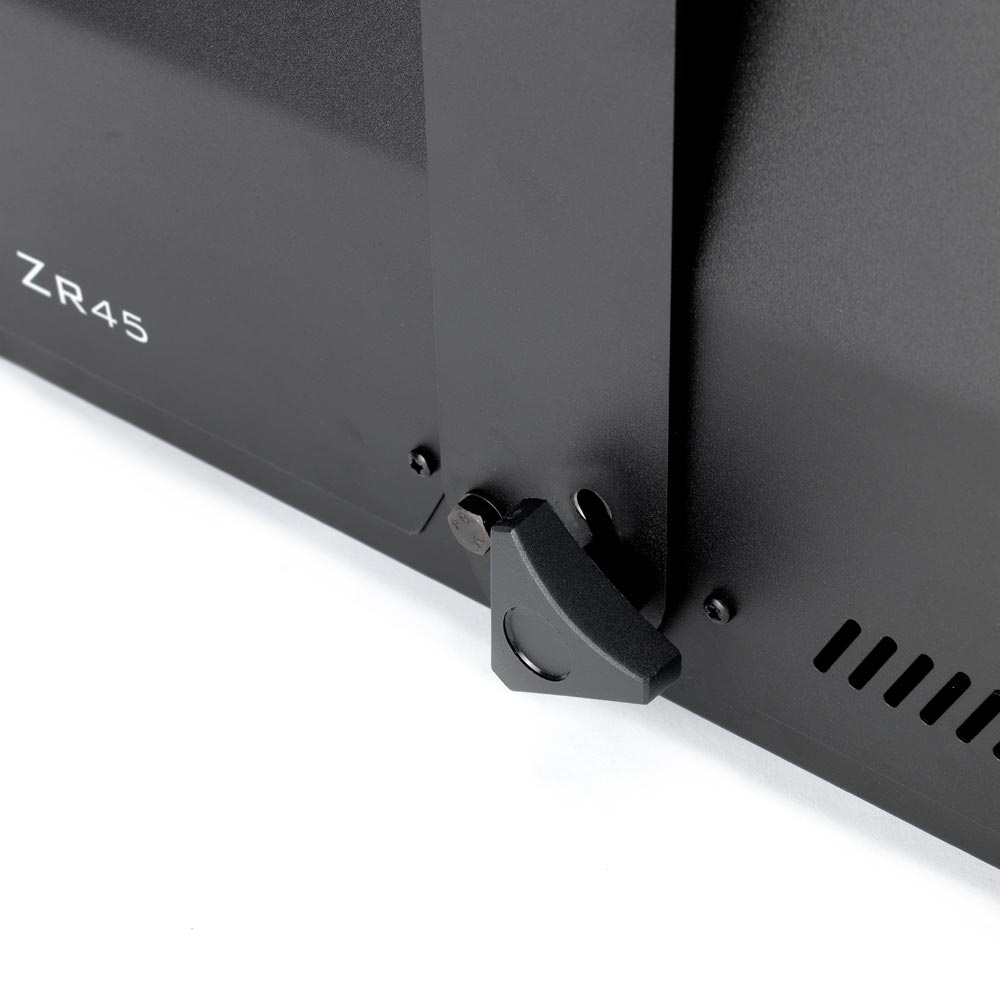

Height with hanging bracket: 393 mm (15.5 in.)
Weight, dry: 17.7 kg
Weight, filled: 22.7 kg
Performance
Coverage volume: 1300 m3 (45,909 ft3) per minute
Fluid consumption (max.): 210 ml per minute
Maximum operating time, maximum output, 5 l of fluid: 1.18 hours
Ready time: 10-minutes
Continuous effect output
Control and Programming

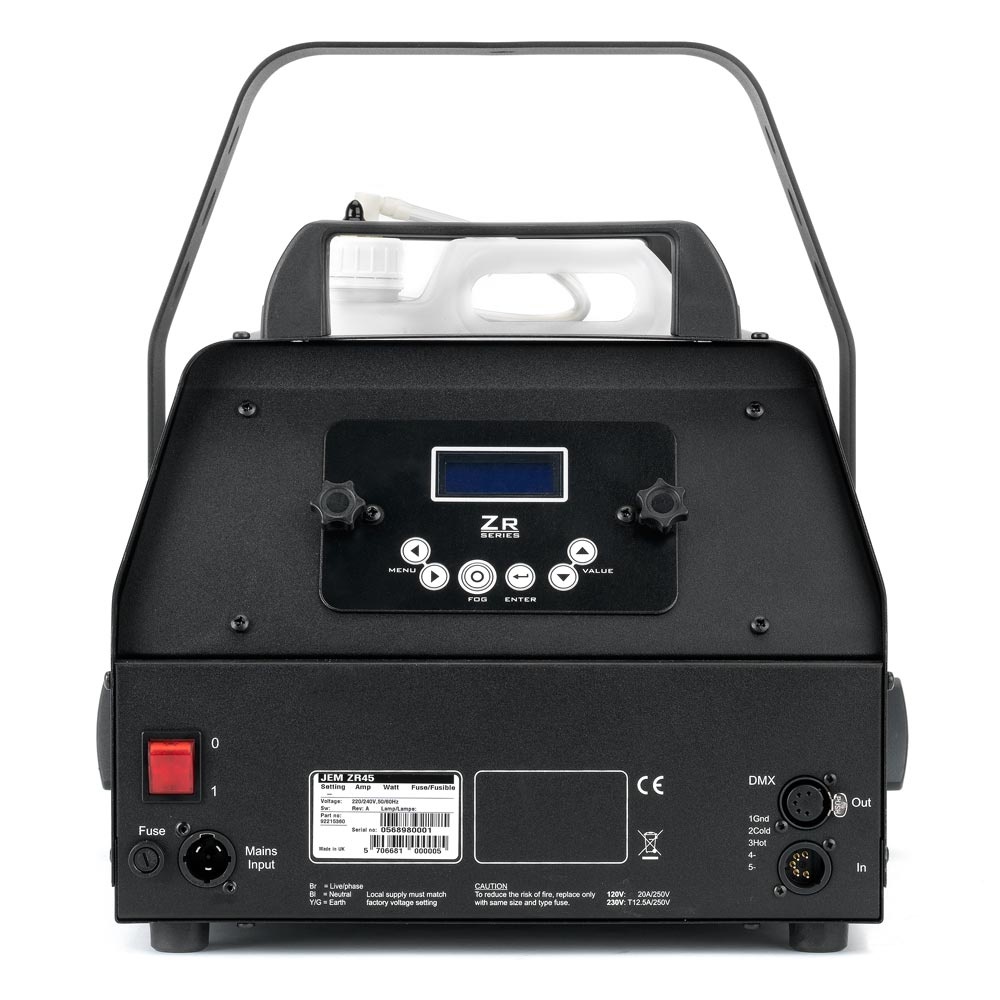

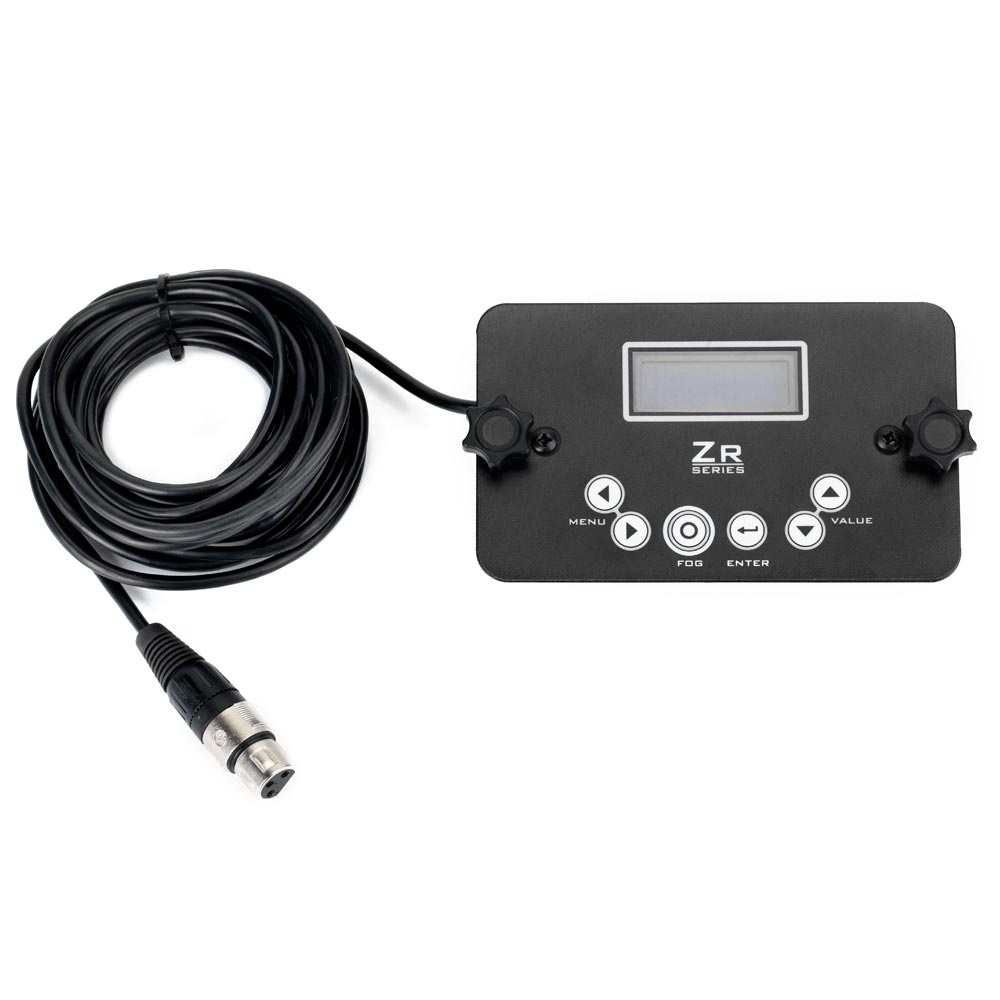

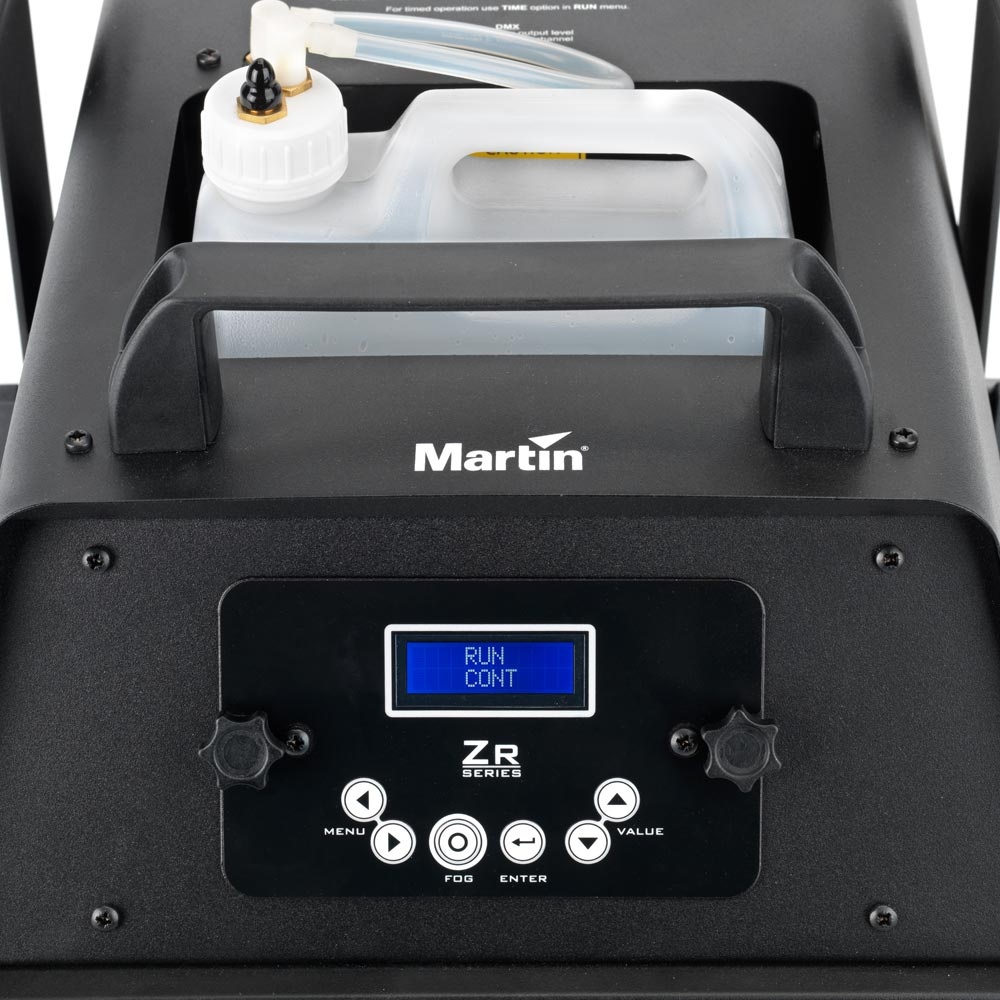

Control options: Integrated digital remote control, DMX, master/slave link mode Control parameters: Continuous or timer-controlled output
Fog: Variable output control, 0-100%
DMX channels: 1

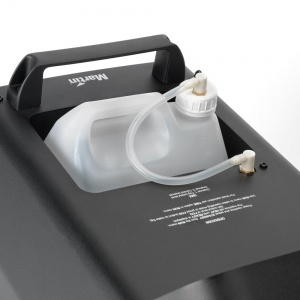

External fluid control: Fluid sensing

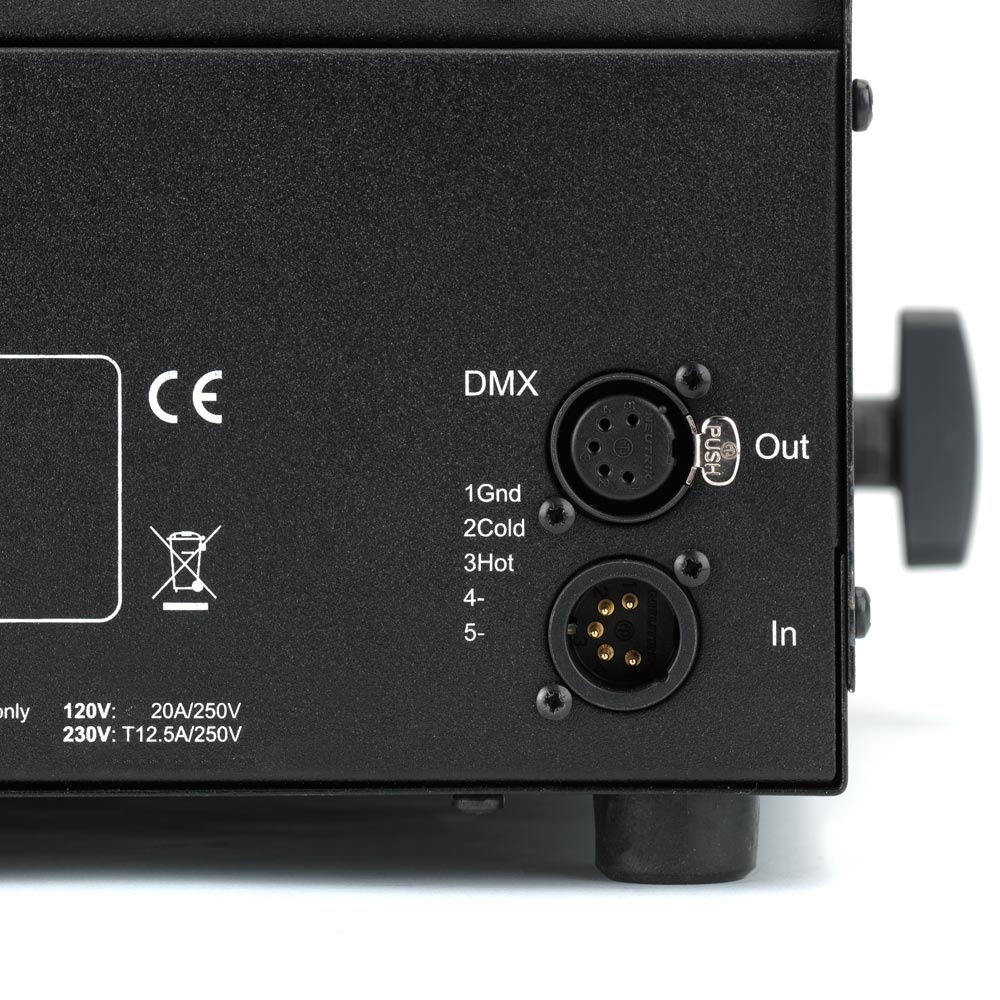

DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Construction
Housing: Steel and aluminum
Color: Black
