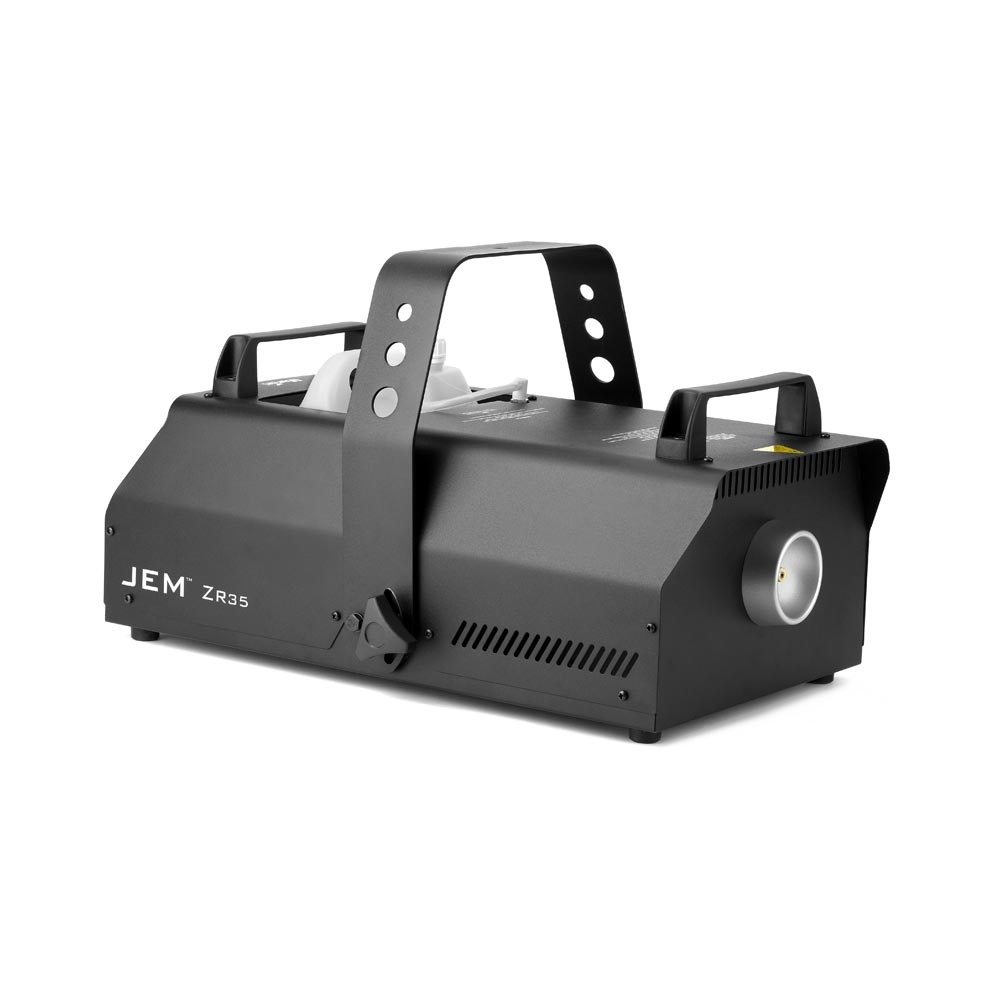

Specifications :
Physical Length: 590 mm (23.3 in.)
Width: 395 mm (15.6 in.)
Height: 264 mm (10.4 in.)

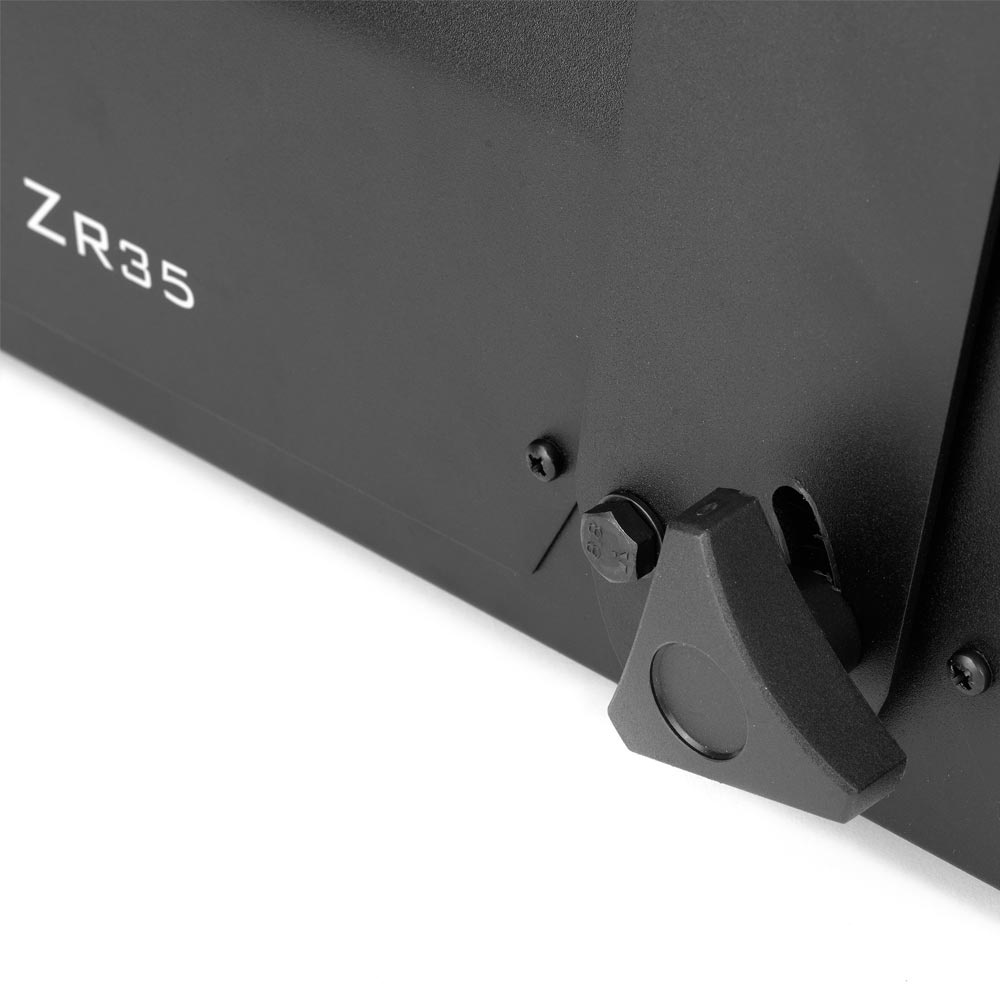

Height with hanging bracket: 333 mm (13.9 in.)
Weight, dry: 15.1 kg
Weight, filled: 19.1 kg
Performance
Coverage volume: 800 m3 (28,252 ft3) per minute
Fluid consumption (max.): 140 ml per minute
Maximum operating time, maximum output, 4 l of fluid: 1.25 hours
Ready time: 9-minutes
Continuous effect output
Control and Programming

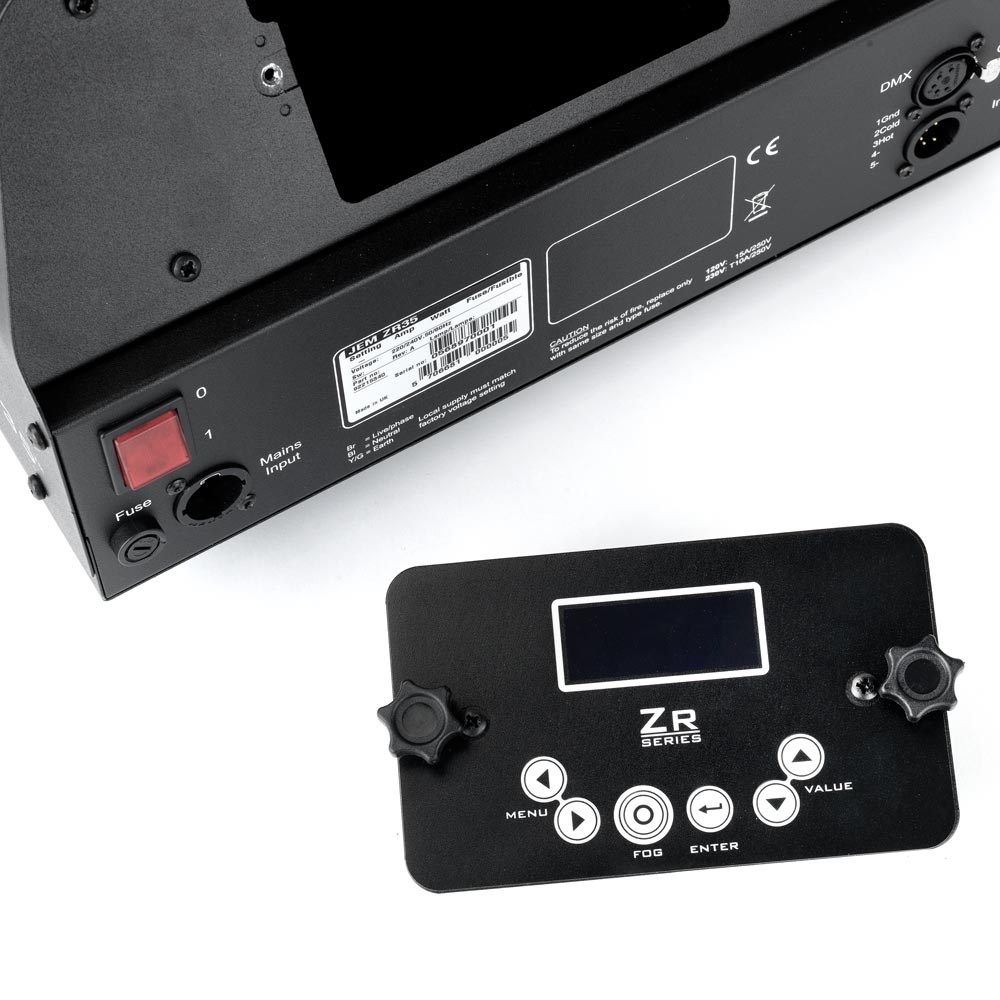

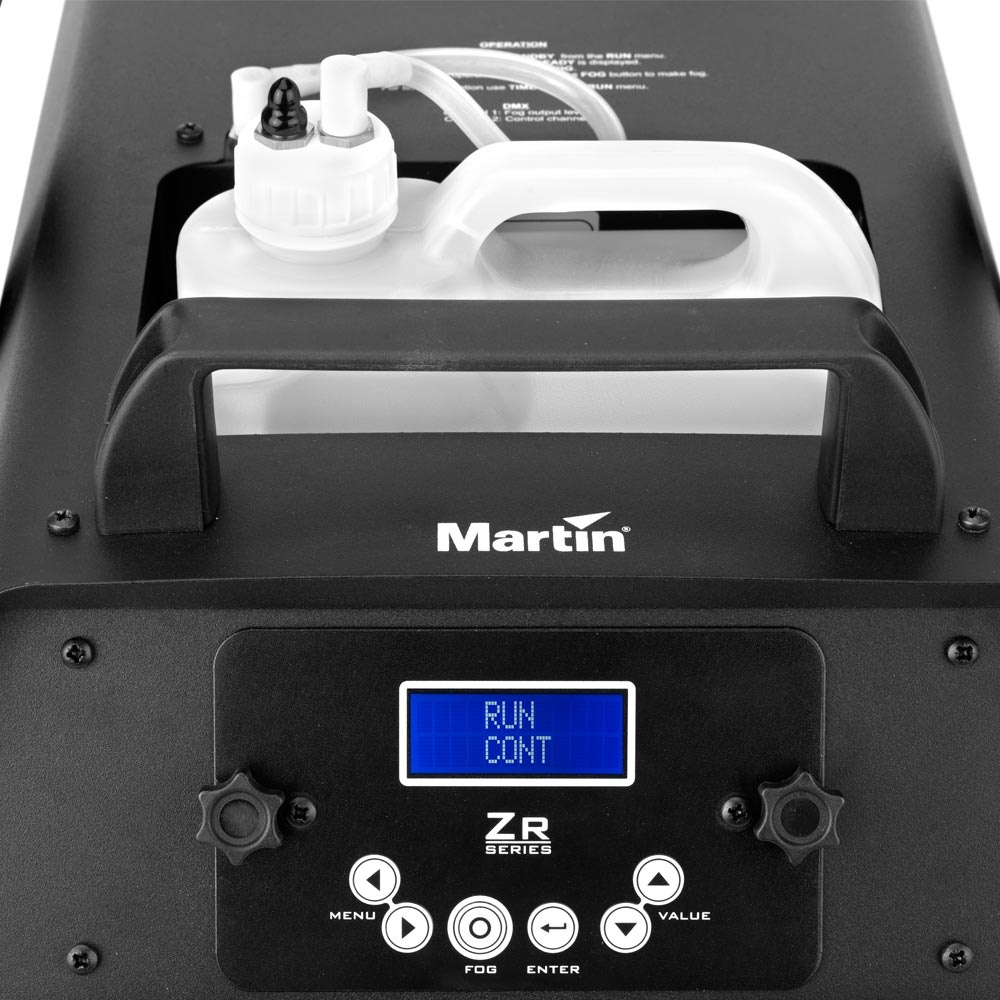

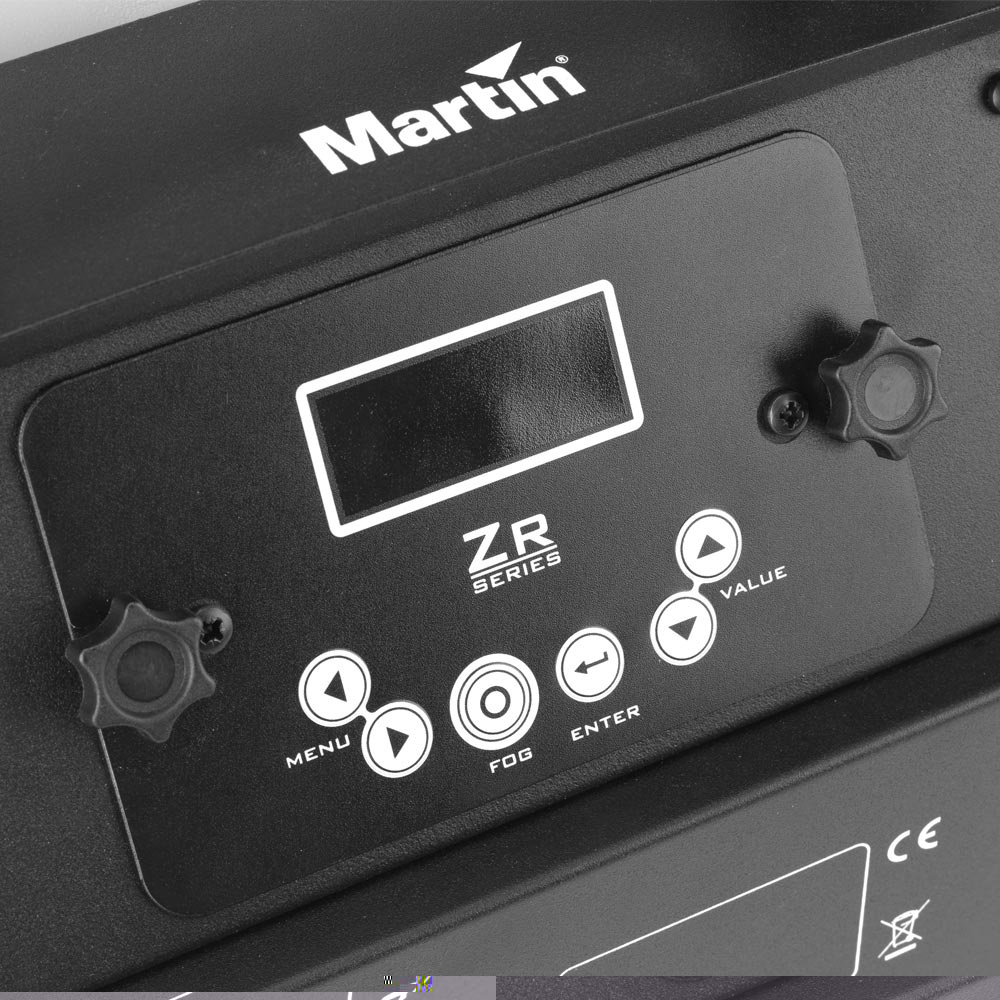

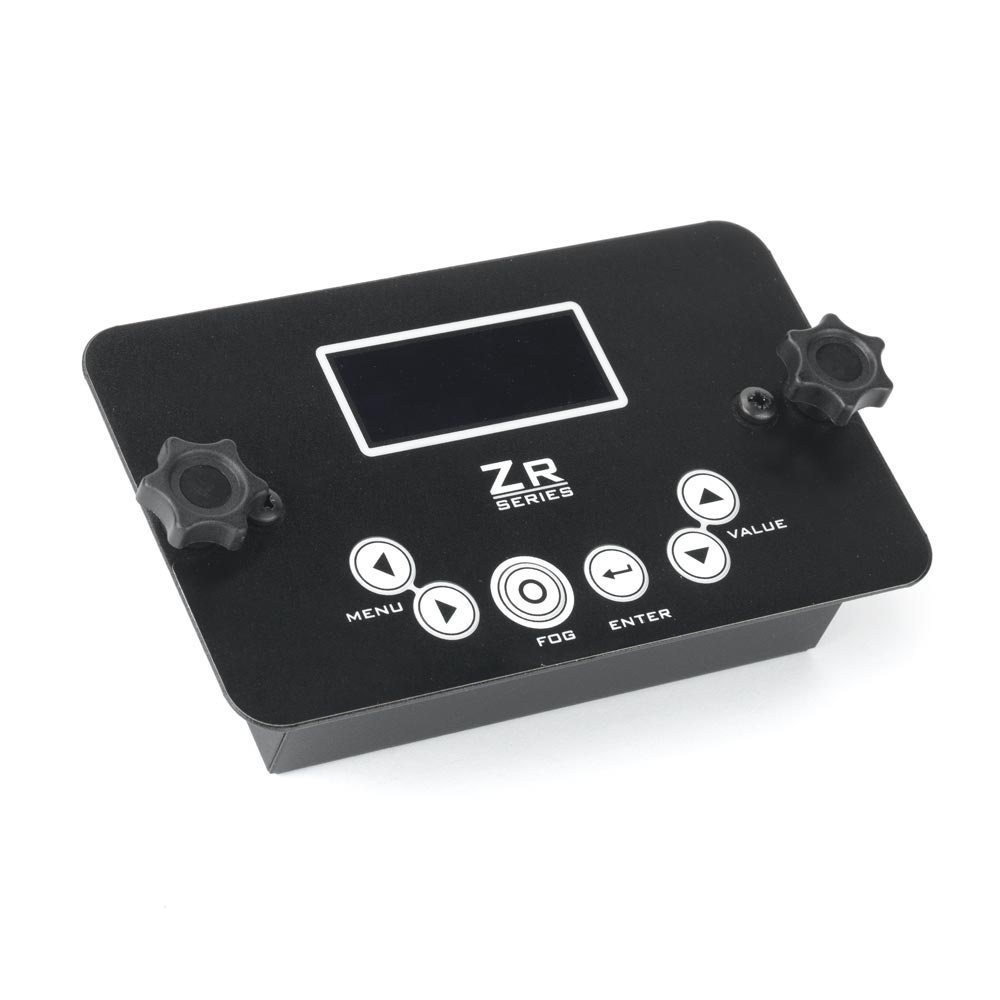

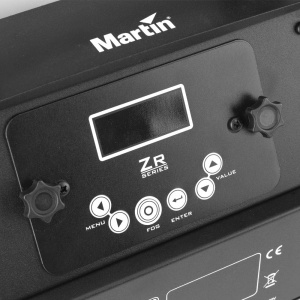

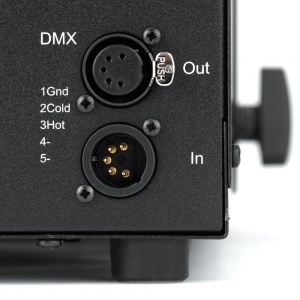

Control options: Integrated digital remote control, DMX, master/slave link mode Control parameters: Continuous or timer-controlled output
Fog: Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing
DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
