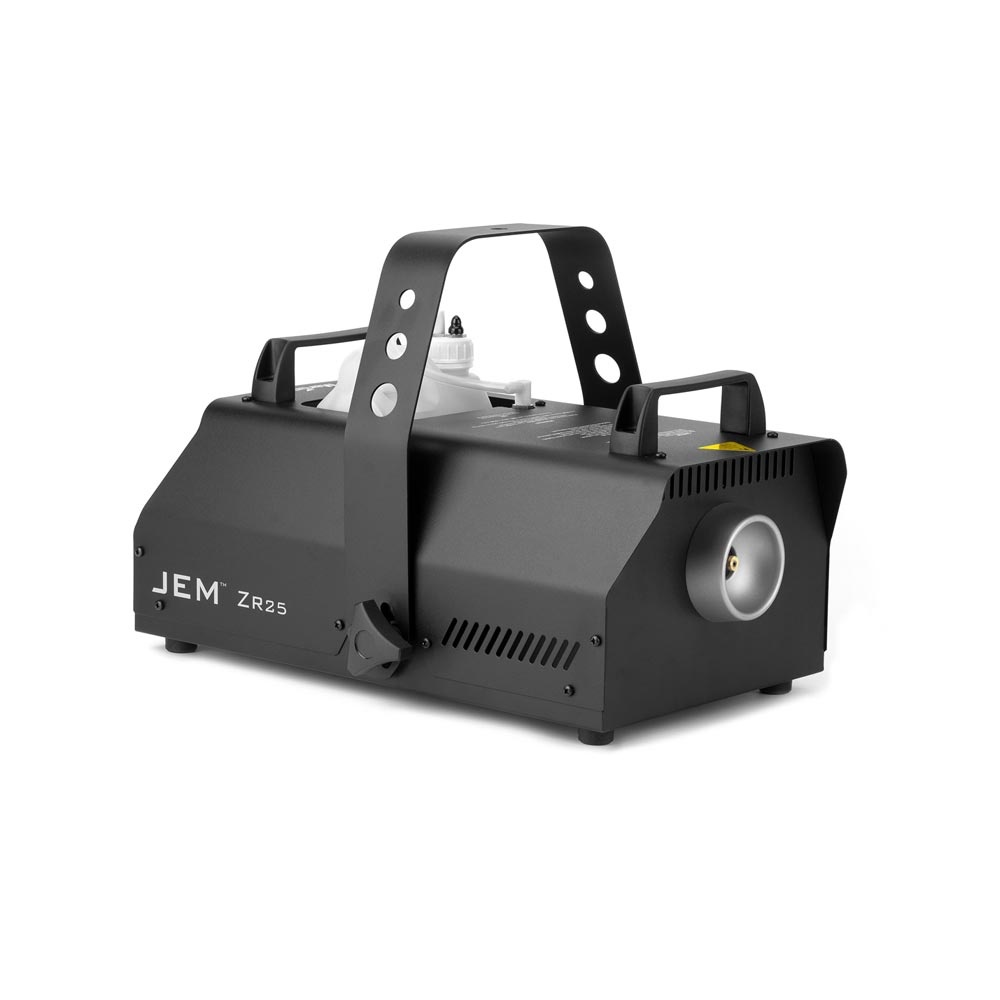

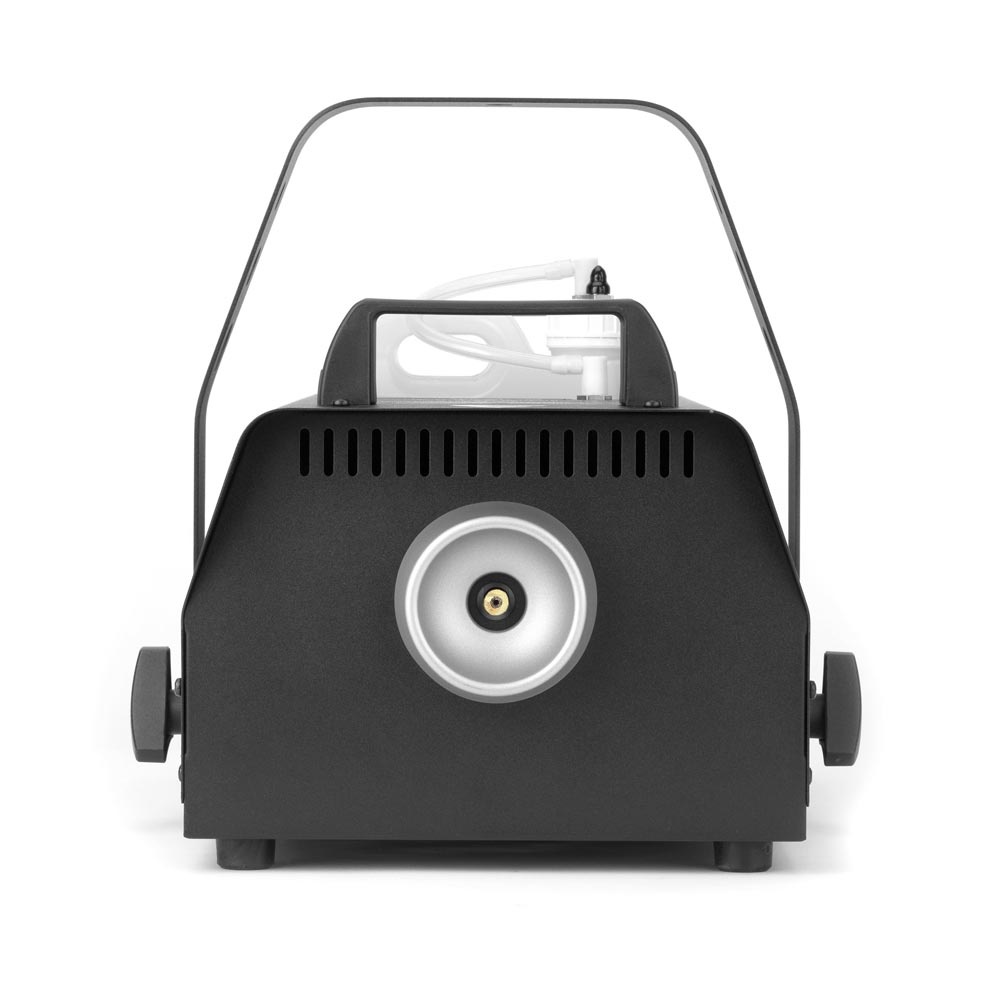

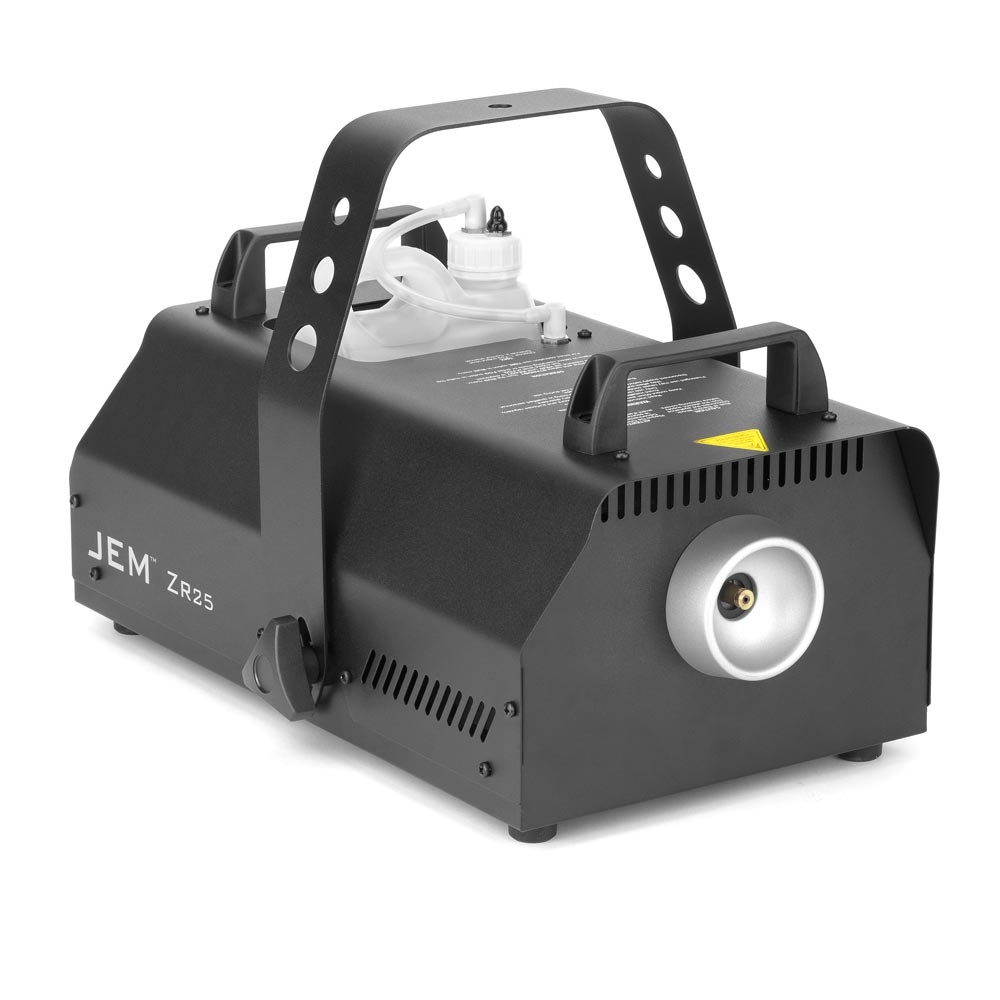

The JEM ZR25 is a small, yet powerful fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its 1,150 W heat exchanger, the JEM ZR25 produces large amounts of fog ideal for small to medium-sized venues and stages in both install and rental markets.The JEM ZR25 features variable output control for more subtle effects and is fully up-to-date with an integrated digital remote control, and DMX with RDM.

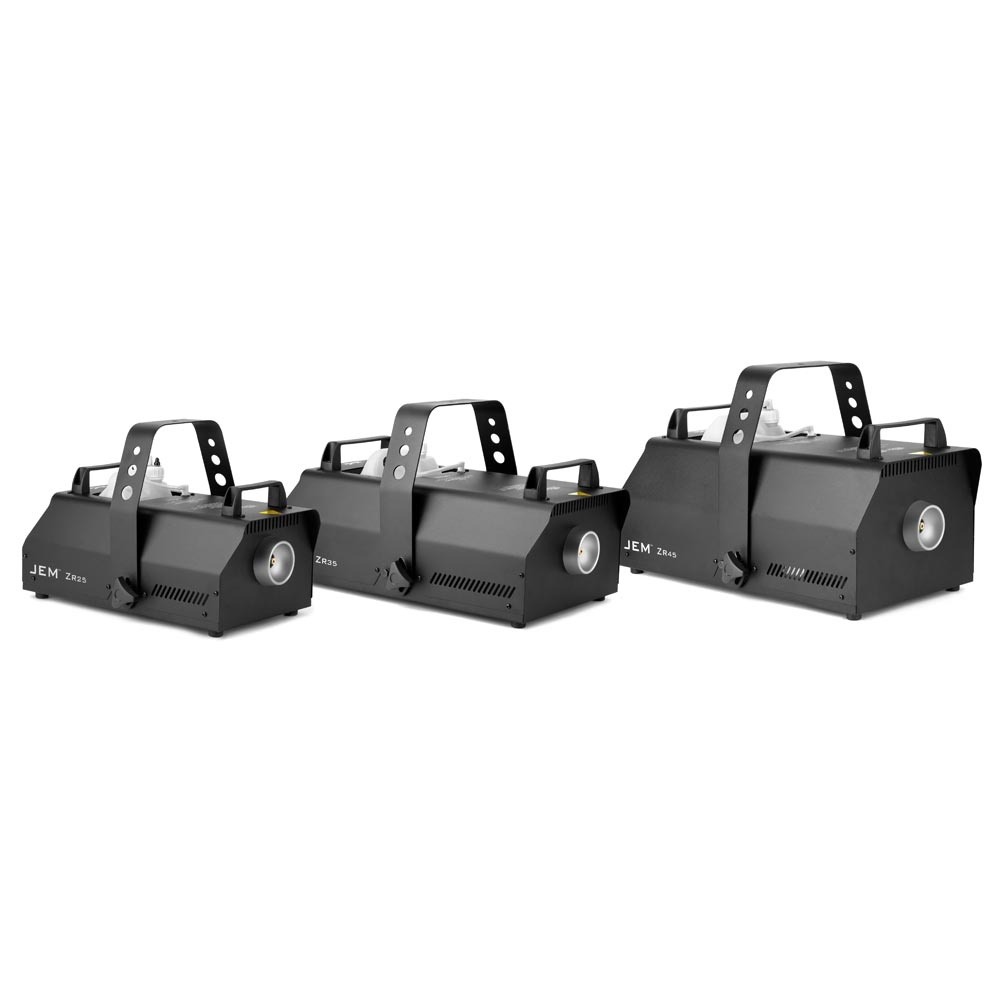

The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.
Specifications
Physical Length: 485 mm (19.1 in.)
Width: 335 mm (13.2 in.)
Height: 242 mm (9.6 in.)
Height with hanging bracket: 333 mm (13.2 in.)
Weight, dry: 11.2 kg (24.7 lbs.)
Weight, filled: 13.7 kg (30.2 lbs.)
Performance
Coverage volume: 600 m3 (21,189 ft3) per minute
Fluid consumption (max.): 100 ml per minute
Maximum operating time, maximum output, 2.5 l of fluid: 1.2 hours
Ready time: 7-minutes Continuous effect output
Control and Programming

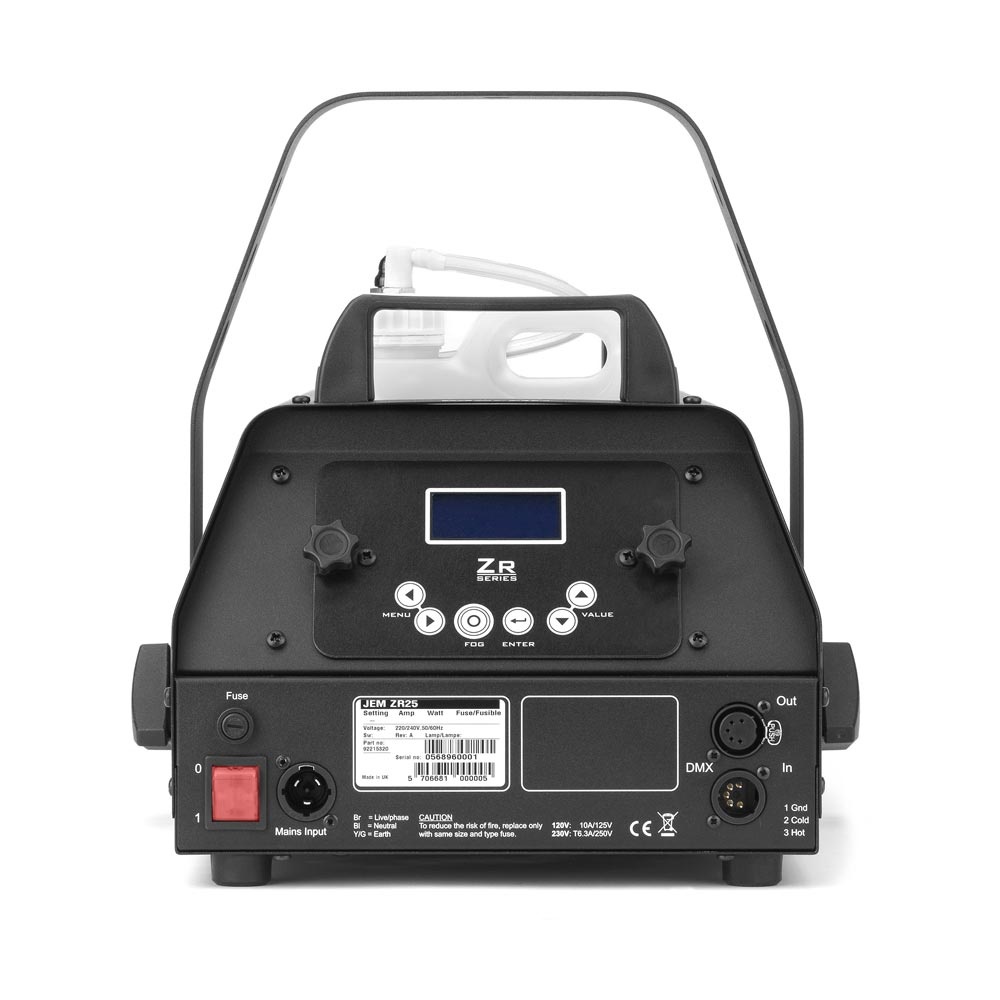

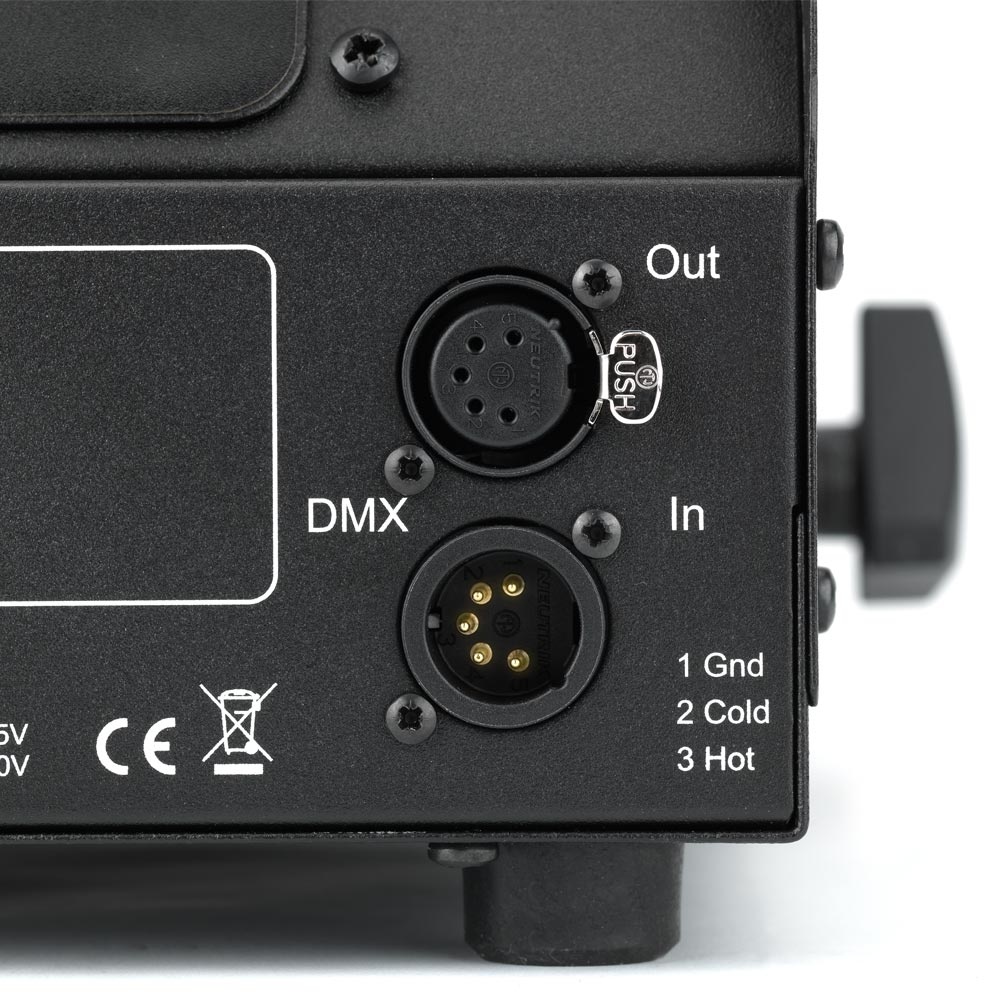

Control options: Integrated digital remote control, DMX, master/slave link mode Control parameters: Continuous or timer-controlled output
Fog: Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing
DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Construction Housing: Steel and aluminum
Color: Black Heat exchanger: 1150 W, thermally protected
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation

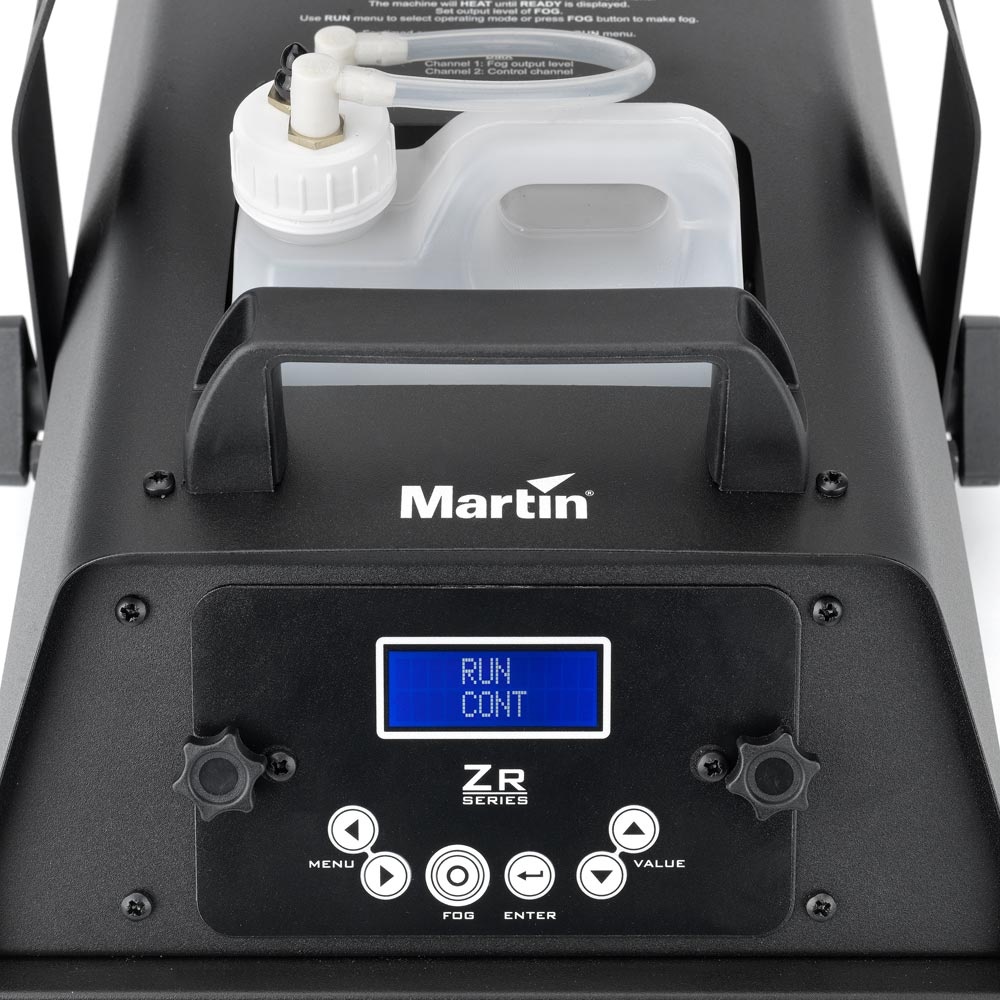

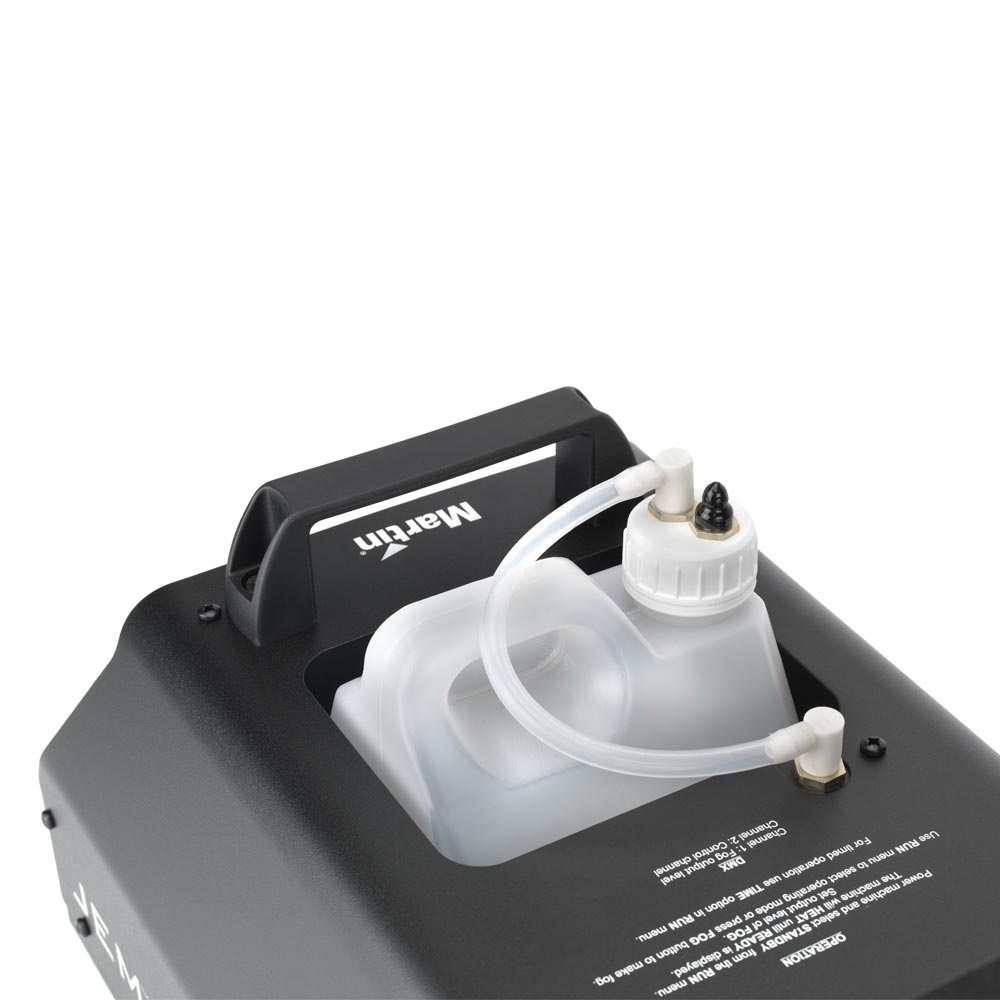

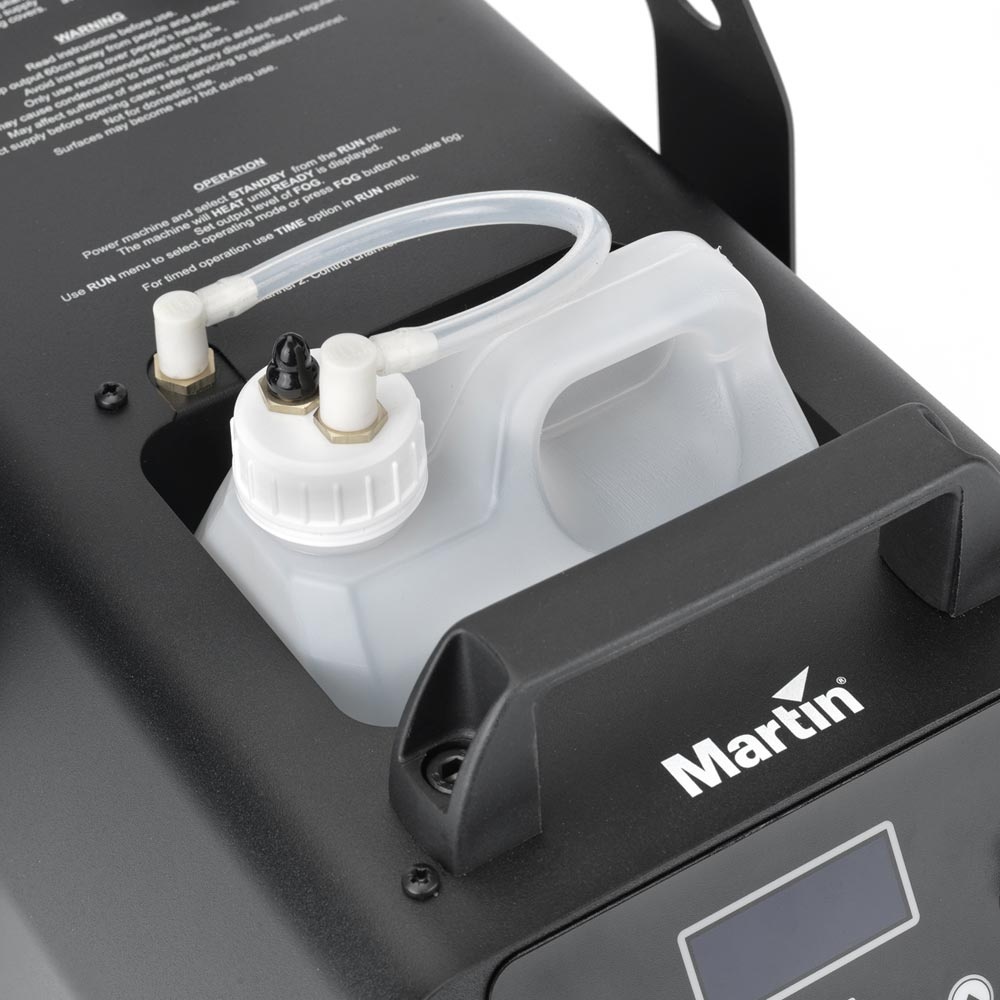

Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting

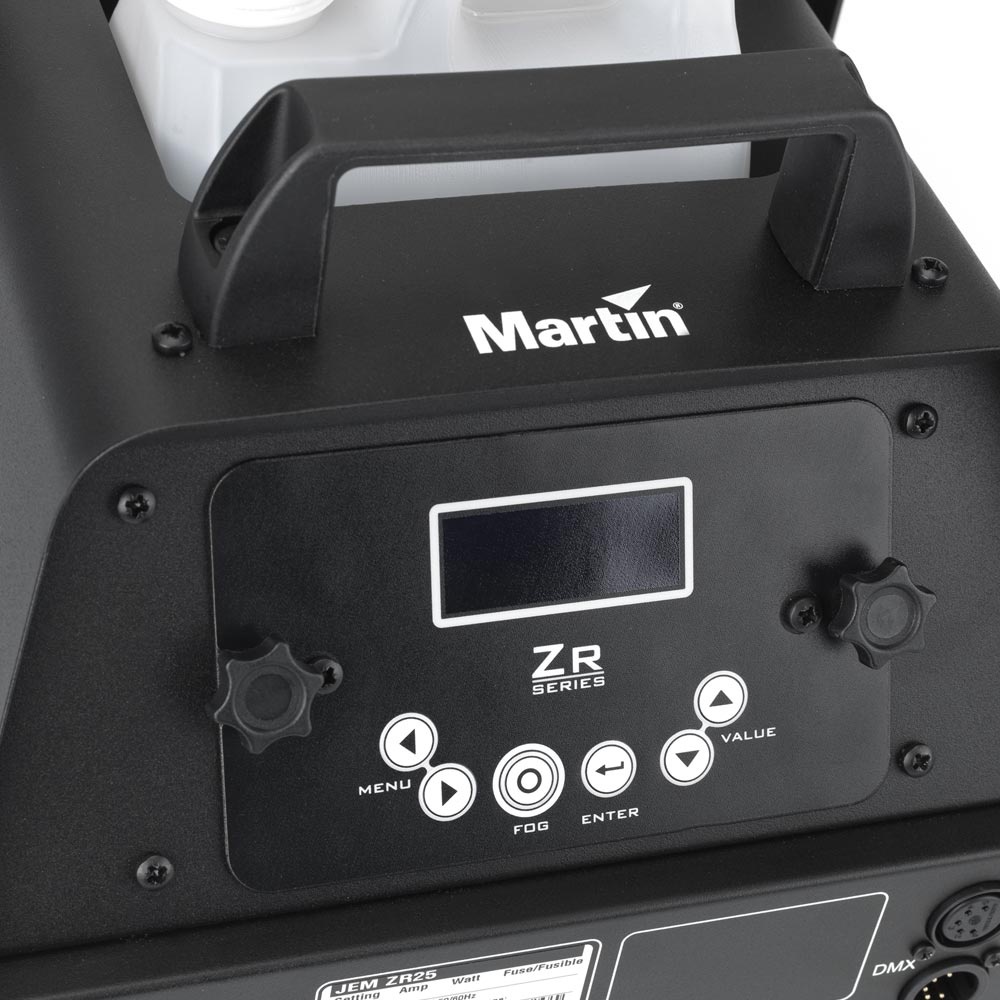

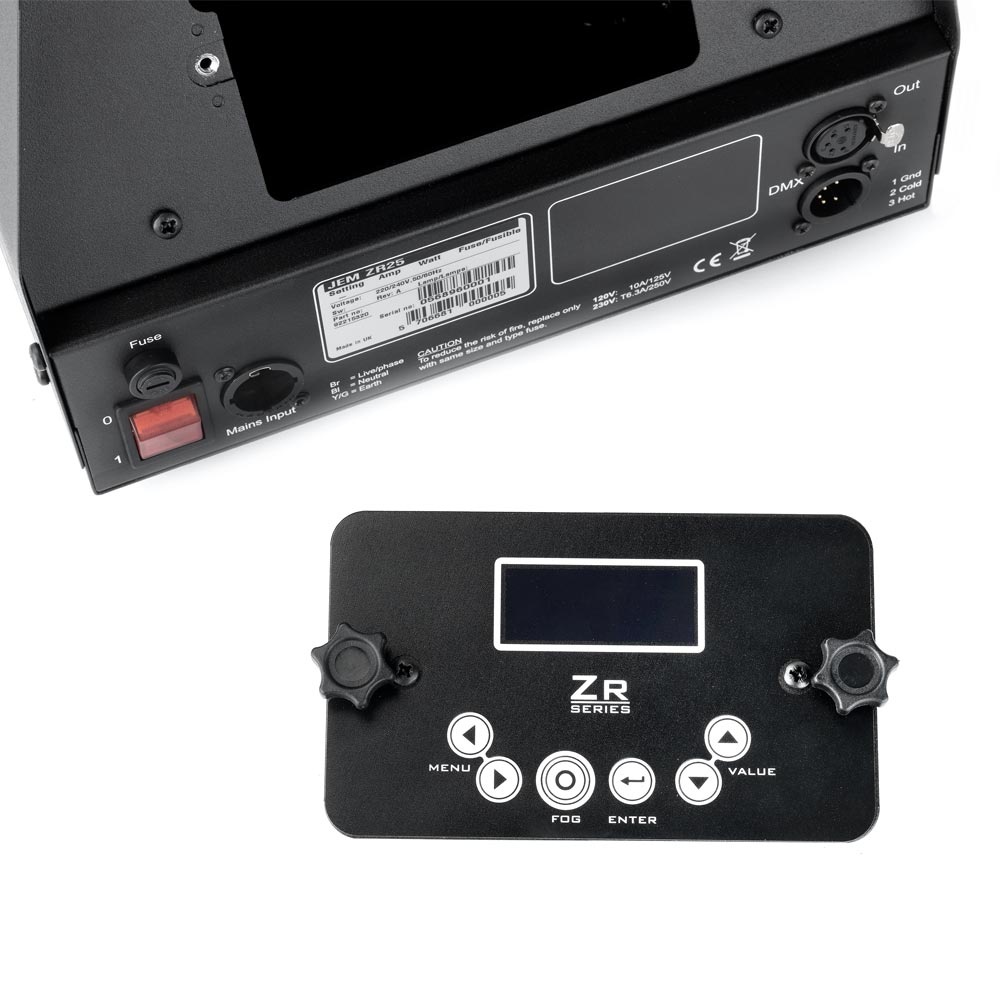

Remote Control: Integrated digital remote with 3 m (9.84 ft.) cable, 3-pin XLR connector
External Fluid Control: Fluid sensing

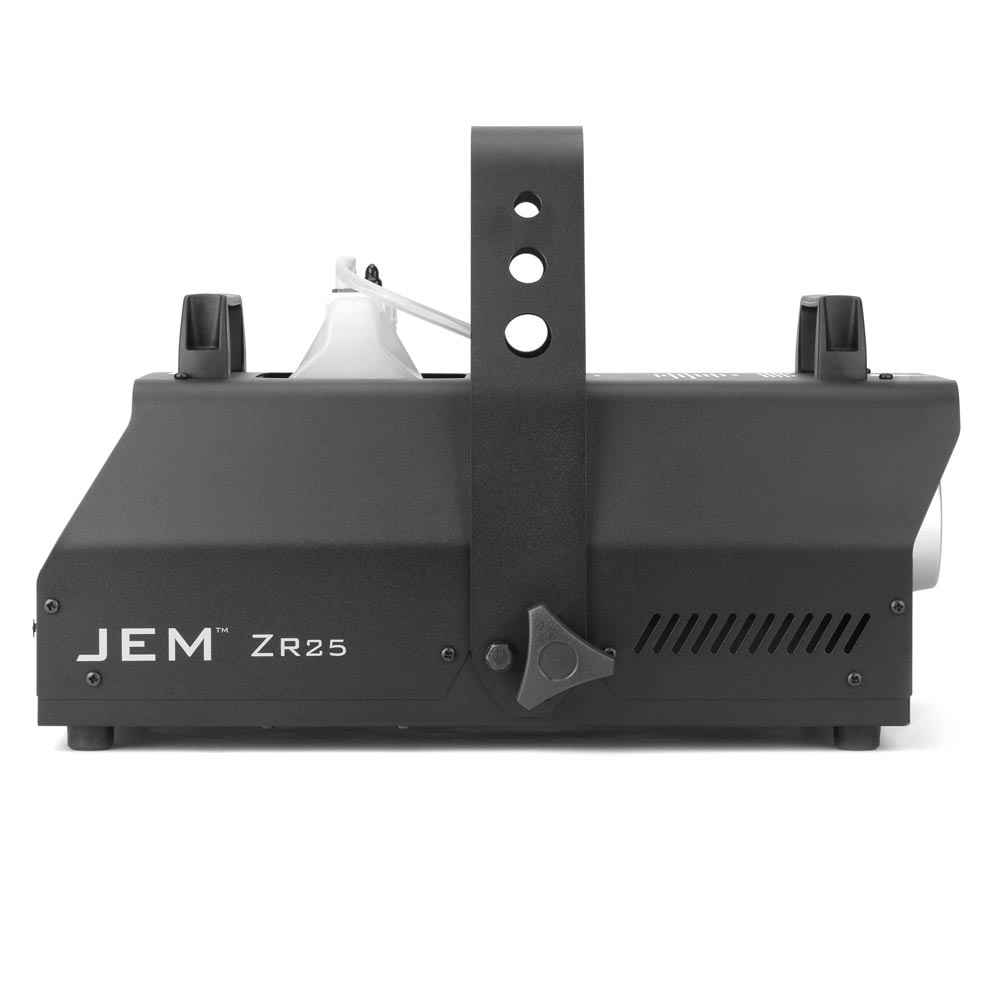

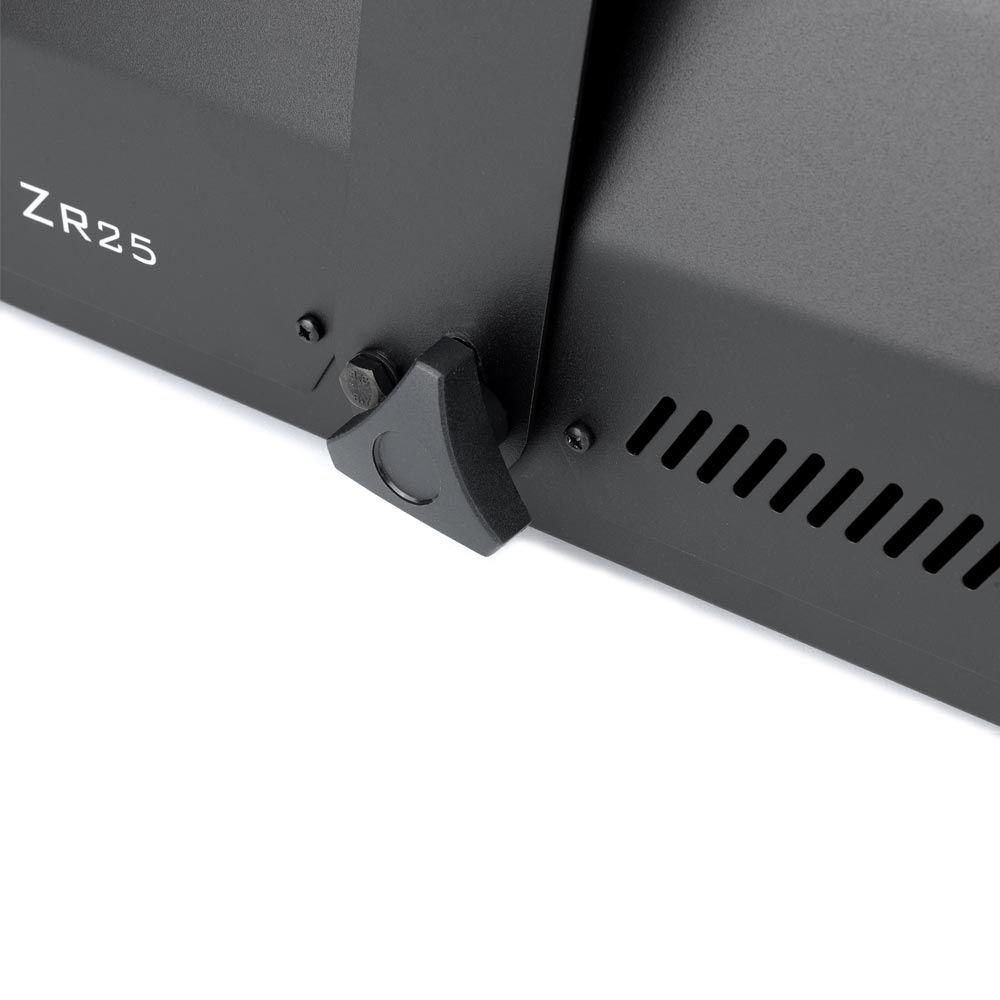

Hanging bracket: Integrated yoke with safety attachment point
