Smaller, quieter, and capable of taking low-fog to more locations—the live event industry’s leading low-fog machine returns with its most significant upgrade in over a decade. Martin JEM Glaciator Dynamic is your complete solution for creating dense, billowy clouds of low-lying fog in any venue without the use of industrial gases or ice. Achieve lush fog on stage with longer-lasting effects. Reduce noise with near-silent operation, perfect for theatrical applications. Enjoy more room backstage with an all-new, more compact design. And tour the world with an updated universal power supply. With a full range of premium accessories, three low-fog fluid types to choose from, and streamlined user controls, you can create dramatic atmospheric effects for your production in moments. Just plug in, set the stage and amaze.
Completely self-contained low-fog system—no industrial gases or ice
Closed-loop refrigeration for colder, dense, longer-lasting low-fog
Ultra-quiet operation, including low ambient noise in standby
FEATURES
All-in-one, self-contained solution without the need for external fans, industrial gas tanks, or ice
All-new Electronic Inverter Drive for improved effects and lower ambient noise
Fill your stage with low-fog thanks to continuous 80 m³ (2825 ft³) per-minute output
|
Even smaller, compact service-friendly design: | 785 x 648 x 769 mm (30.9 x 25.5 x 30.2 in.) |
World touring capabilities via a universal power supply that operates at 208-250 V, 50/60 Hz
Onboard industry standard DMX connectivity (both 3- and 5- pin) for control and integration

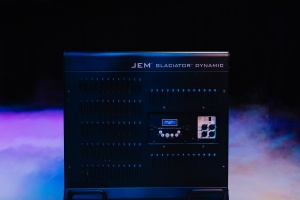

Intuitive user interface with Fast Access Keypad for fast, easy manipulation of low-fog output
180° Low-fog outlet engineered for a smooth, consistent low-fog field
Achieve diverse effects with three premium fluid options
Simple, one-touch fluid priming

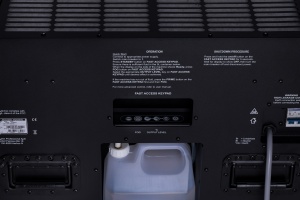

5 l internal fluid reservoir provides an hour of continual consistent low-fog output

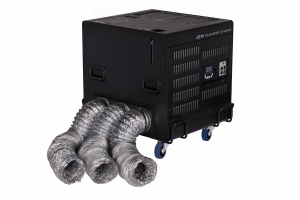

(Optional Accessory) JEM Glaciator Dynamic Ducting Kit for 3-way low-fog diversion

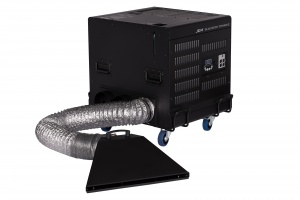

(Optional Accessory) JEM Glaciator Dynamic Fog Blade for creative output points and waterfall-like low-fog effects

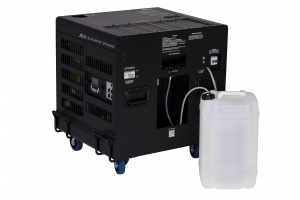

(Optional Accessory) JEM External Fluid Reservoir—25 l low-fog fluid reservoir for hours of uninterrupted use

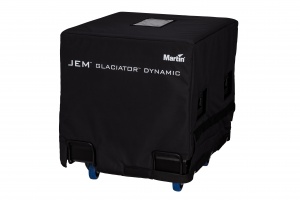

(Optional Accessory) Softcover—custom made of reinforced ballistic nylon protects the machine in transit
PHYSICAL
|
Length: | 785 mm (30.91 in.) |
|
Width: | 648 mm (25.52 in.) |
|
Height: | 769 mm (30.29 in.) |
|
Height without castors: | 636 mm (25.06 in.) |
|
Weight, dry: | 124 kg (274 lb.) |
|
Weight, filled: | |
129 kg (285 lb.)
PERFORMANCE
|
Coverage volume: | 80 m3 (2825 ft3) minute |
|
Fluid consumption, continuous maximum output: | 70 ml minute |
|
Ready time (minimum): | 5-minutes |
|
Ready time (optimal): | 7-minutes |
Continuous effect output
CONTROL AND PROGRAMMING
|
Control options: | Integrated digital remote control, fast access keypad, DMX/RDM, master/client |
|
Control parameters: | Continuous or timer-controlled output |
|
Low-Fog/Fan: | Proportionally controlled output, 0-100% |
|
DMX channels: | 1/2 |
|
Setting and addressing: | Control panel with backlit LCD display and 6-button user interface or via RDM |
|
DMX compliance: | ANSI E1.11 - USITT DMX512-A |
|
RDM compliance: | ANSI/ESTA E1.20 RDM |
CONSTRUCTION
|
Housing: | Steel |
|
Color: | Black |
|

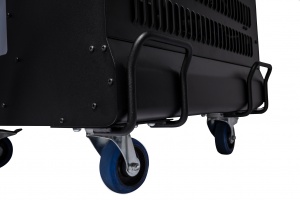

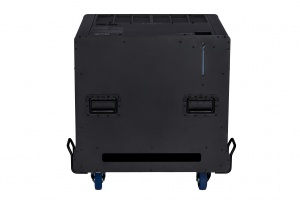

Portability: | Removable castors |
|
Protection rating: | IP20 |
|
Heat exchanger: | 2500 W, thermally protected |
|
Fluid pump, low-fog fluid: | Oscillating piston, high-pressure |
|
Fluid pump, waste condensate: | Peristaltic pump, low-pressure |
|
Fluid management, low-fog fluid: | Fluid out sensing, sealed for transportation |
|
Fluid management, waste condensate: | Visual sight gauge, LED illuminated reservoir |
|

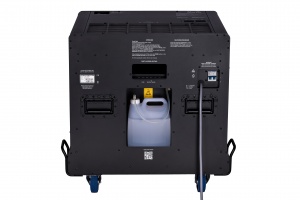

Fluid reservoir, low-fog fluid: | 5 l drop-in reservoir w/ quick connect fitting or external source |
|

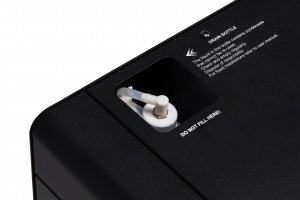

Fluid reservoir, waste condensate: | 0.5 l drop in reservoir w/ quick connect fitting or external source |
|
Refrigeration: | Closed loop system, variable speed condenser fans, electronic expansion valve |
|
Refrigeration control: | PWM electronic control |
|
Remote Control: | Integrated digital remote with 5 m (16.4 ft.) cable, 3-pin XLR |
|
Remote Control Cable Length (max.): | 25 m (82 ft.) |
|
Optional Ducting Kit: | Black, steel, triple ducting adaptor with 3x 5 m (16.4 ft.) 150 mm (6 in.) OD flexible ducting hoses and includes 3x stainless steel duct clamps, worm drive, hex screw |
|
Optional Fog Blade: | Black, steel, 150 mm (6 in.) outlet, includes 1x stainless steel duct clamp, worm drive, hex screw |
|
Optional External Fluid Kit: | 25 l sealed fluid reservoir, 1.5 m (4.9 ft.) 8 mm OD, 6 mm ID, silicone tubing, pipetta fitting |
|
Optional Softcover: | Black, heavy duty PVC external, brushed nylon padding interior, hook and loop fastener system, 5 in. x 8 in. transparent PAL transit pocket |
INSTALLATION
|
Location: | Dry location only |
|
Orientation: | Horizontal Only |
|
Clearance around machine: | 60 cm (24 in.) |
|
Ducting: | Optional, max length 10 m (32.8 ft.) |
CONNECTIONS
|
AC Power: | Hardwired flexible mains cable, 3 x 4.0 mm2 (6 AWG), 3.3 m (10.8 ft.) |
|
DMX/RDM in/out: | 3- and 5-pin locking XLR |
|
Remote control: | 3-pin locking XLR |
|
Firmware: | AVR socket |
|
Fluid inlet, low-fog fluid: | Brass barbed hose tail, 6 mm |
|
Fluid outlet, waste: | Brass barbed hose tail, 6 mm |
ELECTRICAL
|
AC power: | 208 - 250 V single phase, 50/60 Hz |
|
Typical power consumption, standby: | 10 W |
|
Typical power consumption, maximum: | 3500 W |
|
Integrated resettable circuit breaker: | 25 A, 240 V max., 50/60 Hz |
|
Power supply unit: | Auto-ranging electronic switch-mode |
|
Half-cycle RMS inrush current at 230 V, 50 Hz: | 20 A |
TYPICAL POWER AND CURRENT
|
208 V, 60 Hz: | 3350 W, 17.8 A, PF 0.96* |
|
220 V, 50 Hz: | 3350 W, 16.9 A, PF 0.96* |
|
230 V, 50 Hz: | 3350 W, 15.6 A, PF 0.96* |
|
240 V, 50 Hz: | 3350 W, 15.2 A, PF 0.96* |
*Figures are typical, not maximum. Measurements made at nominal voltage, allow for a deviation of +/- 10%. PF = Power Factor.
THERMAL
|
Cooling: | Forced air, low noise |
|
Maximum ambient temperature (Ta max.): | 35° C (95° F) |
|
Minimum ambient temperature (Ta min.): | 5° C (41° F) |
|
Exterior surface temperature, steady state: | 30° C (86° F) |
|
Total heat dissipation, idle (calculated, +/- 10%): | 2241 BTU/hr. |
|
Total heat dissipation, full load (calculated, +/- 10%): | 11430 BTU/hr |
ACOUSTIC
|
Noise level average, maximum low-fog output: | 62.76 dBa |
|
Noise level average, standby: | 40.47 dBa |
APPROVALS
|
EU safety: | EN 60 335-1 |
|
EU EMC: | EN 61000-6-3, EN 62233 |
|
EU immunity: | EN 61000-6-1+A1 |
|
Australia/NZ: | RCM (pending) |
|
United Kingdom: | UKCA |
INCLUDED ITEMS
|
Fluid reservoir, 5 l: | P/N 34300506 |
|
Fluid reservoir 0.5 l: | P/N 34300515 |
|
JEM Glaciator Digital Remote Control: | P/N 55765055 |
ACCESSORIES
|
JEM Glaciator Dynamic, Ducting Kit: | P/N 92625020 |
|
JEM Glaciator Dynamic, Fog Blade: | P/N 92625025 |
|
JEM Glaciator Dynamic, Softcover: | P/N 92625030 |
|
JEM External Fluid Reservoir Kit, 25 l: | P/N 92620035 |
|
Approved fluids*: | |
JEM™ Low-Fog Fluid, Quick Dissipating
JEM™ Low-Fog Fluid
JEM™ Low-Fog Fluid, High Density
Martin® Pro-Clean and Storage Fluid
Various sizes available - contact your dealer or see 'Fluids' product pages for details
|
Service Tools: | |
|
Epsilon 5 AVR Programmer: | P/N 50502004 |
|
Temperature Calibration Box: | P/N 92620005 |
ORDERING INFORMATION
|
JEM™ Glaciator™ Dynamic: | P/N 92210525 |
