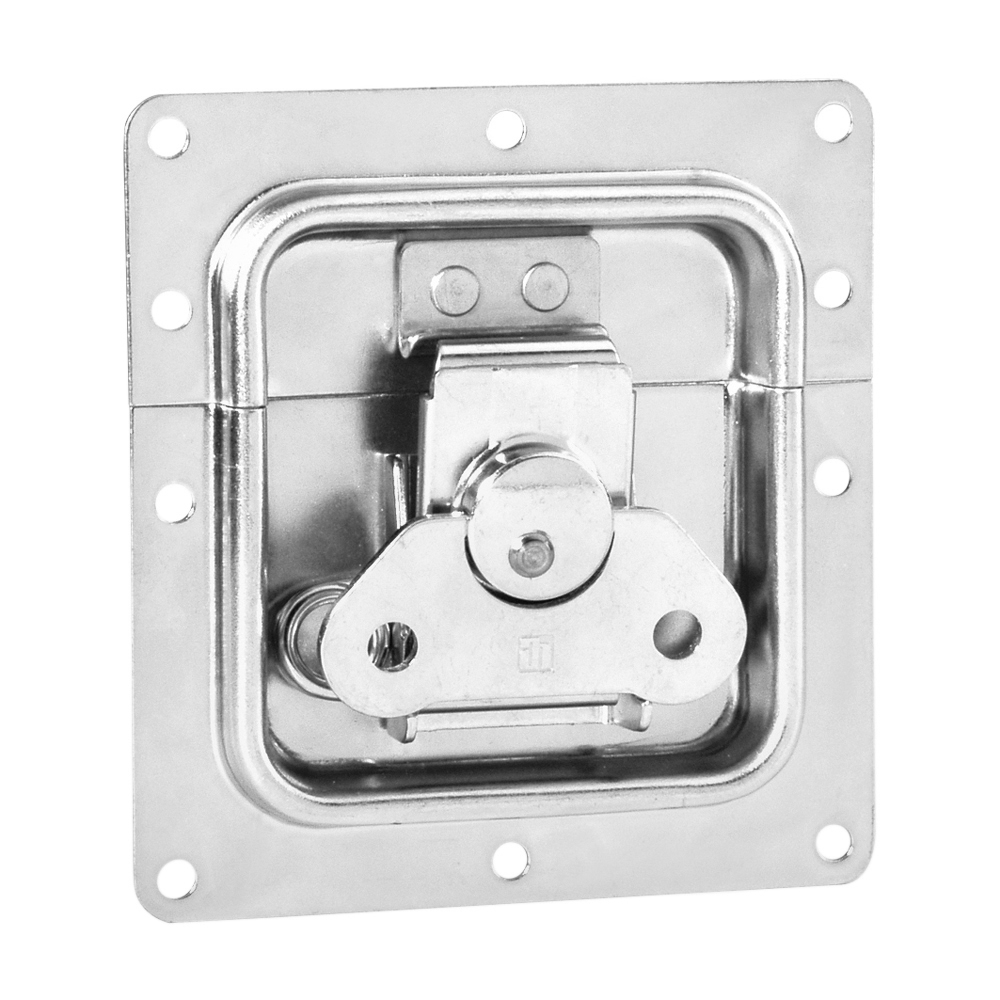

The butterfly is only 7 mm deep so that it does not protrude into the case. The mechanism, which therefore protrudes further, is protected from damage by a circumferential edge.
The closing mechanism of the butterfly is equipped with a counter pressure spring to be automatically guided out at its opening position of approx. 30º. If additional requirements arise, the closing hook can also be moved further out.
| Product type: Catches
| Type: Butterfly Latches
| Material: Steel
| Surface: galvanized
| Mounting hole diameter: 5.1 mm
| Lockable: with padlock eye
| Dish type: non-cranked
| Dish size: medium
| Dish depth: 7 mm
| Rivet protection design: No
| With push-out spring: Yes
| Push-flat function: No
| Weight: 0,255 kg
| Additional information: with protective edge
