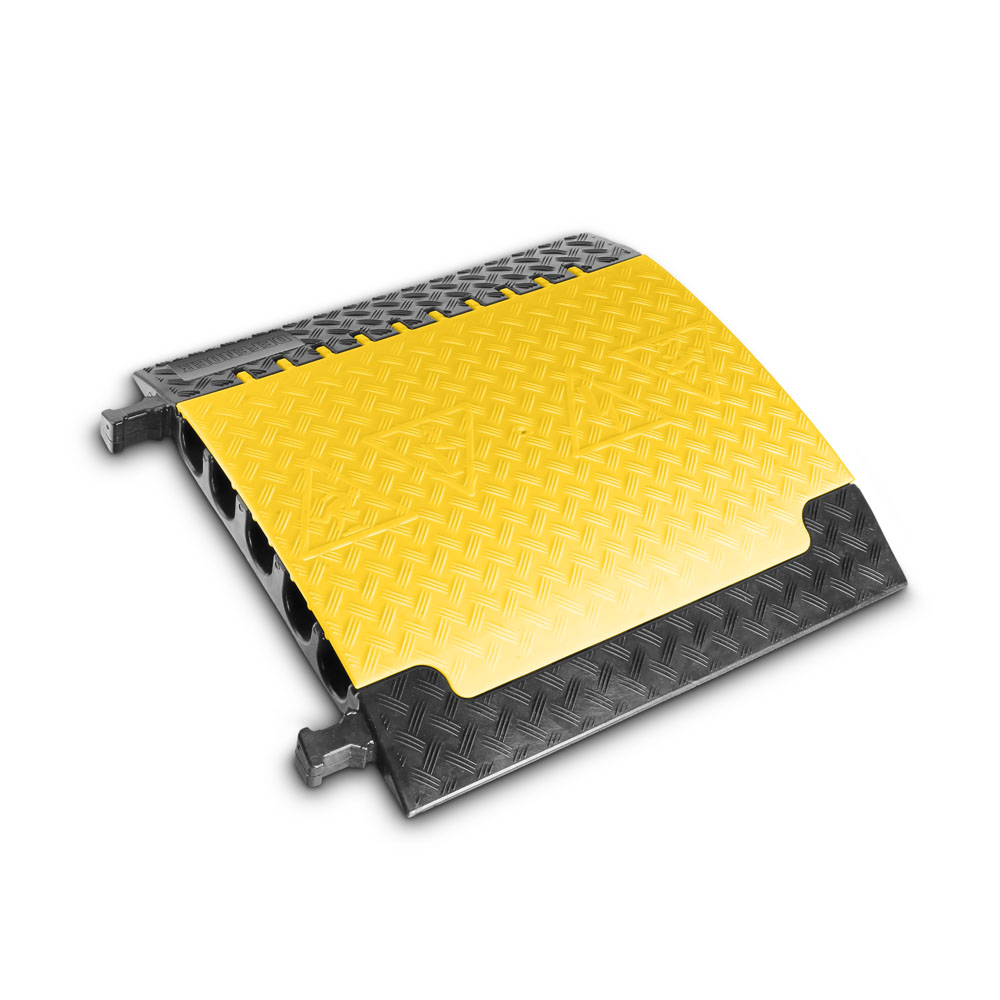

Defender XXL LUX - Káblový chránič 5-kanálový LUX (85500LUX)
• Vysoko odolný káblový chránič vyrobený z čierneho recyklovateľného polyuretánu
• So zabudovanými rukoväťami na prenášanie pre náročné aplikácie

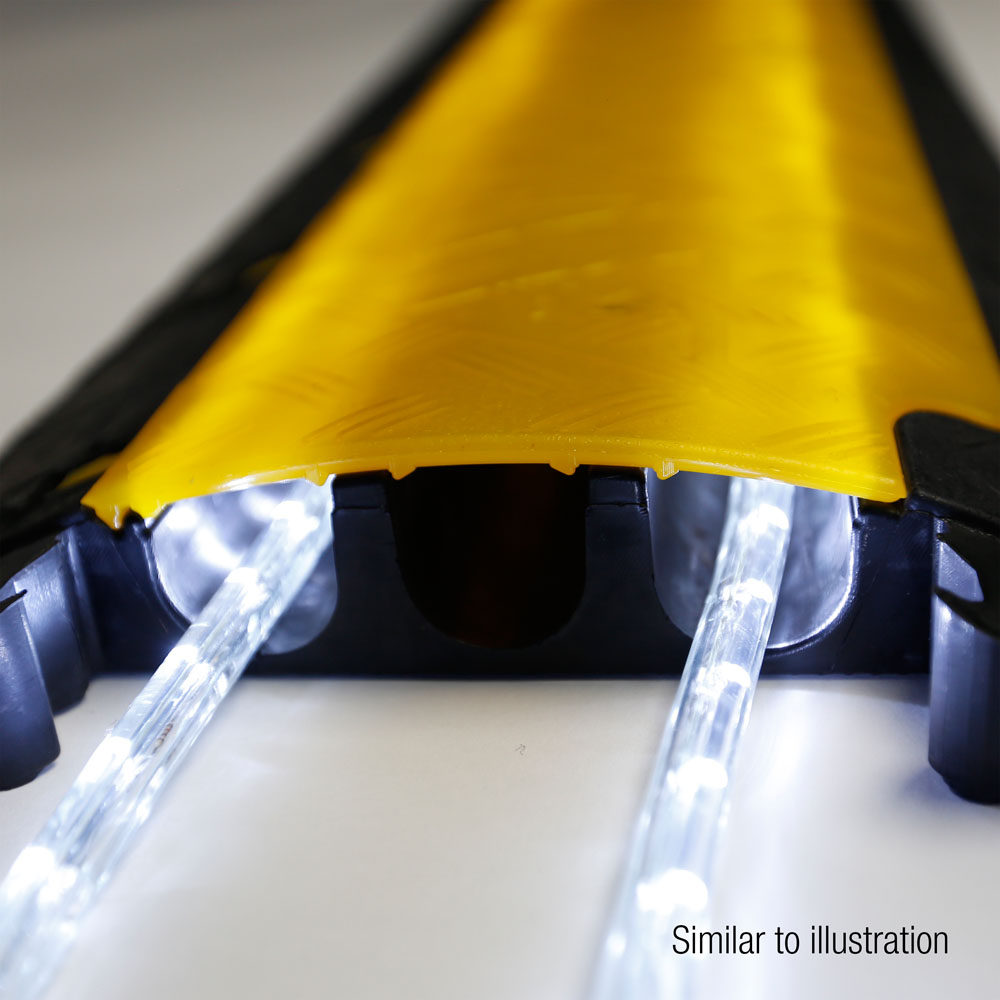

• Vysoko priehľadný žltý tónovaný vrch na použitie v tme so svetlými trubicami
• Protišmykové žlté polyuretánové veko s vysokým výstražným účinkom a bezpečným zatváraním

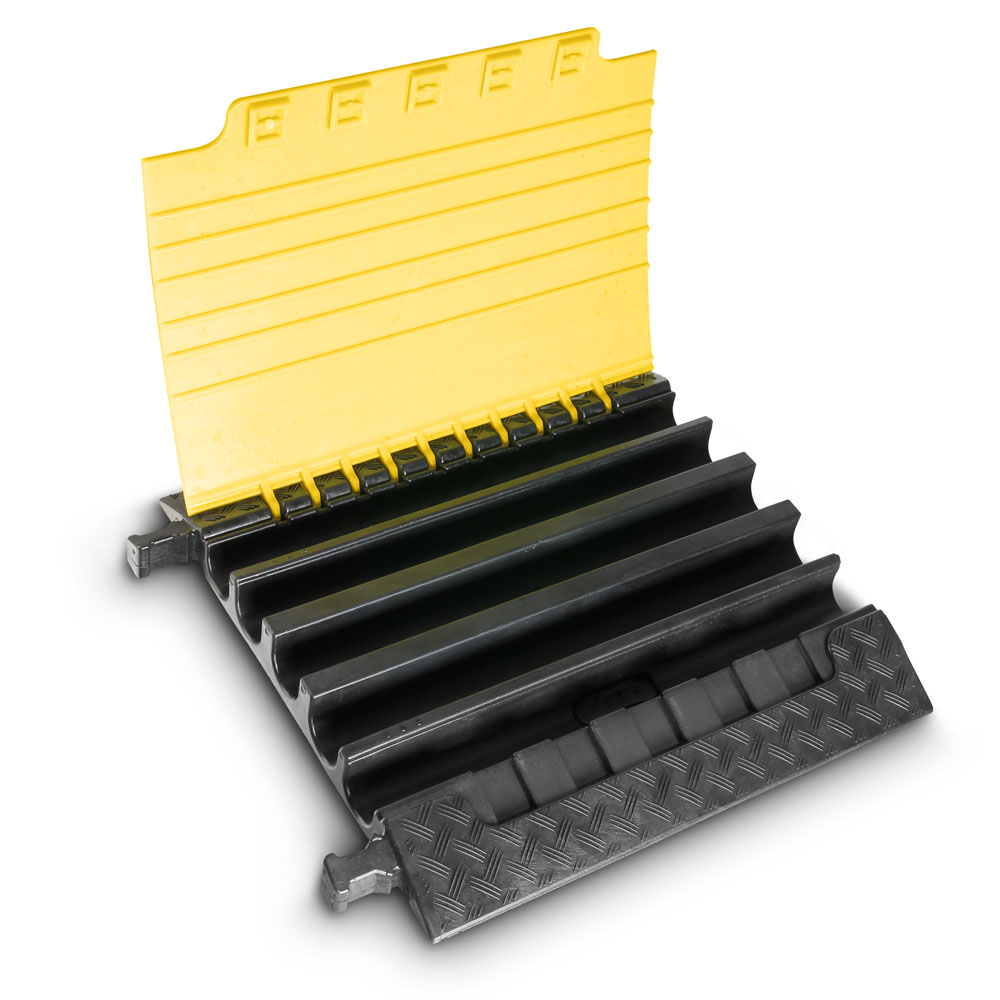

• Patentovaný, samočistiaci pánt veka
• 5 kanálov: 1 kanál 60 x 63 mm, 2 kanály každý 61 x 59 mm a 62 x 65 mm
• Tri kanály vhodné pre hadicové C-spojky
• Nosnosť cca. 5 t / 20 x 20 cm
• Trieda požiarnej odolnosti B2 (DIN 4102), certifikácia DEKRA (DIN 31000, EN 61537)
• Odolný voči olejom, kyselinám, benzínu a krátkodobému kontaktu s rozpúšťadlami
• Rozmery 70 x 69,6 x 8,7 cm
• Hmotnosť 21,4 kg

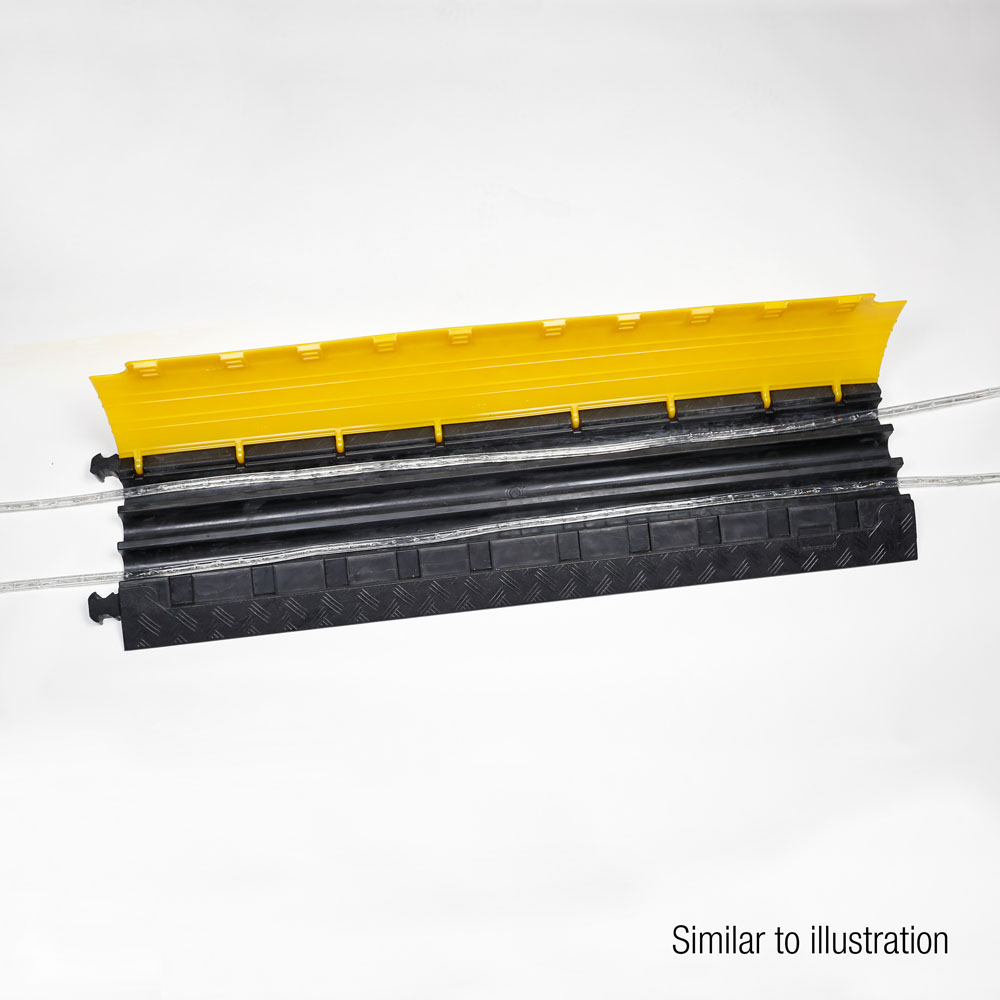

• Spoľahlivá ochrana káblov, hadíc a personálu pre vnútorné a vonkajšie použitie
• Koncové rampy na bezpečné zasunutie a vybratie kábla a hadice ako príslušenstvo

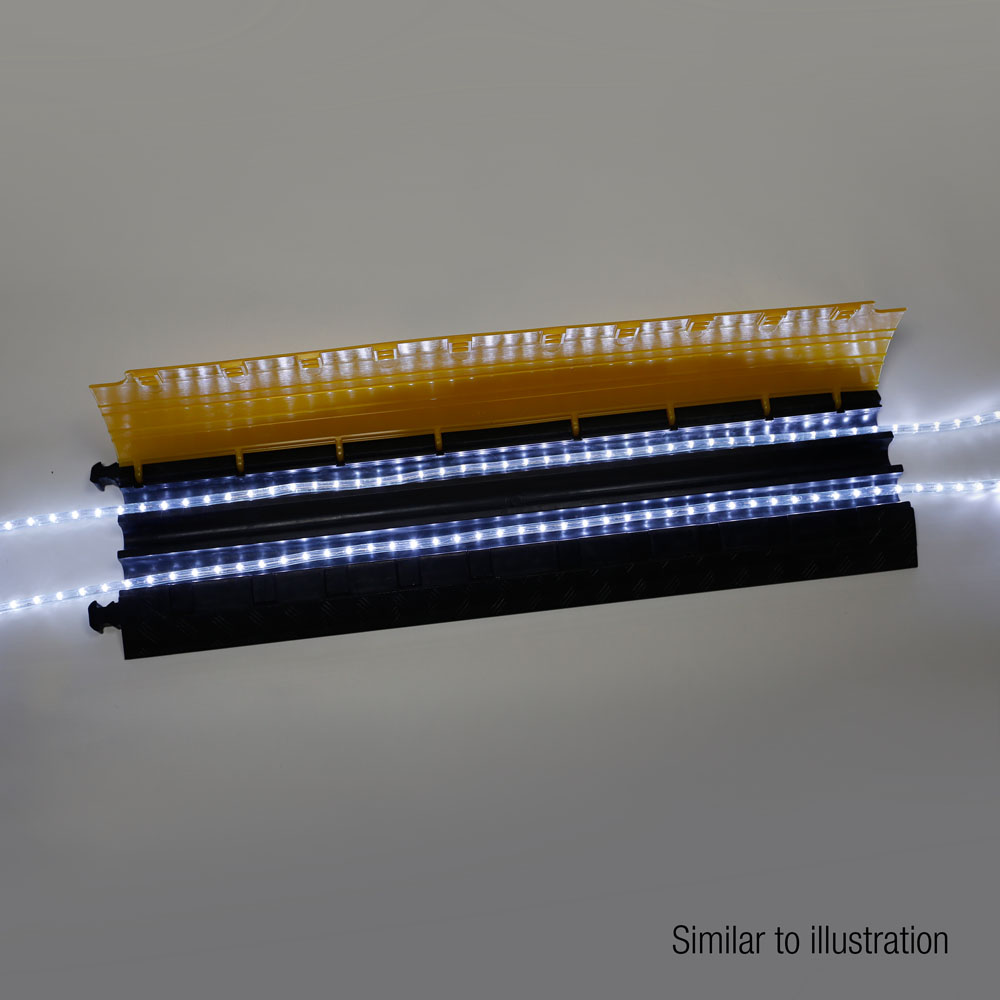

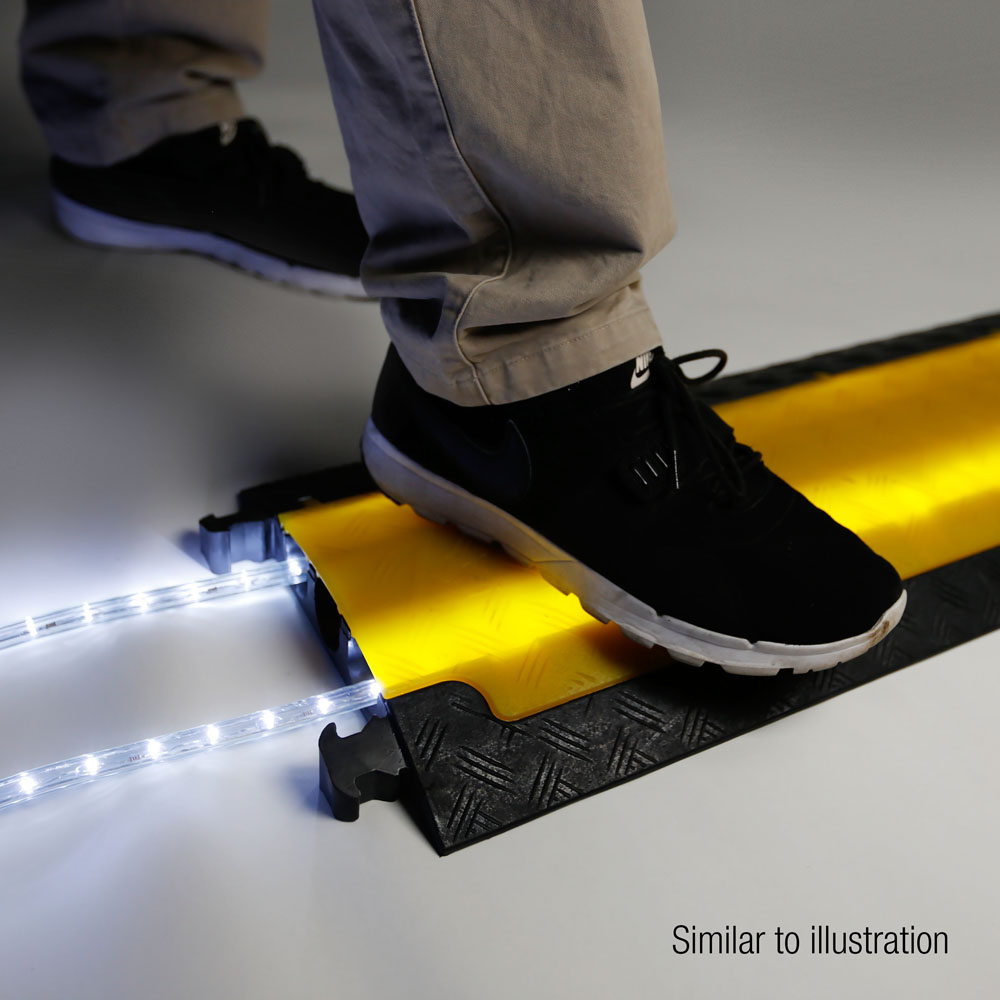

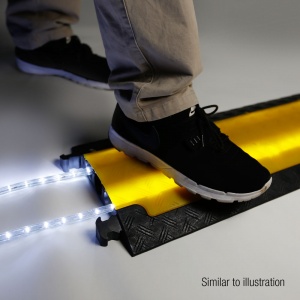

The ultimate solution for protecting your cables and for preventing people from tripping. The innova...tive cable crossovers from the Defender LUX Series have highly transparent, yellow-tinted lids, where LED light tubes can be inserted parallel to cables and other pipes. Defender LUX cable crossovers have been developed in collaboration with event organisers and operators of large halls and festival venues according to the latest state-of-the-art technology and also ensure the highest possible level of safety and visibility in the dark, both indoors and outdoors. LED light tubes from the Defender Series are available as separate accessories. For more information, please refer to our price list for Defender LUX cable crossovers and light tubes, or contact your Defender representative directly.Cable Crossover 5 ChannelsDefender® XXL Heavy-Duty crossovers have been developed for extremely high loads and offer 5 large cable/hose channels, three of them for fire-C-hoses (only up to 62 mm diameter - no couplings) and power cables. Integrated connector plugs enable a quick, easy connection of individual elements to build a stable cable crossover line. The separately available end ramps ensure safe insertion and removal of cables. With its capacity of 5 tonnes on an area of 20 x 20 cm, Defender XXL cable crossovers are the ideal solution for heavy vehicle traffic, construction sites, warehouses and trade shows as well as Carnival and music events. Integrated handles for optimum handling. Integrated handles for optimum handling.Defender LUX cable crossovers can be used with commercially available light tubes. Light tubes with a so-called neon effect are especially recommended since the individual LEDs are less visible and this provides for particularly homogeneous lighting. For outdoor use, please mind the appropriate IP classification of the light tube. The use of LED strips and other unidirectional light-emitting products or fairy lights is not recommended.Label your cable crossovers! Customize the Defender cable crossovers with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.
VIAC
Heavy-duty cable protector made of black, recyclable polyurethane with built-in carrying handles for demanding applicationsHighly transparent yellow-tinted lid for use in the dark with light tubesNon-slip, yellow polyurethane lid with high warning effect and secure closurePatented, self-cleaning lid hinge5 channels: 1 channel 60 x 63 mm, 2 channels each 61 x 59 mm and 62 x 65 mmThree channels suitable for C-hose couplingsLoad bearing capacity approx. 5 t / 20 x 20 cmFire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)Resistant to oil, acid, petrol and short-term contact with solventsDimensions 70 x 69.6 x 8.7 cm; Weight 21.4 kgReliable protection for cables, hoses, and personnel for indoor and outdoor useEnd ramps for secure cable and hose insertion and removal as accessories
Product type: Cable Protectors
Type: 5 Channels
Length: 700 mm
Height: 87 mm
Width: 696 mm
Channels: 5
Width channel 1: 61 mm
Height channel 1: 59 mm
Width channel 2: 62 mm
Height channel 2: 65 mm
Width channel 3: 60 mm
Height channel 3: 63 mm
Width channel 4: 62 mm
Height channel 4: 65 mm
Width channel 5: 61 mm
Height channel 5: 59 mm
Material: Polyurethane
Max load: approx. 5t on a surface area of 20 x 20 cm
Chemical resistance: Acid-resistant, Oil-resistant , Petrol-resistant, Short-term contact with solvents
Fire protection class: B2
Temperature range: -30°C to 60°C °C
Weight: 20,8 kg
Special feature: DEKRA-certified
