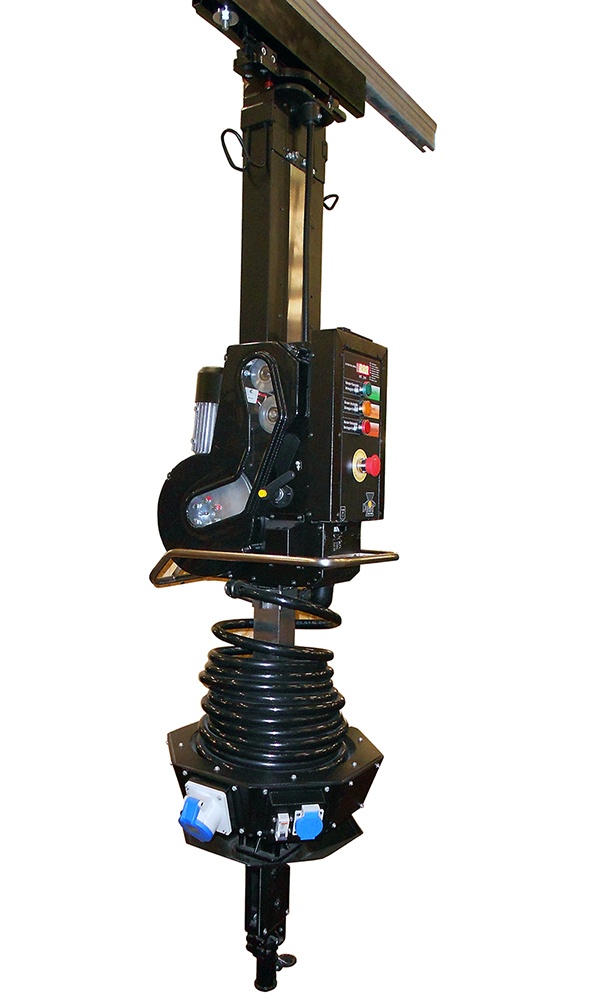

The De Sisti TELESCOPE is a single point suspension specifically designed to provide rigidity and stabilization of all moving parts.
It can extend up to 35’ (10.5 meters) and it incorporates two primary elements, being: the suspension element and the trolley for either rail or top grid mounting.

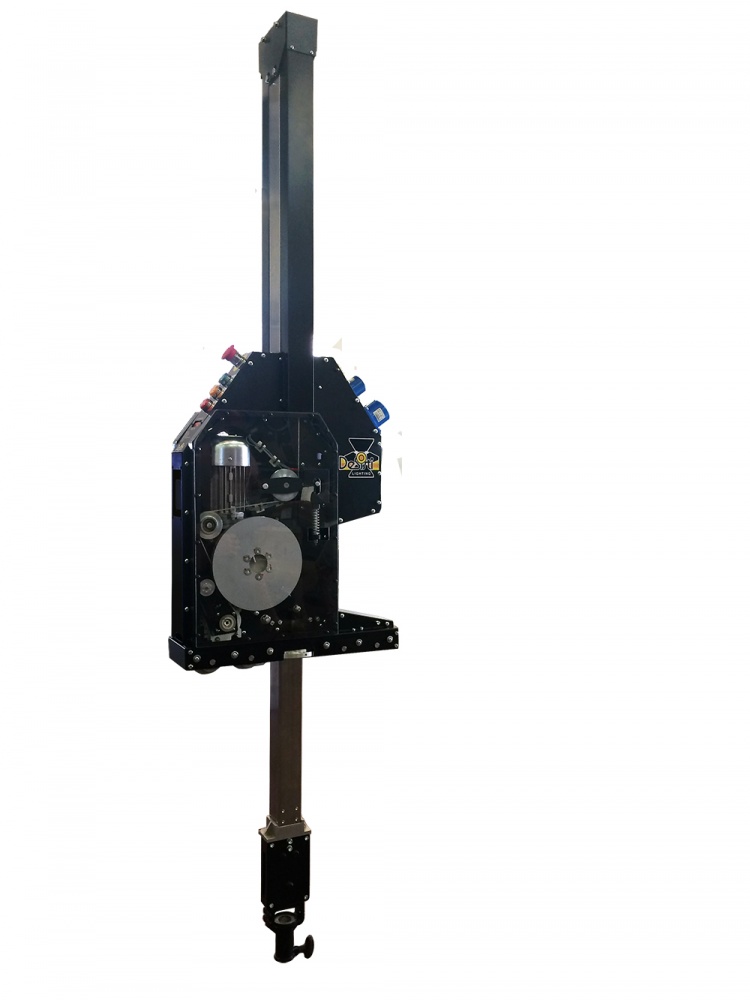

The suspension element remains basically the same irrespective of the final overall configuration of the telescope. It is made up from the tube pack and the winch unit.
The tube pack is a series of STAINLESS STEEL square section tubes which telescope together for changes of length with, at the bottom end, a standard 1⅛ ”(28.57 mm) B.S or DIN socket for luminaries attachment, and lift cables which run internally through the pack and over pulleys fitted at the top to the winch.
The winch unit is design to be completely self-sustaining, with the lift cables winding onto a pile type twin cable drum. The winch unit and tube pack are held in relationship by side plates which, in addition to serving as a mounting base for electrical terminal, plug-in electronic boards or control boxes, are designed with a top quick action mounting either to different kind of trolleys or to mounting accessories for fixed location.
• 75 kg. NET LIFTING CAPACITY (S.W.L.) special versions are available on request for higher load capacity
• MOTORIZED DYNAMICALLY SELF SUSTAINING GEAR BOX
• 2 INDEPENDENT LIFTING ROPES WITH COMPENSATOR DEVICE
• TOP AND BOTTOM LIMITS WITH DOUBLE EXTRA EMERGENCY SWITCHES
• STAINLESS STEEL TUBE PACK WITH STABILIZING BOTTOM DEVICE
• NET EXTENSION UP TO 10,5 m. FOR 13,5 m. MAX SUPPORTS HEIGTH
• ELECTRICAL CONFIGURATION OF BOTTOM BOX ON REQUEST
• CHOICE OF BOTTOM B.S. OR DIN SOCKETS
Hanging Versions:
• MANUAL OR MOTORIZED TROLLEY FOR SPECIAL PROFILE
• MANUAL OR MOTORIZED TROLLEY FOR D RAIL OR IPE 80
• MANUAL OR MOTORIZED TROLLEY FOR IPN 120 – 140 – 160
• SPECIAL COUPLING CLAMPS ARRAY FOR TRUSS MOUNTING
• C CLAMP FOR PIPE MOUNTING
Top Grid Versions:
• TOP GRID TROLLEY FOR GRID SLOTS FROM 70 TO 60 mm.
• CHOICE OF MANUAL OR MOTORIZED TROLLEY
• PEDAL ACTIVATED LIFT AND ROTATING MECHANISM (for transfer slots)
