• SAFETY: The SPIDER complies with all safety standards set forth by the Internationally recognized testing authorities, is approved by TÜV to the German Standards DIN 15560 part 46, and by UL laboratories. These standards are directly associated with the safety of suspensions systems mounted above an assembly of people.

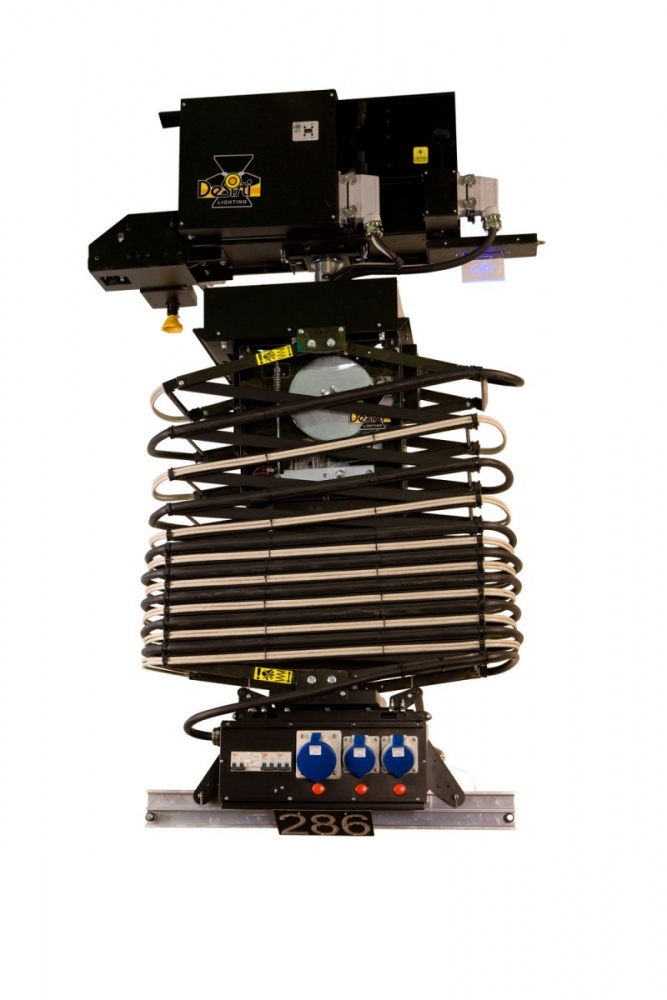

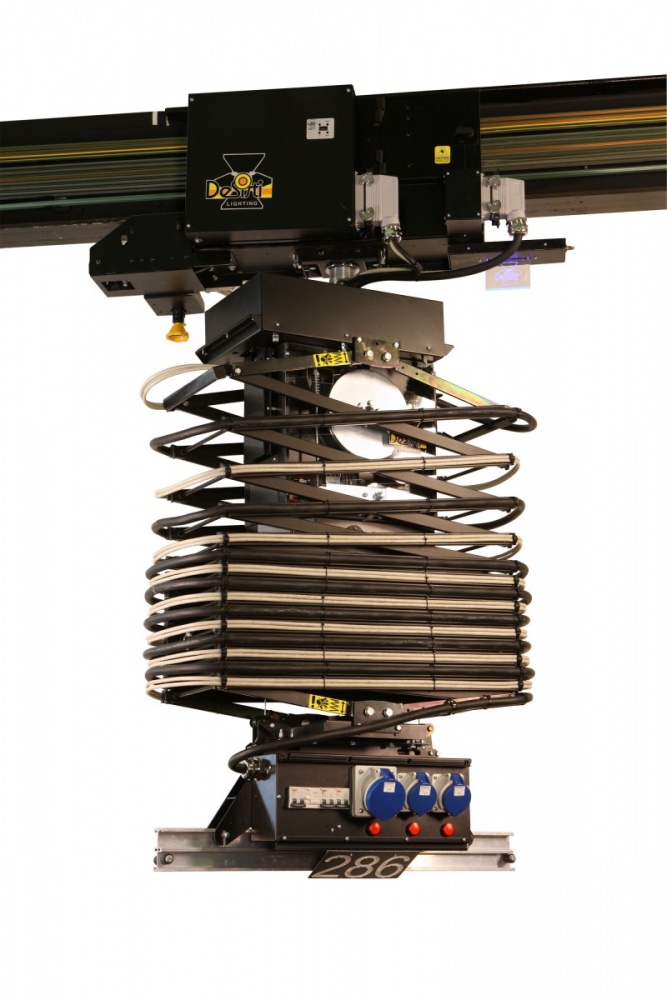

• FLEXIBILITY: The SPIDER is made up from a double scissor arms structure and a winch unit that recess within it to obtain very compact closed dimensions of the whole machine, and consequently occuping very small studio height. A Patented mechanisms, provide a stabilization of the moving part, to optimize the use of the SPIDER with Moving Lights, Cameras or unbalanced loads. The SPIDER is factory pre-configured for different extensions, up to 30’.
• MECHANICAL: The SPIDER can be specified for up to 30’ net extension and can carry loads up to 132 lbs (60 kg) SWL (Safe Working Load). The top part includes a flange to fit either trolleies or clamps for grid mounting. The bottom part can be either a standard 1 ⅛” spigot receiver, a 6 ó’ cross pipe or rail, or a special bracket with adjustable PAN and TILT for VIDEO PROJECTORS; CAMERAS or SPEAKERS.
• ELECTRICAL: The SPIDER can carry a maximum of 4 separate 20A circuits and DMX. In case of special application it can be equipped, on request, with most standard data cables available in the market (Audio, Video, Ethernet). The Monoblock motorized winch unit houses a 400 W motor 3 Phase 208 volt. It is available an option to fit an INVERTER at the input of the
SPIDER and obtain a soft start and soft stop on the vertical movement (ideal when the suspension is used as a VIDEO CAMERA support).
• OPTIONAL FEATURES The De Sisti SPIDER offers several unique optional features:
1. Memorized Positioning Control, memorizes and recalls the position of each SPIDER and records the information into a preset
2. DMX Up/Down and Positioning Control via a standard lighting control board or any DMX control system
