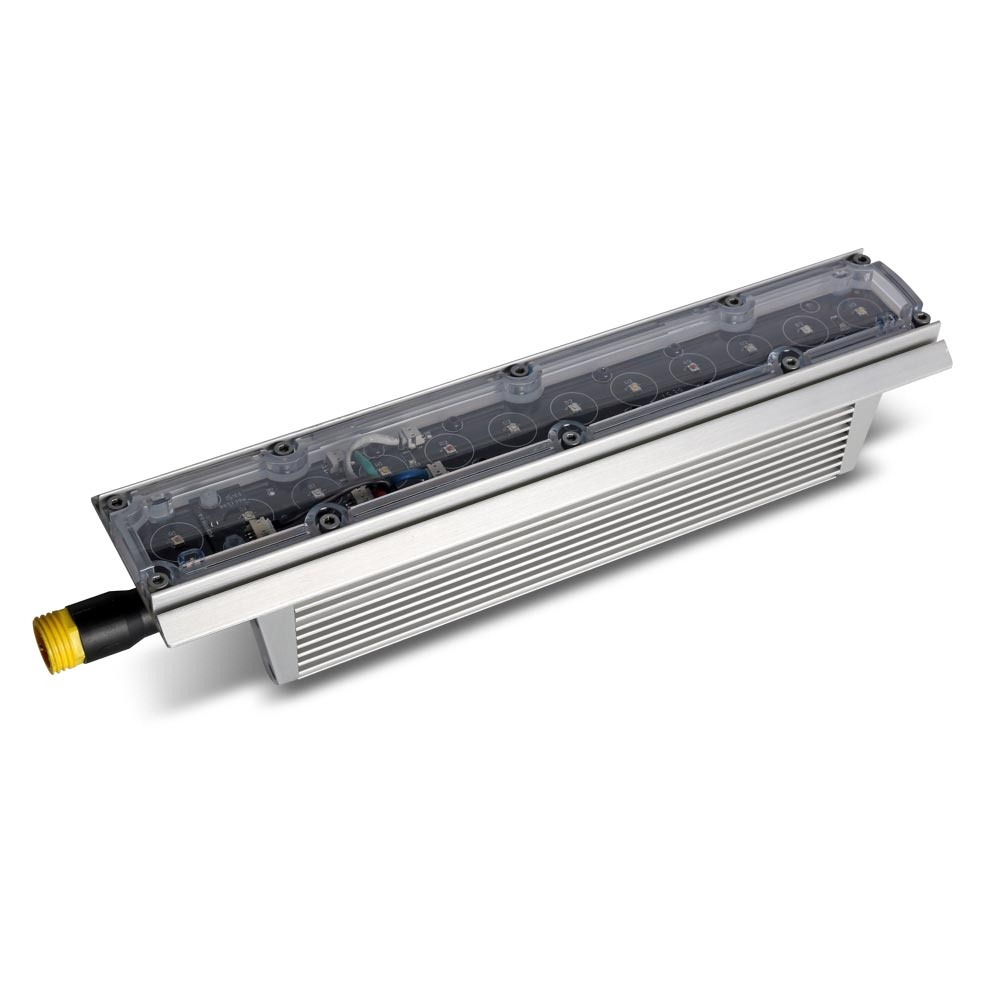

The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.

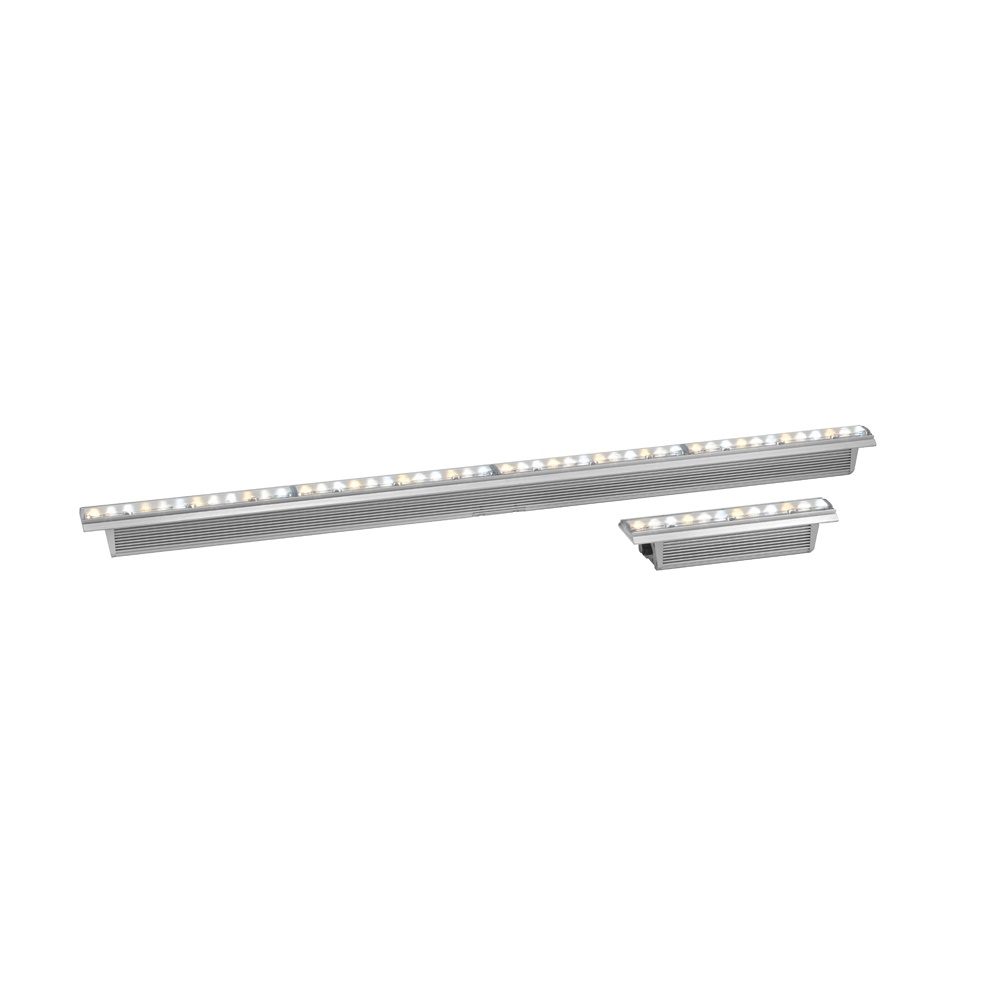

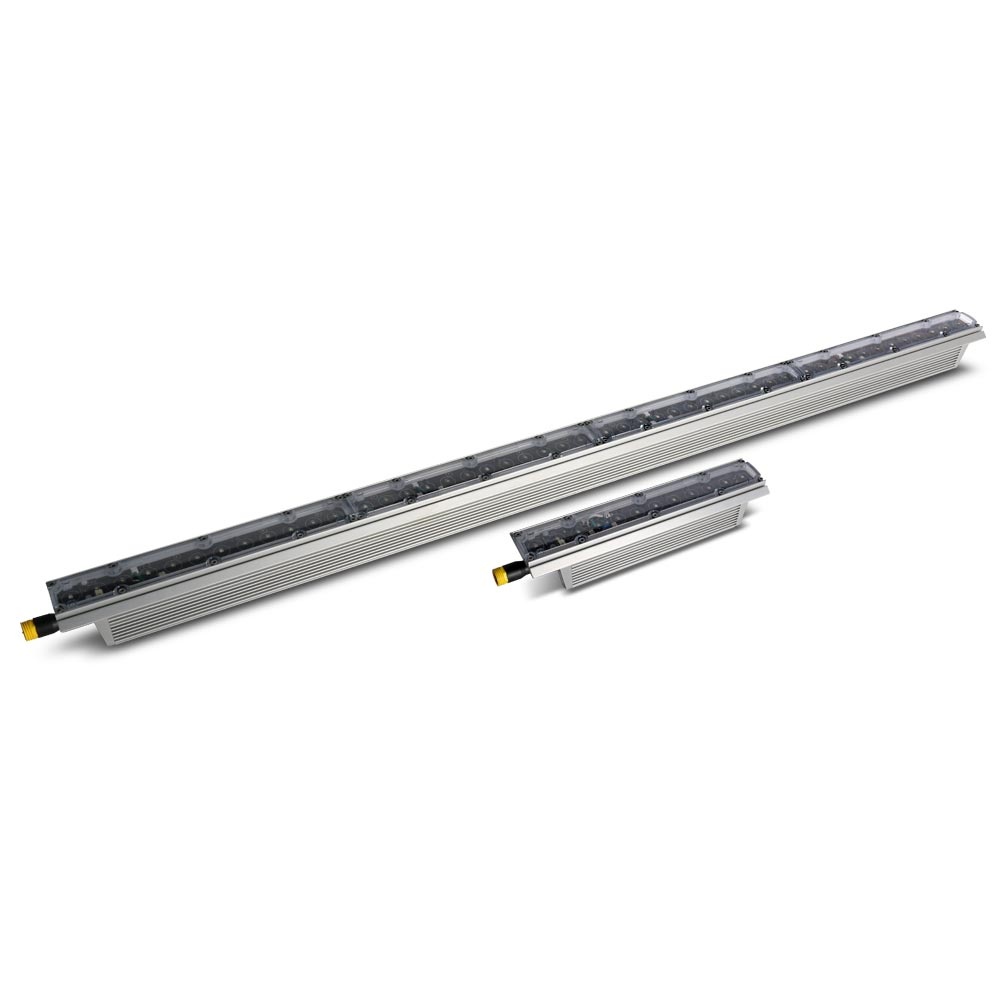

Exterior™ Linear 1220 Cove CTC and Exterior™ Linear 320 Cove CTC feature precise color temperature control from 2700K to 6500K and a uniform light distribution at a beam angle of 120°, suitable for a wide range of indirect lighting applications such as cove lighting in ceilings, decorative wall lighting and other structures.
The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.
FEATURES
Wide spread and uniform dynamic white.
Very low power consumption (max 20 W/ft).
No extra control boxes required – connects directly to line voltage and DMX.
Internal power and control (DMX, RDM and magnetic tool).
Super rugged IP66 housing.
0–100% intensity control.
PHYSICAL
|
320 series (1 ft.) fixtures: | |
|
Length: | 305 mm (12.0 in.) |
|
Width: | 72 mm (2.8 in.) |
|
Height: | 95 mm (3.8 in.) including bracket |
|
Weight: | 1.6 kg (3.6 lbs.) |
|

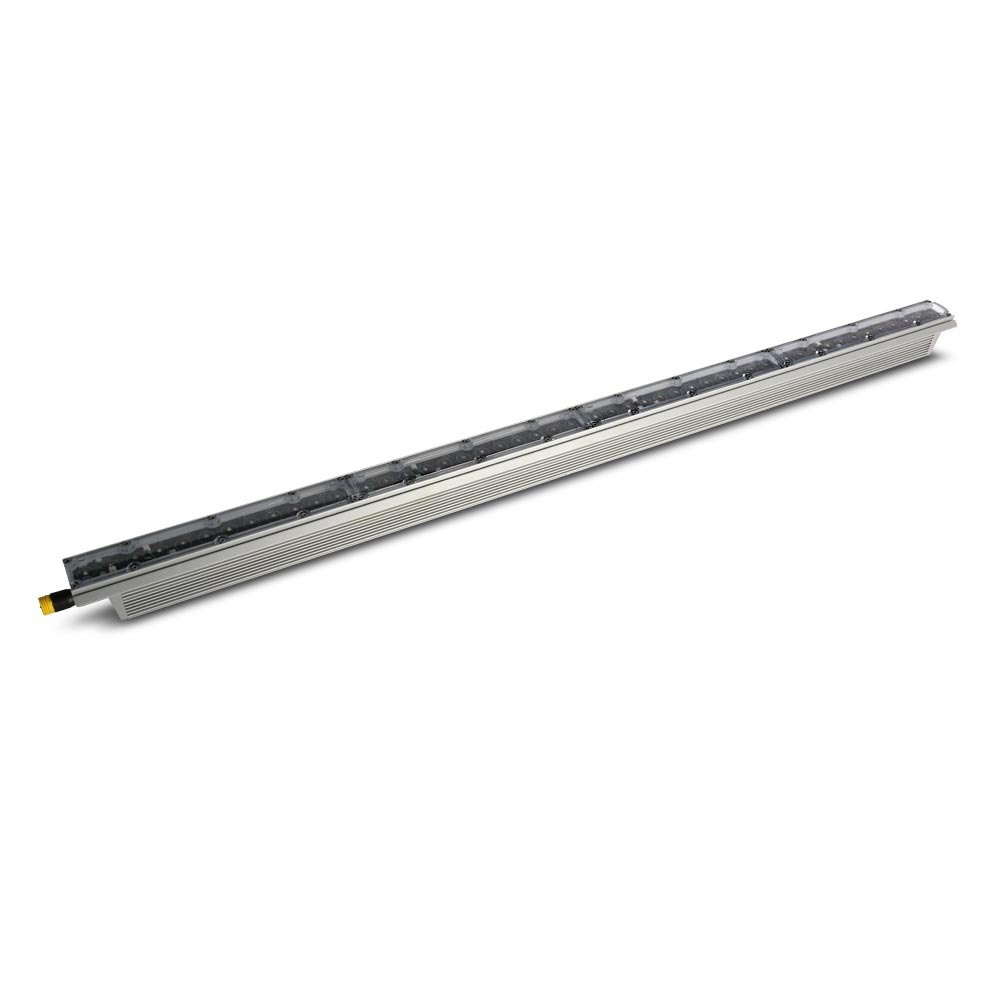

1220 series (4 ft.) fixtures: | |
|
Length: | 1219 mm (48.0 in.) |
|
Width: | 72 mm (2.8 in.) |
|
Height: | 95 mm (3.8 in.) including bracket |
|
Weight: | 6.4 kg (14.2 lbs.) |
DYNAMIC EFFECTS
|
Color temperature control: | 2700 K - 6500 K |
|
Intensity: | 0 - 100% |
CONTROL AND PROGRAMMING
|
Control systems: | DMX, RDM |
|
Control resolution: | 8-bit DMX control of each color |
|
User interface: | Magnetic button to call up fixture status and test fixture |
|
DMX compliance: | USITT DMX512/1990 RDM |
|
RDM compliance: | ANSI/ESTA E1.20 |
OPTICS
|
Light source: | 3 W Cree XP-E2 LEDs |
|
Minimum LED lifetime: | 50,000 hours (to >70% luminous output)* |
|
Beam angle: | 120° |
|
Binning: | Tight color and flux binning |
*Figure obtained under test conditions
PHOTOMETRIC DATA
|
Exterior Linear 320 series Cove: | |
|
Total luminous output: | 846 lumens |
|
Warm white output: | 299 lumens |
|
Cold white output: | 491 lumens |
|
Exterior Linear 1220 series Cove: | |
|
Total luminous output: | 3384 lumens |
|
Warm white output: | 1196 lumens |
|
Cold white output: | 1964 lumens |
* All Photometric Data measured in steady state (30 minutes warm-up time) at
25°C ambient.
CONSTRUCTION
|
Housing: | Aluminum |
|
Front: | Clear polycarbonate |
|
Protection rating: | IP66 |
|
IK rating: | IK08 |
|
Corrosion resistance: | C5-M (very high corrosivity / marine, ISO 12944) |
|
Vibration resistance: | 1.0g, Sinusoidal (IEC 60068-2-6) |
0,7g RMS Random (IEC 60068-2-64)
RoHS compliant
INSTALLATION
|
Orientation: | Any |
|
Minimum distance to illuminated surfaces: | 0.1 m (0.3 ft.) |
CONNECTIONS
|
Power/data in/thru: | 8-pin custom connectors |
ELECTRICAL
|
AC power: | 100 -277 V nominal, 50/60 Hz |
|
Maximum total length of fixtures in chain at 120 V: | 15.24 meters (50 ft.) |
|
Maximum total length of fixtures in chain at 240 V: | 30.48 m (100 ft.) |
|
Typical half-cycle RMS inrush current: | 0.3 A, 1220 models 0.7 A |
|
Power supply unit: | Auto-ranging electronic switch-mode |
|
Surge protection: | 4 KV |
|
Typical earth-leakage current: | 4ft fixture | 0,50 mA, 1ft fixture | 0,15 mA |
Consult local regulations to determine maximum fixture runs
TYPICAL POWER AND CURRENT
|
100-240 V, 50/60 Hz: | 20 W per foot +/- 1 W, PF 0.95 +/- 0.05 |
|
277 V, 50/60 Hz: | 20 W per foot +/- 1 W, PF 0.90 +/- 0.05 |
Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
THERMAL
|
Cooling: | Convection |
|
Maximum ambient temperature (Ta max.): | 45° C (113° F) |
|
Minimum ambient temperature (Ta min.): | -30° C (-22° F) |
|
Total heat dissipation (calculated, +/- 10%): | 70 BTU/hr. per foot |
ENVIRONMENTAL
|
RoHS: | Compliant |
|
REACH: | Compliant |
|
WEEE: | Compliant |
|
Proposition 65: | Compliant |
|
Efficacy (max output): | 42 lm/W |
|
LWR*: | 564 lm/kg (235 lm/lb) |
*LWR = Lumen-to-Weight Ratio
APPROVALS
|
Global CB Certification/IECEE: | IEC 60598-2-5 (IEC 60598-1) |
|
EU safety: | EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493 |
|
EU EMC: | EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3 |
|
US safety: | ANSI/UL 1598 |
|
US EMC: | 47 CFR Part 15 Class B |
|
Canadian safety: | CSA C22.2 No. 250.0 |
|
Australia/NZ: | RCM |
|
India: | BIS |
RELATED ITEMS
|
Martin Companion Cable: | P/N 91616091 |
Martin Companion Software Suite (including firmware uploader)
ACCESSORIES
|
Magnetic Test Tool, set of 10: | P/N 91610139 |
|
Cables: | |
|
Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: | P/N 91611754 |
|
Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: | P/N 91611755 |
|
Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: | P/N 91611156 |
|
Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: | P/N 91611157 |
|
Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: | P/N 91611758 |
|
Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: | P/N 91611759 |
|
Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: | P/N 91611760 |
|
Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: | P/N 91611761 |
|
Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: | P/N 91611762 |
|
Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: | P/N 91611763 |
|
Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: | P/N 91611764 |
|
Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: | P/N 91611765 |
|
End Termination Cap for power + data link: | P/N 91611766 |
|
Optical: | |
|
Exterior Linear 300 Series Glare Shield, set of 4: | P/N 91611752 |
|
Exterior Linear 1200 Series Glare Shield, set of 4: | P/N 91611753 |
ORDERING INFORMATION
|
Exterior Linear 320 CTC Cove: | P/N 90356977 |
|
Exterior Linear 1220 CTC Cove: | P/N 90356978 |
