Martin Exterior Linear Quad Cove

Exterior™ Linears sú séria LED farbu meniacich svetiel v robustnom outdoorovom obale. Dodávajú vysoký výkon a sú dostupné v cove a graze variantách.

Exterior™ Linear 1210 Graze QUAD a Exterior™ Linear 310 Graze QUAD používajú štvor-farebné LED pre nadpriemerné miešanie farieb priamo na šošovke a aby sme sa vyhli viac farebným tieňom.

Majú nadštnadardné miešanie farieb a rovnomernú distribúciu svetla pri uhle lúča ideálnom pre mnoho nepriamich svetelných aplikácií. Exterior Linear svetlá sú DMX ovládateľné, ľahké na inštaláciu vďaka integrovanému univerzálnemu zdroju a dajú sa reťaziť pomocou kombinovaného energetického a dátového konektora.

Na objednávku

04323312

1,50

Hmotnosť

CENA:

na dopyt

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

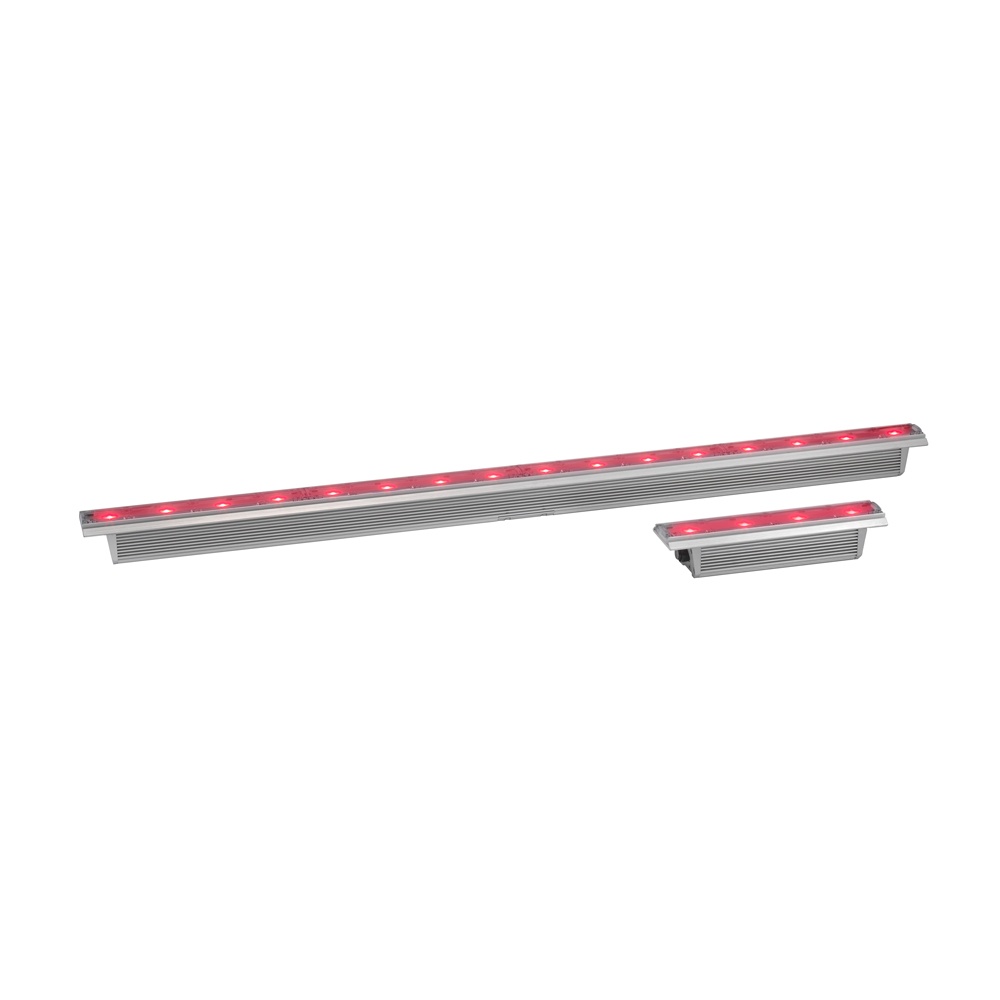

The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.

Exterior™ Linear 1210 Cove QUAD and Exterior™ Linear 310 Cove QUAD use quad-color LEDs for superior color mixing directly at the lens and to avoid multi-colored shadows.

They feature superb color mixing and a uniform light distribution at a beam angle suitable for a wide range of indirect lighting applications such as cove lighting in ceilings, decorative wall lighting and other structures. The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.

FEATURES
Wide spread and premixed color mixing out
Very low power consumption (max 20 W/ft)
No extra control boxes required – connects directly to line voltage and DMX
Internal power and control (DMX, RDM and magnetic tool)
Super rugged IP66 housing
0–100% intensity control

PHYSICAL

310 series (1 ft.) fixtures:
Length:	305 mm (12.0 in.)
Width:	72 mm (2.8 in.)
Height:	95 mm (3.8 in.) including bracket
Weight:	1.5 kg (3.4 lbs.)

1210 series (4 ft.) fixtures:
Length:	1219 mm (48.0 in.)
Width:	72 mm (2.8 in.)
Height:	95 mm (3.8 in.) including bracket
Weight:	6.0 kg (13.3 lbs.)

DYNAMIC EFFECTS

Color mixing:	RGBW
Intensity:	0 - 100%

CONTROL AND PROGRAMMING

Control systems:	DMX, RDM
Control resolution:	8-bit DMX control of each color
User interface:	Magnetic button to call up fixture status and test fixture
DMX compliance:	USITT DMX512/1990 RDM
RDM compliance:	ANSI/ESTA E1.20

OPTICS

Light source:	Quad-color OSRAM Ostar
Minimum LED lifetime:	50,000 hours (to >70% luminous output)*
Beam angle:	105°
LED spacing:	4 LEDs per 300 mm (4 LEDs per foot)
Binning:	Tight color and flux binning

*Figure obtained under manufacturer's test conditions

PHOTOMETRIC DATA

Exterior Linear 310 QUAD Cove:
Total luminous output:	793 lumens
Red output:	196 lumens
Green output:	490 lumens
Blue output:	115 lumens
White output:	690 lumens

Exterior Linear 1210 QUAD Cove:
Total luminous output:	3180 lumens
Red output:	783 lumens
Green output:	1955 lumens

lue output:	456 lumens
White output:	2760 lumens

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

CONSTRUCTION

Housing:	Aluminum
Front:	Clear polycarbonate with diffuser
Protection rating:	IP66
IK rating:	IK08
Corrosion resistance:	C5-M (very high corrosivity / marine, ISO 12944)
Vibration resistance:	1.0g, Sinusoidal (IEC 60068-2-6)

0,7g RMS Random (IEC 60068-2-64)
RoHS compliant

INSTALLATION

Orientation:	Any
Minimum distance to illuminated surfaces:	0.1 m (0.3 ft.)

CONNECTIONS

Power/data in/thru:

8-pin custom connectors

ELECTRICAL

AC power:	100-277 V nominal, 50/60 Hz
Maximum total length of fixtures in chain at 120 V:	15.24 meters (50 ft.)*
Maximum total length of fixtures in chain at 240 V:	30.48 m (100 ft.)*
Typical half-cycle RMS inrush current:	0.3 A, 1210 QUAD models 0.7 A
Power supply unit:	Auto-ranging electronic switch-mode
Surge protection:	4 KV
Typical earth-leakage current:	4ft fixture	0,50 mA, 1ft fixture	0,15 mA

*Consult local regulations to determine maximum fixture runs

TYPICAL POWER AND CURRENT

100-240 V, 50/60 Hz:	20 W per foot +/- 1 W, PF 0.95 +/- 0.05
277 V, 50/60 Hz:	20 W per foot +/- 1 W, PF 0.90 +/- 0.05

Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.

THERMAL

Cooling:	Convection
Maximum ambient temperature (Ta max.):	45° C (113° F)
Minimum ambient temperature (Ta min.):	-30° C (-22° F)
Total heat dissipation (calculated, +/- 10%):	70 BTU/hr. per foot

ENVIRONMENTAL

RoHS:	Compliant
REACH:	Compliant
WEEE:	Compliant
Proposition 65:	Compliant
Efficacy (max output):	40 lm/W
LWR*:	529 lm/kg (233 lm/lb)

*LWR = Lumen-to-Weight Ratio

APPROVALS

Global CB Certification/IECEE:	IEC 60598-2-5 (IEC 60598-1)
EU safety:	EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493
EU EMC:	EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3
US safety:	ANSI/UL 1598
US EMC:	47 CFR Part 15 Class B
Canadian safety:	CSA C22.2 No. 250.0
Australia/NZ:	RCM
India:	BIS

RELATED ITEMS

Martin Companion Cable:

P/N 91616091

Martin Companion Software Suite (including firmware uploader)

ACCESSORIES

Magnetic Test Tool, set of 10:	P/N 91610139
Cables:
Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU:	P/N 91611754
Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US:	P/N 91611755
Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU:	P/N 91611156
Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US:	P/N 91611157
Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU:	P/N 91611758
Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US:	P/N 91611759
Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU:	P/N 91611760
Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US:	P/N 91611761
Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU:	P/N 91611762
Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US:	P/N 91611763
Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU:	P/N 91611764
Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US:	P/N 91611765
End Termination Cap for power + data link:	P/N 91611766

Optical:
Exterior Linear 300 Series Glare Shield, set of 4:	P/N 91611752
Exterior Linear 1200 Series Glare Shield, set of 4:	P/N 91611753
Exterior Linear 310/1210 QUAD Cove Louvre, set of 4:	P/N 91611852

ORDERING INFORMATION

Exterior Linear 310 Quad Cove:	P/N MAR-90356997
Exterior Linear 1210 Quad Cove:	P/N MAR-90356996
